Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties

sloution:

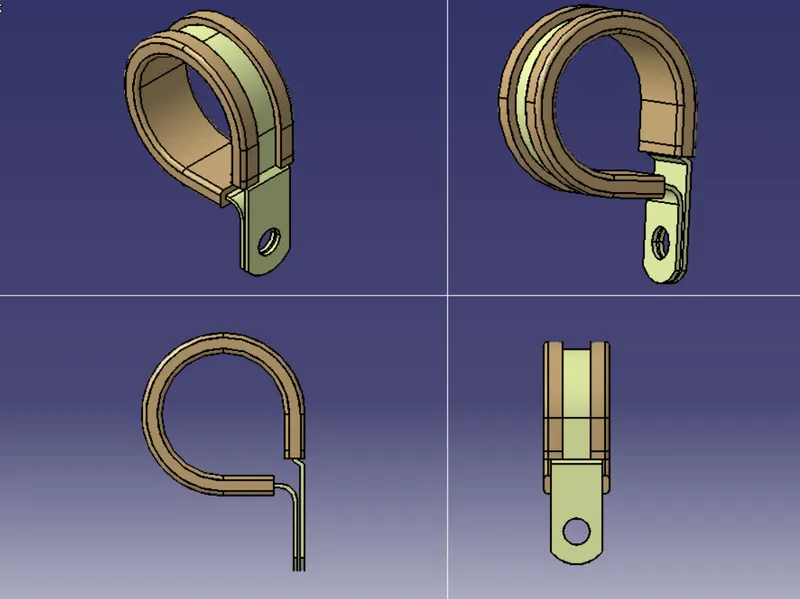

• Given data

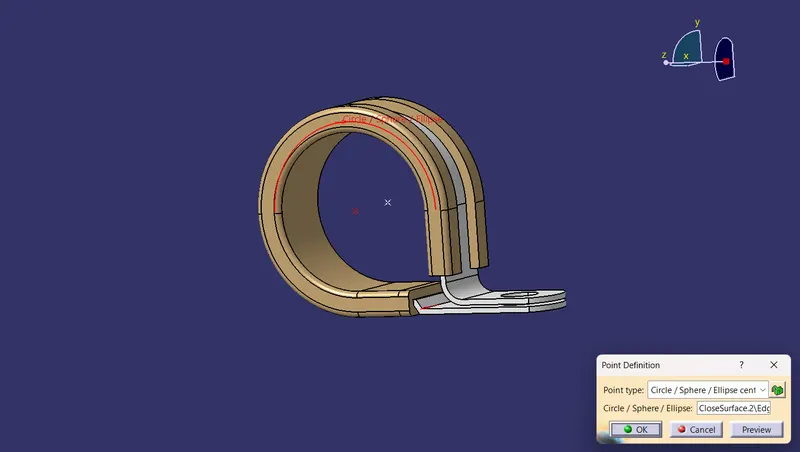

• Create two points one as entry and another as exit point

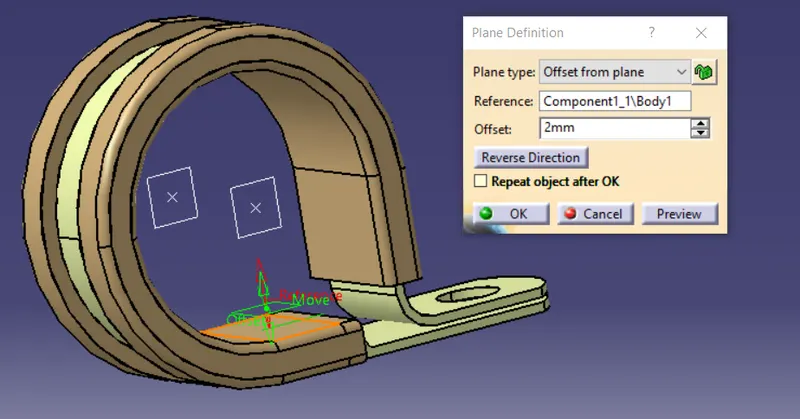

• create planes at two points and another at base

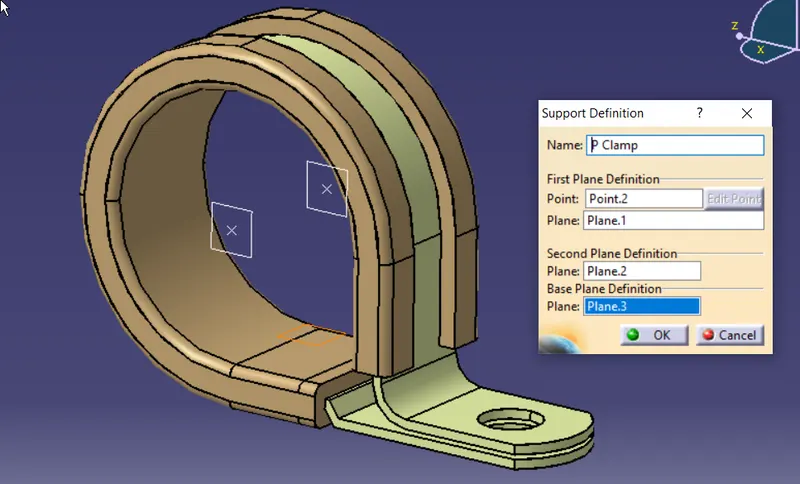

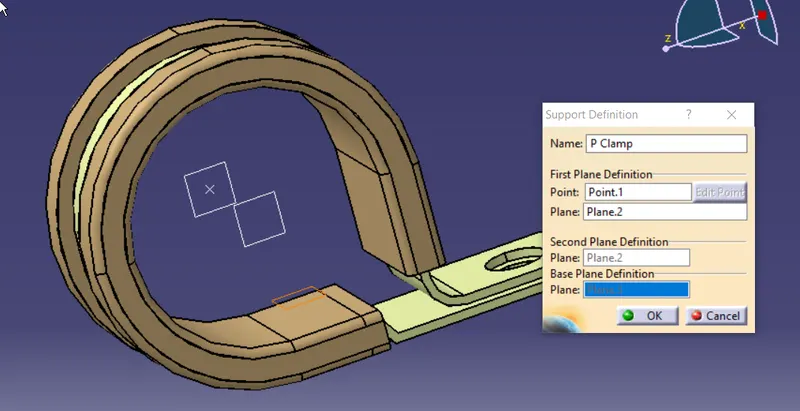

• click on support defination - select part - select entry point - select entry plane, exit and base plane.

• p clamp is bi directional so we need to define as support two times

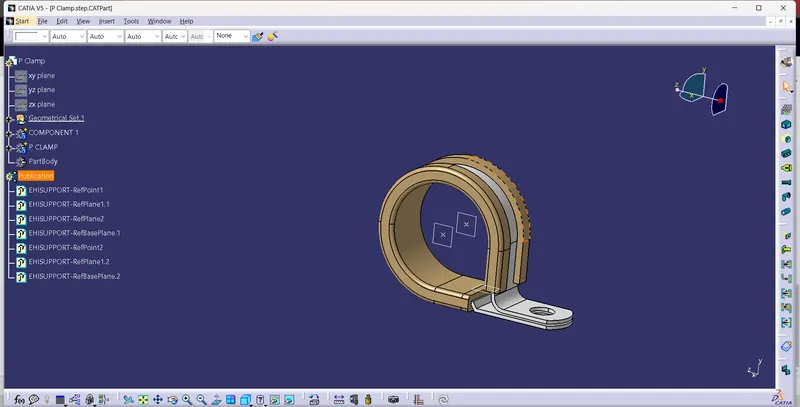

• tree structure

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Solution:

• Given data

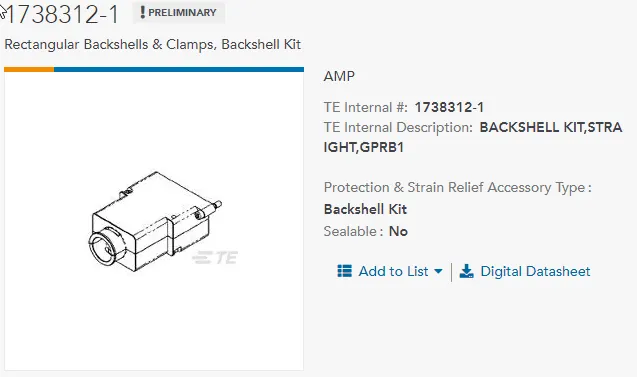

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

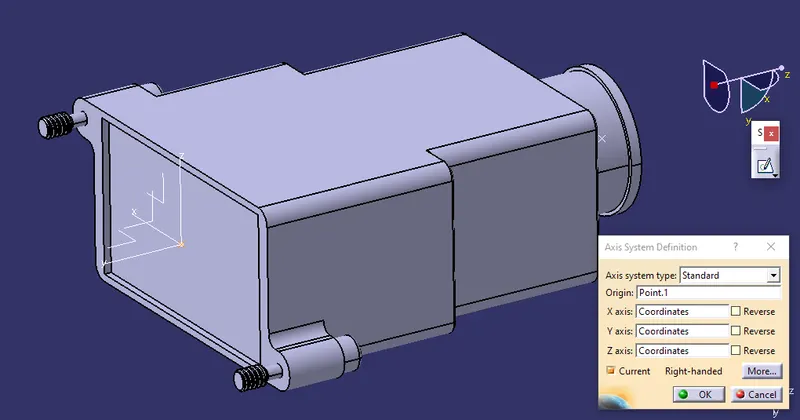

• create an backshell connection point and an also create an axis sysytem at that point.

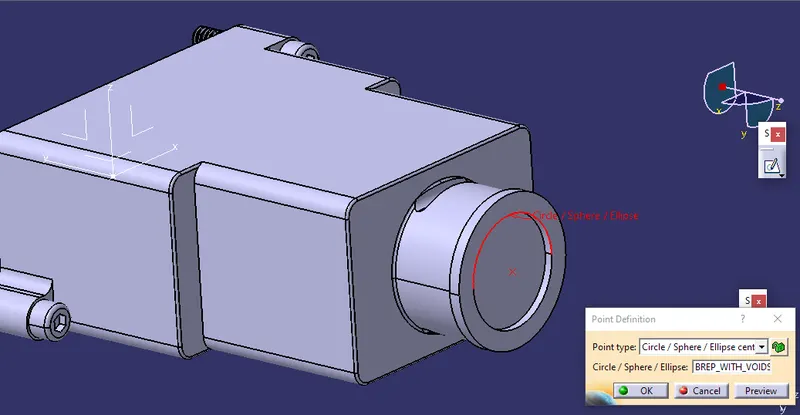

• create an bundle entry point

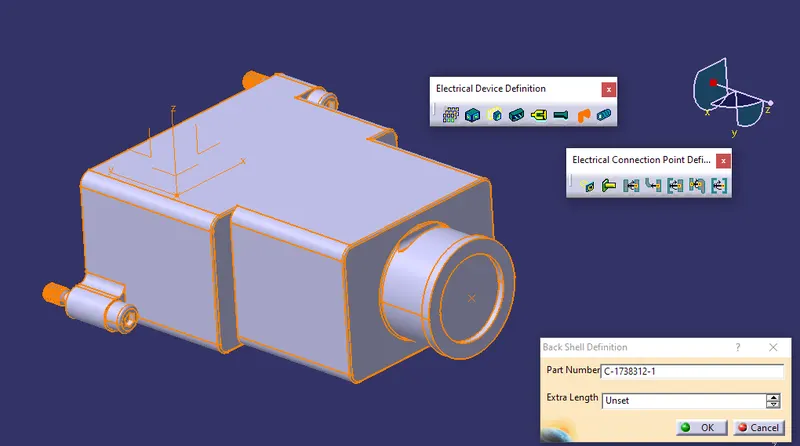

• switch to electrical part design and define component as backshell

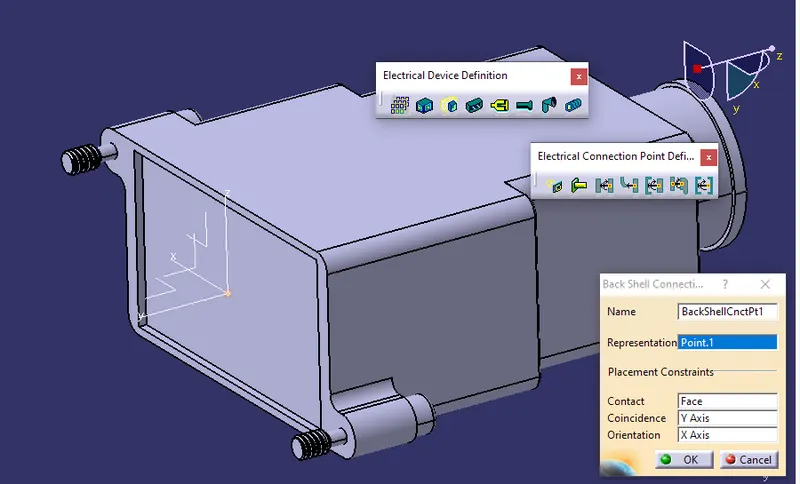

• define backshell connection point

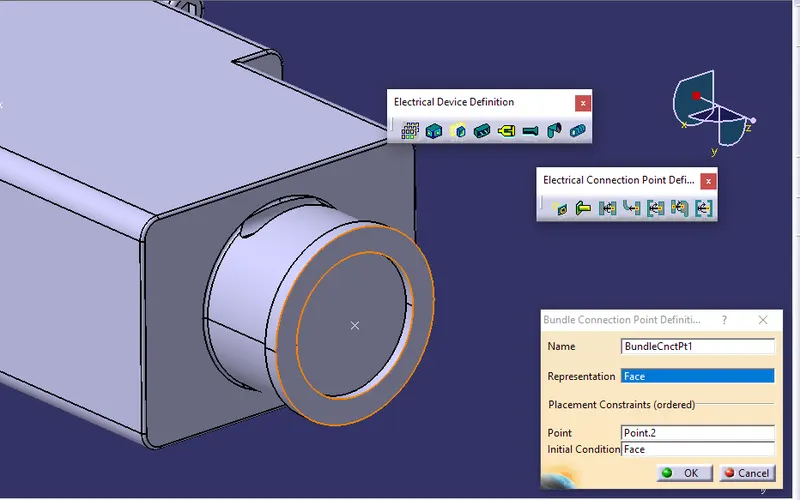

• define bundle connection point

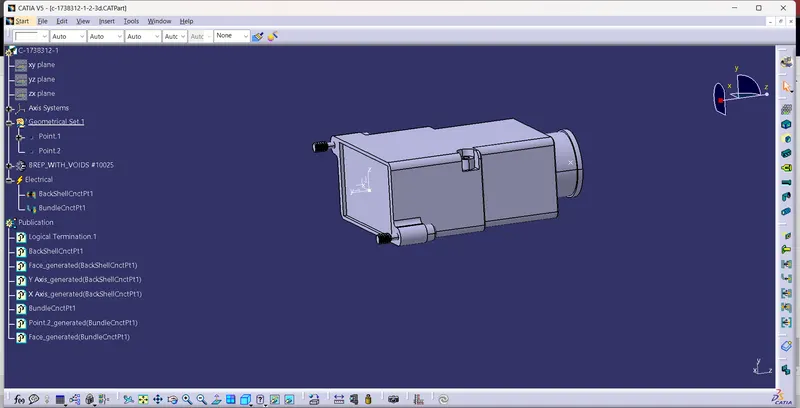

• tree structure

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

Solution:

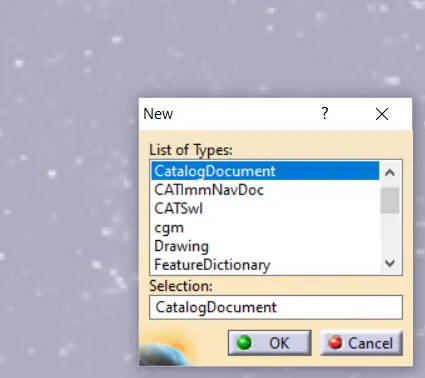

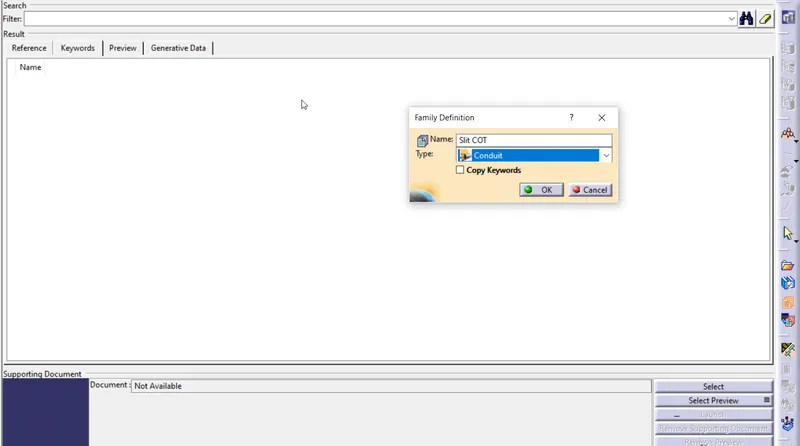

• Initially create catalog document

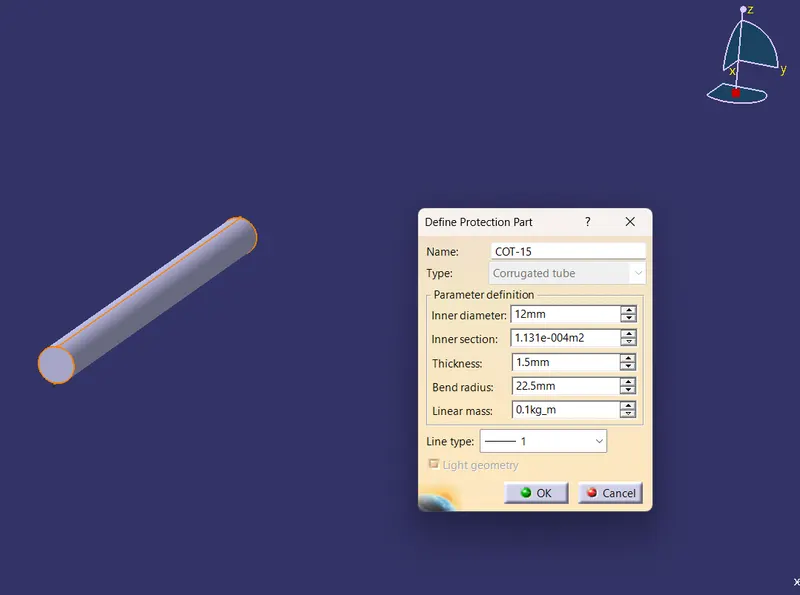

• 15MM COT

1. Switch to Electrical part design
2. Select Define protection Part
3. Click on part (on file name in specification tree)

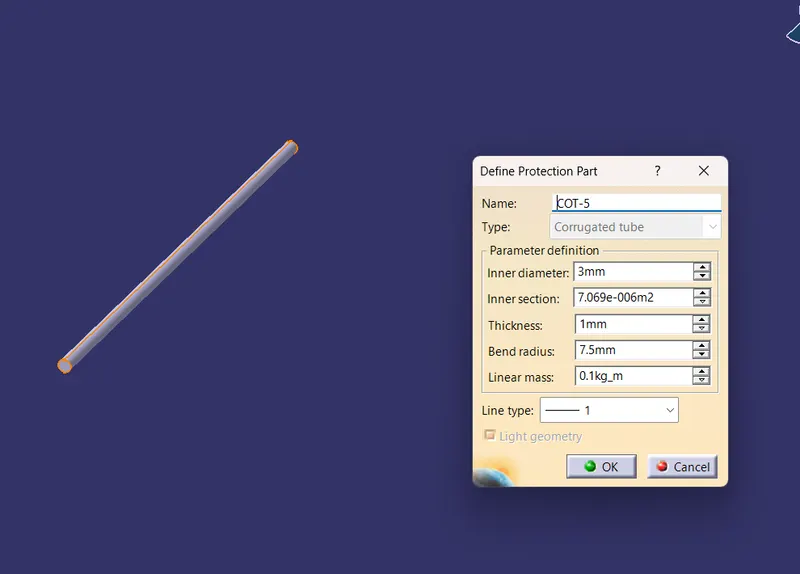

4. Provide given parameters and bend radius as '1.5 x Outer Dia'.

store in the catalog

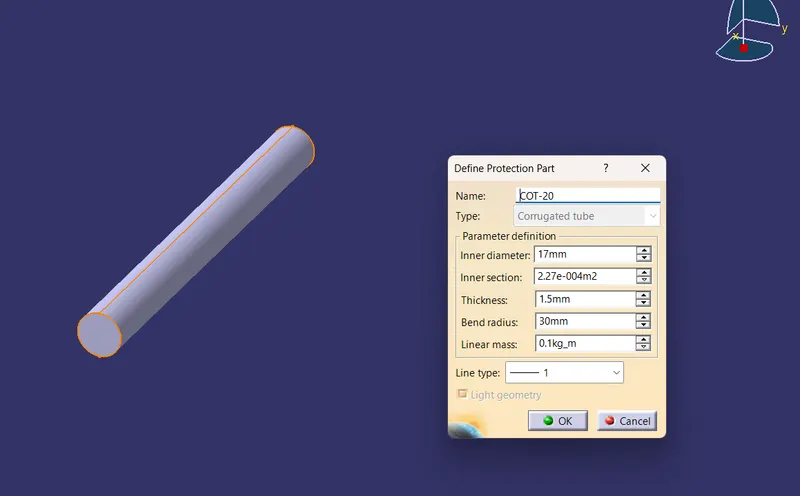

• 20MM COT

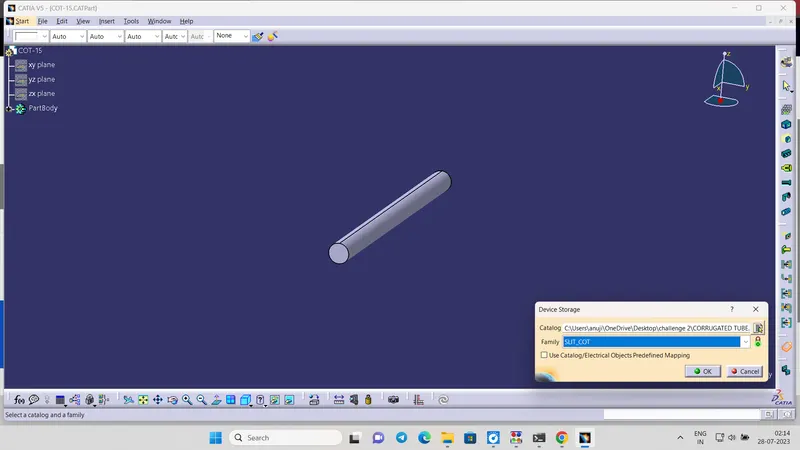

store in slit cot catalog

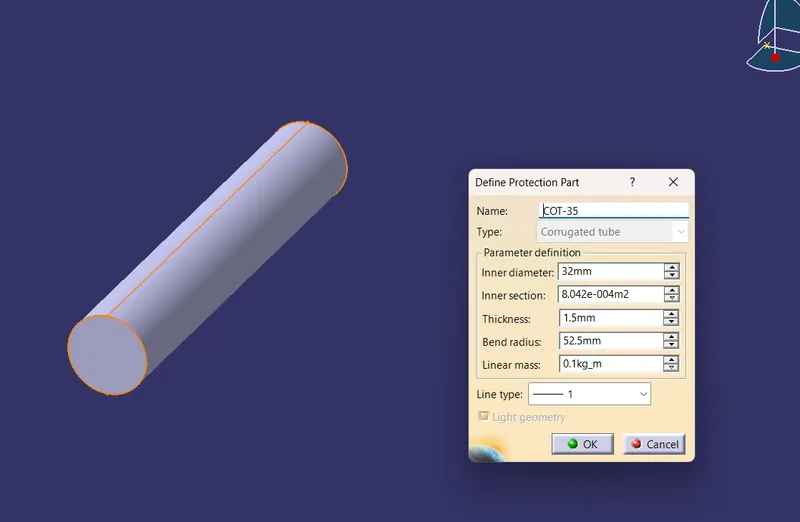

• 35MM COT

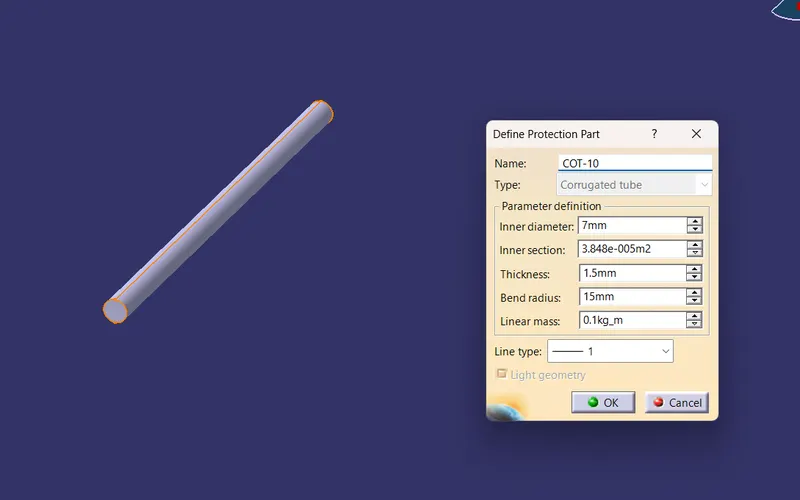

• 10MM COT

• 5MMCOT

srore in slit cot catalog
