Wiring harness routing & packaging Rules Week 3 Challenge

1. P - Clamp:

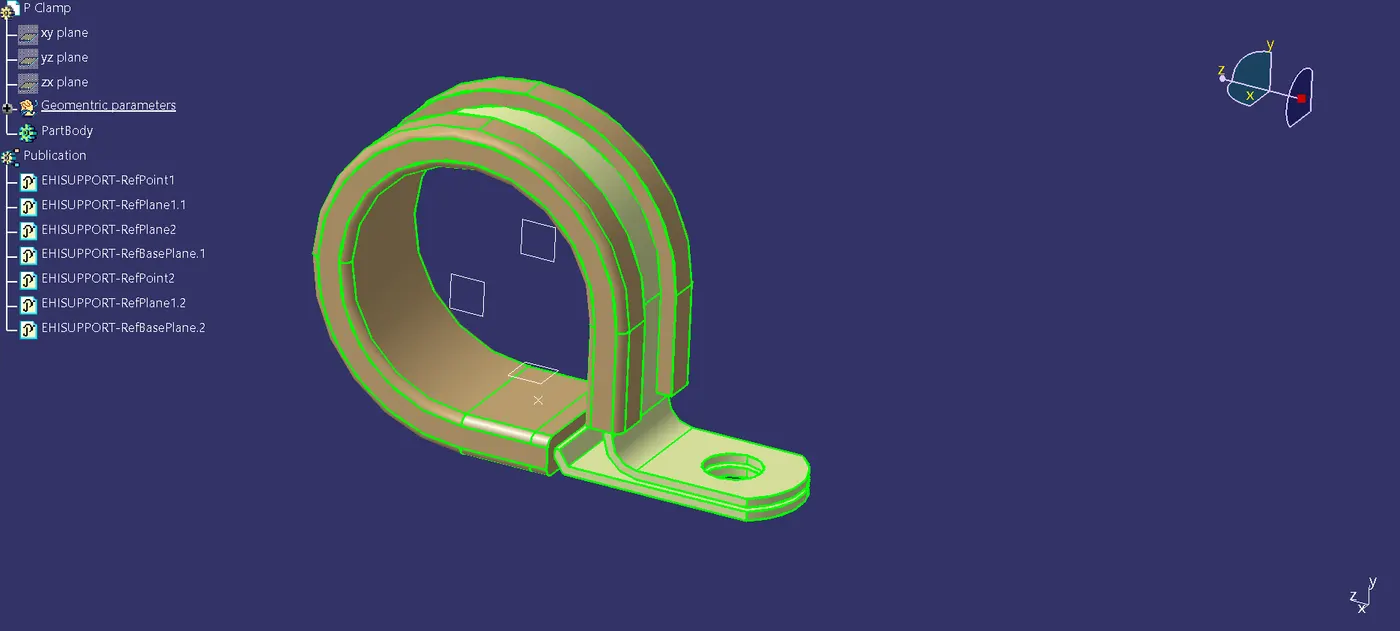

From the given cad part the required geometric parameters like bundle entry point, bundle entry plane, bundle exit point and plane and base plane are defined.

The part is then electrically defined as support part and two entry and exit points are feed. the part is then saved into the catalogue.

2. Back Shell:

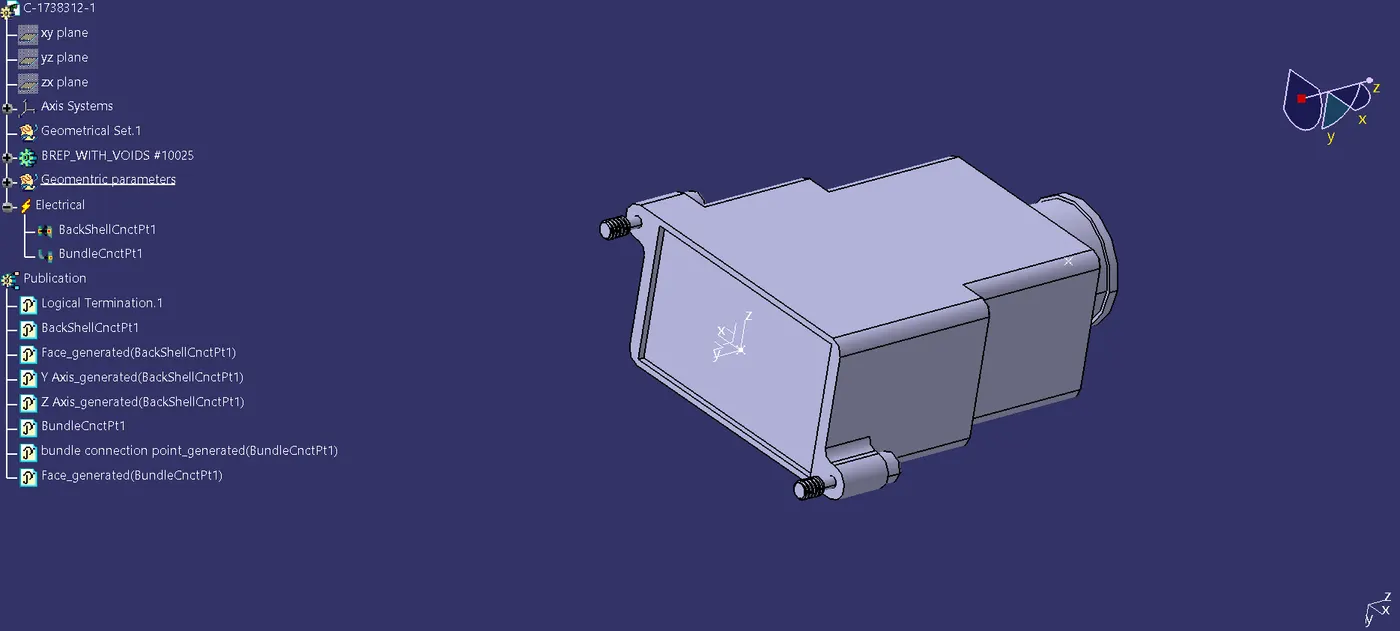

The given Part diagram, the required parameters like bundle entry point, back shell entry point and back shell entry axis are defined. once geometric parameters are defined the part is then defined as Back shell. Bundle connection points are defined and the part is added to the catalogue.

3. Cot Tube:

From the given dimensions the Cot tube is designed using define part protection command. all four cot tubes are then added to the catalogue Slit Cot.

NOTE: Zip File of catalogues and cad part are attached for your reference.
