Week 9 - Challenge 1 - Base Bracket Design

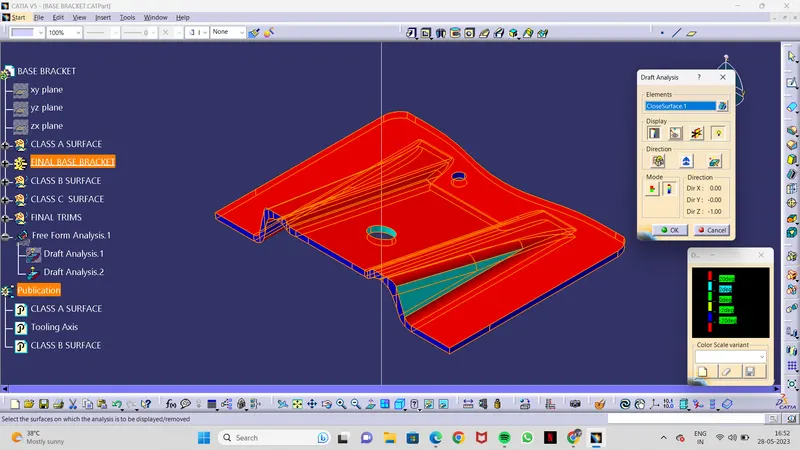

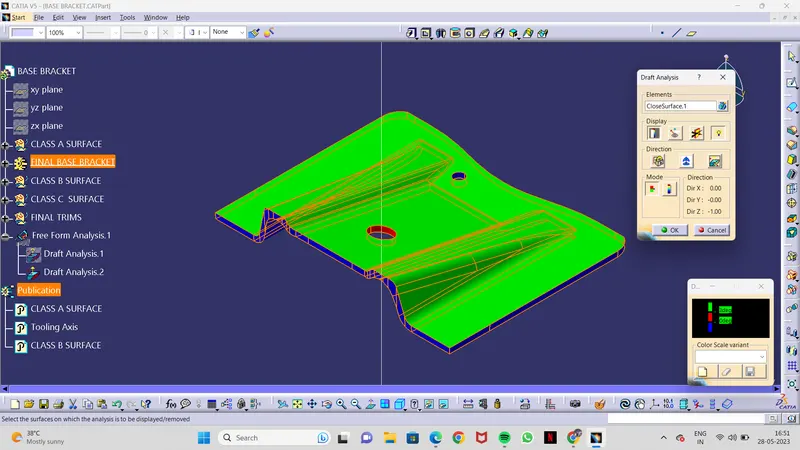

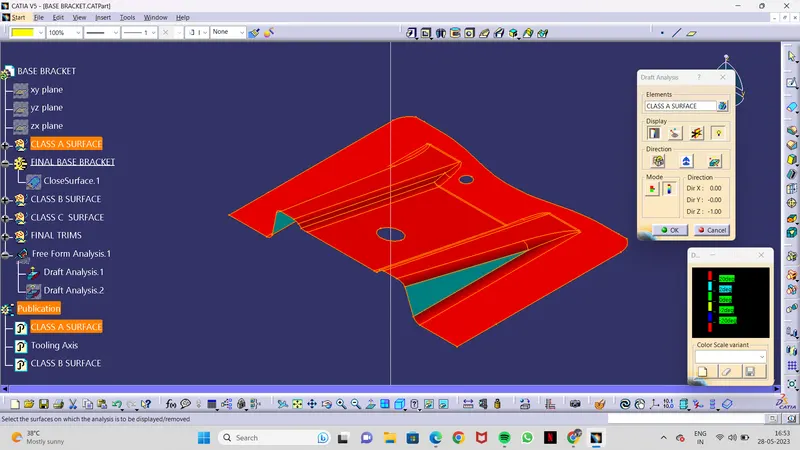

The provided Base Bracket class A is converted into a thick component successfully. the class A surface was extracted and offseted to a distance of 2.5mm to creat the class B surface. Then class C surface was created by using sweep option with the boundary as the guide curve. Then all the surfaces were trimmed to form the final base bracket. Then close surface tool was used to make a complete part. draft analysis for surface A was done initially by creating prpoer tooling axis. Draft analysis for the final part is also done with a nominal draft angle of 3 degree.
