Week 9 - Challenge 2 - Switch Bezel Design

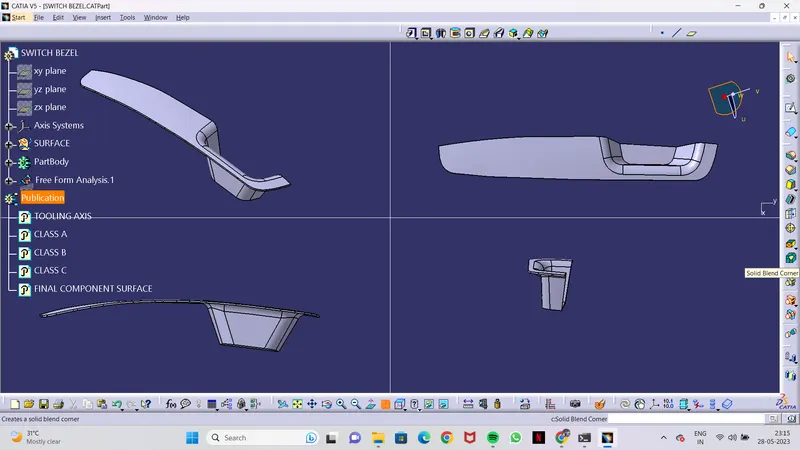

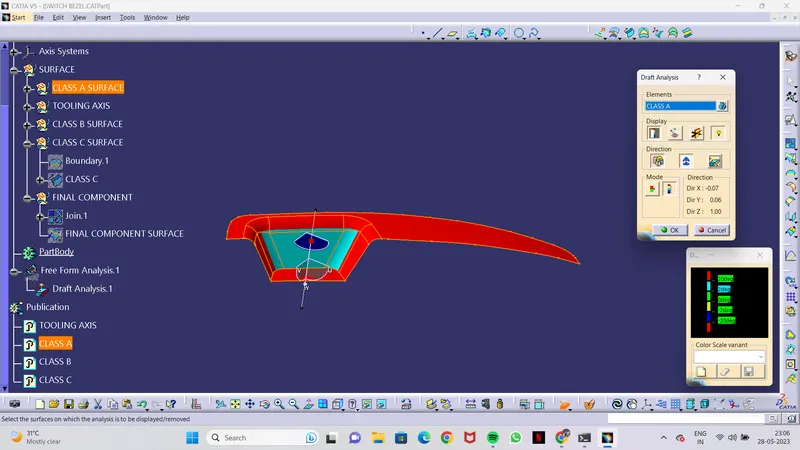

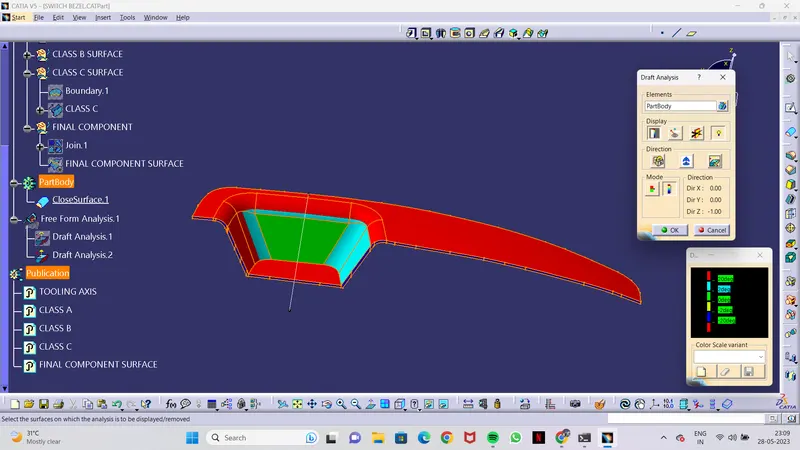

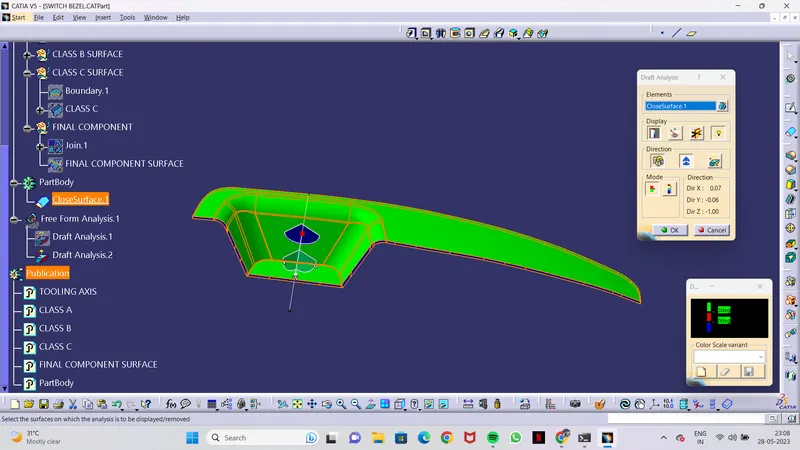

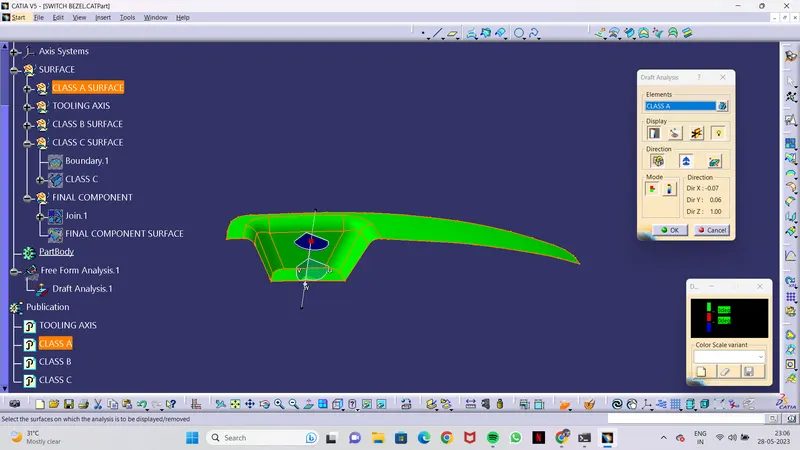

The provided switch bezel class A is converted into a thick component successfully. The class A surface was extracted and offseted to a distance of 2.5mm to creat the class B surface. Then class C surface was created by using sweep option with the boundary as the guide curve. Then all the surfaces were trimmed to form the final switch bezel. Then close surface tool was used to make a complete part. draft analysis for surface A was done initially by creating proper tooling axis. Draft analysis for the final part is also done with a nominal draft angle of 3 degree.
