Wiring harness routing & packaging Rules Week 3 Challenge

ABSTARCT :

1. To Download following P-clamp cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

2. To Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

3. To Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

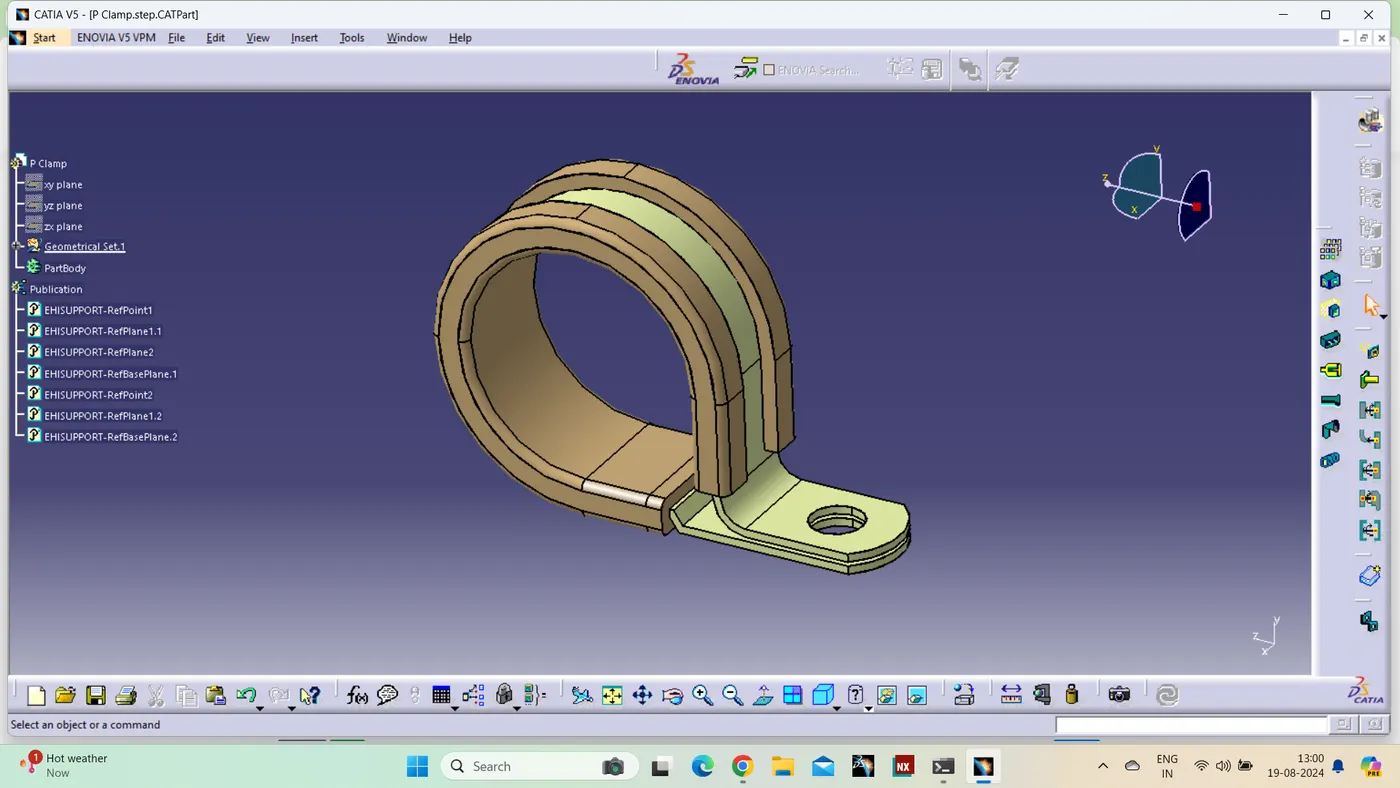

P-CLAMP :

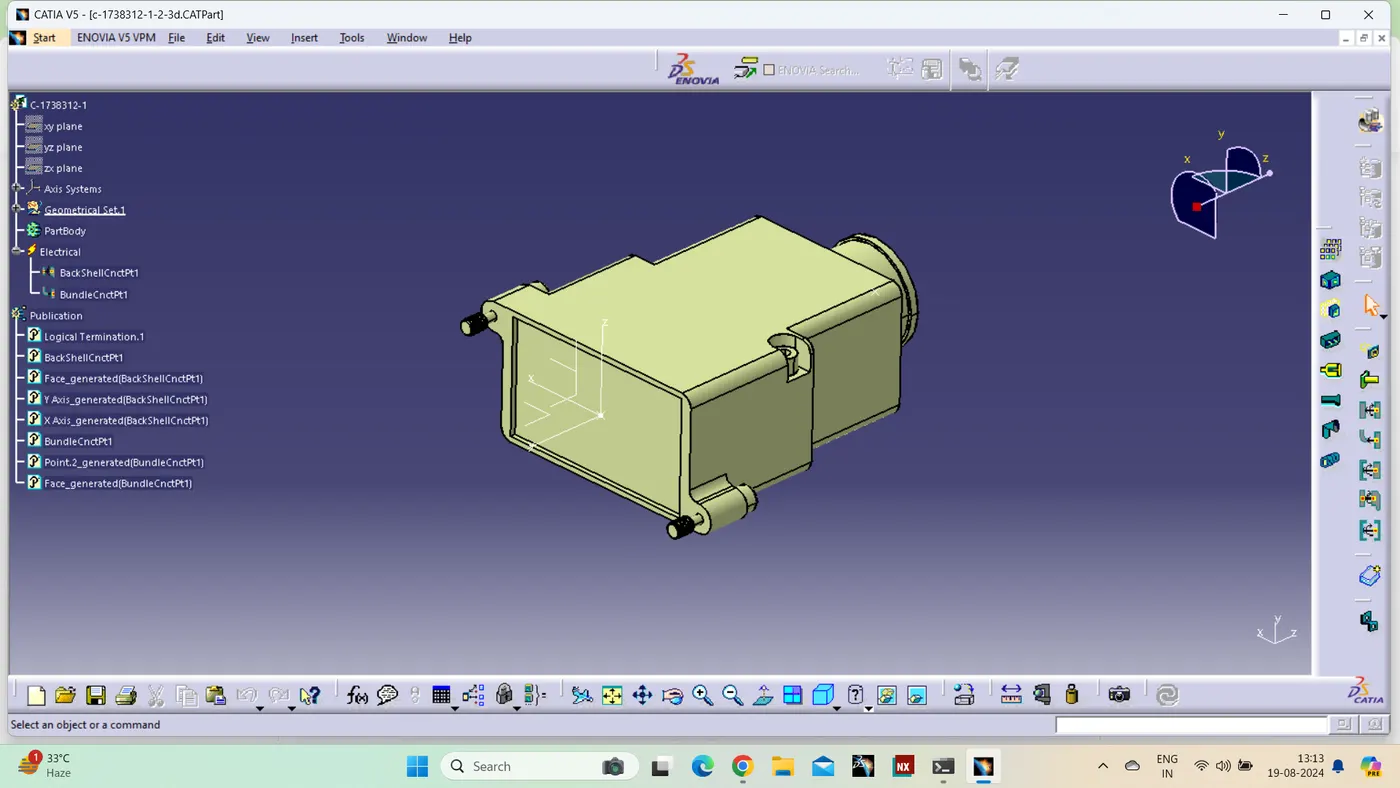

BACKSHELL :

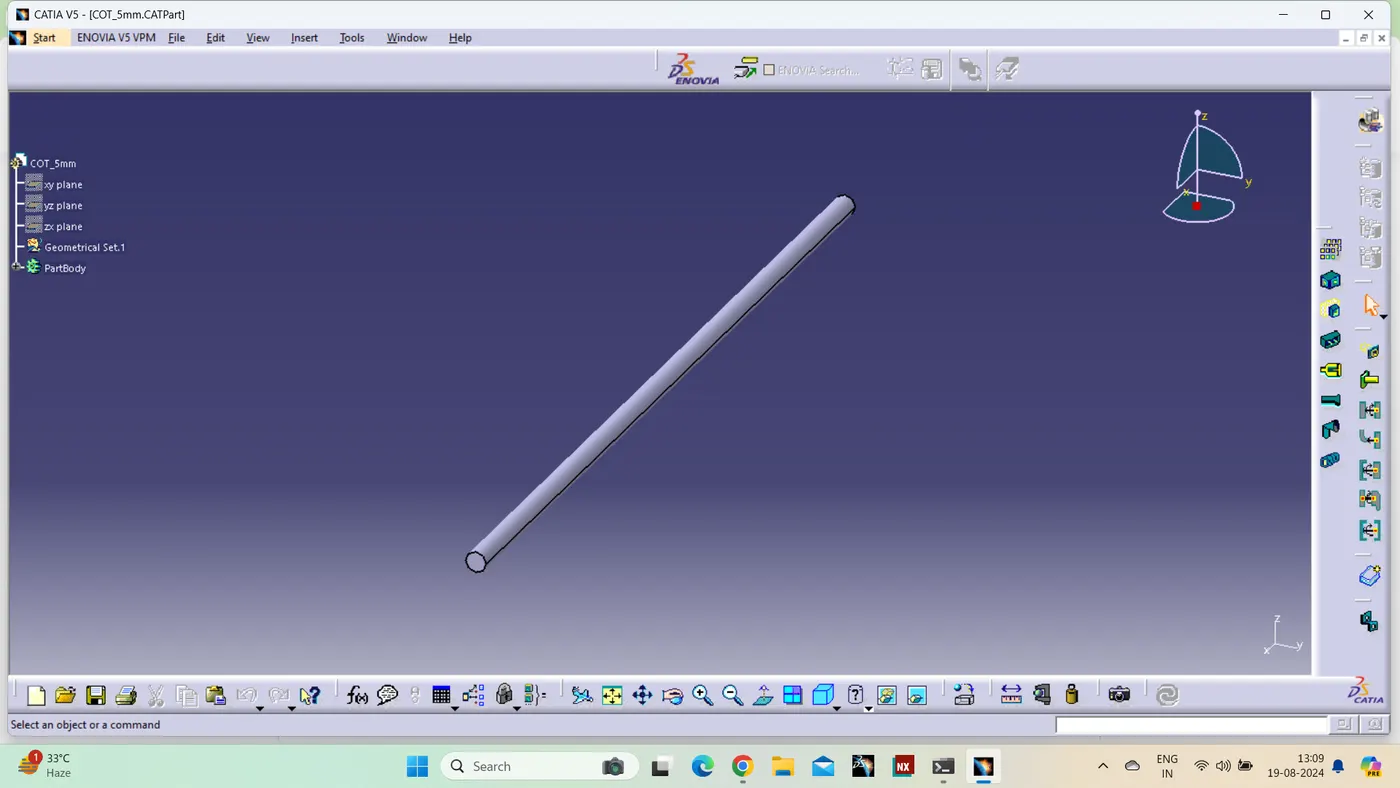

COT_5mm :

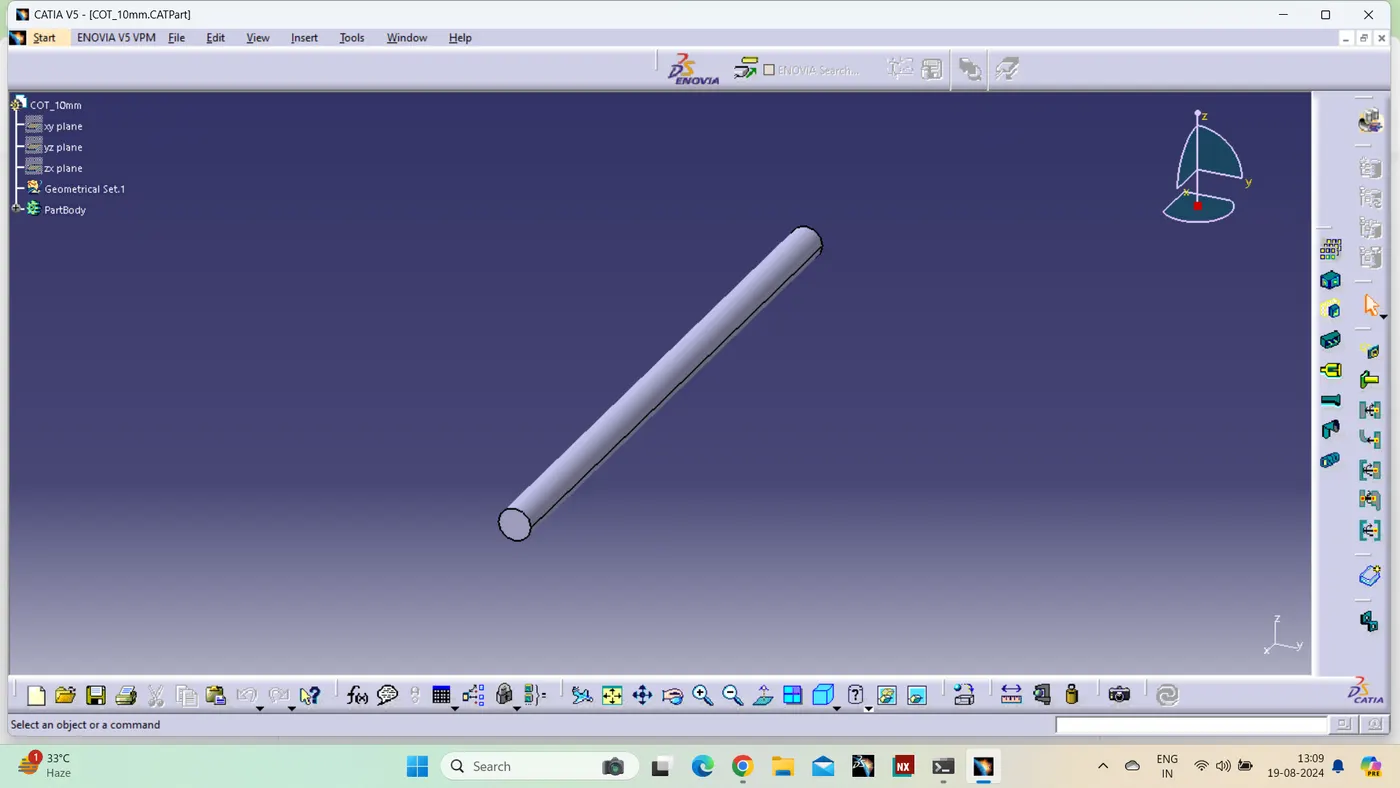

COT_10mm :

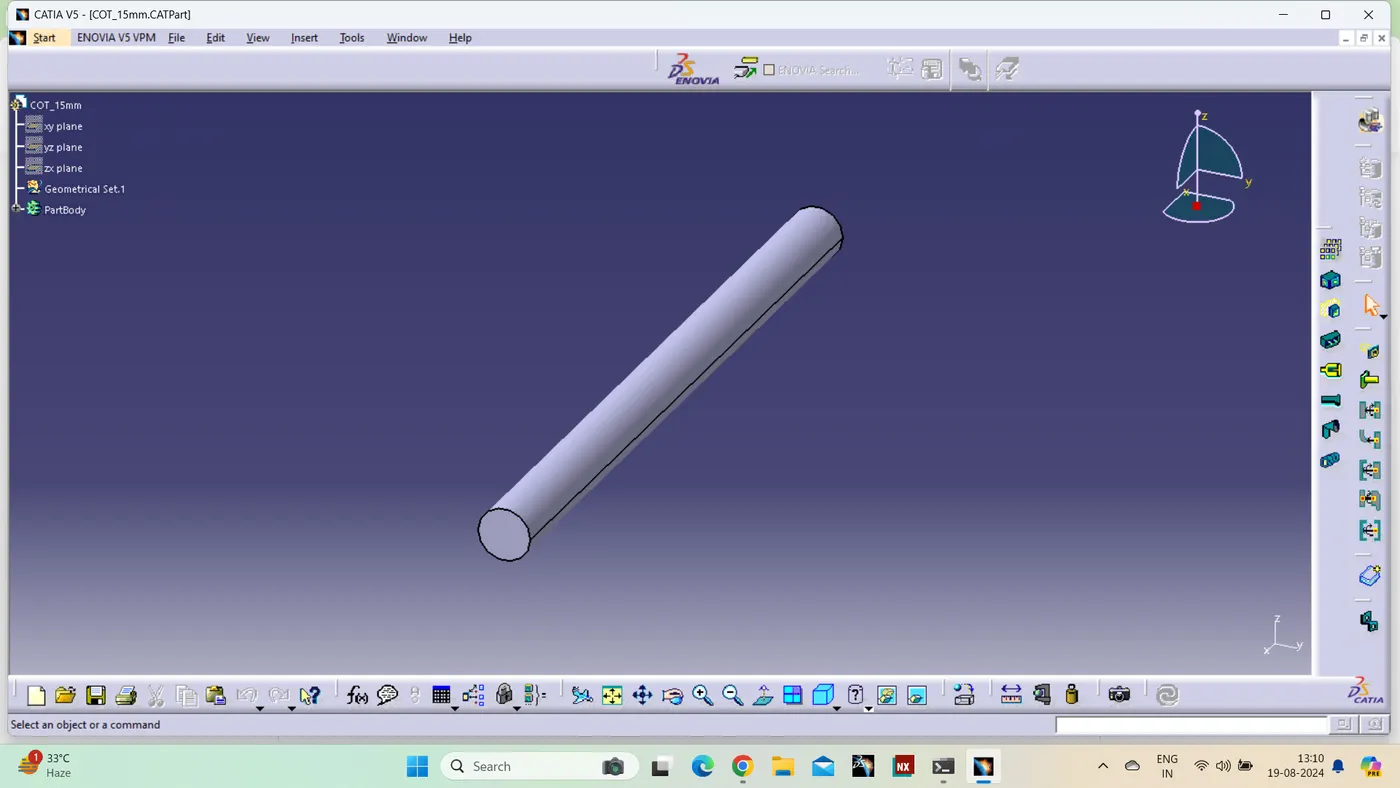

COT_15mm :

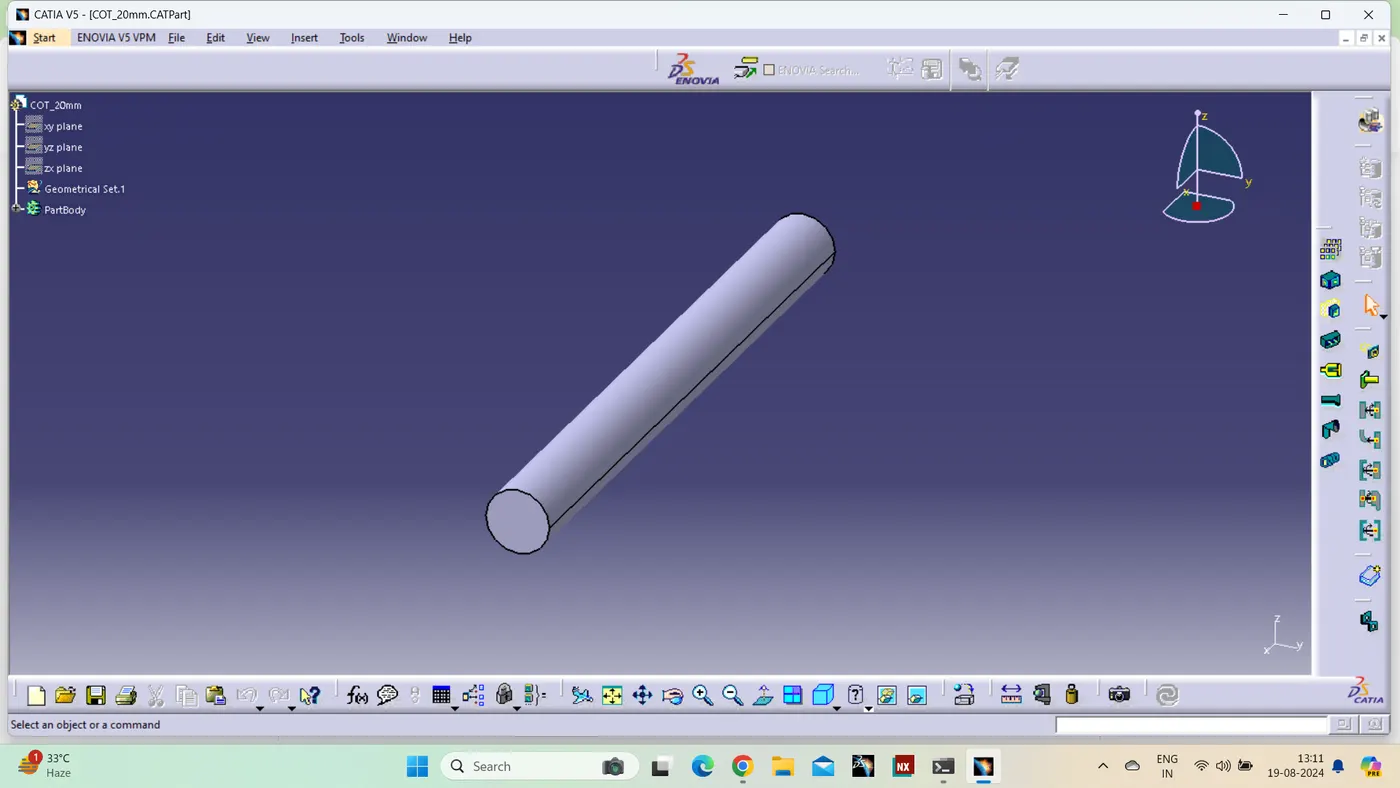

COT_20mm :

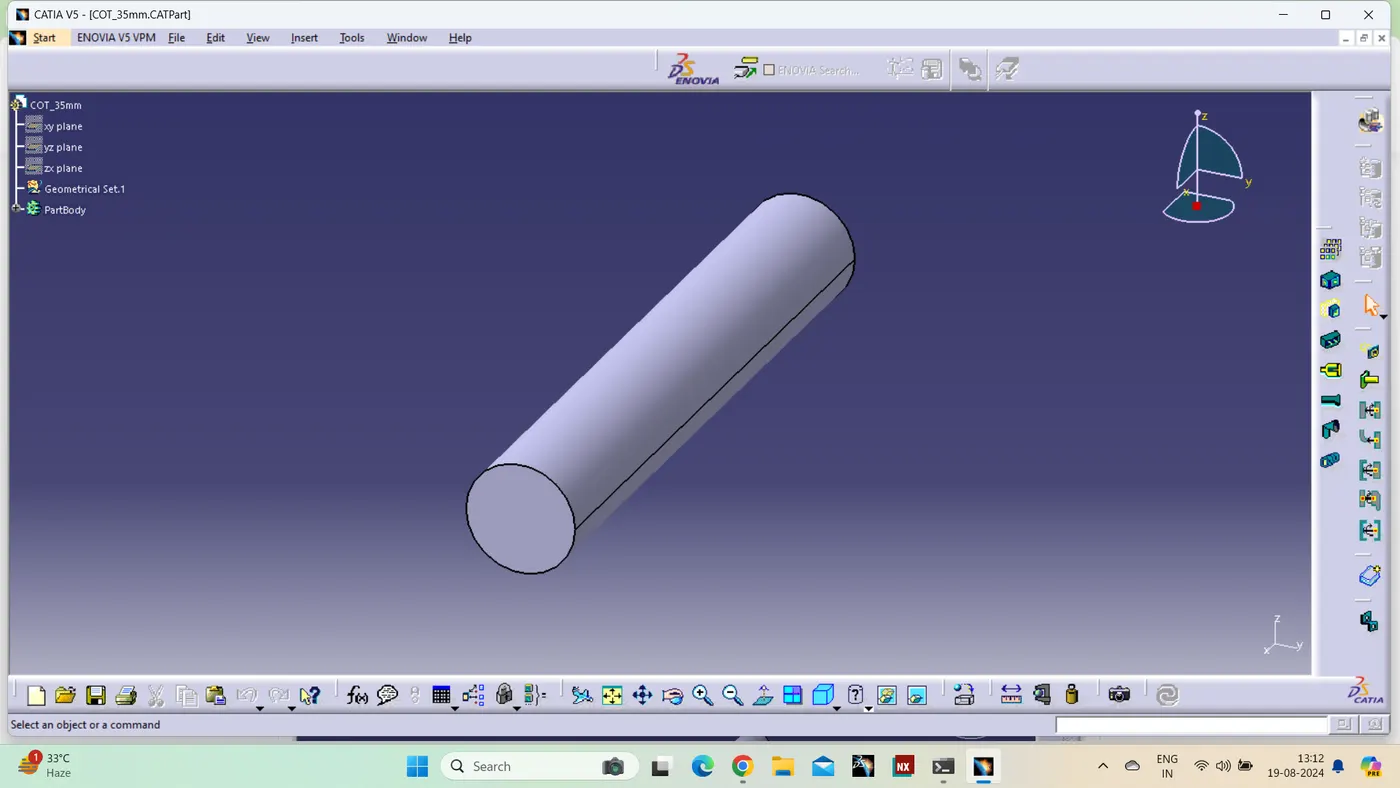

COT_35mm :
