Wiring harness routing & packaging Rules Week 3 Challenge

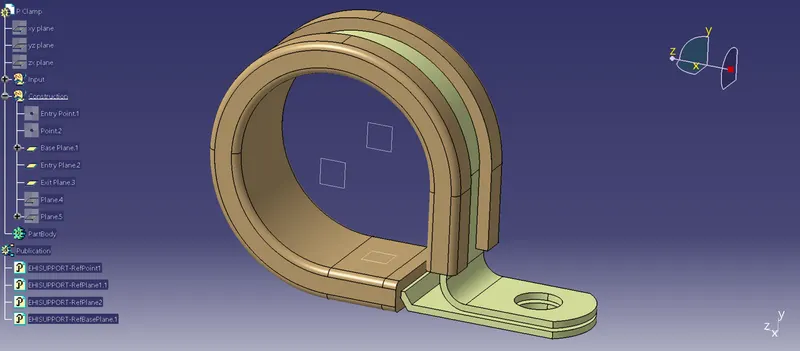

1. P-CLAMP:

Defined geometries:

• Entry Plane
• Entry Point
• Exit plane
• Base plane

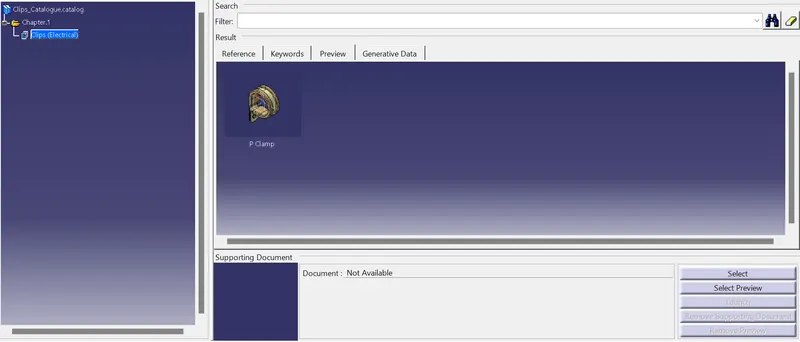

Clips Catalogue:

2. BACKSHELL:

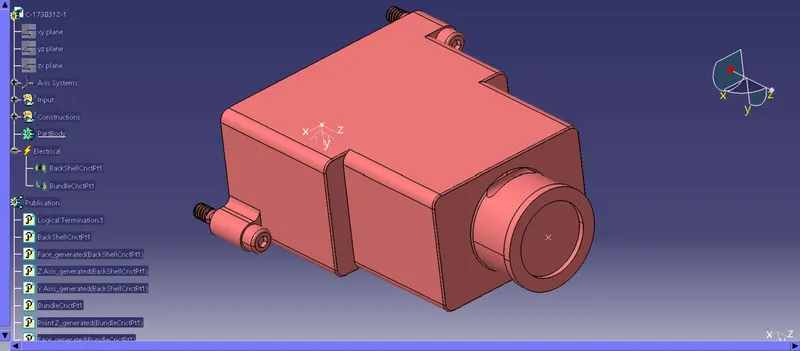

Defined geometries:

• Backshell Connection point
• Bundle Connection point

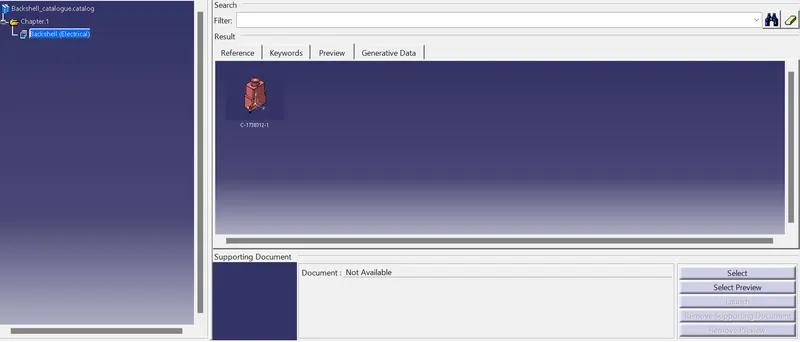

Backshell Catalogue:

3.

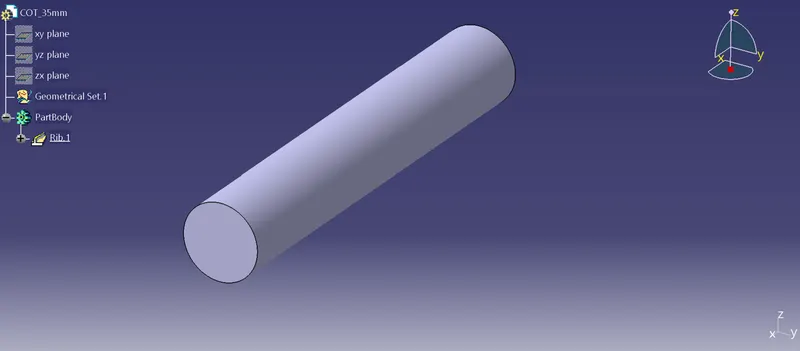

Corrugated tube (35mm OD, 1.5mm Thickness):

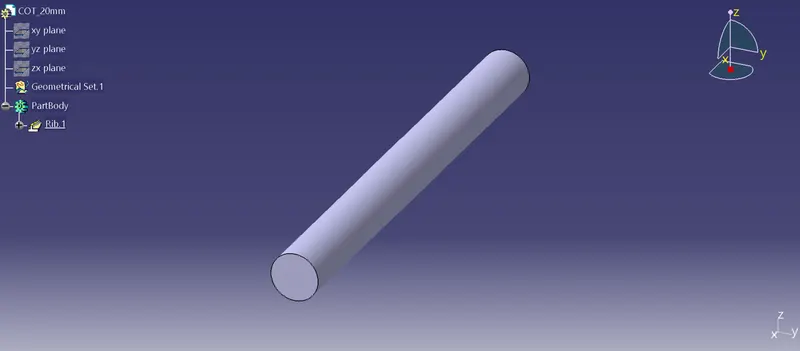

Corrugated tube (20mm OD, 1.5mm Thickness):

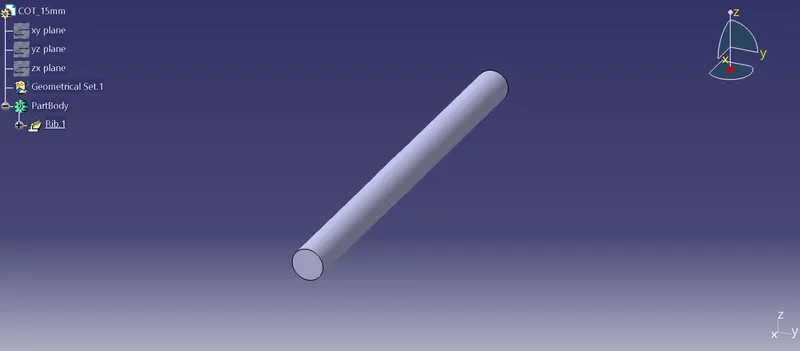

Corrugated tube (15mm OD, 1.5mm Thickness):

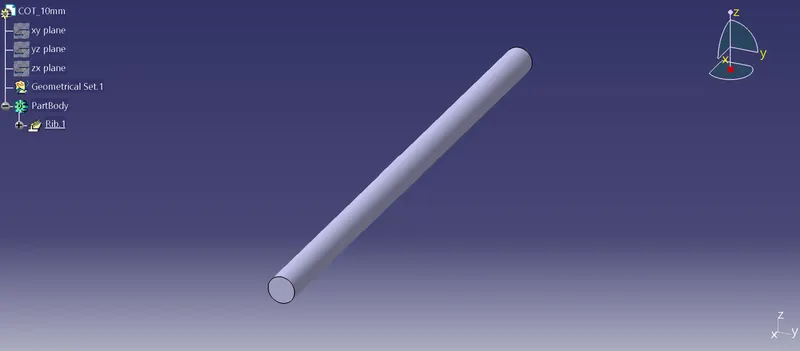

Corrugated tube (10mm OD, 1.5mm Thickness):

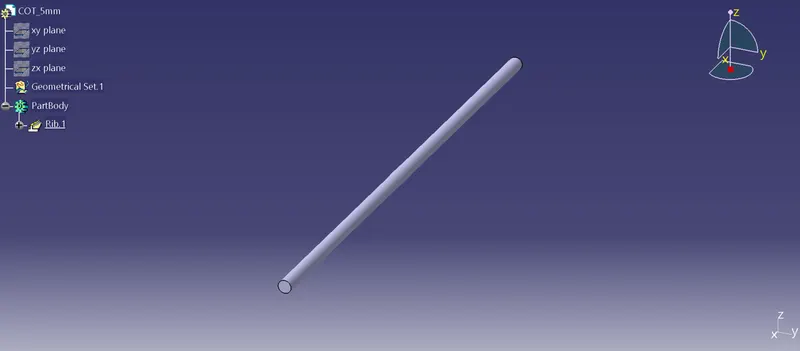

Corrugated tube (5mm OD, 1mm Thickness):

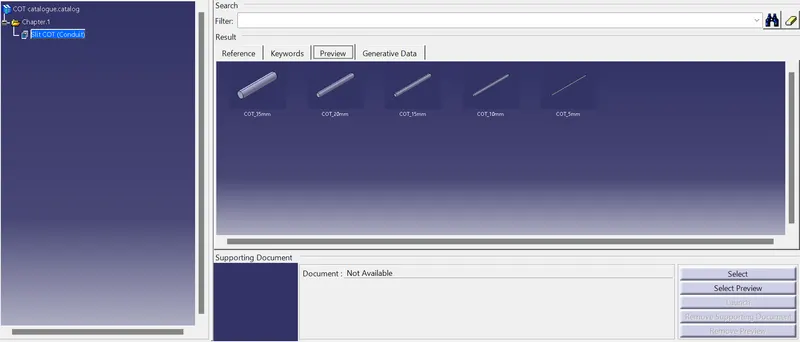

Corrugated tube Catalogue:
