Wiring harness routing & packaging Rules Week 3 Challenge

Get the clip 3D part

Define the geometry parametersm

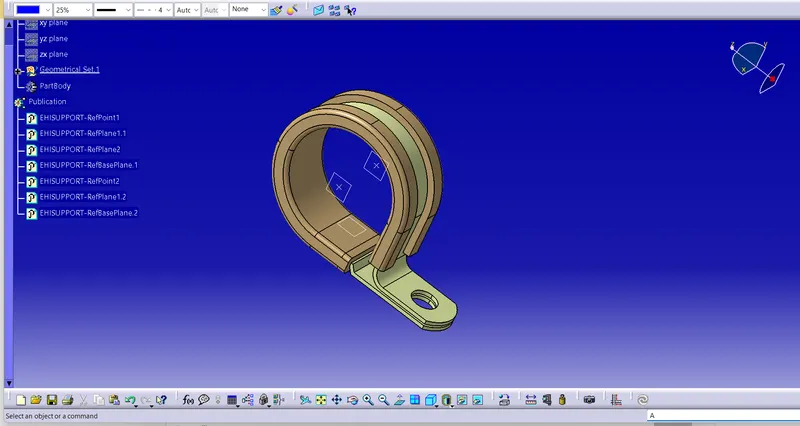

Defined part as support

Define Entry point & plane

Define base plane and eixt plane

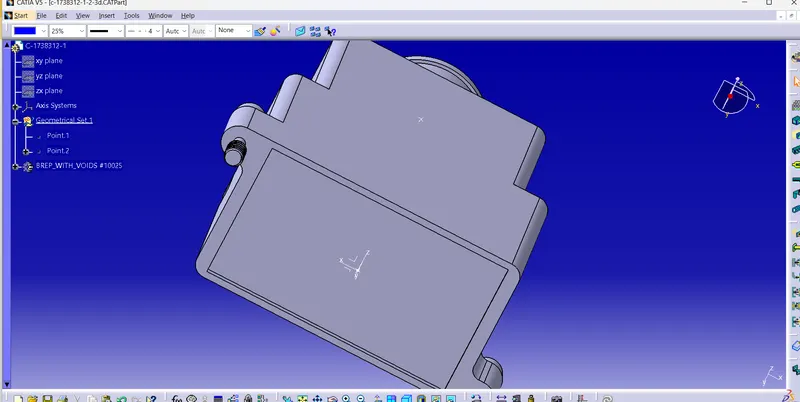

The given clip file is downloaded and convert it to the part file

i havae defined two points that will be used as entry and exict points

the plane has to be defined at the points with the reference

base plane defined at the distance of 2mm from the clip

DOWNLOAD THE BLACK SHELL

GET THE BACKSHELL 3D PART

DEFINE THE GEOMETRY PARAMETERS

DEFINED PART AS BACKSHELL

BACKSHELL CONNECTION PART

DEFINE BUNDLE CONNECTION POINT

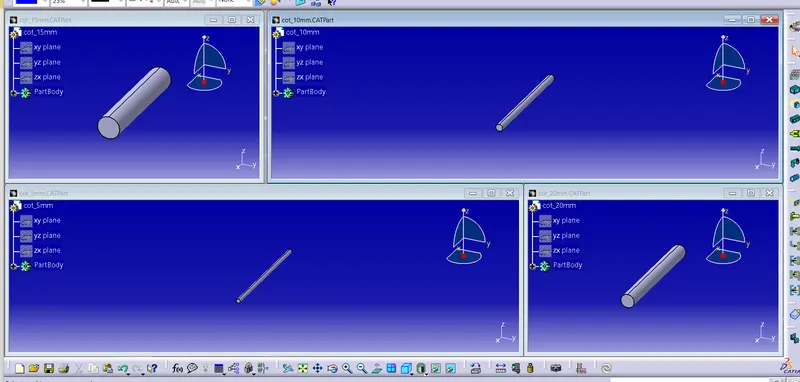

CORRUGATAED TUBES

NAME (cot) ID OD(mm) thickness (mm)

15mm 12 15 1.5

20mm 17 20 1.5

35mm 32 35 1.5

10mm 7 10 1.5

5mm 3 5 1
