Week 8 - Challenge 2 - Switch Bezel Design

They given class Asusrface to made an tooling axis to creat center point and made tooling axis .

bsurface

the classA surface to make b surface in B surface

bezel rest surface extract and surface un trim and offset it

WALL

To creat wall using a surface and creat wall using EXTRACT ,SUFRACE UNTRIM, EXTRAPOL,TRIM AND OFFSET IT TO MAKE WALL.

BASE

To creat base using Asurface EXTRACT ,SURFACE UNTRIM,EXTRAPOL AND OFFSET

B SURFACE

We created the rest surface ,wall,base to trim and edge fillet

C SURFACE

Using class A surface to multi extract ,sweep,curve smooth,extrapol and trim

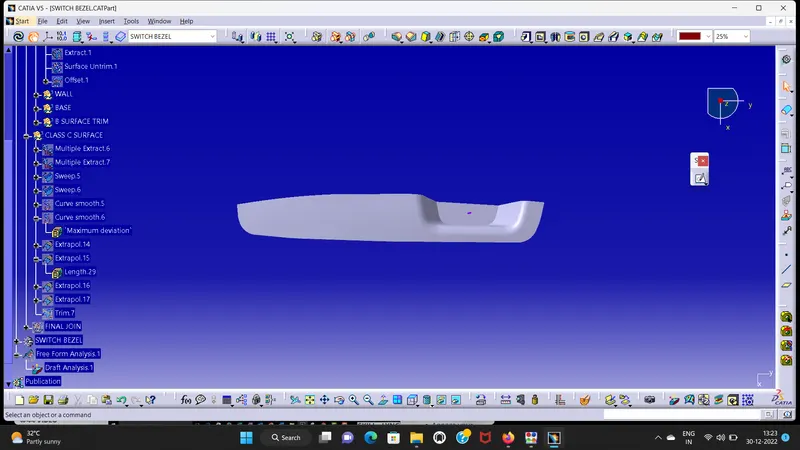

FINAL JOIN

using classA Surface to join with c surface extrapol and trim it

USING THE FINAL JOIN TO CREAT A CLOSE SURFACE MODEL AFTER THAT DRAFT ANALYSIS
