Week 8 - Challenge 4 - Bumper

BUMPER

TOOLING AXIS

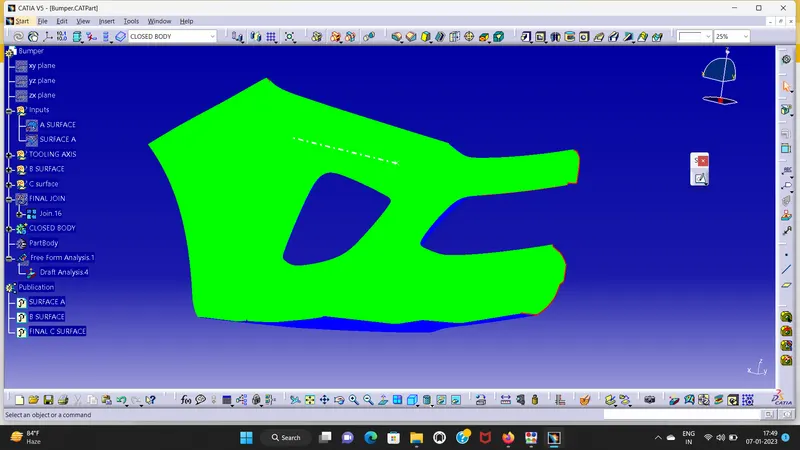

To creat tooling axis to extract any surfacae to class A surface take mid point in extract surface creat a line

B SURFACE

To creat b surface offset to 2.5mm in class A surface . there is an gap while offset fill the gaps using the commands with extract , fill, blind,multi surface.

C SURFACE

Using class A surface to creat a boundry or multi extract and sweep it with 90deg and the length to 4mm

and join A anad C to make c surface

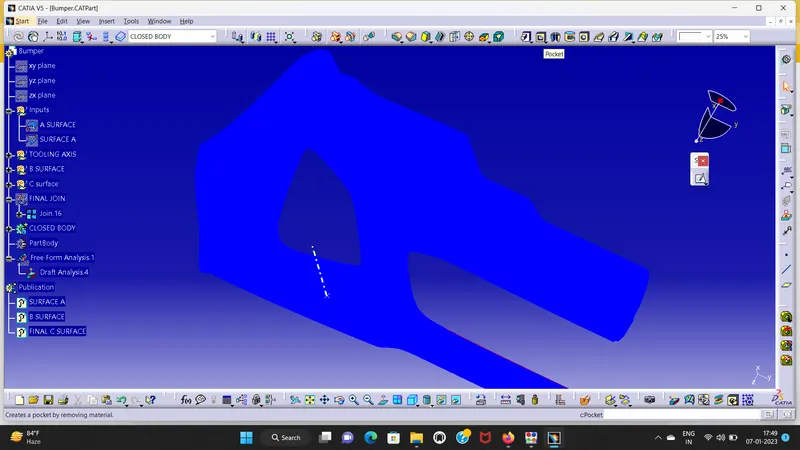

FINAL JOIN

C surface and B surface to joion
