Week 8 - Challenge 1 - Base Bracket Design

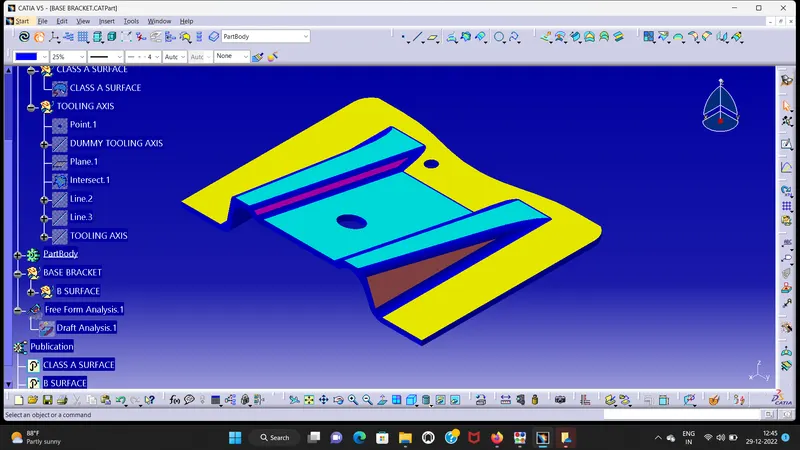

BASE BRACKET

class A surface created toolin g axis in class A surface intersect after creating bisecting line.

B SURFACE

creat three surfaces in classA surface to creat b surface to draw the rib and rib 2 an offset that rib 1 and rib 2.

base surface

Extract with the class A surface and offset it .after that trim every thing together and after fillet then base surface created with the b surface

C SURFACE

USING class Asurface creat a boundary and sweep it 3deg same things which are used to holes after that trim every thing trim with B surface
