Wiring harness routing & packaging Rules Week 3 Challenge

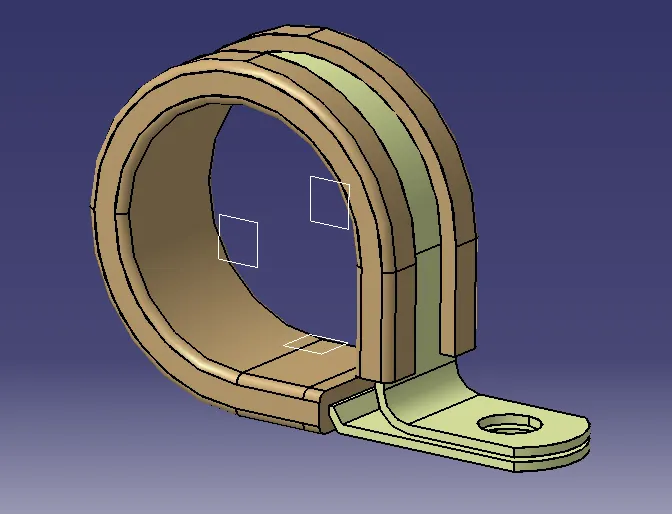

01) P Clamp

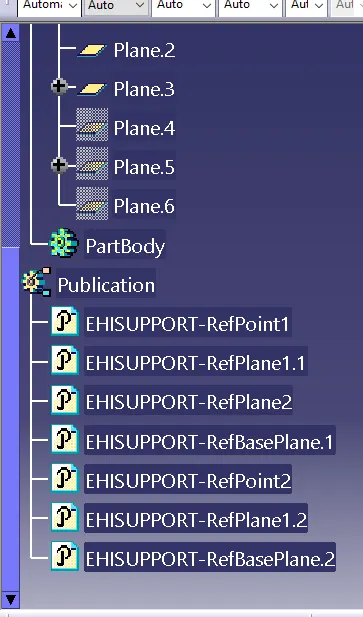

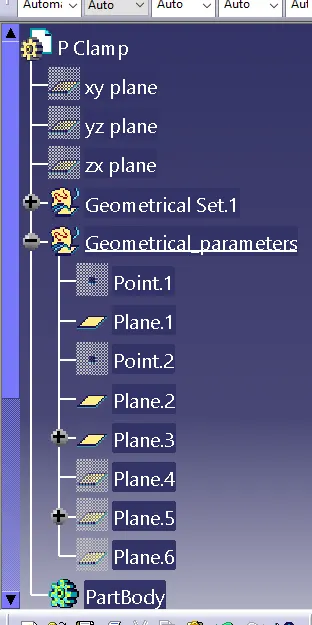

P Clmap has been downloaded and defined as electrical support component and also nessessary properties has been defined. i,e Entry Point & plane also base & Exit Plane.

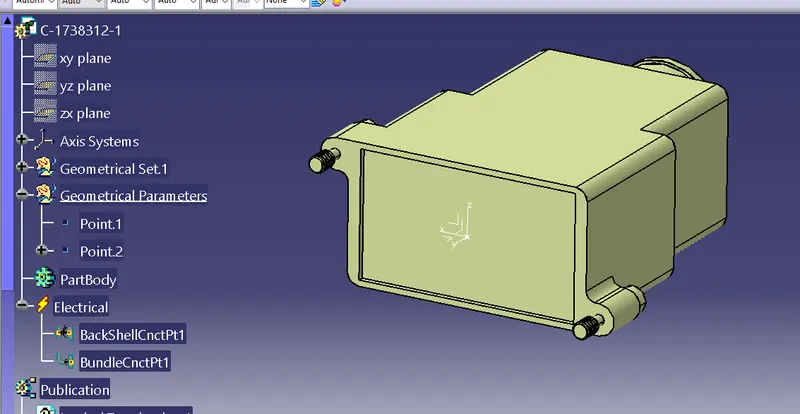

02) Backshell

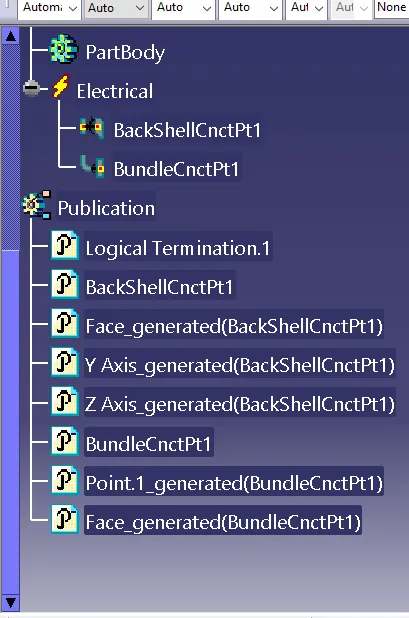

Backshell has been downloaded and defined as electrical component with requiired properties. i,e defining backshell connection point & bundle connection point.

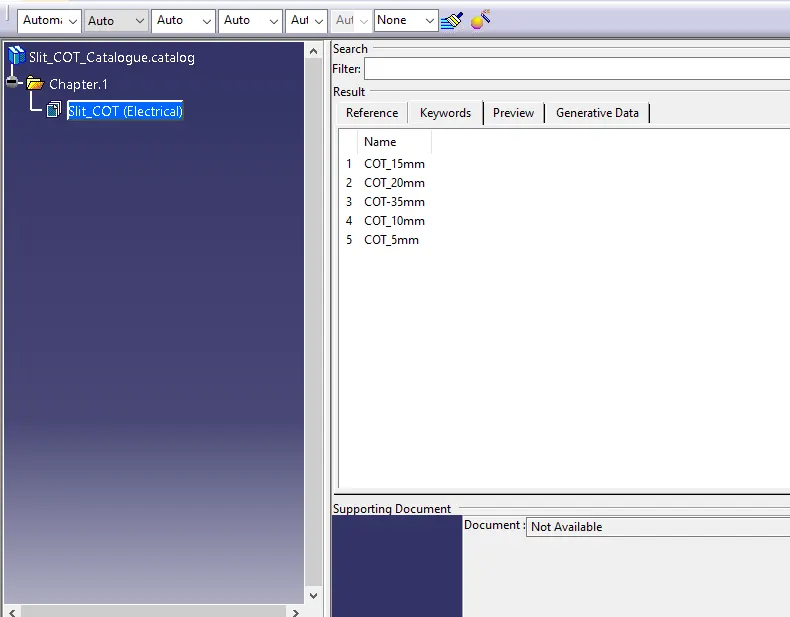

03) Ctalogue Under the famity name "Slit_COT" has been created for the currugated tubes.

*) All the CAD files are attached in the attachment.
