Week 8 - Challenge 2 - Base Bracket Design

1) Defining Tooling Axis

*) As the component consists of holes which can cleared in Z-Direction, consider tooling axis in that direction only

*) Define tooling axis along axis of one of the hole, by creating a bisecting line using interaction of the profile with the axis.

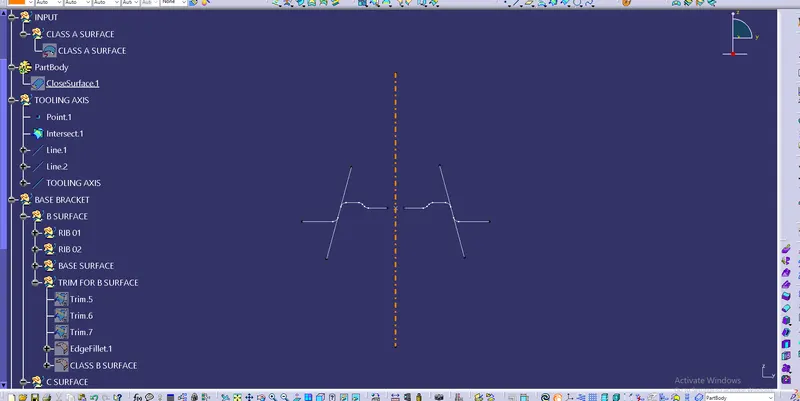

*) Below image shows the Tooling axis.

2) Draft Analysis of Class A Surface

*) Do draft Analysis for class a surface given to cross check.

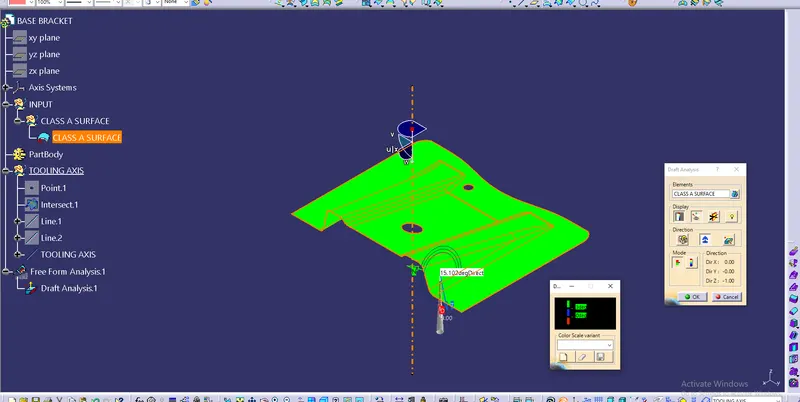

*) The Below image shows the draft analysis for Class A Surface of Base Bracket.

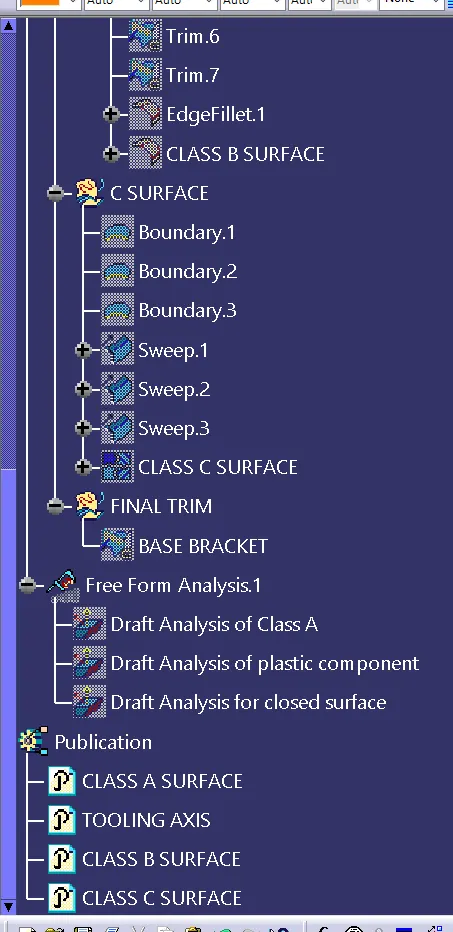

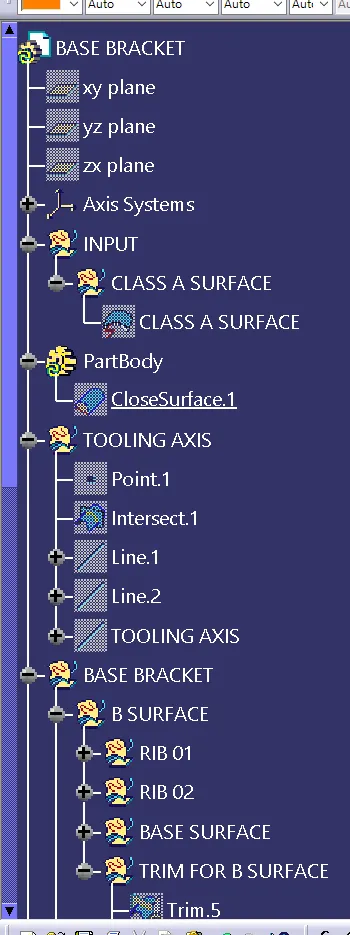

3) Tree Stuctures

4) Draft Analysis on final plastic component

*) The draft angle given for the final plastic component is 4°, which meets the requirement.

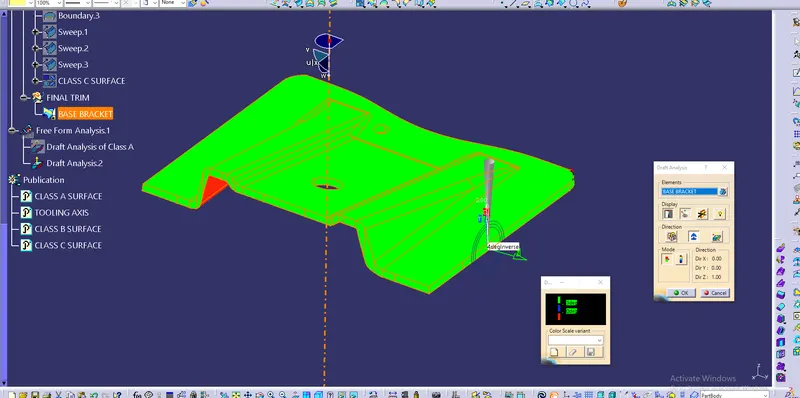

*) The below image shows the Draft analysis for final plastic component.

5) Draft Analysis on Closed surface

*) Create the solid body outoff the final plastic component using closed surface.

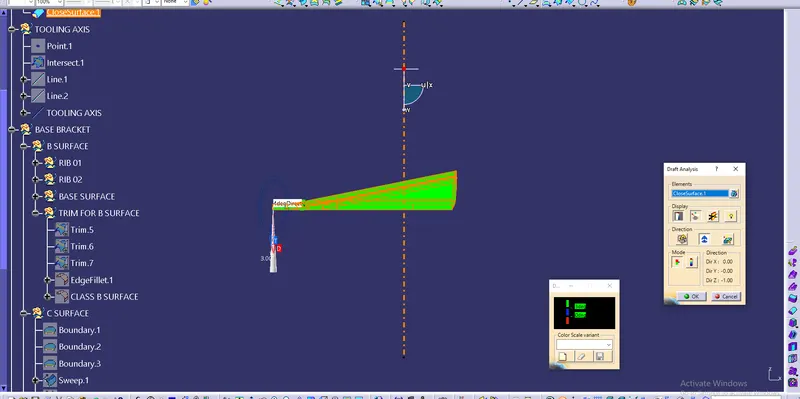

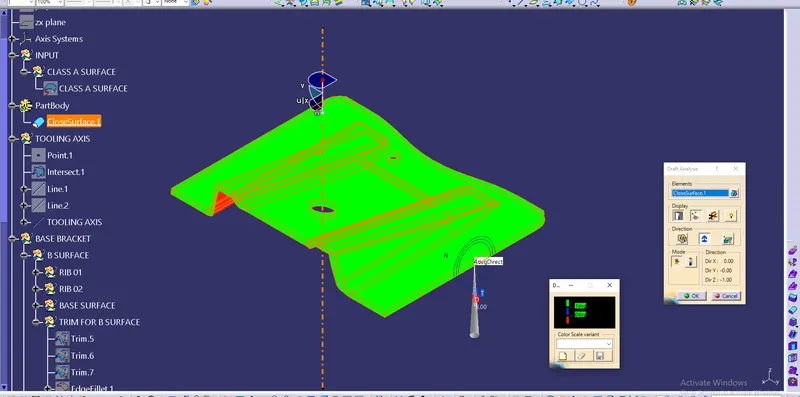

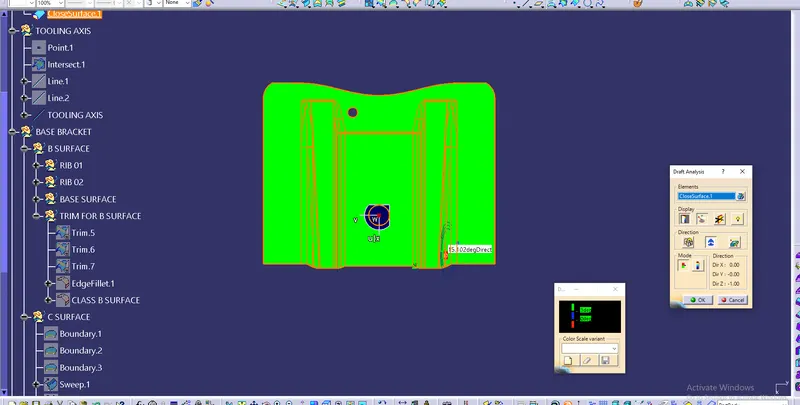

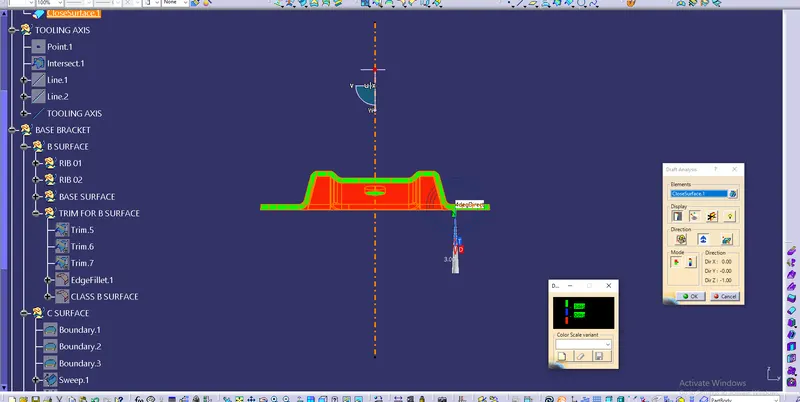

*) The below images shows the draft analysis of solid body in different view modes
