Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download the following cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.
P clamp
Create two points one as an entry and another as an exit point, create planes at two points and another at the base, Switch to Electric part design, Click on support definition - select part - select entry point - select entry plane, exit, and base plane, Again Click on support definition - select part - select exit point - select exit plane and base plane as the second plane is automatically taken.
Q2. Download the following Back shell cad data & define it as an Electrical back shell using the Electrical Part Design Workbench. Define all the necessary properties.
Tyco 1738312-1

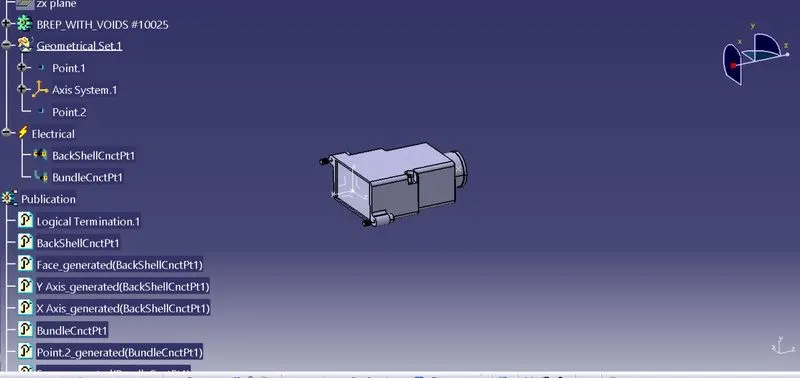

create a Backshell entry point, make an axis system for back shell entry, create a bundle connection point, switch to Electrical part design, Define the part electrically as a back shell, Then define a Backshell connection point, and Define a bundle connection point.
Q3. Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

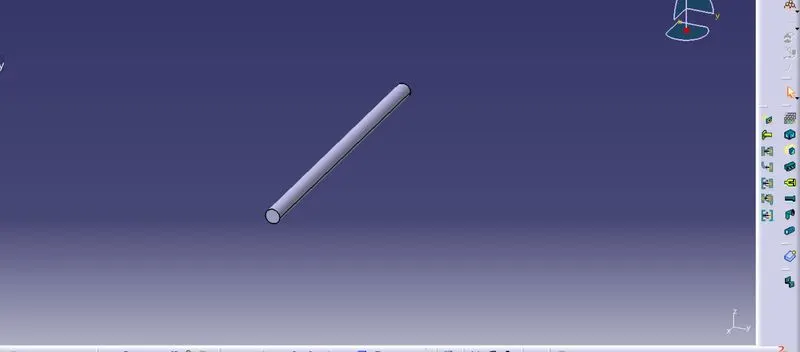

to create Slit COT for the electronic part is to design a workbench to define the electrical slit cot inner circle diameter and its thicker and its bend radius
