Challenge 4 : Concept Modelling of Alloy Wheel

1. Concept Modelling of Alloy Wheel

2. Objective :

TO Follow the entire process as per the guidelines from Video Tutorial to build the Surfaces for Concept Modelling of Alloy Wheel

3. Introduction :

Alloy Wheel is a type of wheel used in an automobile for comparing with another type of wheel the weight the wheel is less and it transmits less inertia to the springs, thus allowing the suspension to follow the terrain more easily, providing a better grip, In addition, handling, steering, cornering and finds attractive model was created by using the different types of feathers, commend in the alias

4.Design methodology / approach :

5. Description :

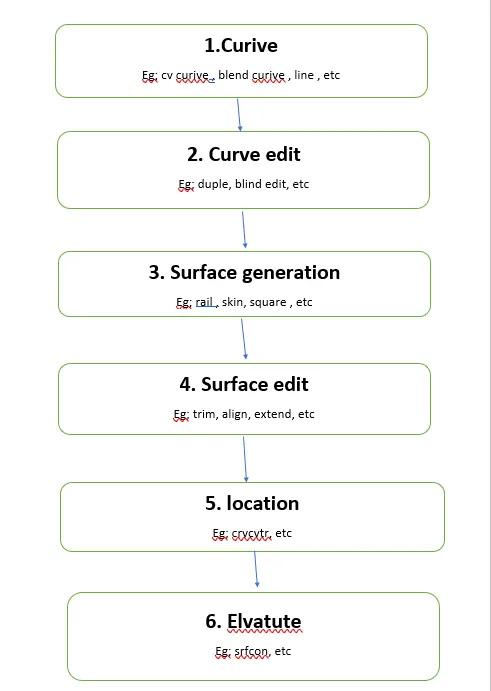

the design is first started from the creation of the curve by cv curve, blend curve, etc by then curve quality is bean checked by the location - crvcvtr to know the quality of the curve and check the span in the quality less it is a number more the quality of the curve by using curve and generation of the surface by skin, rail, square the good the quality of the curve the good the quality of surface, then the surface is edit is done as per the shape is needed by trim, align, detach, projet, etc then the continuity of the surface is checked by the elevate - srfcon, etc.

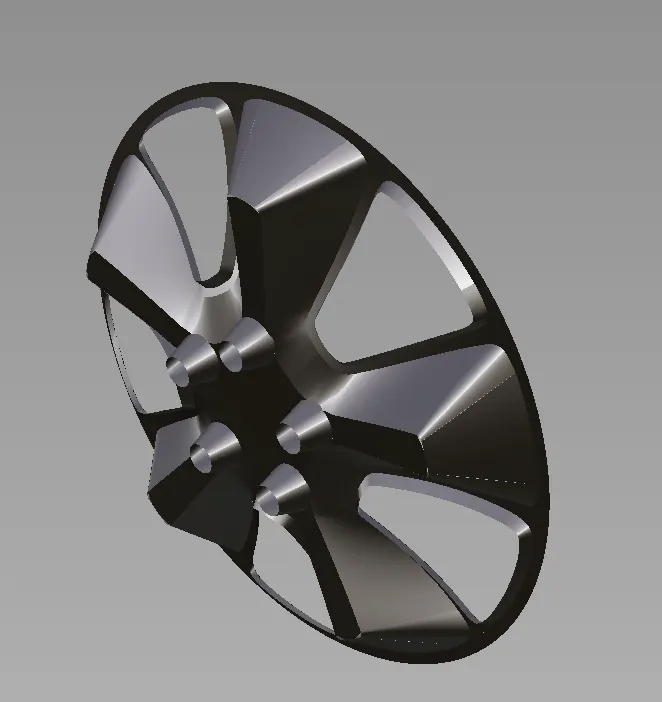

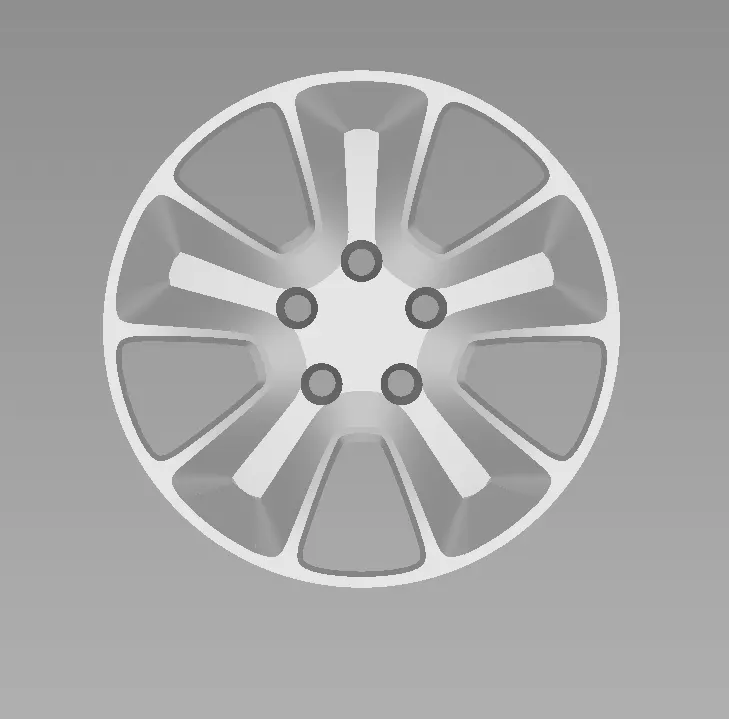

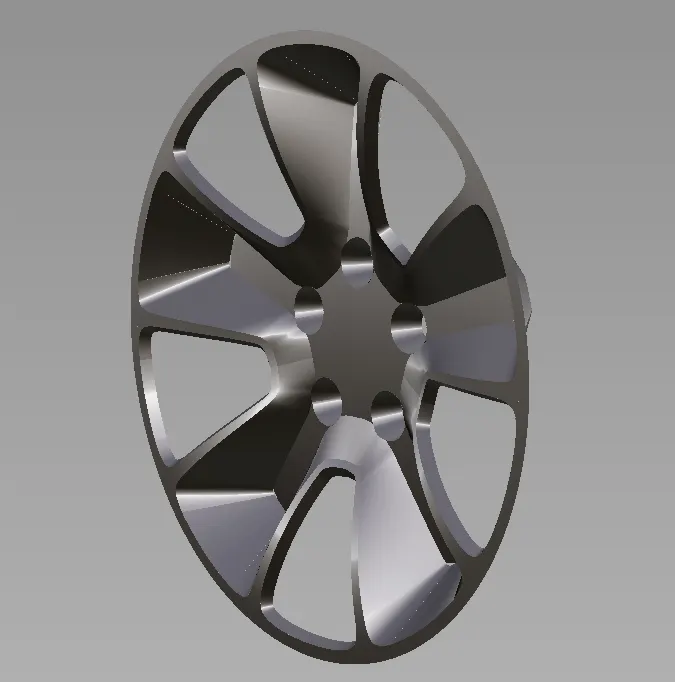

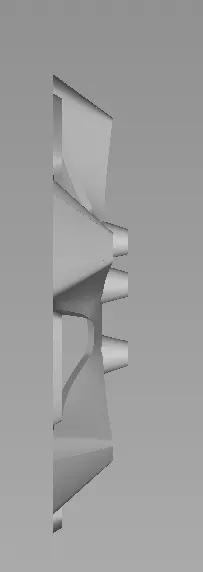

6. screenshots of Model (:-Front View, Side View, Isometric View, and the Top View):

.

7. Conclusion :

The model was created by Following the entire process as per the guidelines from Video Tutorial to build the Surfaces for Concept Modelling of Alloy Wheel
