Challenge 7 : Concept Modelling of Steering Wheel

Title of the Project

Concept Modelling of Steering Wheel

Objective

TO Follow the entire process as per the guidelines from Video Tutorial to build the Surfaces for Steering Wheel

Introduction

Steering wheels are used in most the four-wheelers vehicles, including buses, light, cars, tractors, and heavy trucks, The steering wheel is the part of the steering system, this is the main part that provides the control over the vehicle's directions to the driver, the rest of the steering system responds to such driver inputs. This can be through direct mechanical contact as in recirculating ball, rack, and pinion steering gears, without or with the assistance of hydraulic power steering, HPS, or as in some modern production cars with the assistance of computer-controlled motors, known as electric power steering

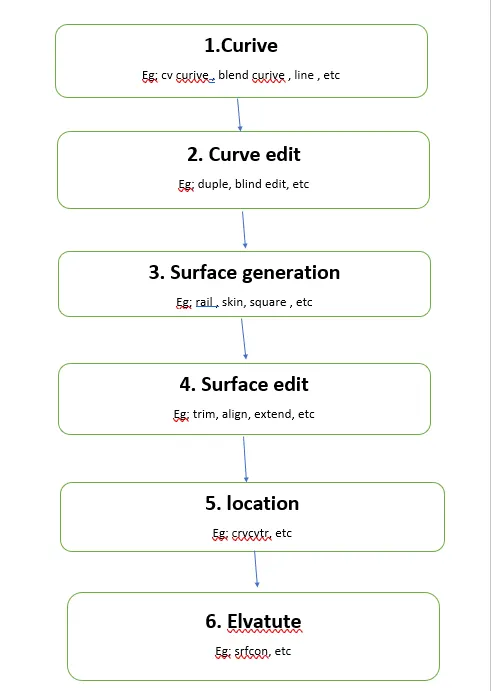

Design methodology/approach (To be explained with the help of Flowcharts only)

Description (Need to explain tools/ Features used while designing) along with the images of Part files

first the image is imported to part, then the image is assigned to the layer then the curve is drawn as per need with the reference with of the imported image, the surface is generated and then the surface is edited and converted to the required shape of the element the sur fade elvatute is used to know the surface quality

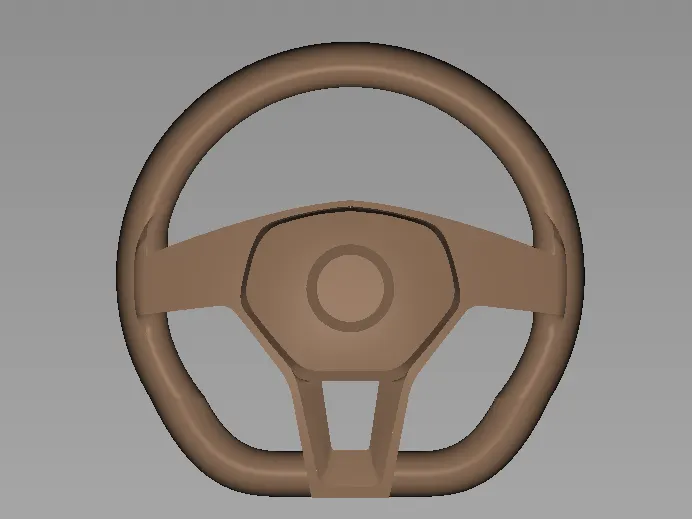

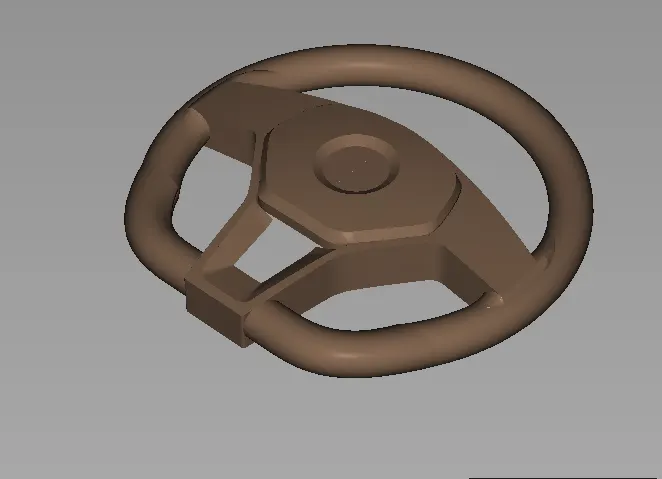

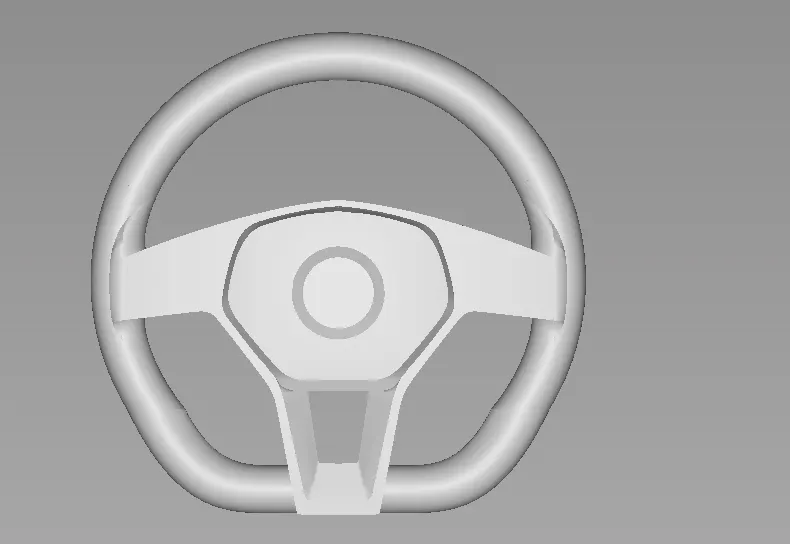

Upload a min of 4 screenshots of the Model in the report. (For eg:-Front View, Side View, Isometric View, and the Top View)

Conclusion

the concept Surfaces modeling for Steering Wheel is done by Following the entire process as per the guidelines from Video Tutorial
