Challenge 8 : Concept Modeling of Seats

Title of the Project ;

Concept Modeling of Seats

Objective ;

TO Follow the entire process as per the guidelines from Video Tutorial to build the Surfaces for Seats

Introduction ;

A car seat is a seat used in automobiles Most car seats are made from inexpensive but durable materials to withstand prolonged use. The most common material is polyester, lather

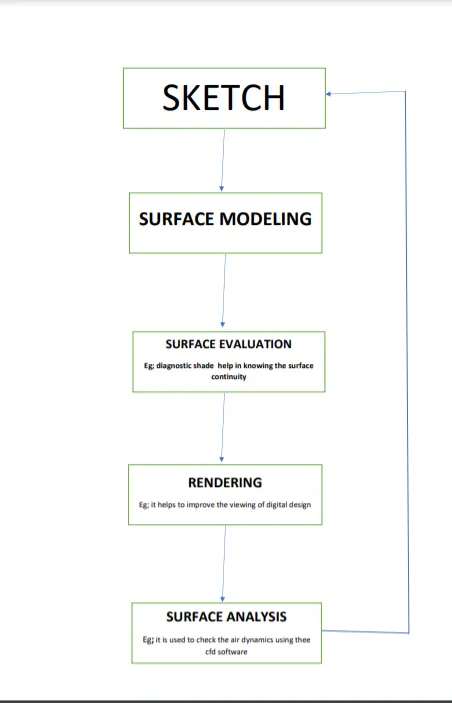

Design methodology/approach ;

Description ;

the design is first started from the creation of the curve by cv curve, blend curve, etc by then curve quality is bean checked by the location - crvcvtr to know the quality of the curve and check the span in the quality less it is a number more the quality of the curve by using curve and generation of the surface by skin, rail, square the good the quality of the curve the good the quality of surface, then the surface is edit is done as per the shape is needed by trim, align, detach, projet, etc then the continuity of the surface is checked by the elevate - srfcon, etc.

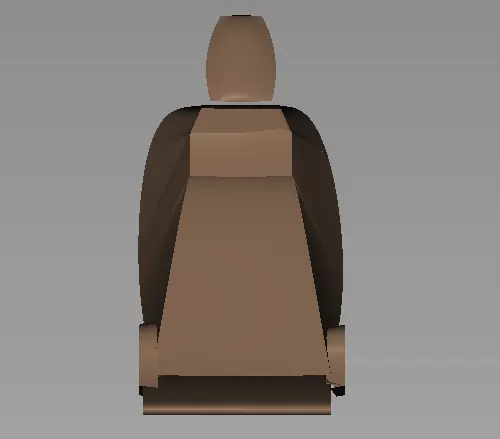

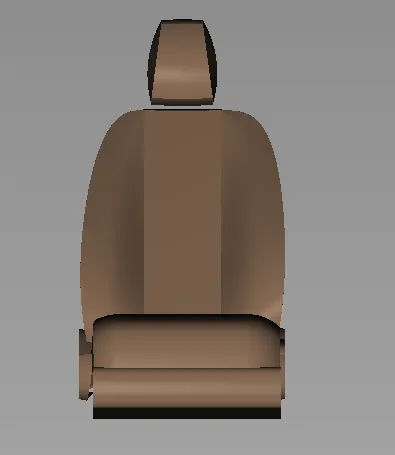

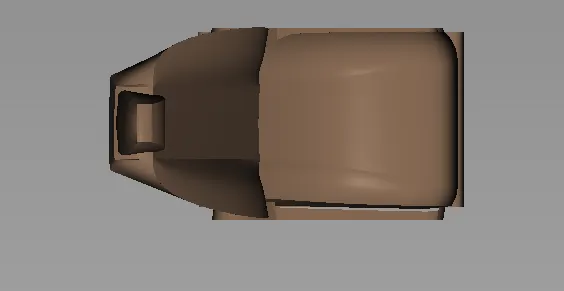

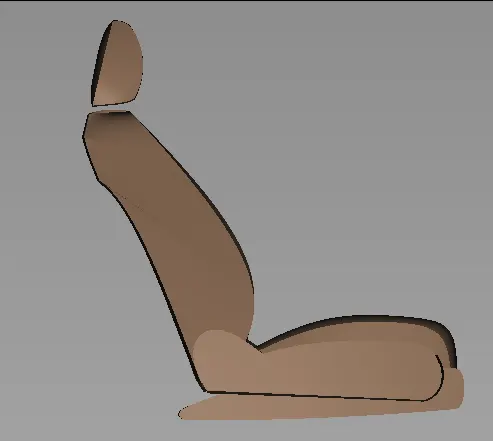

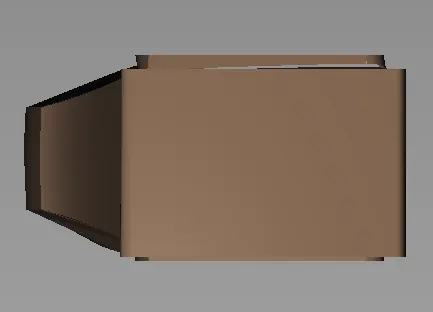

Upload screenshots ;

Conclusion ;

Follow the entire process as per the guidelines from Video Tutorial to build the Surfaces for Seats, the Concept Modeling of Seats was done
