Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

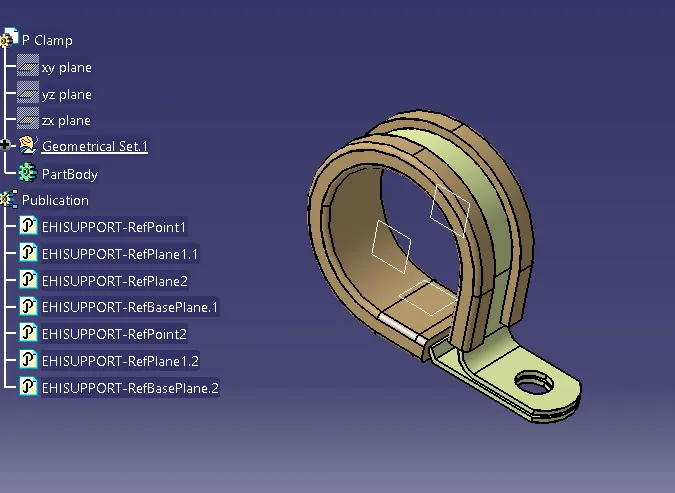

For below P-clamp defined two entry points and one base plane and its defined as supporting part in electrical part definition.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

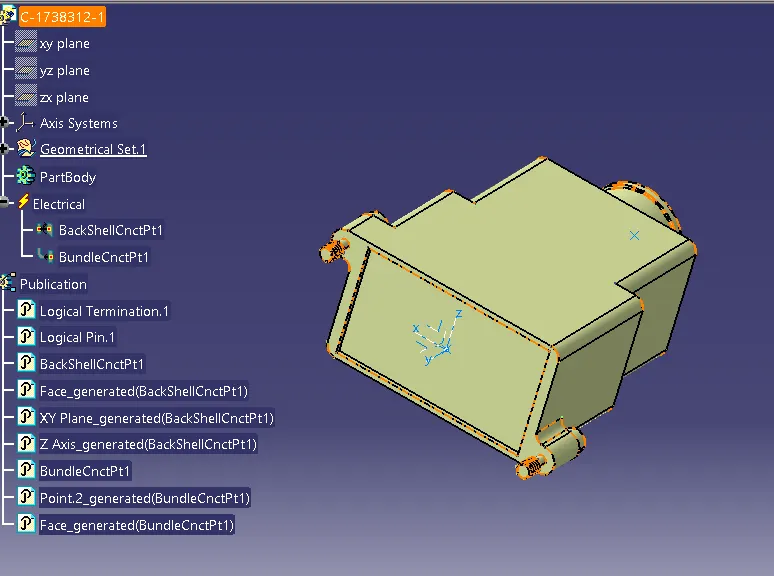

Below backshell defined as backshell part in the electrical part definition work bench,also defined back shell connection point & bundle connection point.

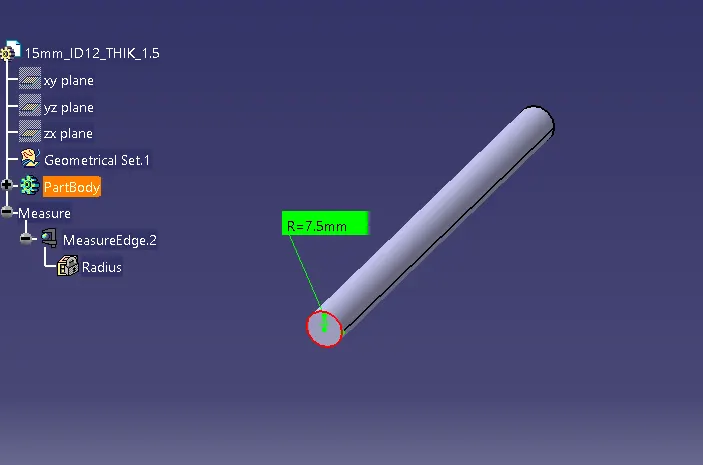

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
5mm COT |
12 |
15 |
1.5 |
|

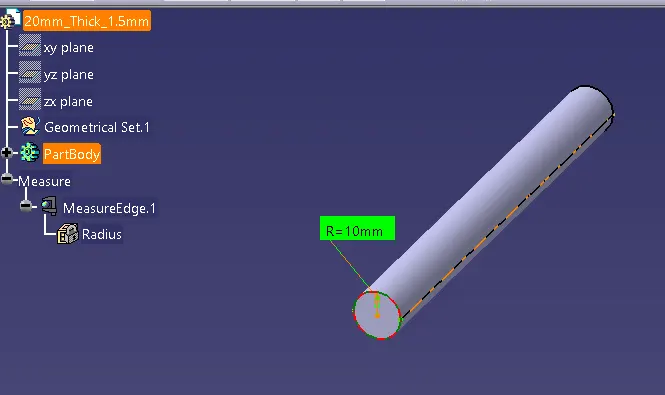

20mm COT |
17 |
20 |
1.5 |
|

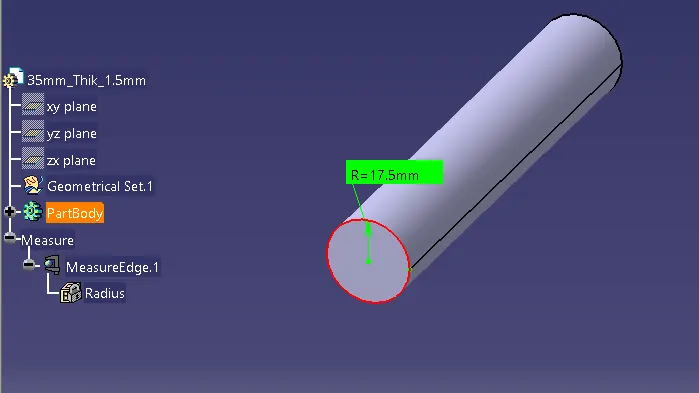

35mm COT |
32 |
35 |
1.5 |
|

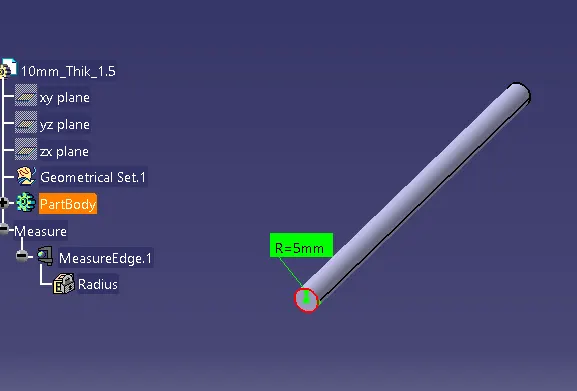

10mm COT |
7 |
10 |
1.5 |
|

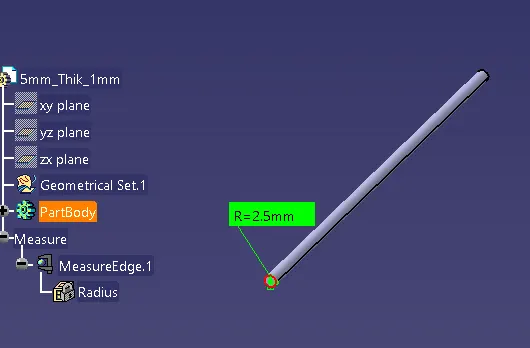

5mm COT |
3 |
5 |
1 |
