Wiring harness routing & packaging Rules Week 3 Challenge

WIRING HARNESS ROUTING & PACKAGING RULES WEEK 3 CHALLENGE

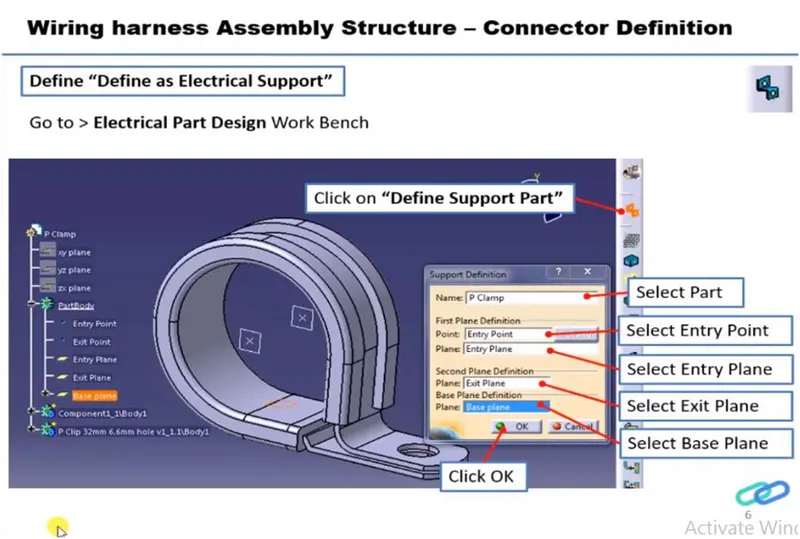

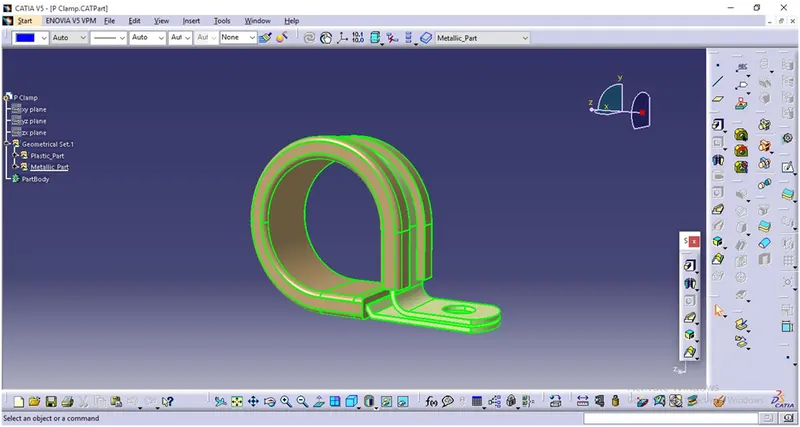

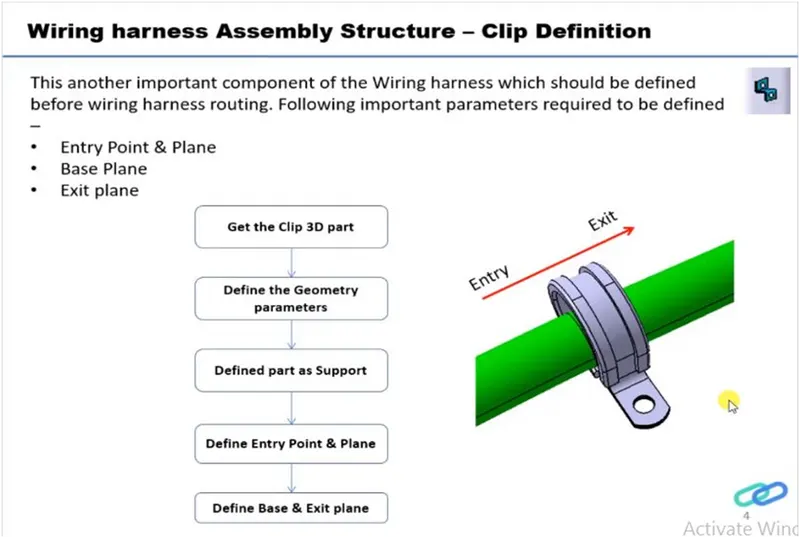

Q1. Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

P-Clamp

Ans:

Steps:

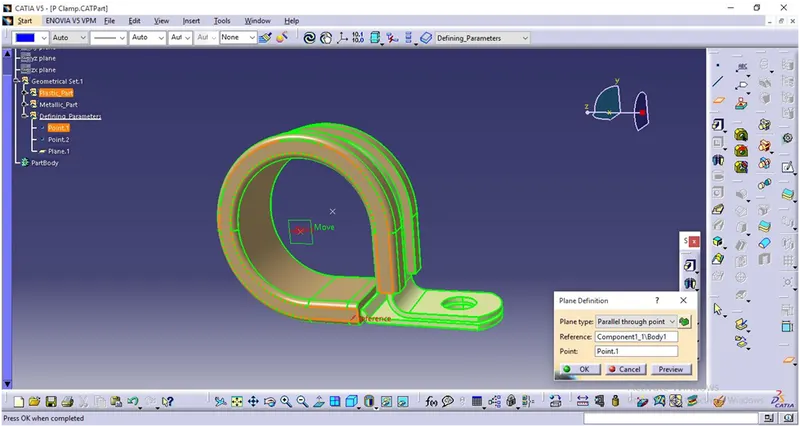

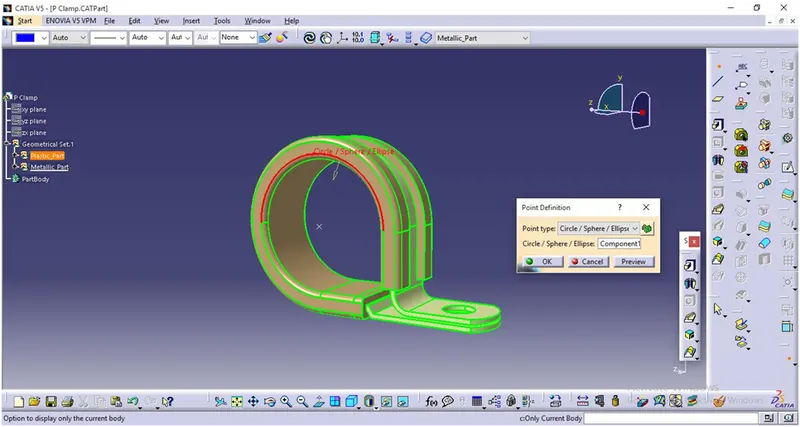

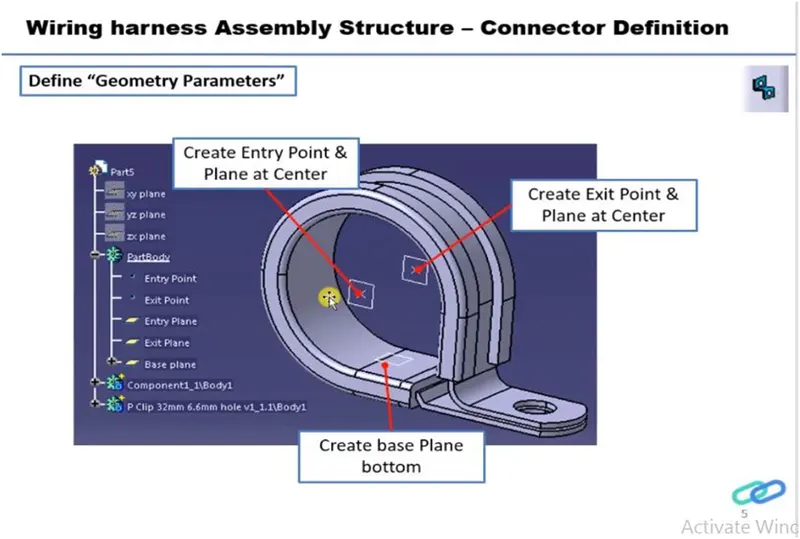

• Create two points one as entry and another as exit point.

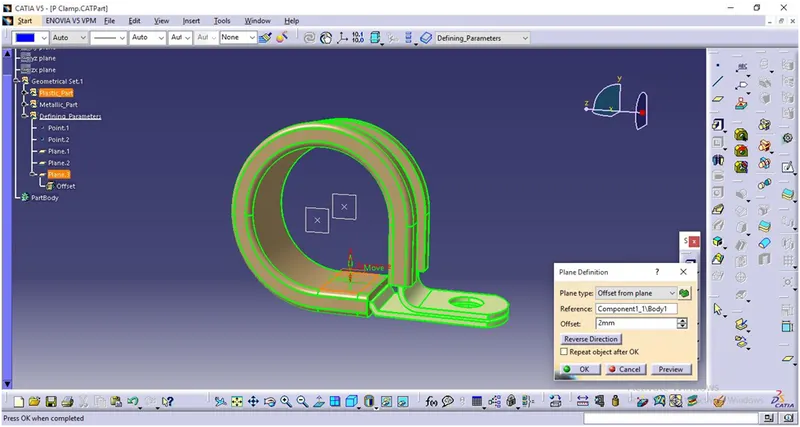

• Create planes at two points and another at base.

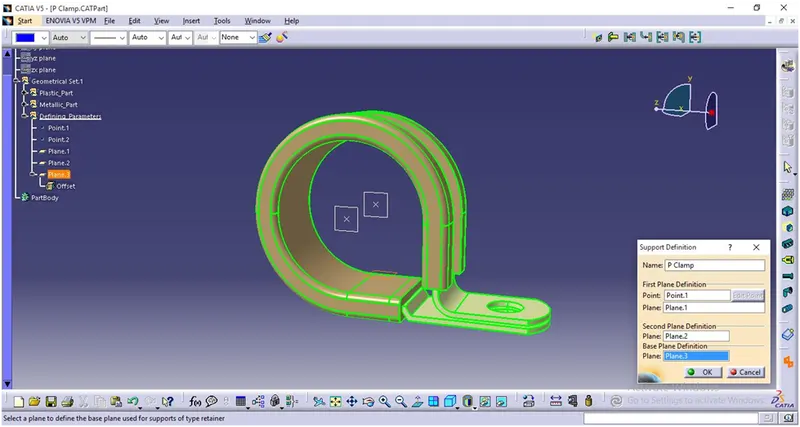

• Switch to Electric part design and define the Support part for both sides.

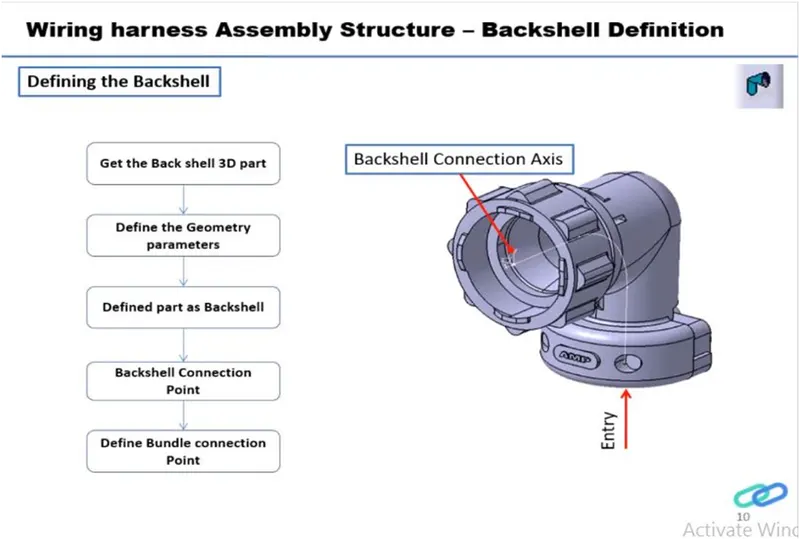

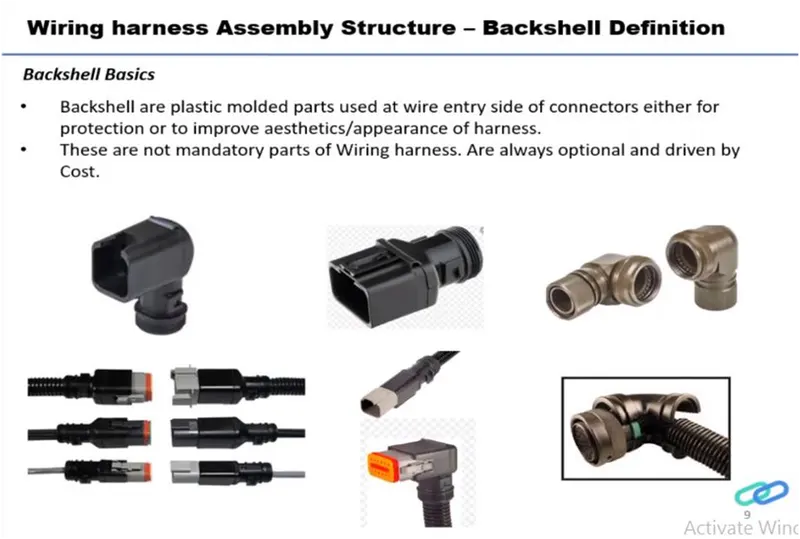

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html



Ans:



Steps:

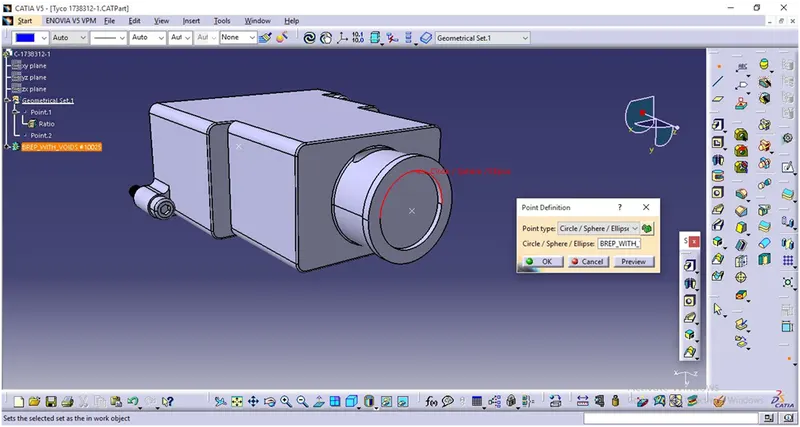

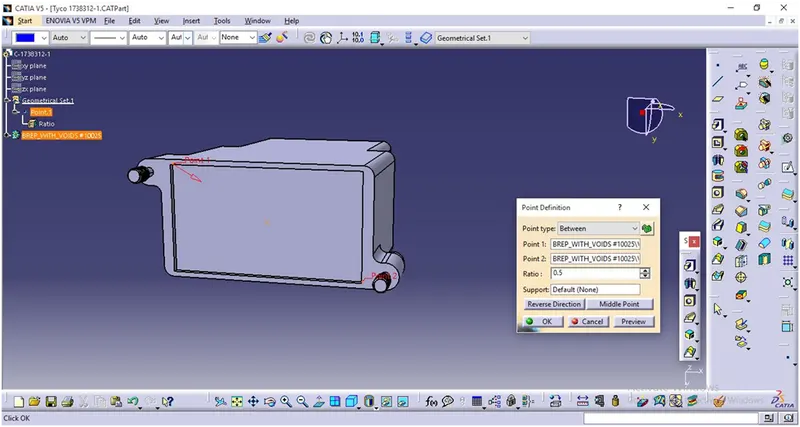

• Create Back shell entry point.

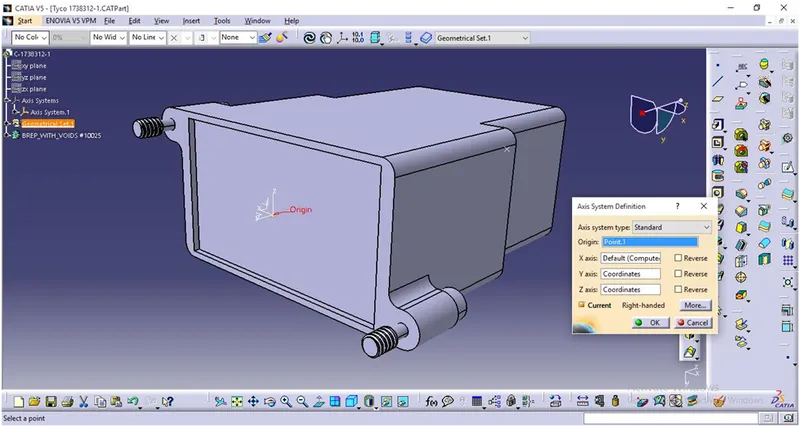

• Create axis system for back shell entry.

• Create bundle connection point.

• Switch to Electrical part design.

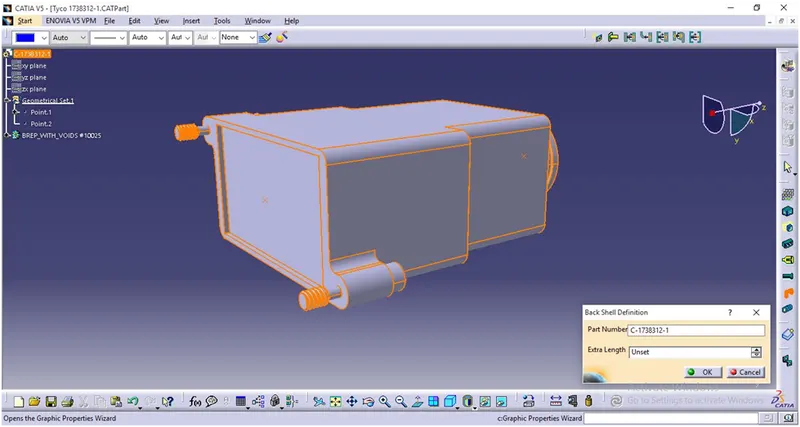

• Define part electrically as back shell.

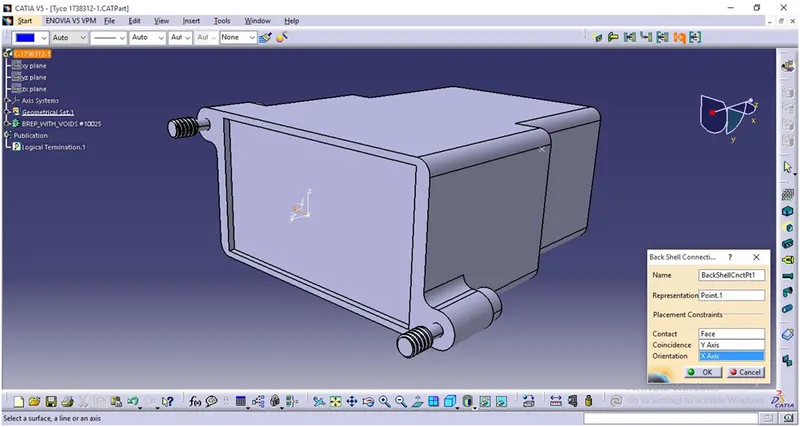

• Then define Back shell connection point.

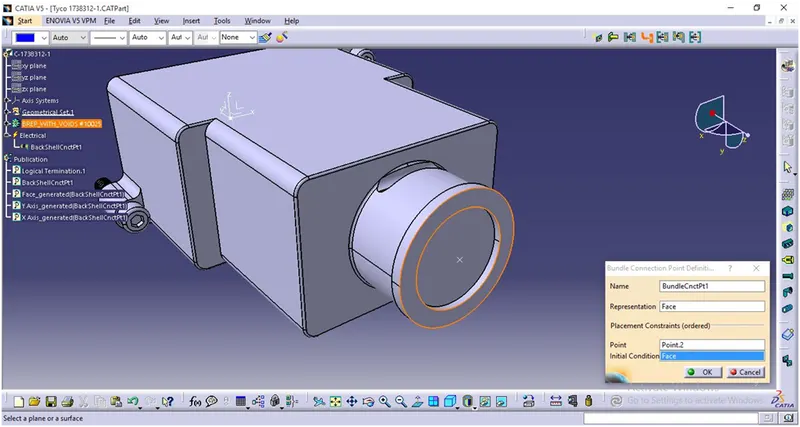

• Define bundle connection point.

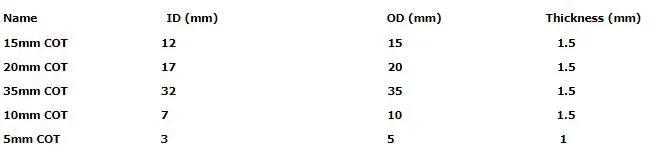

Q3. Create Following Corrugated tubes & add them in Catalogue under “Slit COT” family.



Ans:

Steps:

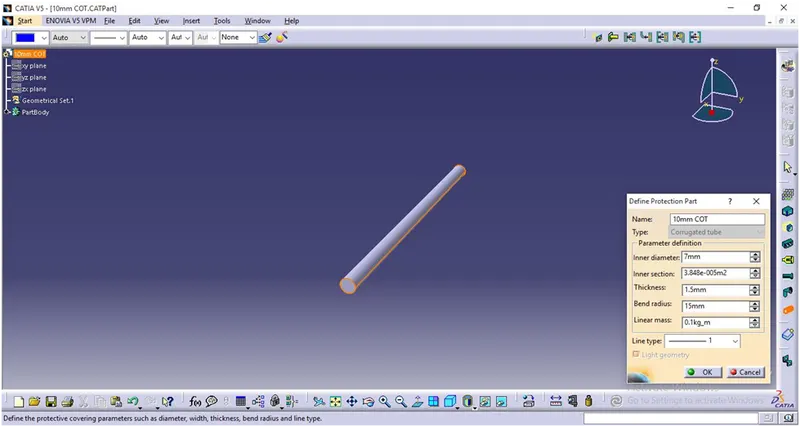

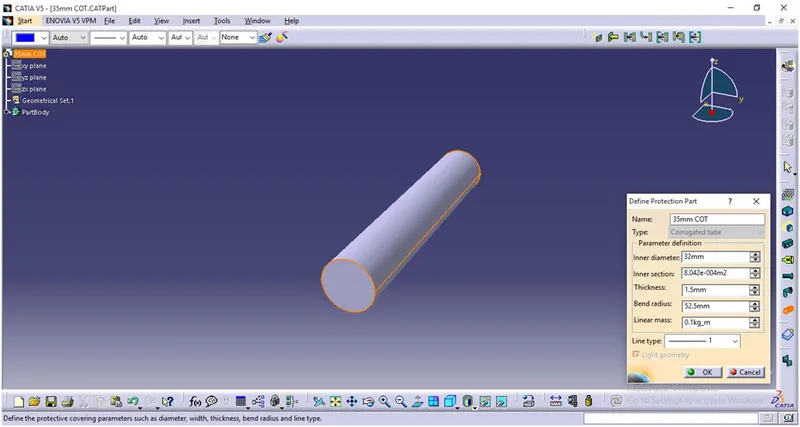

• Open Electrical part design Workbench.

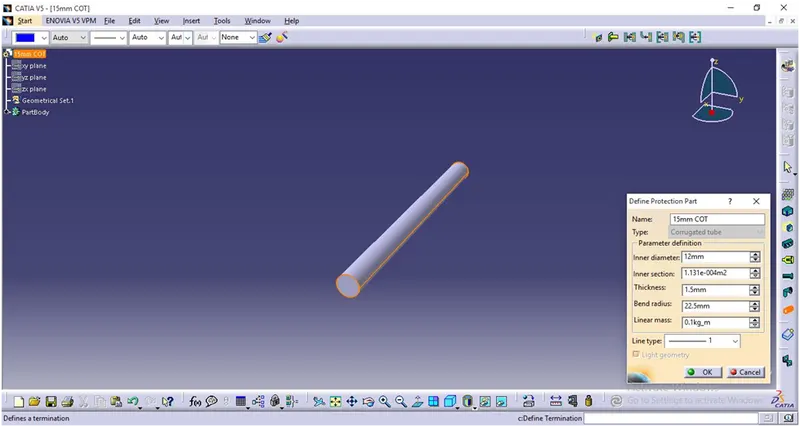

• Select Define protection Part.
• Click on part (on file name in specification tree).
• Provide given parameters and bend radius as '1.5 x Outer Dia'.

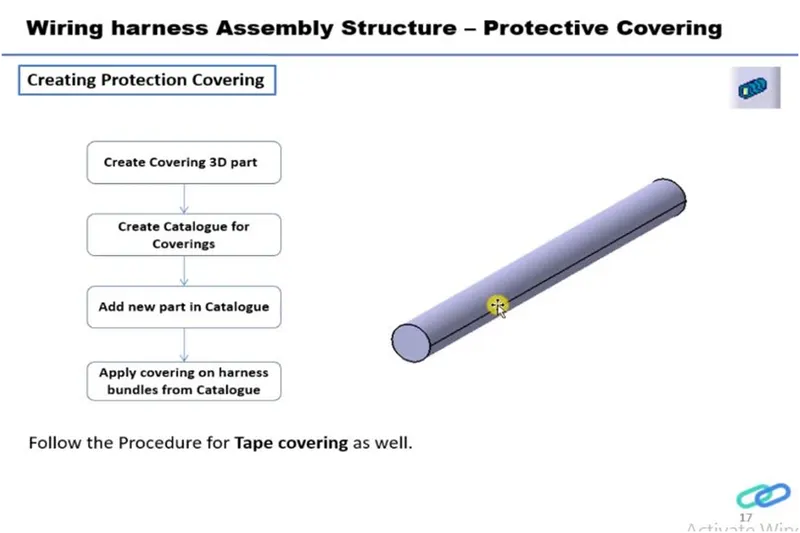

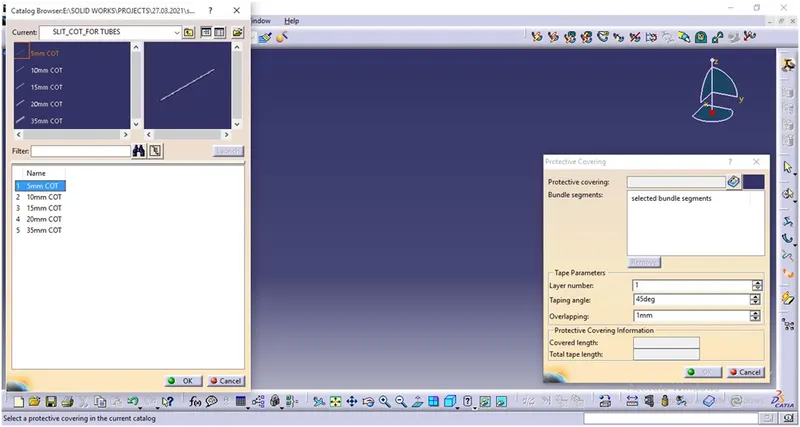

Catalogue Creation:

new part - catalogue document - add family - give name - type - select Conduit - save.

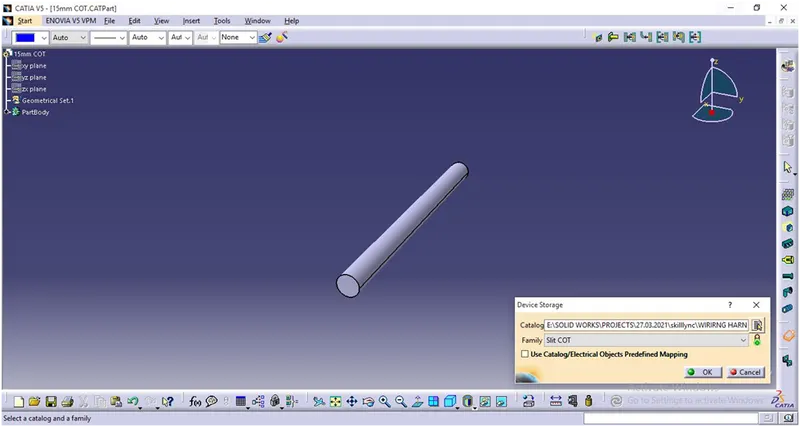

Open part to add catalogue - store device command - select catalogue - family Slit_cot_tube – ok.
