Wiring harness routing & packaging Rules Week 3 Challenge

AIM:-

Download given P_Clamp & back shell cad data from given link & define it as Electrical using Electrical Part design Workbench. Define all the necessary properties to neccessary part. And making a slit cot family to the corrugated tube catalogue.

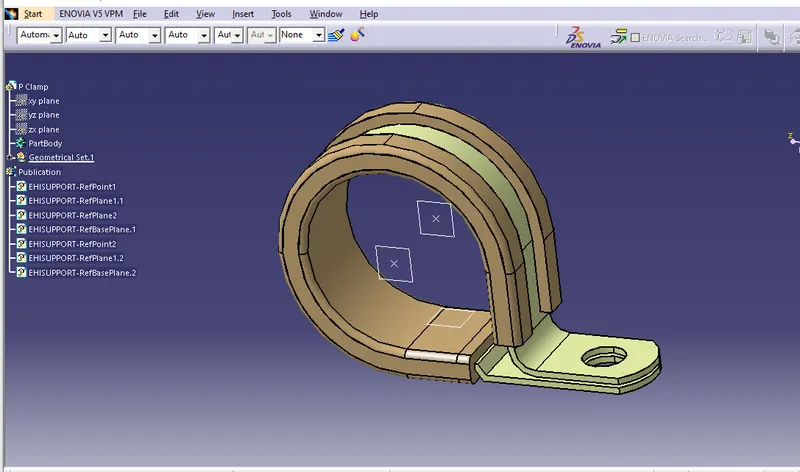

Q1. P_Clamp.

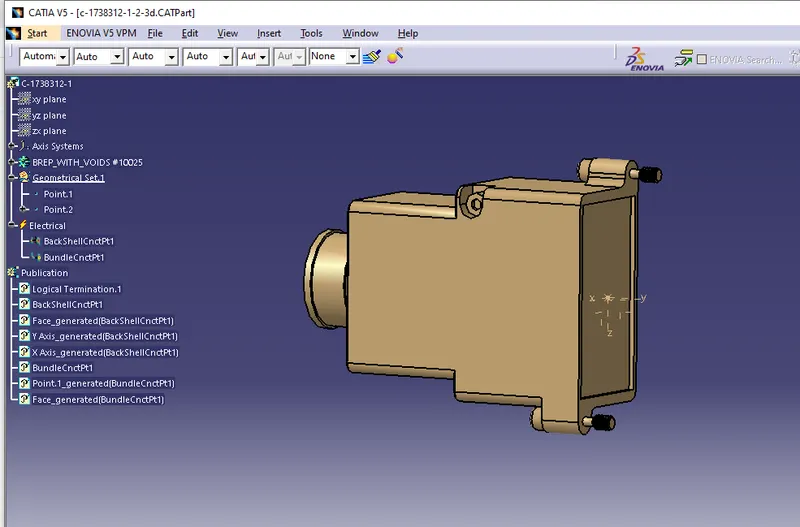

Q2. Tyco 1738312-1

Q3. Created Following Corrugated tubes & Added into them in Catalogue under as a “Slit COT” family.

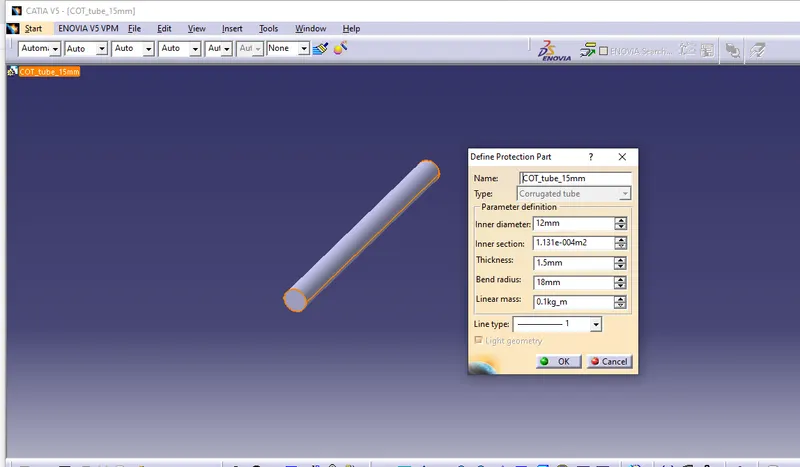

1] 15mm COT

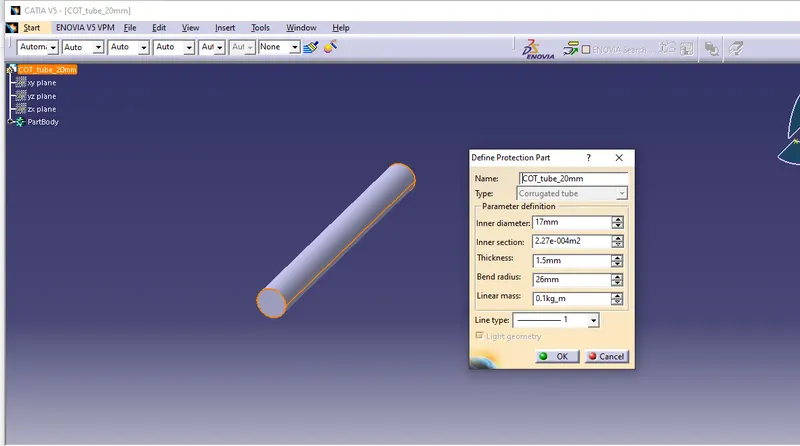

2] 20mm COT

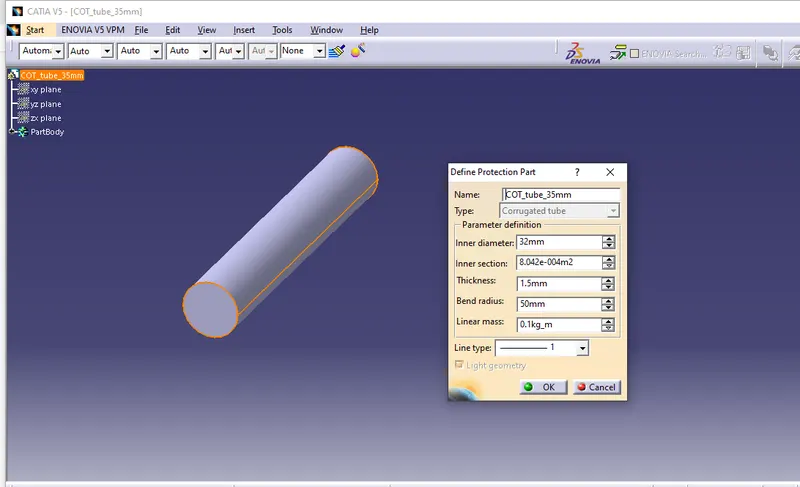

3] 35mm COT

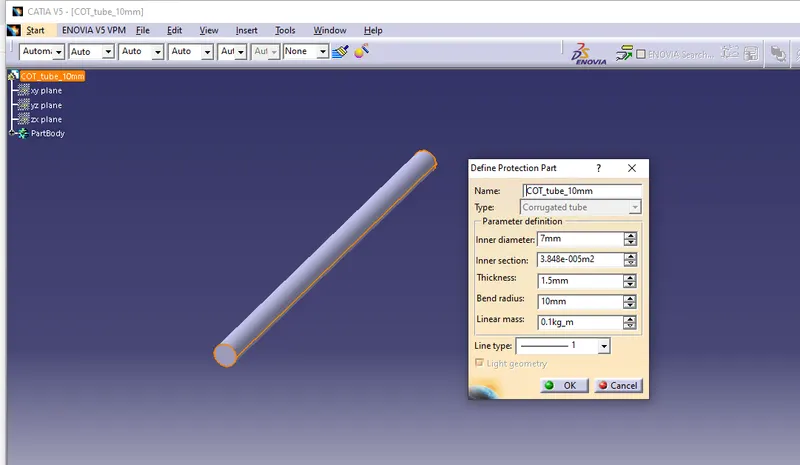

4] 10mm COT

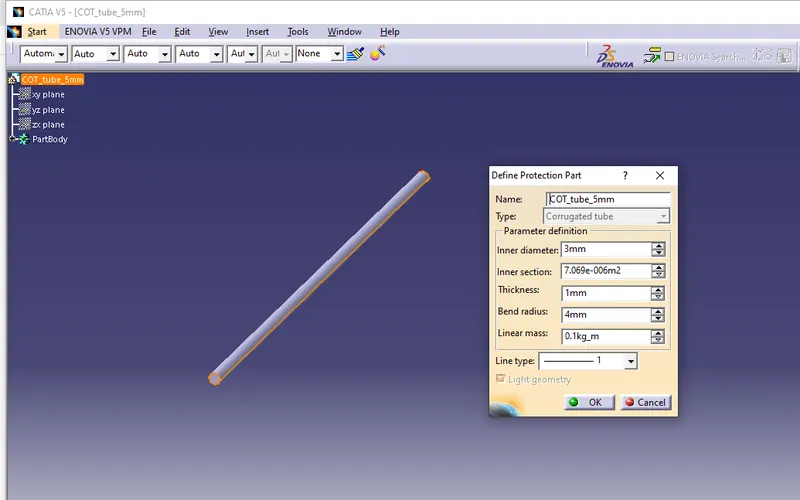

5] 5mm COT

CONCLUSION-

Both the P_Clamp and the Back shell were defined as an electrical and electrical mounting equipment respectively. All the necessary electrical and geometrical properties were given to the parts. And the required making a Slit_COT tubes as a family to the Corrugated tube Catalogue.
