Wiring harness routing & packaging Rules Week 3 Challenge

CLIPS:

CONNECTOR CLIPS FEATURES VARIOUS ATTACHEMENT POINT CONFIGURATIONS TO ACCOMMODATE THE MANY CONNECTORS ON THE MARKET.THEY ARE FIRST MATED WITH A CONNECTOR ON A WIRE HARNESS OR CABLE ASSEMBLY,THEN SECURED TO ASURFACE USING THE INTERGERATED MOUNT

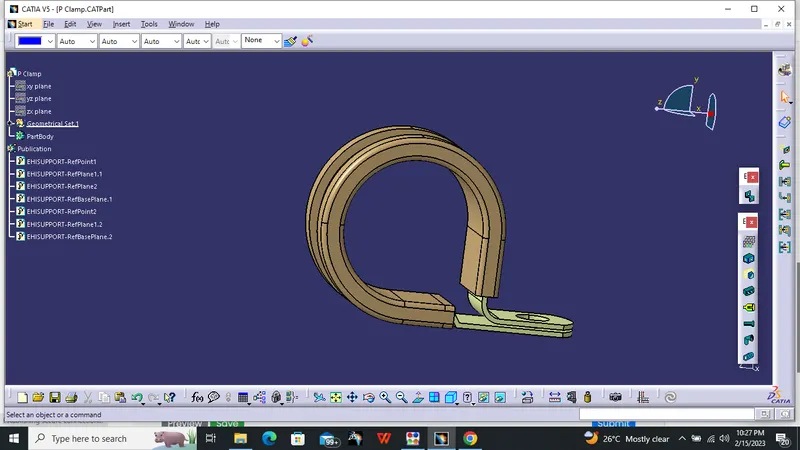

• FIRST WE WANT TO DOWNLOAD THE CLAMP FORM THE TE.COM WEBSITE THEN WE WANT CONNSTRAIN ELECTRICAL BUY THE ELECTRICAL PART WORKBENCH IN CATIA
• AFTER THAT NOW WE WANT TO DEFINE THE ENTRY PART AND EXIT PART OF THE PART FOR THAT WE WANT TO GO TO MECHANICAL PART DESIGN AND CREATE THE TWO POINT WITH THE CENTRE OF THE TO CIRCLE WAYS
• AFTER CREATING THE POINT CREATE THE PLANE ON THE POINT BY USING THE PARALLEL THROUGH THE POINT AND MAKE THE BASE SURFACE PLANE BY OFFSET PLANE OPTION FROM 2 mm FROM THE SELECTED SURFACE
• THEN NOW WANT TO CONNECT ELECTRICAL THE PARTS BY USING THE SUPPORT PART OPTION ELECTRICAL PART DESIGN SELECT THE POINTS AND PLANE FIRST TIME THEN NEXT TIME SELECT THE ANOTHER POINT
• AFTER THAT SAVE THE PARTS AND CREATE THE CATOLOGUE AS CLIP CATOLGUE AND SAVE THE PARTS IN THE CATOLUGE

BACKSHELL:

A BACKSHELL IS AN NECESSARY THAT MOUNTS TO THE REAR THREADS OF ACONNECTOR TO ENHANCE ITS OPERATIONAL CHARATERSITICS.THE PRIMARY FUNCTION OF A BACKSHELL IS TO PROVIDE STRAIN RELIEF,WHICH MINIMIZES STRESS FROM THE CABLE,ON THE JUNCTION WHERE THE WIRES TERMINATE TO THE CONTACTS.

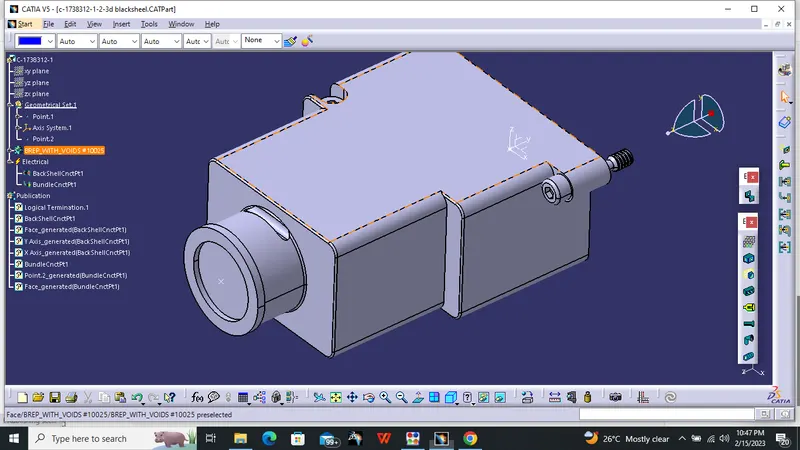

• FIRST WE WANT TO DOWNLOAD THE CAD PART OF THE BACKSHELL FROM THE TE.COM AND THAT WE WANT MAKE THE PARTS AS ELECTRICAL DEFINED

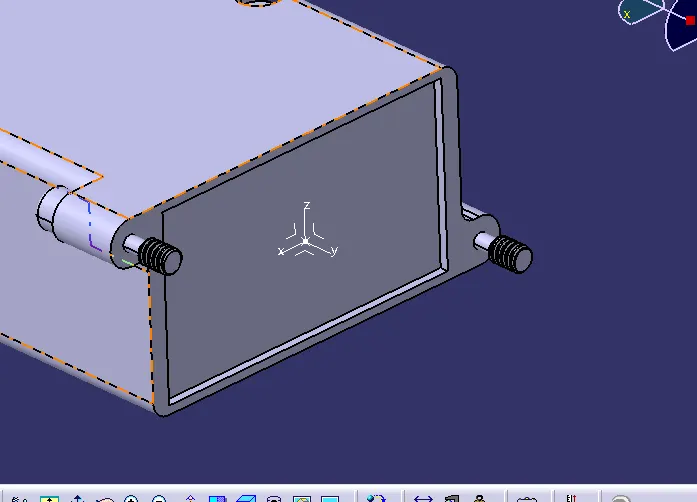

• FIRST WE WAN TO CREATE THE TWO POINT FOR THE BACKSHELL CONNECTION POINT AND BUNDLE CONNECTION POINT
• AFTER CREATE THE POINT CREATE THE AXIS SYSTEM IN THE BACKSHELL CONNECTION POINT.THEN MAKE CLICK THE BACCKSHELL CONNECTION POINT OPTION AND SECET THE SURFACE POINT REPERSENTION ORGIN COINCIDENCE AND TWO ANXIS
• AFTER THAT CREATE THE BUDDELE CONNECTION POINT AND CLICK ALL THE REQUIRED POINT AND FACE TO BE DEFINED.THEN SAVE THE PARTS AND CREATE THE SEPERATE CATOLOGUE NAME AS BACKSHELL CATOLUGE AND SAVE THE BACKSHELL PARTS IN THE CATLOUGE

CORRUGATED TUBES:

IT HAS BEEN IMPLENTED MORE AND MORE AS AN ADAVNTAGEOUS CONNECTING ELEMENT IN MANY TE CHINICAL APPLICATIONS,ESPECIALLY FORT.THEY MAY ASLO CONSISTS OF TWO OR SEVAL CORRUGATED TUBES

• FOR MAKING THE CORREGATED TUBES WE CANNOT ABLE TO DOWNLOAD THE PART .WE WANT TO MAKE THE TUBES

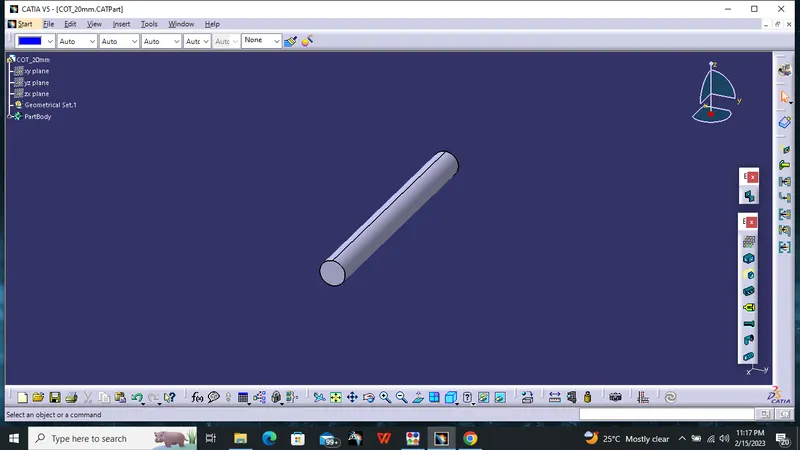

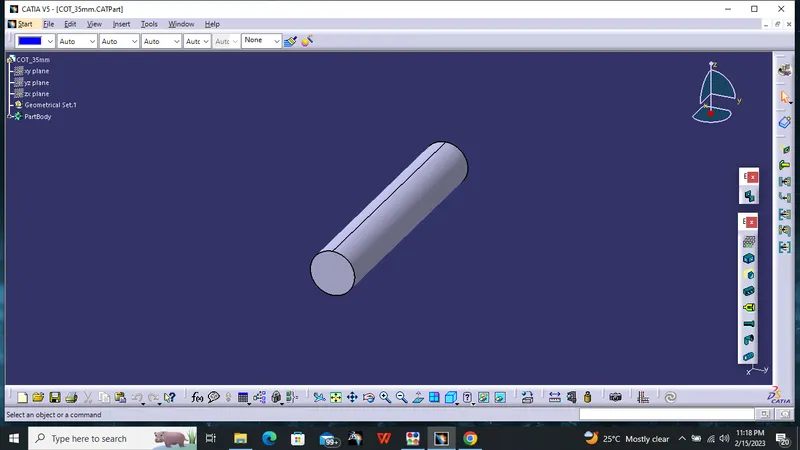

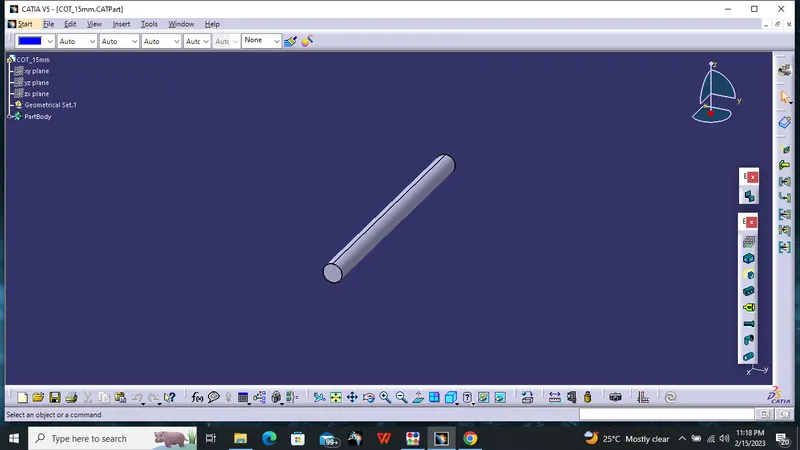

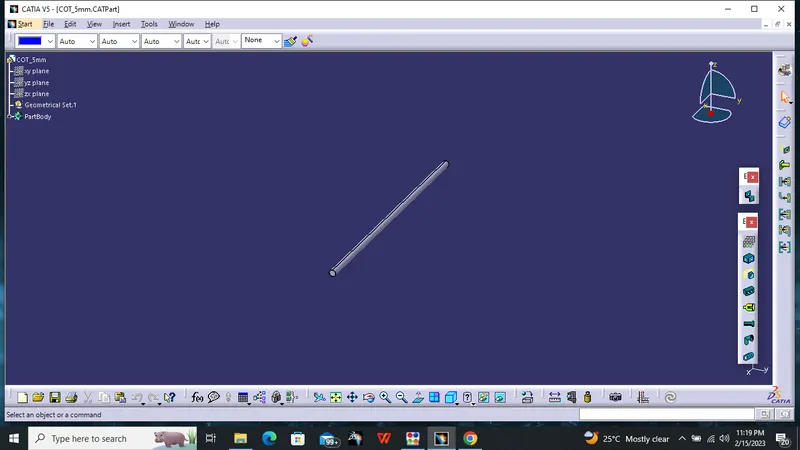

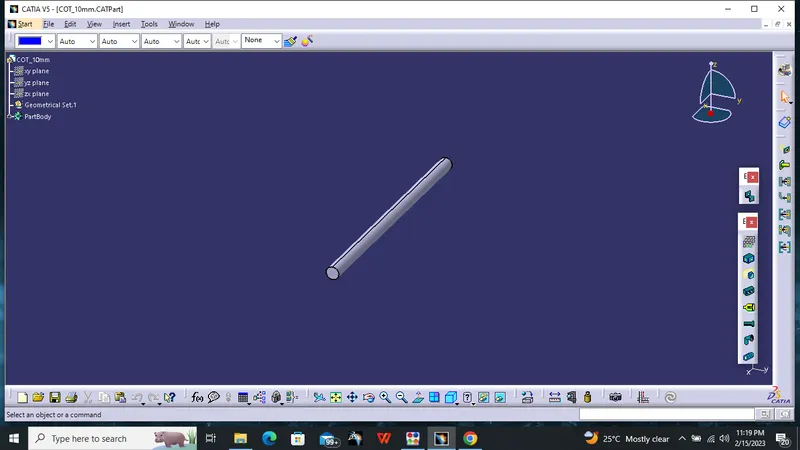

• FOR THAT FIRST GO TO ELECTRICAL ASSEMBLY AND CLICK THE PROTECTION PART OPTION AND GIVES THE DIAMENTER OF INNER AND OUTER AND THICKNESS AND BEND RADIUS
• THE BEND RADIUS IS 1.5 OF THE OUTER DIAMETER WE WANT TO MAKE THE 5 CORROGUTED TUBES IN DIFFERENT DIAMETRE

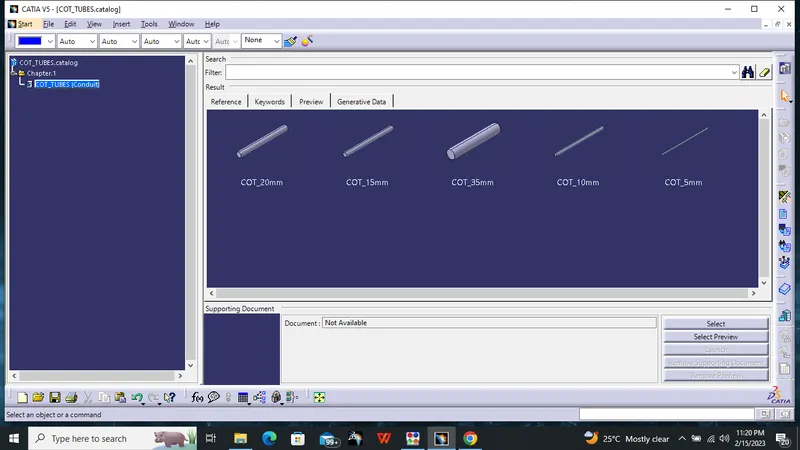

• AFTER THAT CREATING ALL THE CORROGATED TUBES SAVE THE ALL THE PARTS AND CREATE THE COT TUBES CATOLOUGE AND SAVE ALL THE PARTS CREATED INTO THE SINGLE CATLOGUGE
