Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
P-Clamp:

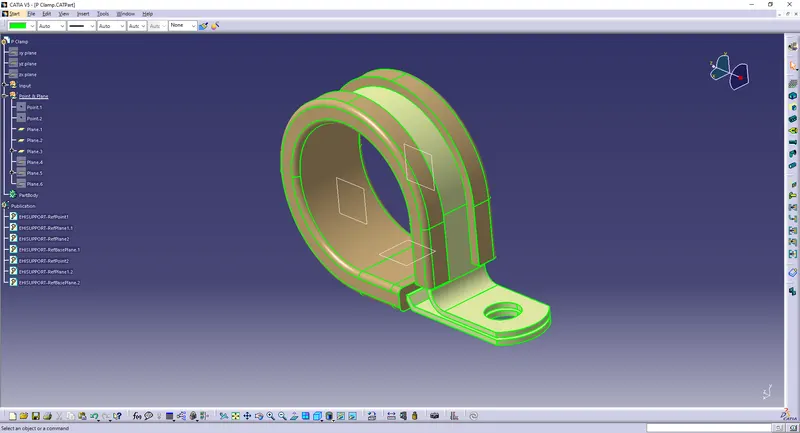

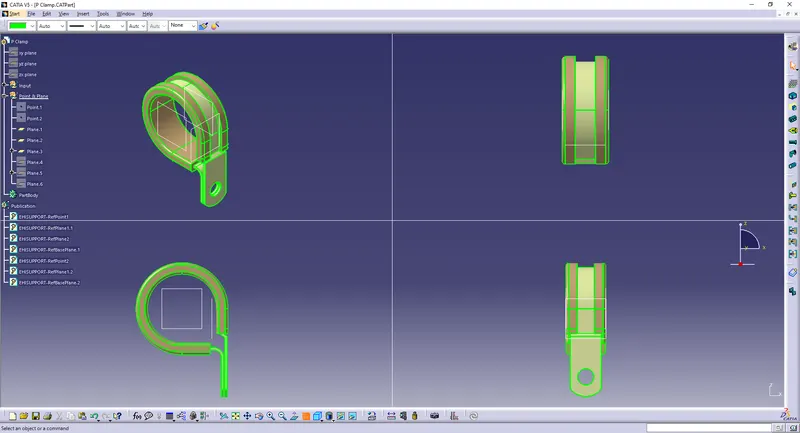

- The given clip was downloaded and opened as a part file.
- I have to define two points that will be used as entry and exit points.
- Then a plane has to be defined at the points.
- A base plane has to be defined at a distance of 2 to 3 mm from the clip.
- again we define the exit point at the first definition as the entry point.
- hence I have two entry and two exit points.
At HellermannTyton we thrive on taking established design conventions for fixing parts and improving on them. So when we received a request for a more versatile way to mount and clamp cables and hoses on construction machinery we rose to the challenge.
We applied our extensive cable tie design know-how to solve all the mechanical limitations of the conventional p-clamp that our customers told us about.
It’s the most user-friendly, versatile, and rugged p-clamp for fastening and fixing cables, wires, pipes and hoses on the market. Like a clip, you can also re-open and re-use it hundreds of times.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

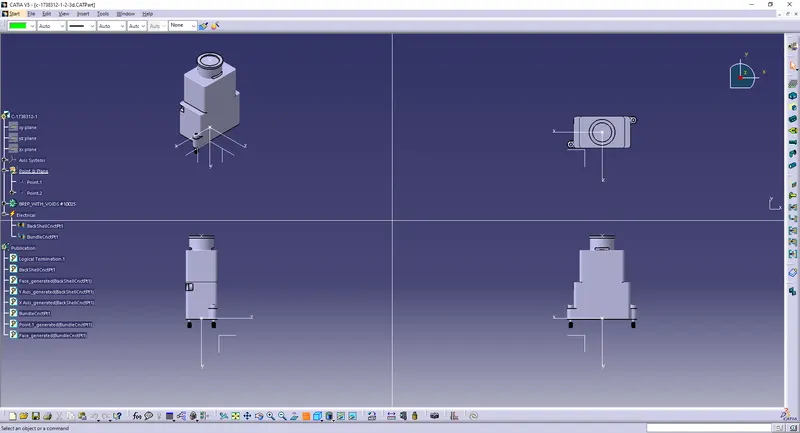

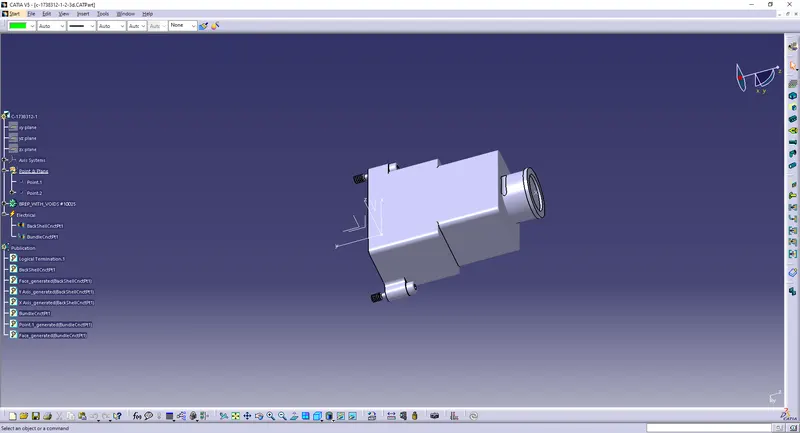

- The backshell data was downloaded from the website.
- We define the points in the part workbench.
- An Axis system with the correct axis orientation is placed at the backshell connection point.
- The points have to be defined as the backshell connection and bundle connection points.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

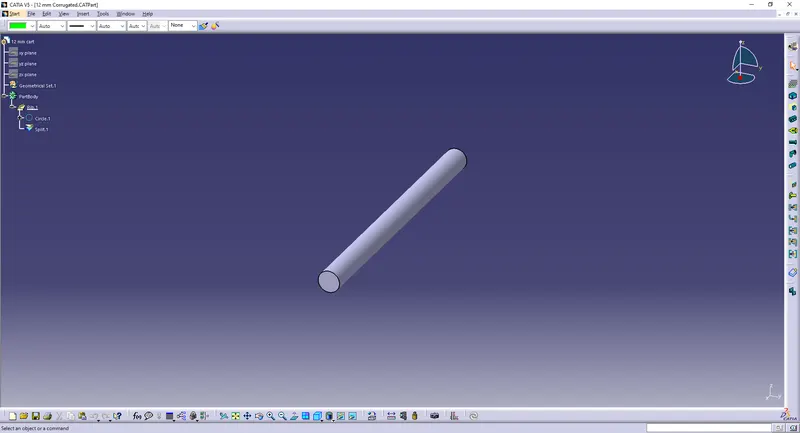

15mm COT |
12 |
15 |
1.5 |
|

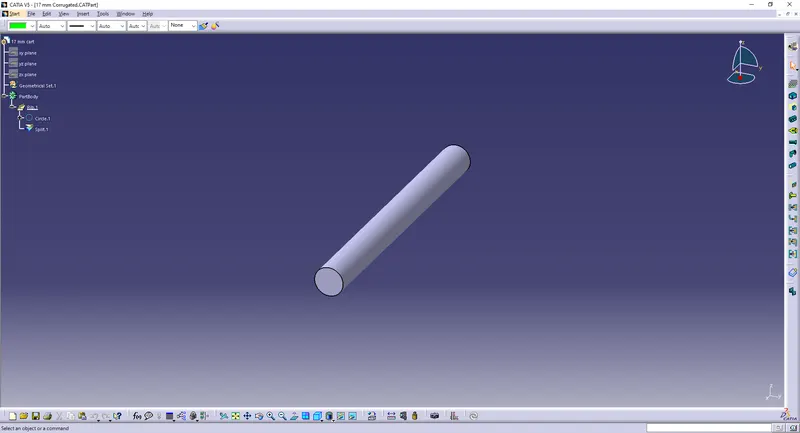

20mm COT |
17 |
20 |
1.5 |
|

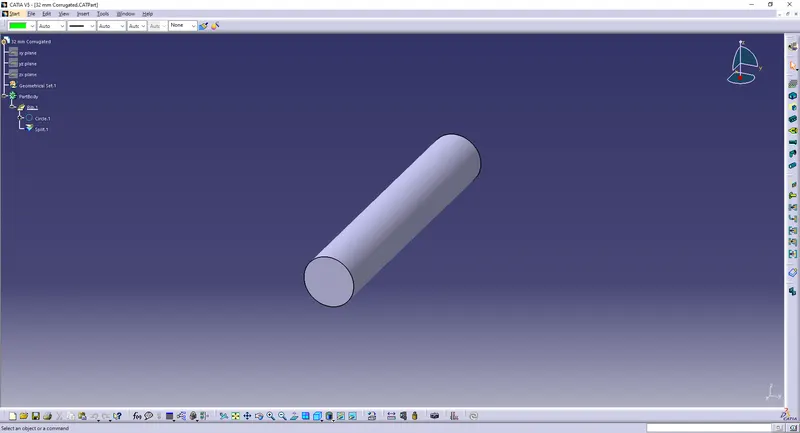

35mm COT |
32 |
35 |
1.5 |
|

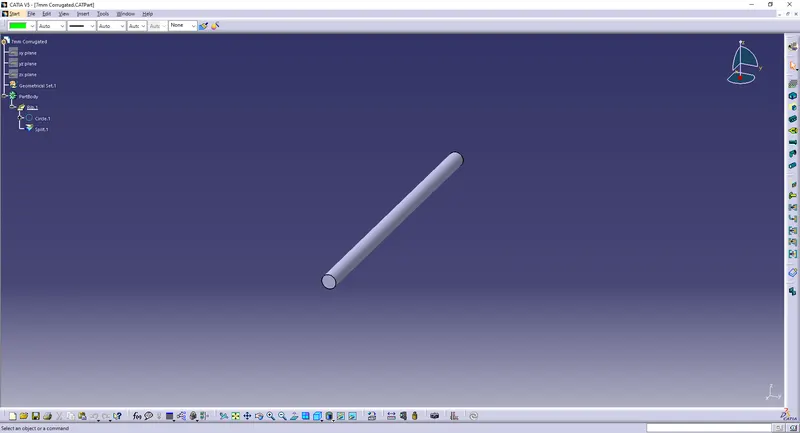

10mm COT |
7 |
10 |
1.5 |
|

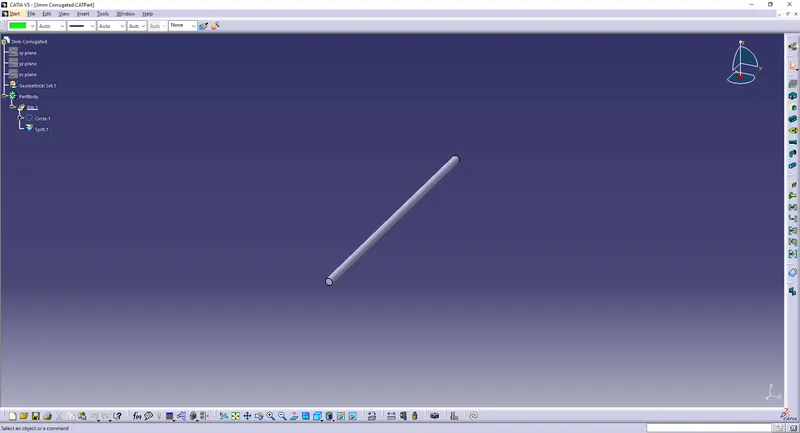

5mm COT |
3 |
5 |
1 |
- we define the cot tubes in the electrical part workbench.
- the inner dia & thickness are given as the inputs.
- a catalog was created for the cot tubes.
- all the cot tubes were saved in the catalog.
