Wiring harness routing & packaging Rules Week 3 Challenge
AIM : Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

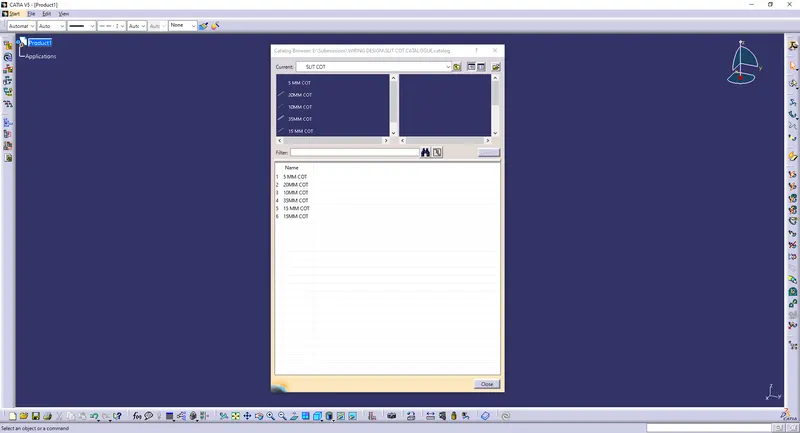

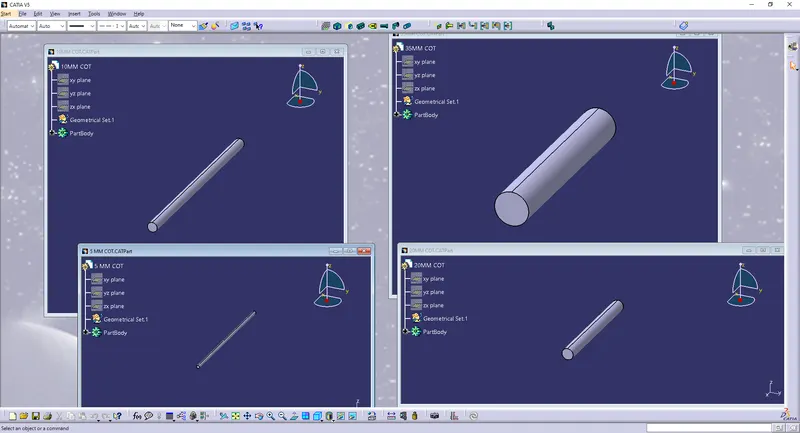

Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
INTRODUCTION :
P-Clamps : lock cables and hoses in place and help ensure that machinery, vehicles and equipment keep running. They bracket wires, cables or hoses together mechanically and are fastened securely to an anchor point – usually with a screw or a bolt.

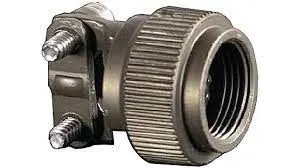

BACK SHELL : Backshell Part of an electrical conductor or other electrical device, such as a cable clamp or adapter, that is threaded onto the rear connector accessory threads of plug or receptacle connectors to make up the total connector assembly.
USE : Backshells protect the electrical connector and the cable link from physical stress (strain, shock, vibration) as well as electromagnetic interference that can occur when lightning strikes an aircraft.

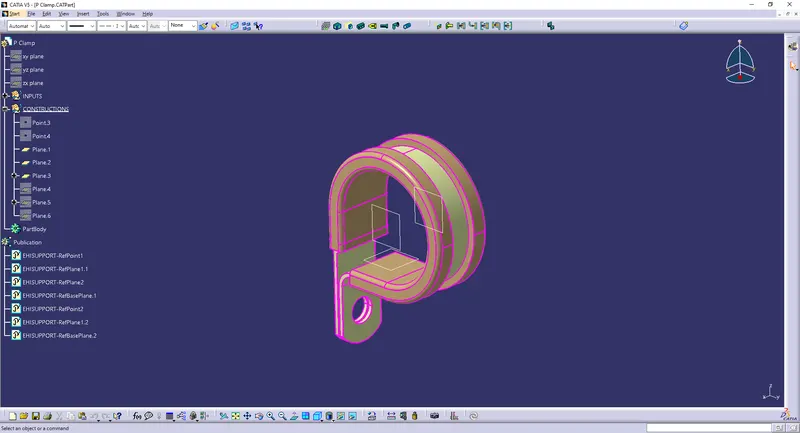

P CLAMP :

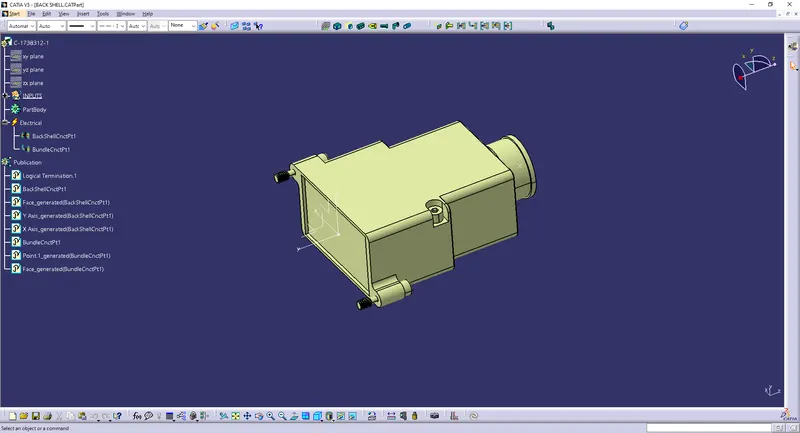

BACK SHELL :
ANS 3:
