Wiring harness routing & packaging Rules Week 3 Challenge

Q1

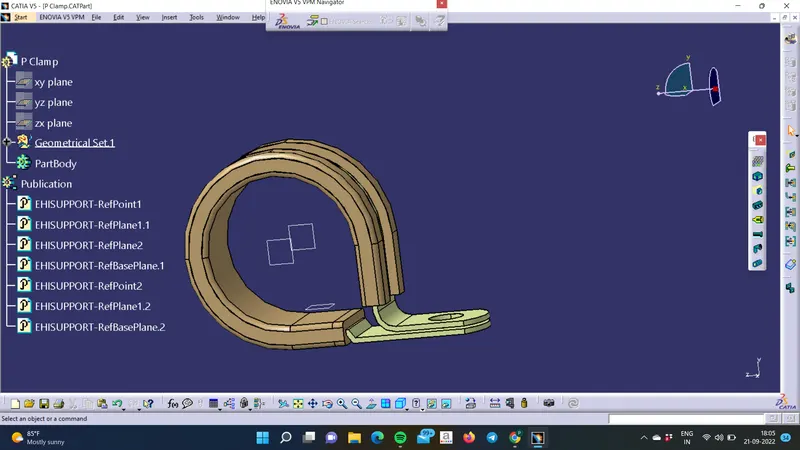

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

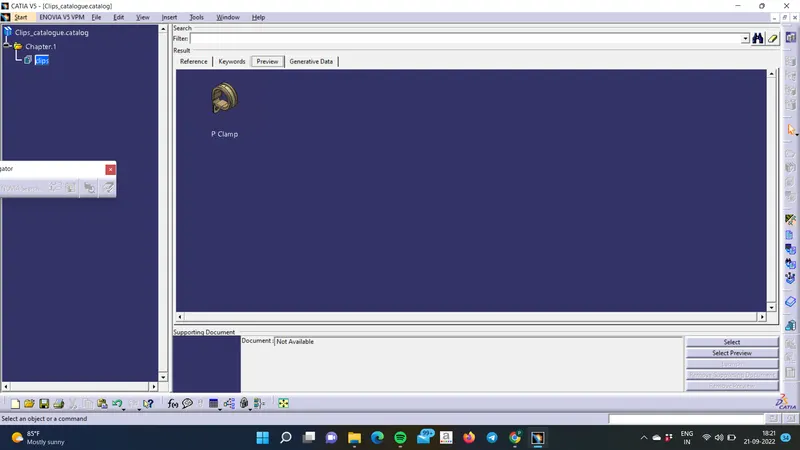

catlogue creation

Q2

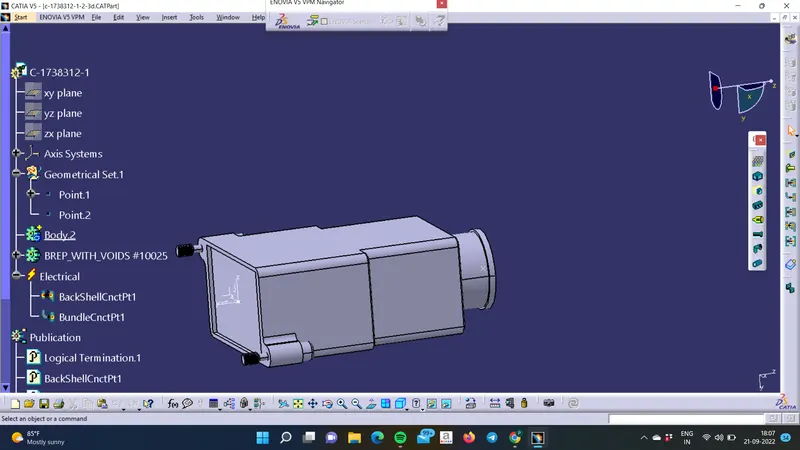

• The backshell data was downloaded from the website.
• We define the points in the part workbench.
• An Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.

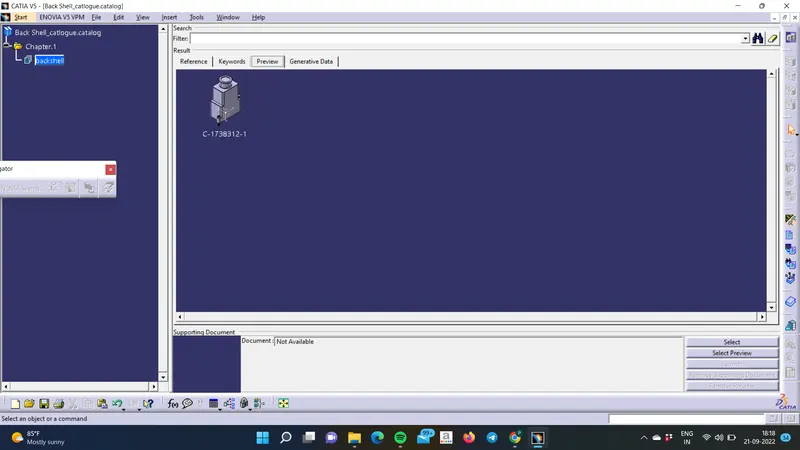

catlogue creation

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

Process:

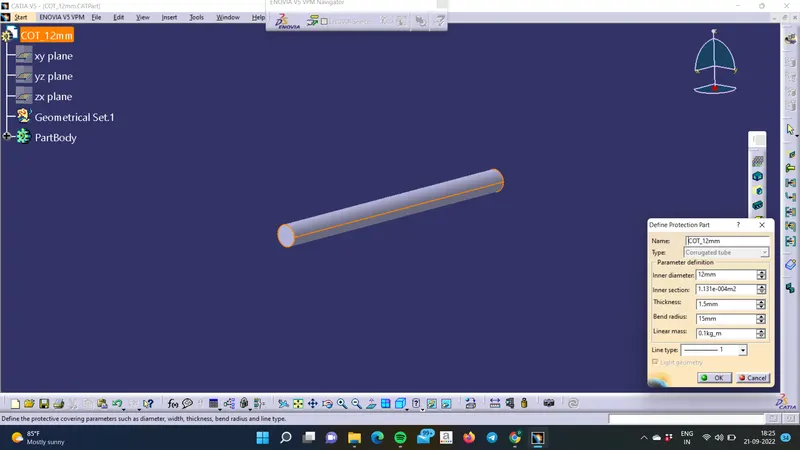

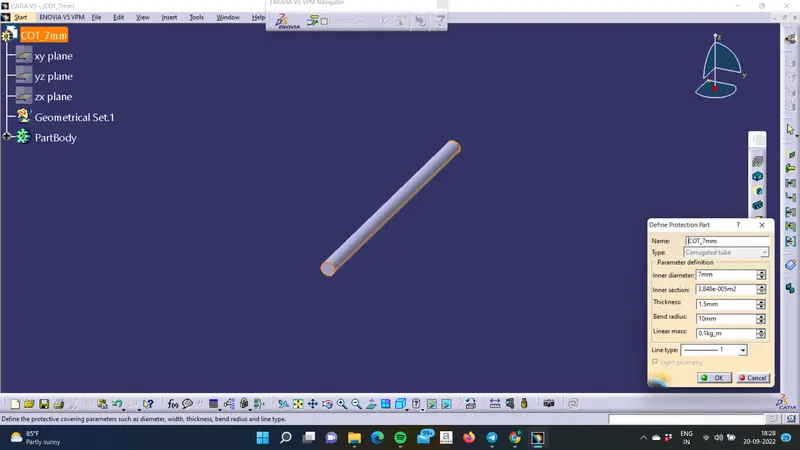

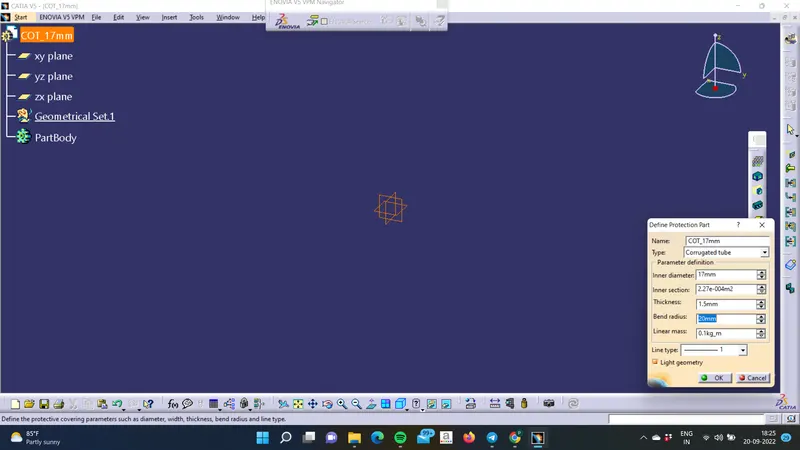

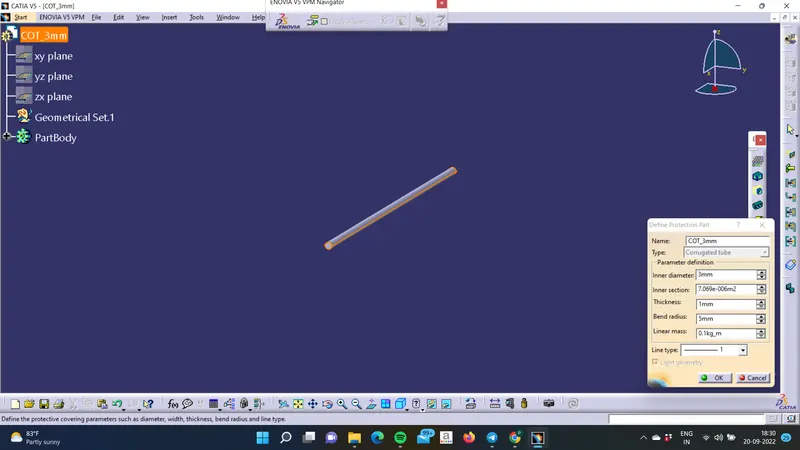

• Switch to Electrical part design
• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.
•

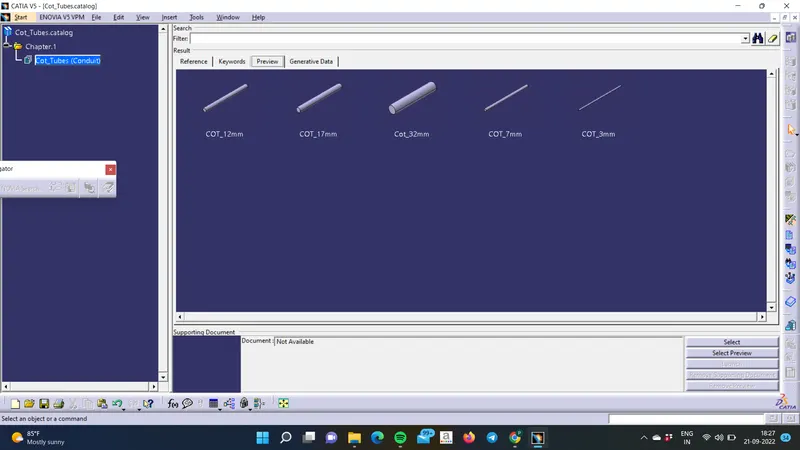

• new part - catalogue document - add family - give name - type - select Conduit - save.
• Open part to add catalogue - store device command - select catalogue - family - _cot_tubes - ok
