Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

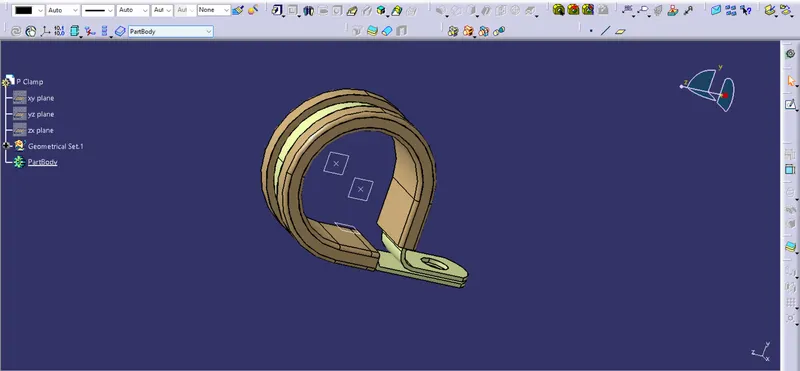

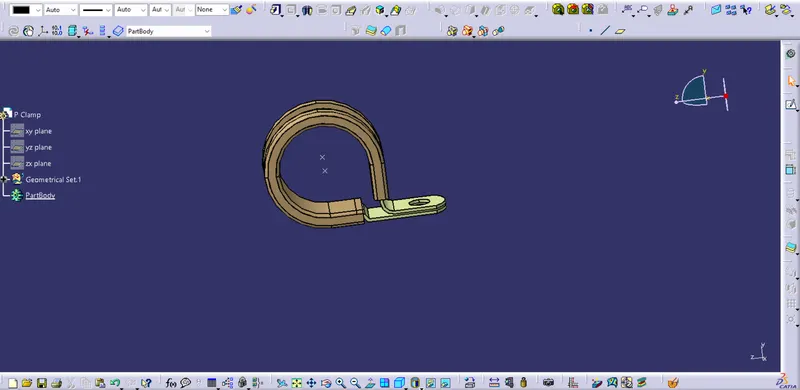

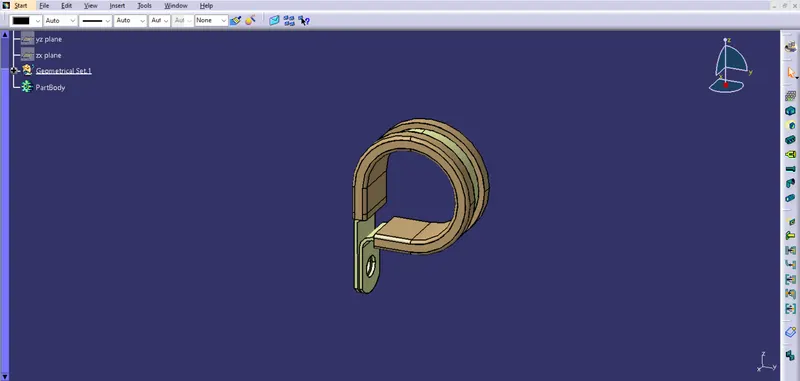

P clamp
This is another component of wiring harness which should be difine before wiring harness routing. following important parameters required to defined
- Entry Point and plane
- Base plane
- Exit plane
We need to define plane so switch to part design mode and create planes
Points are created for entry and exit planes

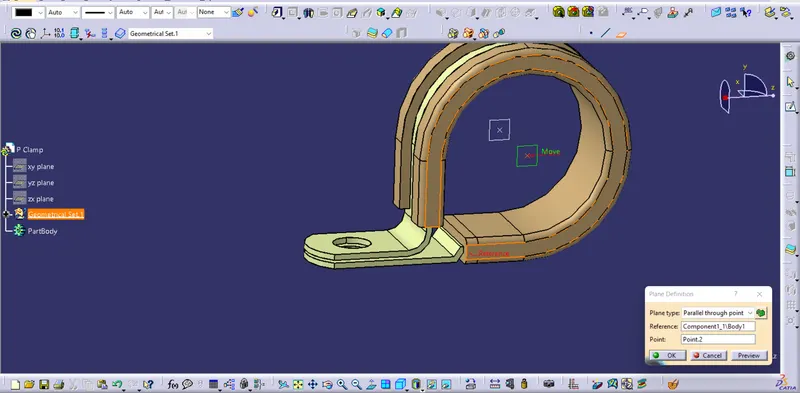

Now create planes
Entry, Exit and Base planes

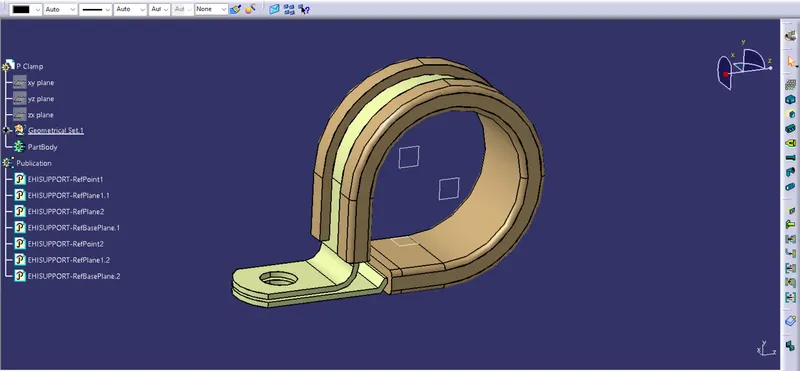

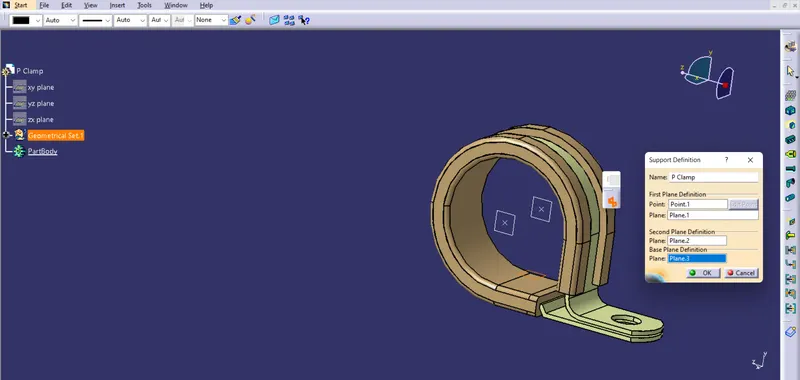

Goto electrical part design and define it as support part and provide all definations for planes
Do it from other side as well
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

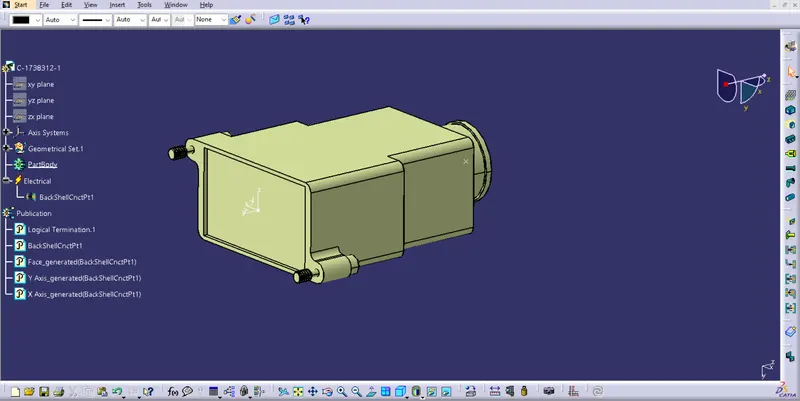

Process -
- Create back shell entry point

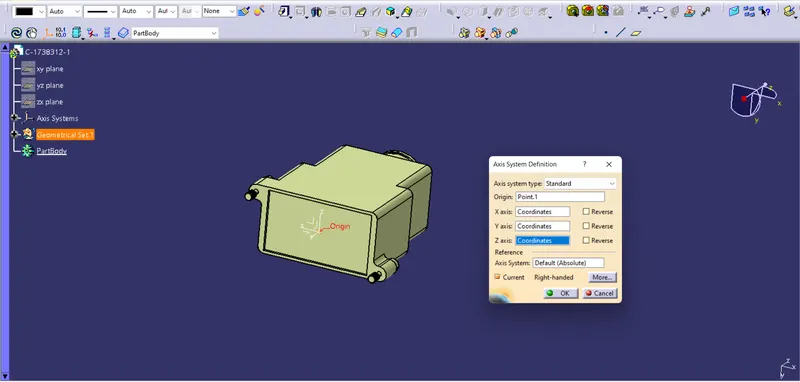

- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.

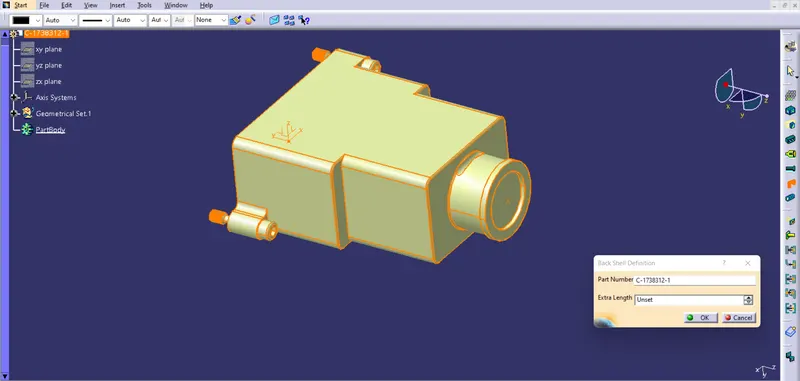

- Define part electricaly as back shell.

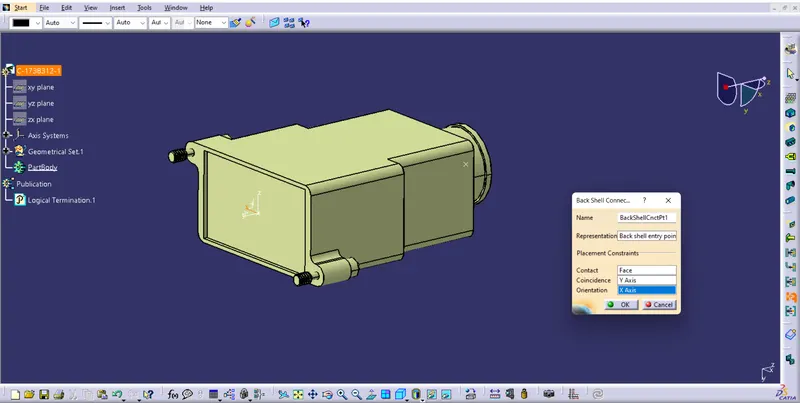

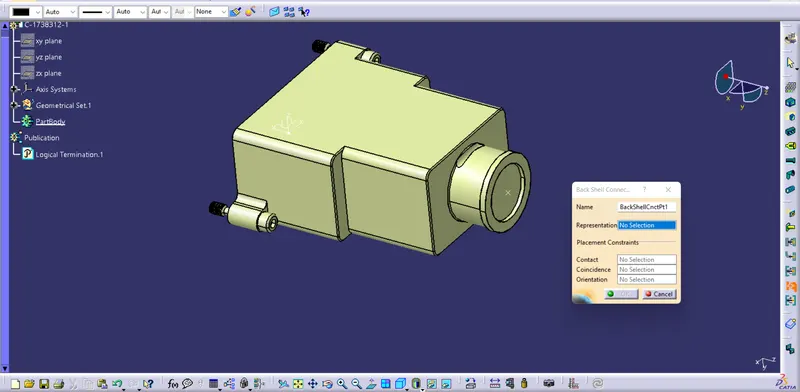

- Then define Back shell connection point.

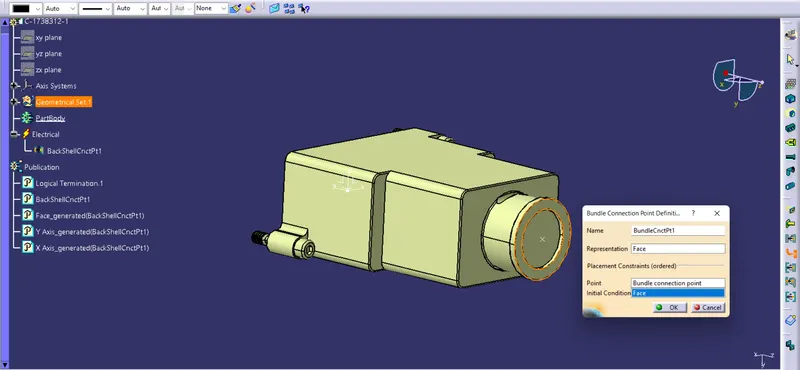

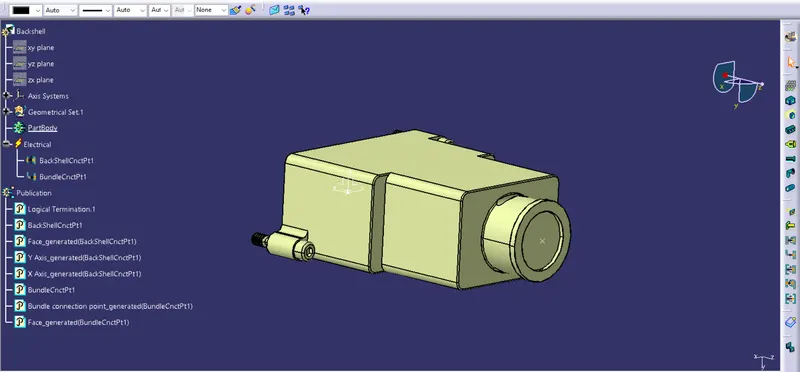

- Define bundle connection point.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
- corrugated tubes, convolutes, sleeves and many other types of covering are used the protect the wiring harness.
- It is a graphical representation of coverings are applied on bundles

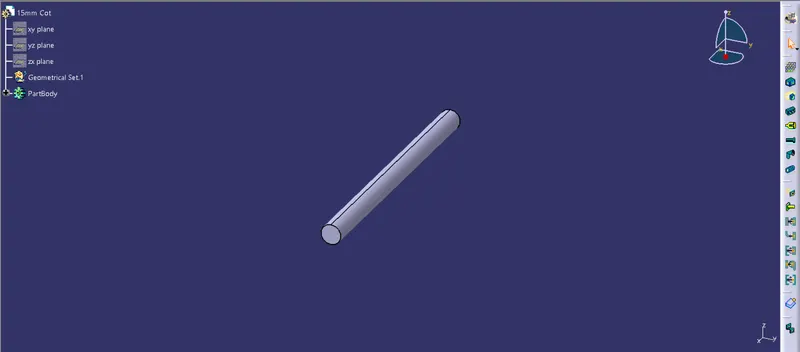

15 MM Cot tube

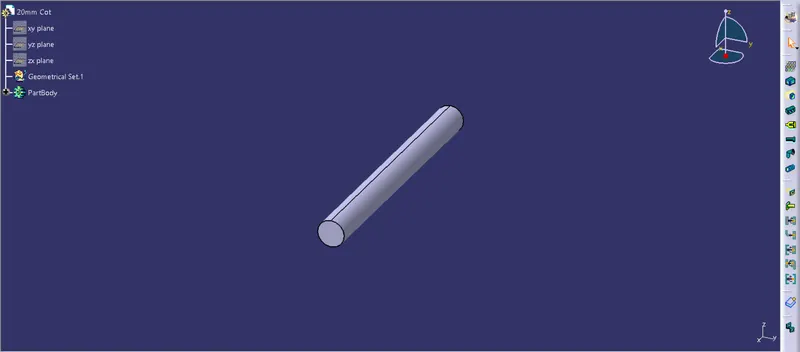

20MM Cot tube

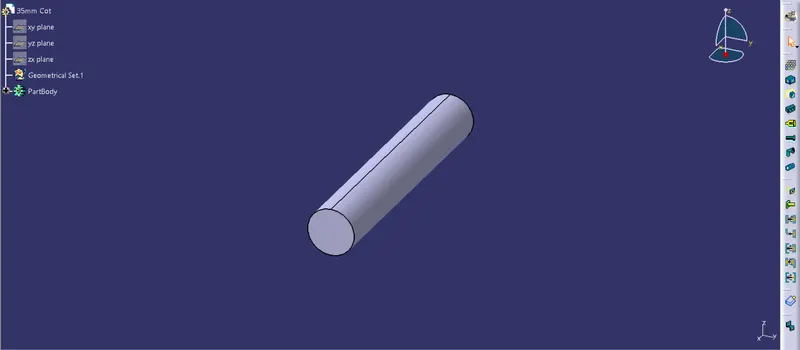

35 MM cot tube

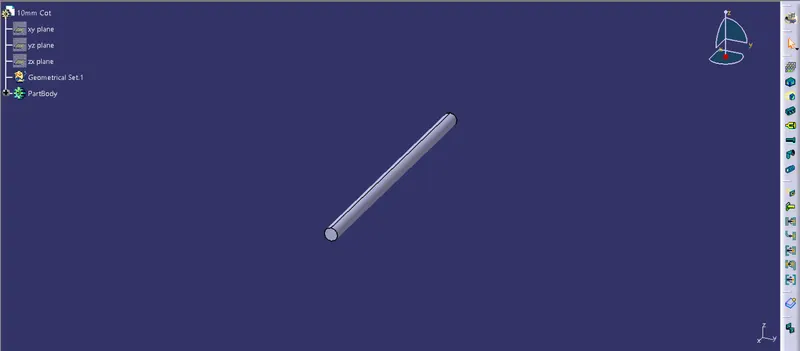

10 MM cot tube

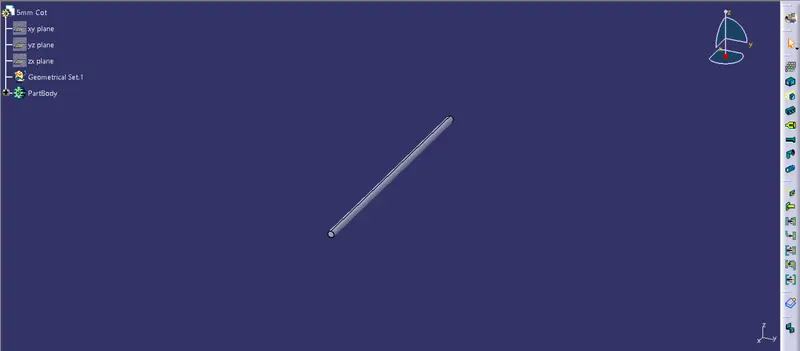

5 MM cot tube

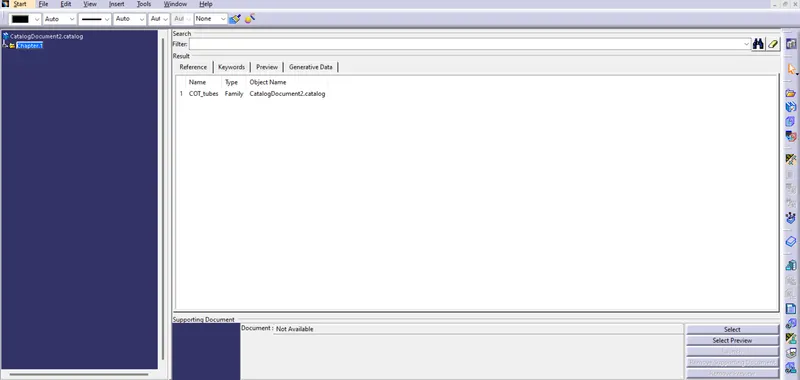

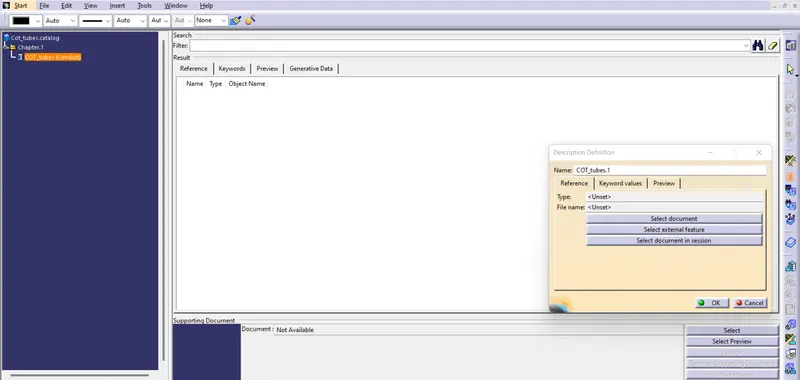

Now store them in catalog

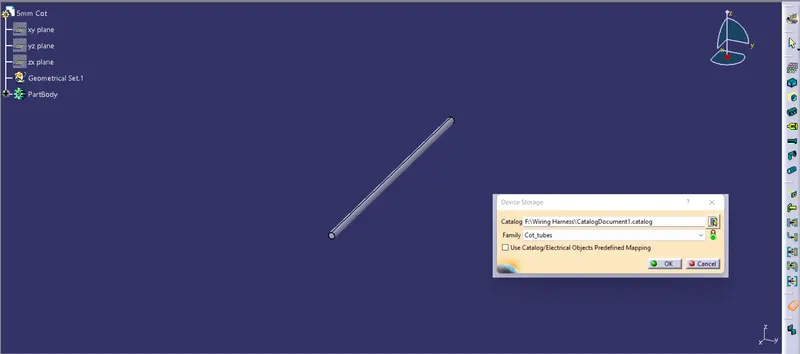

Click on store device and select documents

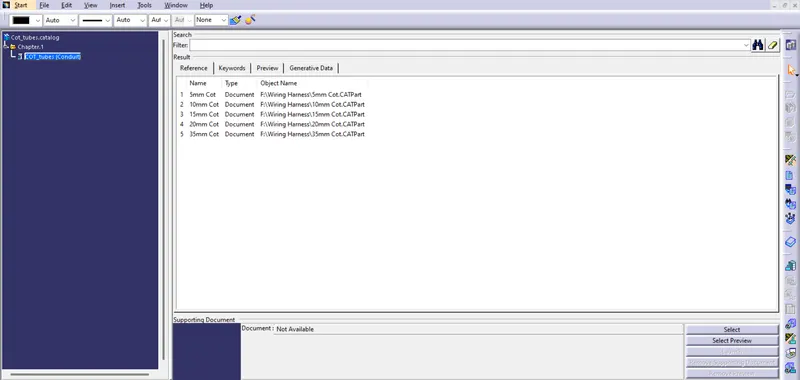

Now save the catalog
