Wiring harness routing & packaging Rules Week 3 Challenge

1, P Clamp

For P clamp downloaded the stp file by using the link given in the question.

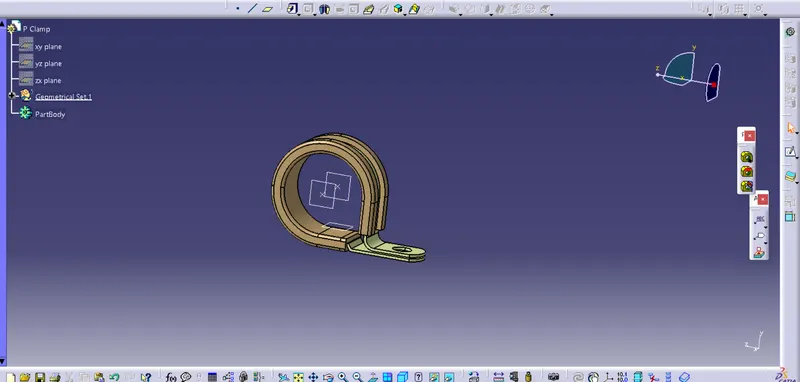

After that created necessary points and plance on the P clamp the image is given below. first created points on bothe side of the P clamp and add planes on the point and also base plane offset 2 mm from the surface of the P clamp

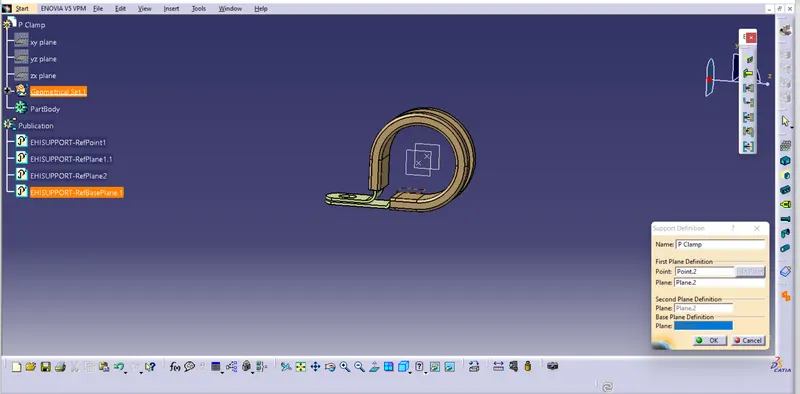

After that define the part as a electricaly by switching the Part work bench to Electrical part design work bench and click on the tool "Define support part" and click on the part and there by select the points and planes on support definition. again click on the define support part for alowing the wire bundle pass bothe way direction .

2, Back shell

From www.te.com downloaded .stp file for the Tyco 1738312-1 back shell.

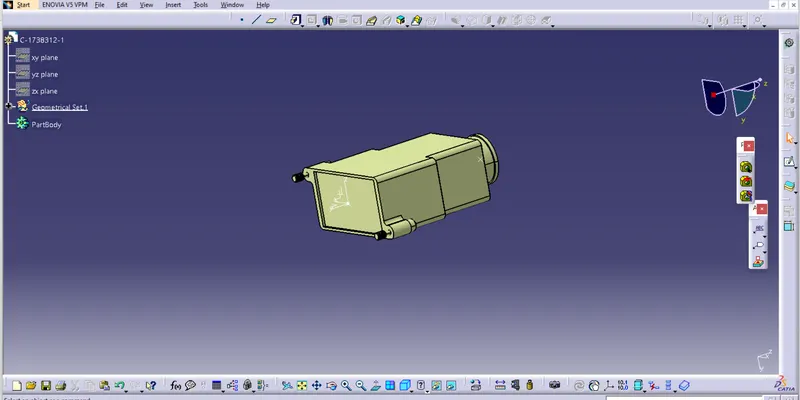

Then creat points on center of the front and back face of the back shell then added the axis systen at the point on connectoe contact face .

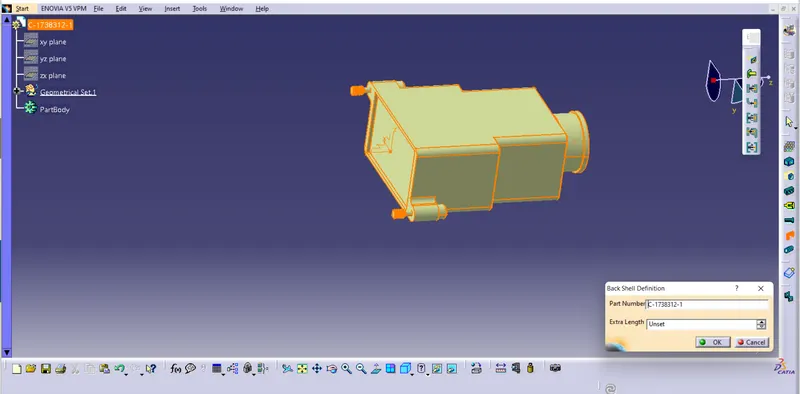

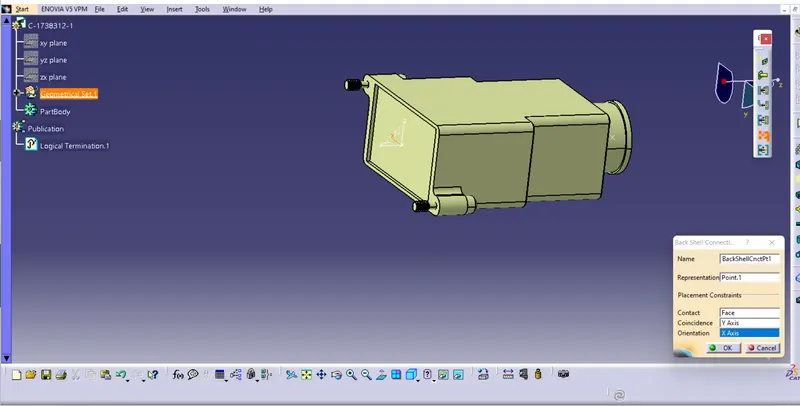

Then switch the part design work bench to Electrical work bench and define the part as Electrical, for that click on "Define back shell" cammond tool and click on the part, then define the backshell connection point by click on the tool "Define back shell connection point" and click on the part after that we shown a window and give the appropriate inputs

Define back shell Define back shell connection point

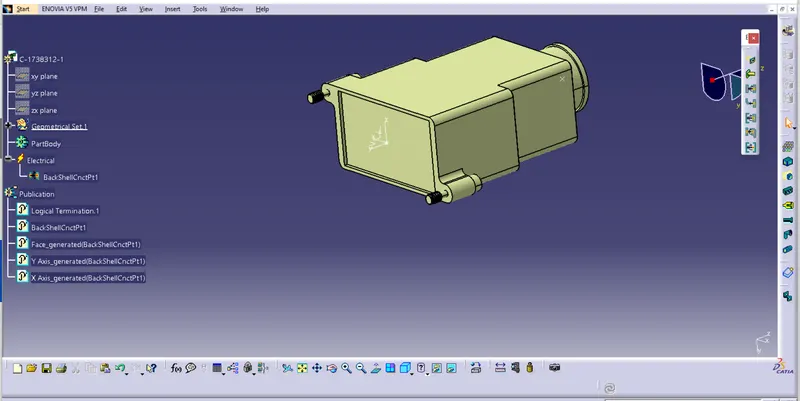

Finally Electricaly defined backshell

COT tube :-

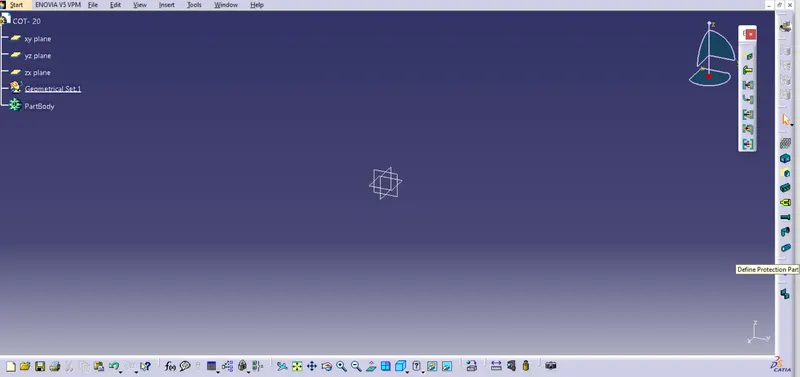

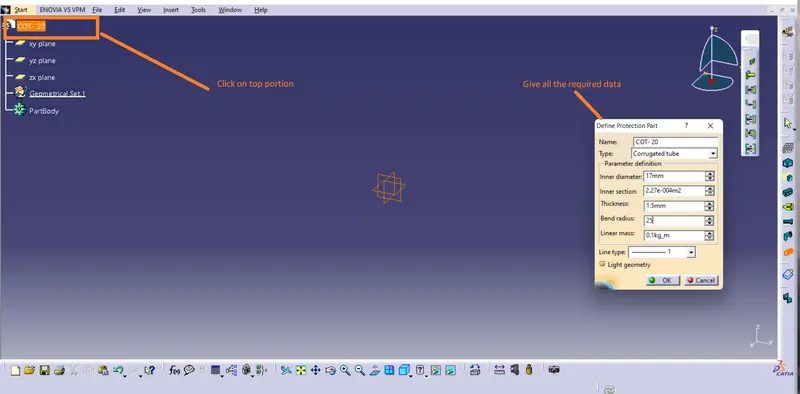

COT tubes are design in "Electrical Part Design work bench" in this window have an tool called "Define Protection Part" click on that and after click on the top most portion of the part file shown in the left side of the catia window and we can see a another window and give all the data for a perticular cot tube and click Ok , The image given bilow the example.

1 STEP 2 STEP

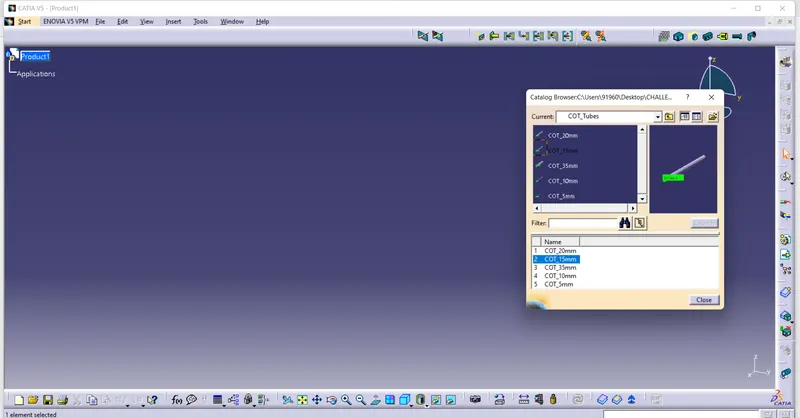

CATALOGUE FOR THE COT TUBES
