Week 8 - Challenge 3 - Coin Holder Design

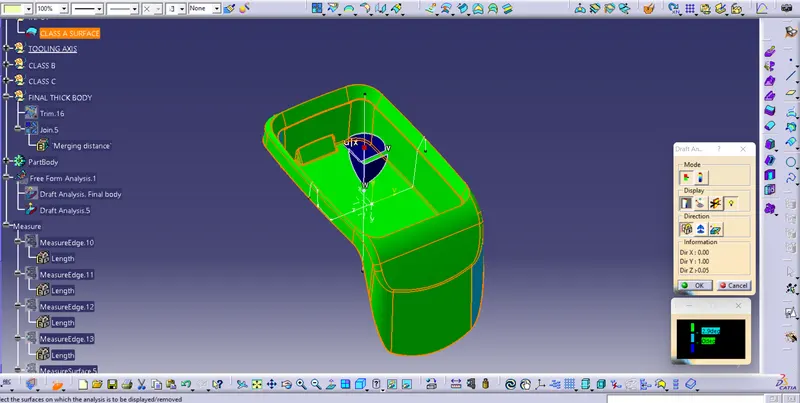

a, Draft analysis class A surface

b,

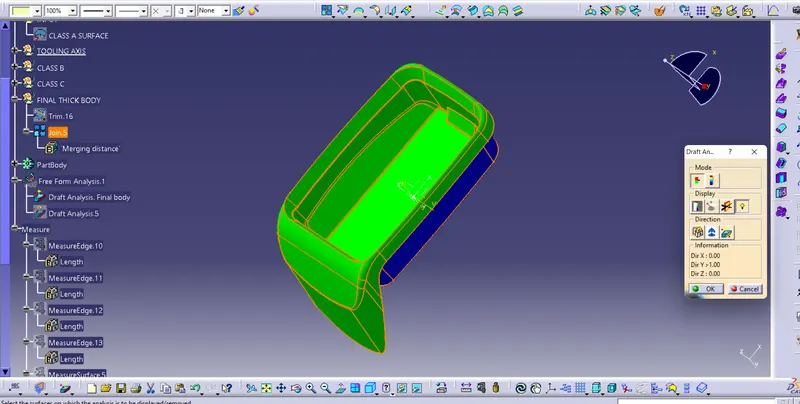

Draft analysis final body

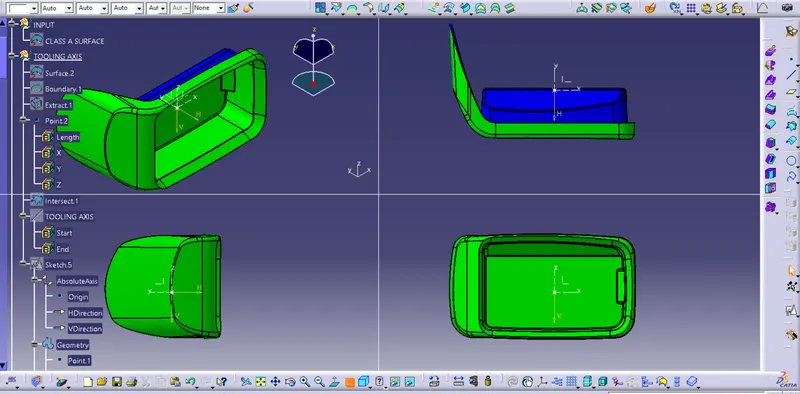

c, Draft analysis dif orientation view

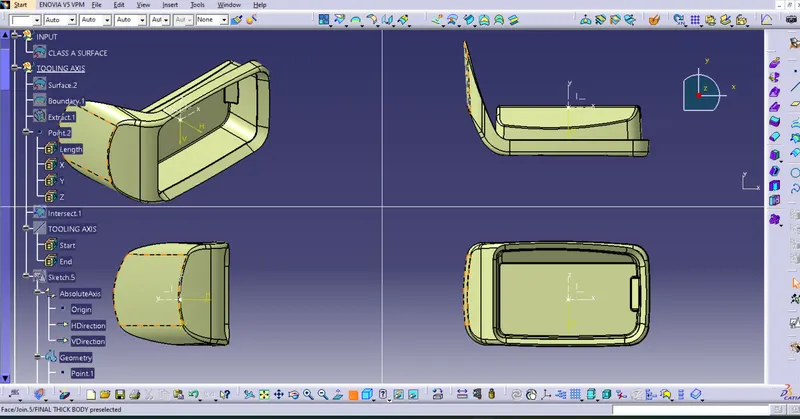

d, Final body from Class A SURFACE with diff orientation view

Report :-

• By checking the draft analysis of Class A SURFACE with refer to the tooling axis on botom plane with a center point it clear all the draft angle on all side weel
• Also the same result goted on the final plastic component with the tooling axis made with center point on the botom plane of the part as a referance
• Do the fixation of tooling axis by the using bisect method but cant able to fix it so simply chhosen the plane and it cent pont as the referance and proceed the tooling axis in the Z direction.
