Wiring harness routing & packaging Rules Week 3 Challenge
Aim: Define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

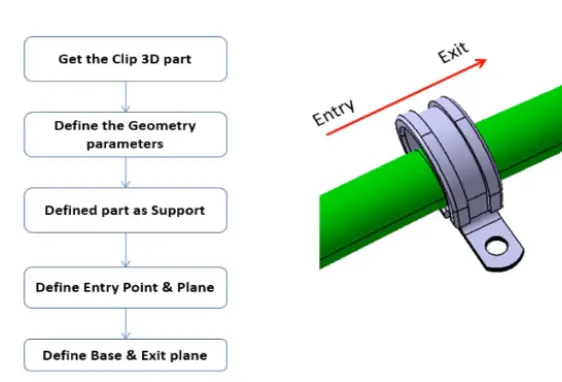

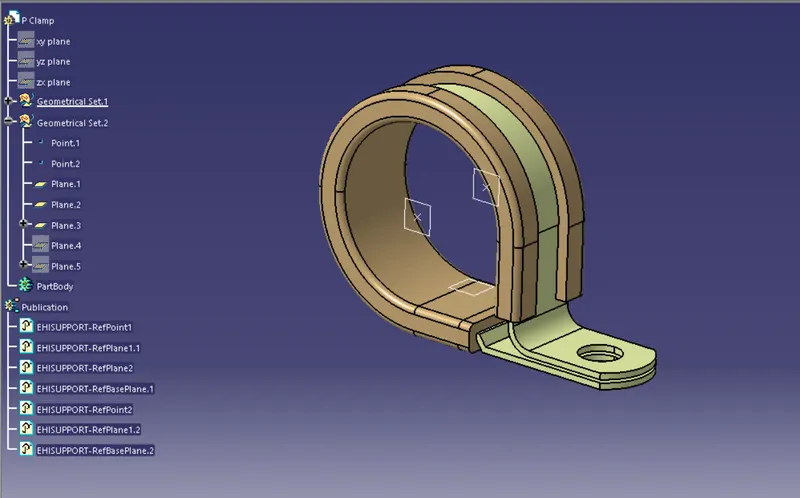

Clip Definition:
This another important component of the Wiring harness which should be defined before wiring harness routing . Following important parameters required to be defined
- Entry Point & Plane
- Base Plane
- Exit plane

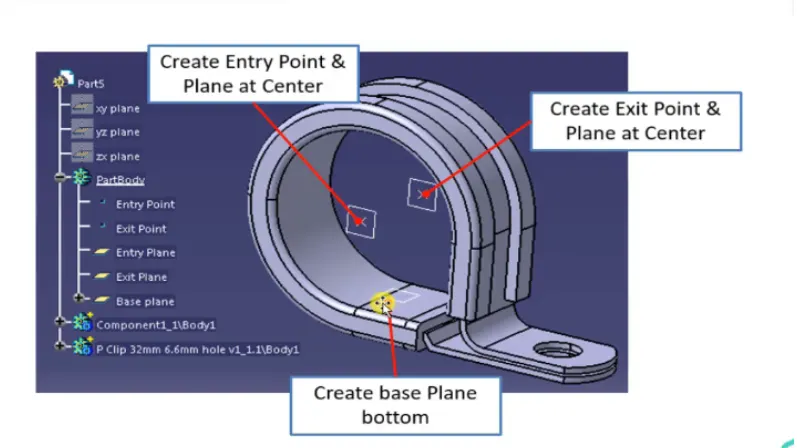

Define "Geometry Parameters:
process:
- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

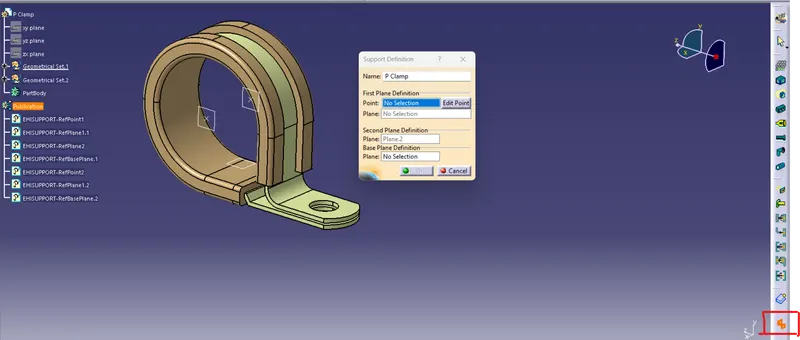

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.
Define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

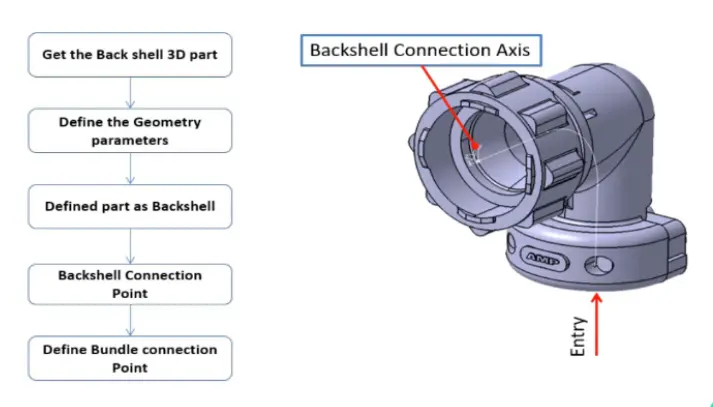

Backshell Definition:
Backshell are plastic molded parts used at wire entry side of connectors either for protection or to improve aesthetics / appearance of harness . These are not mandatory parts of Wiring harness . Are always optional and driven by Cost .

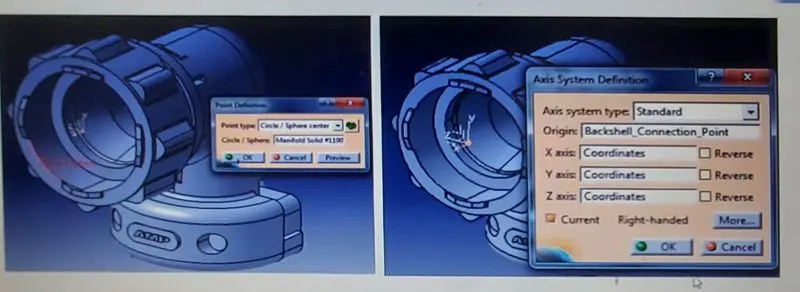

Define "Geometry Parameters:
Process:
- create Back shell entry point.
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.

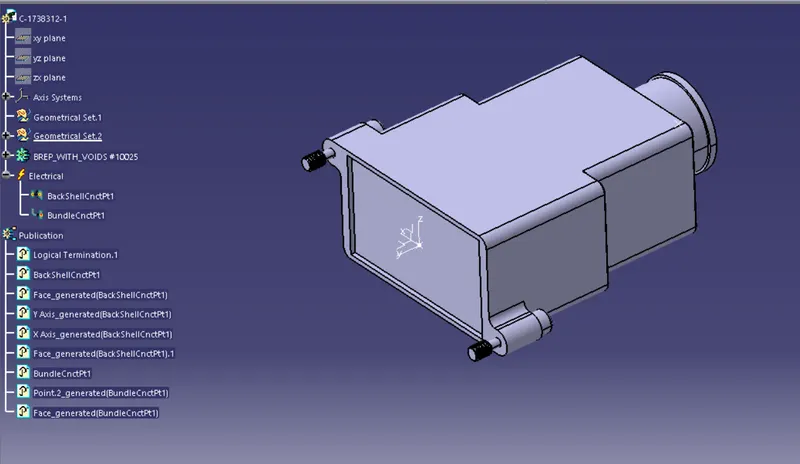

- Define part electricaly as back shell.

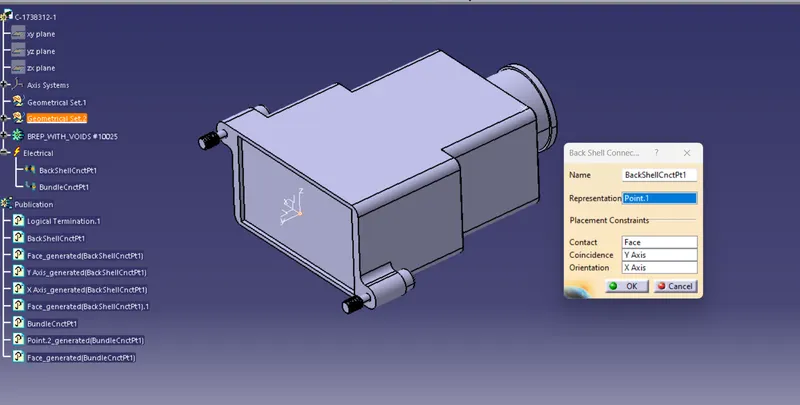

- Then define Back shell connection point.

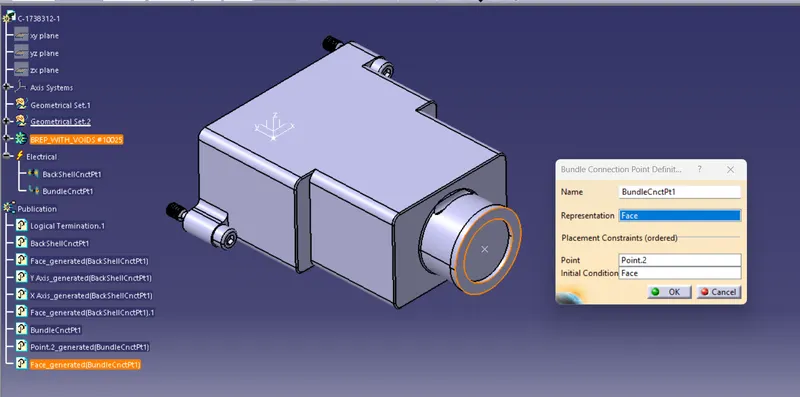

- Define bundle connection point.
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.

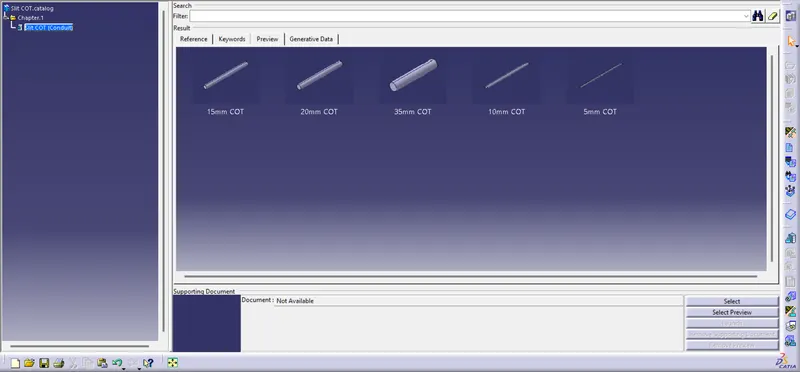

Catalogue Cretation:
- New part - catalogue document - add family - give name - type - select Conduit - save.

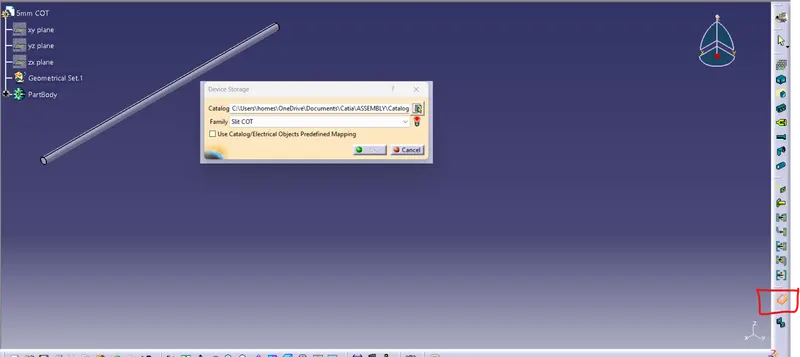

- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok

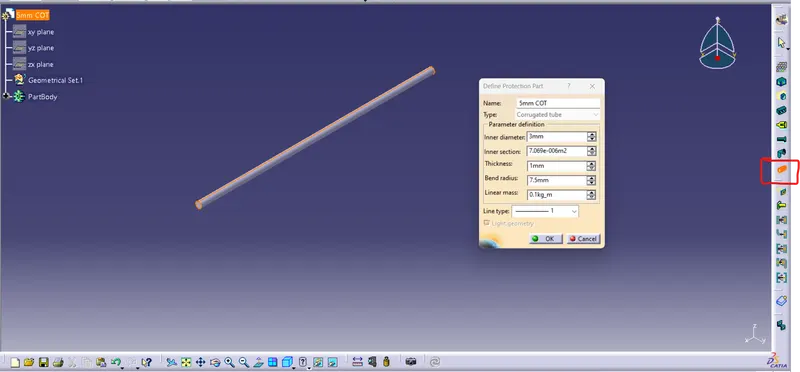

5mm COT:

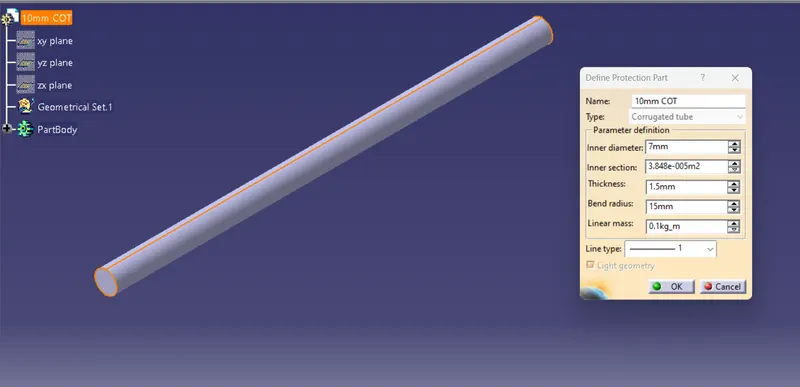

10mm COT

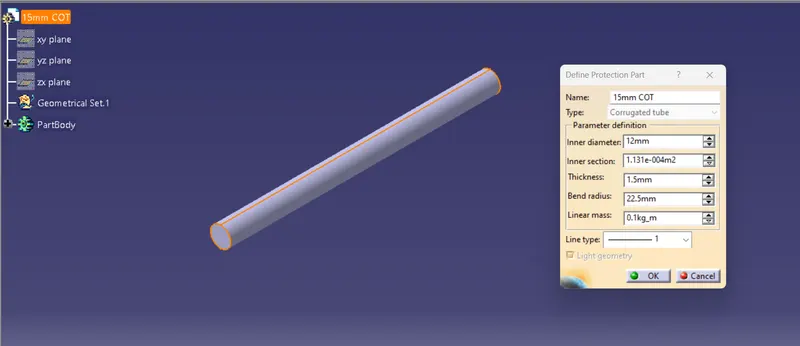

15mm COT

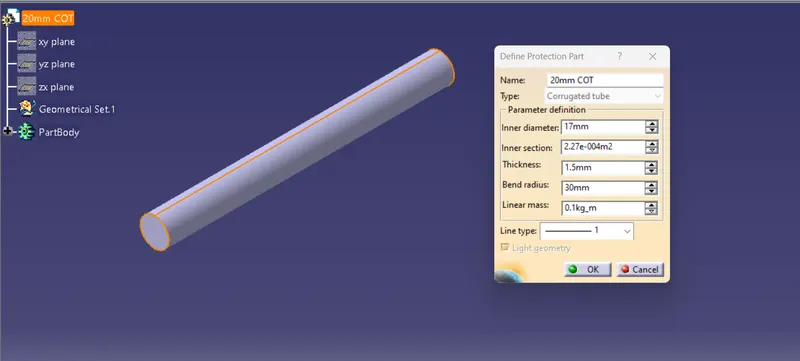

20mm COT

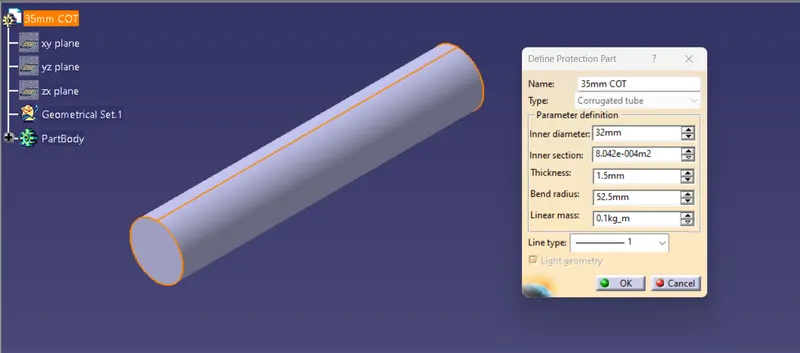

35mm COT
