Wiring harness routing & packaging Rules Week 3 Challenge

P_CLIP

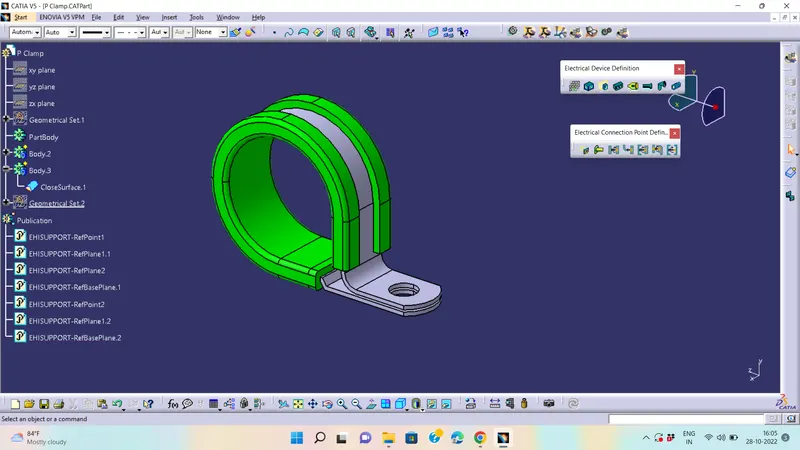

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

BACK SHELL

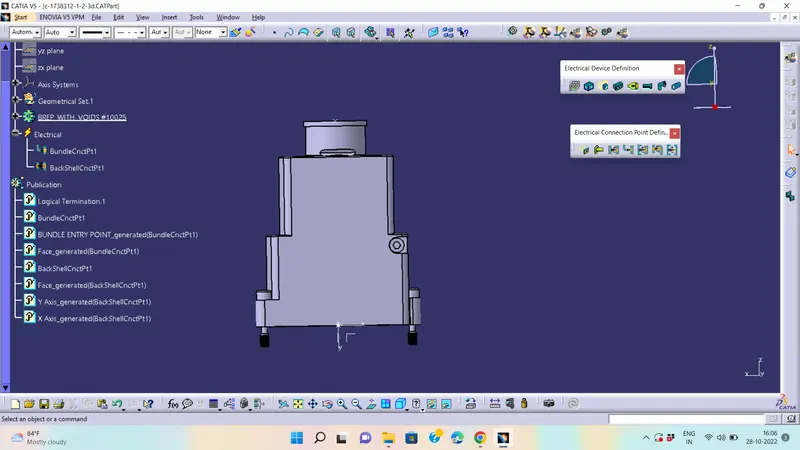

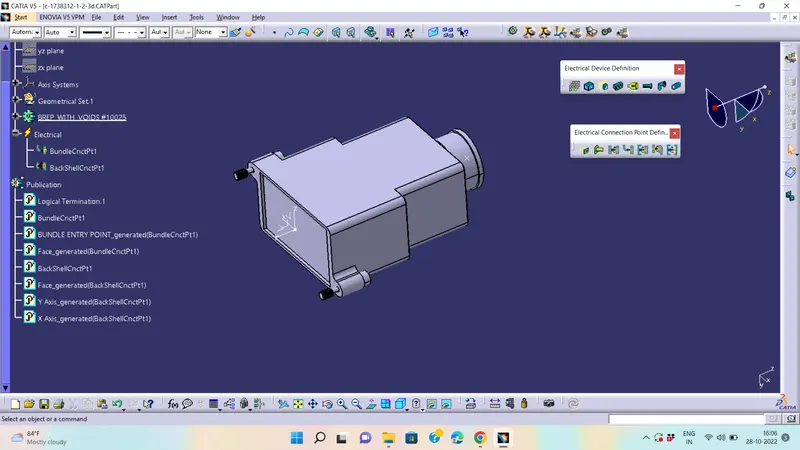

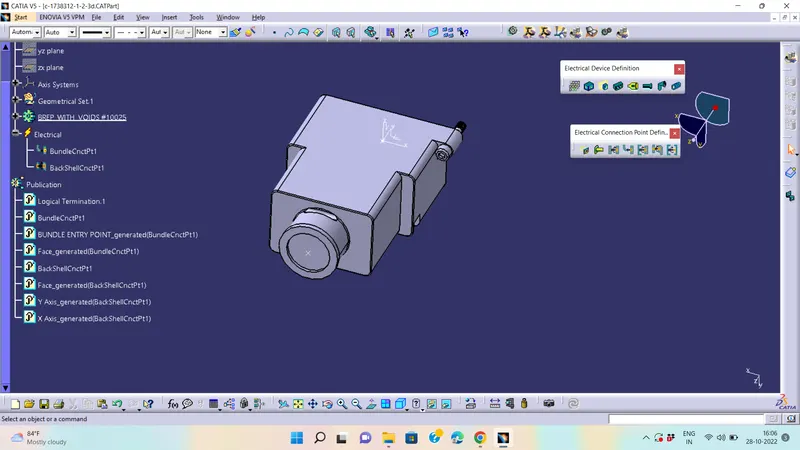

GIVEN BACK SHELL

1. create Back shell entry point.
2. create axis system for back shell entry.
3. create bundle connection point.
4. switch to Electrical part design.
5. Define part electricaly as back shell.
6. Then define Back shell connection point.
7. Define bundle connection point.

COT TUBES CREATION

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5

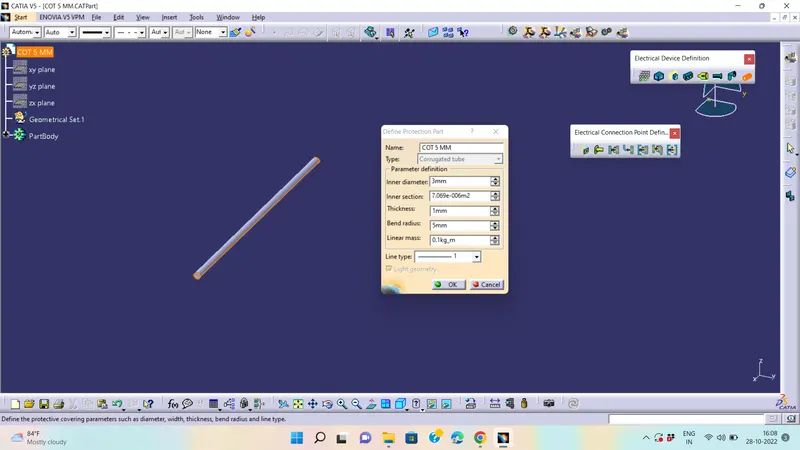

5mm COT	3	5	1

1. we define the cot tubes in the electrical part workbench.
2. the inner dia & thickness are given as the inputs.
3. a catalog was created for the cot tubes.
4. all the cot tubes were saved in the catalog.

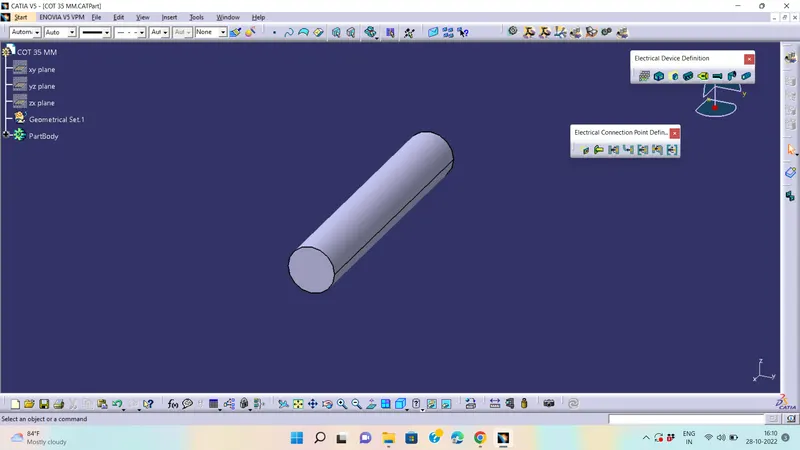

35 MM COT TUBE:-

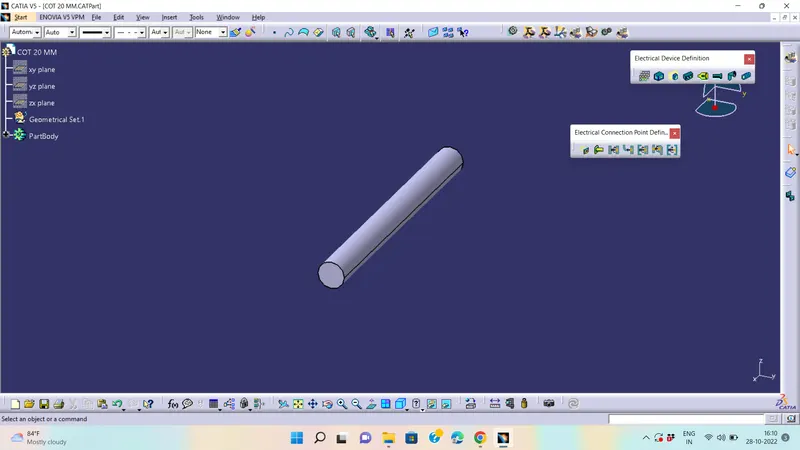

20 MM COT TUBE:-

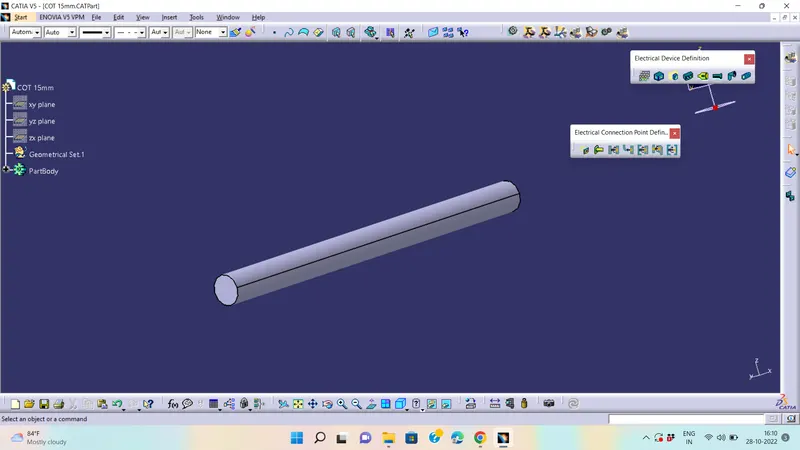

15MM COT TUBE:-

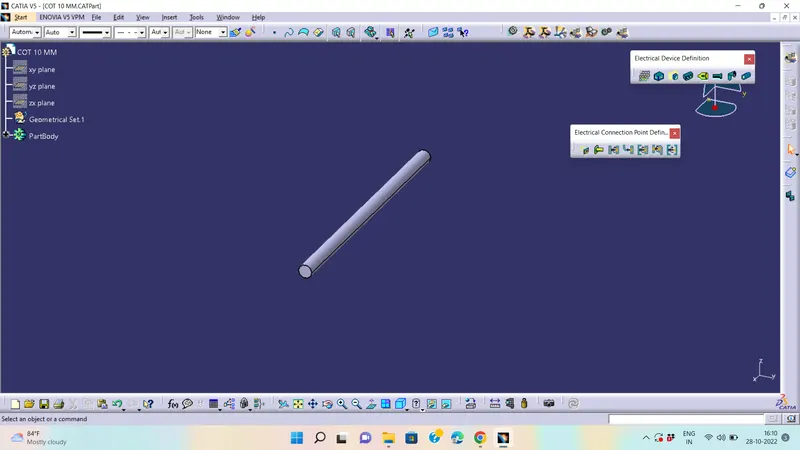

10MM COT TUBE:-

5 MM COT TUBE:-
