Wiring harness routing & packaging Rules Week 3 Challenge

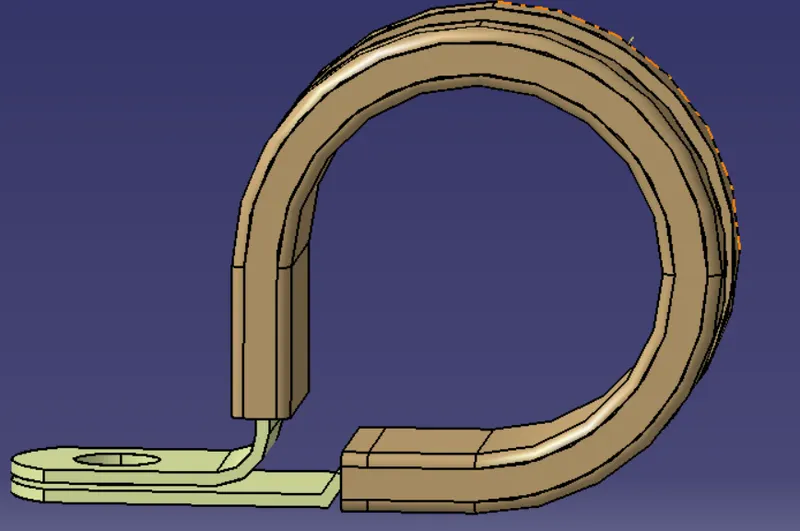

Question 1: - P Clamp

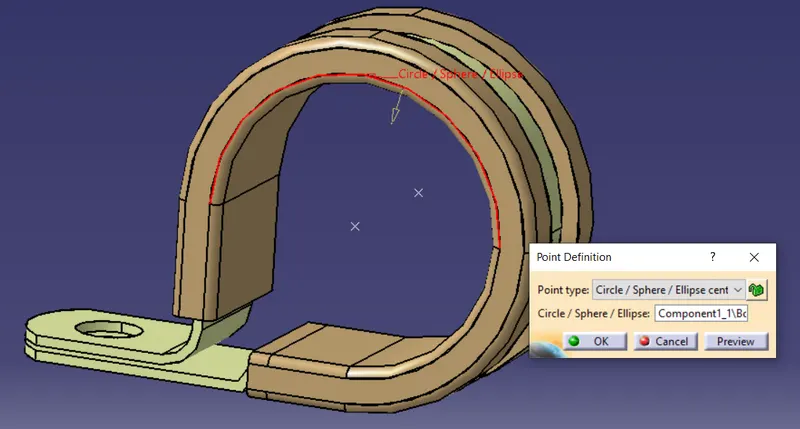

1. Defining points for bundle entry on both sides of the P clamp: -

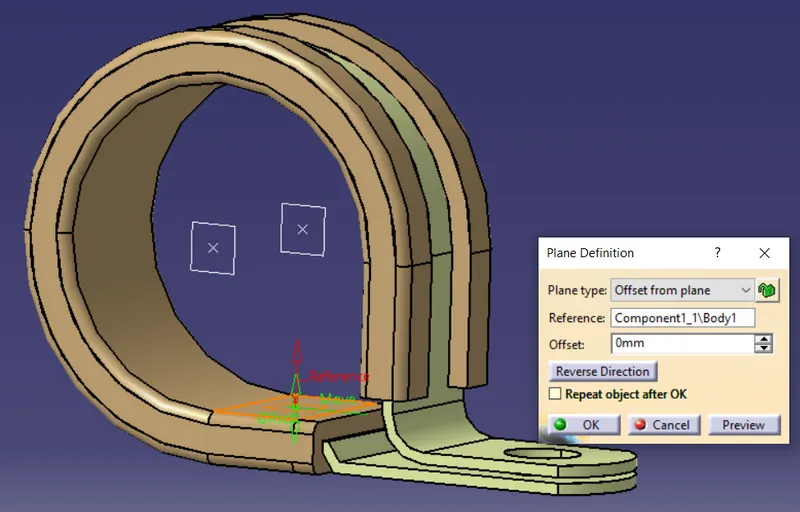

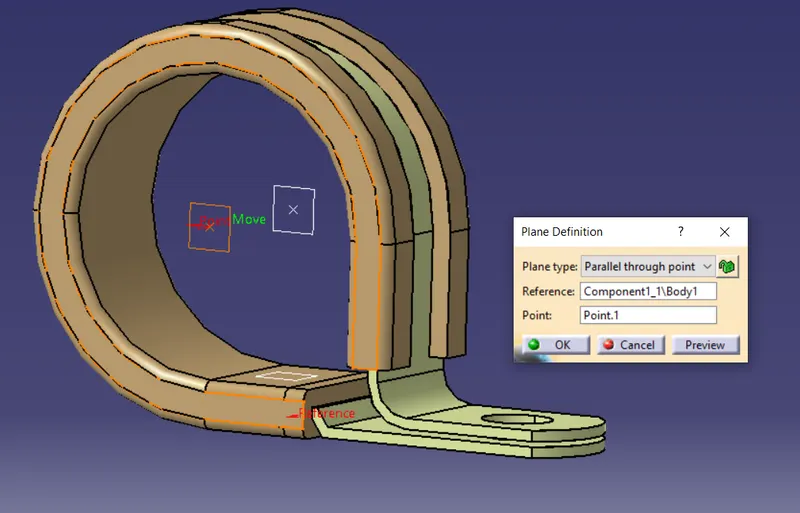

2. Defining planes on the point and the base plane

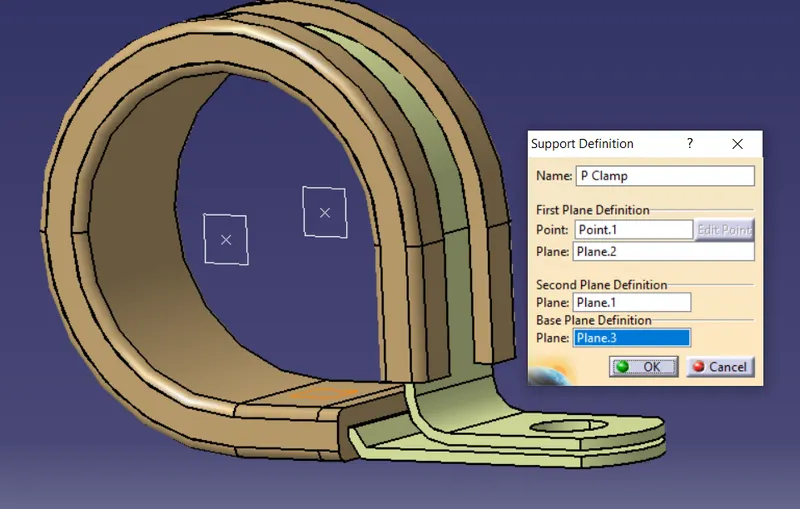

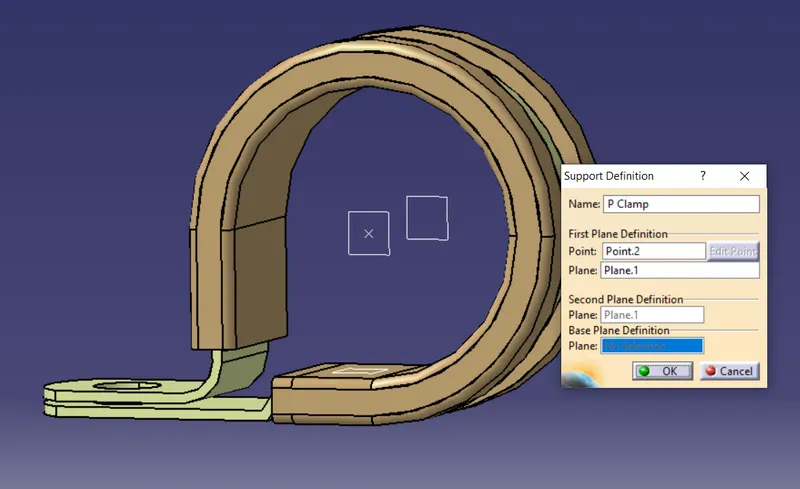

3. Jumping to electrical part design workbench, and defining the clamp as support part from both directions so that we can enter the bundle from both ends

4. Hiding all the planes for better view

Question 2: - Backshell

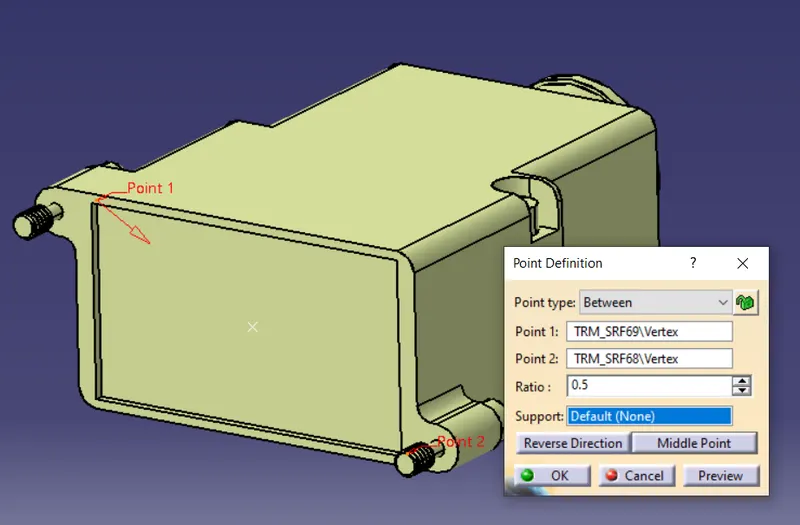

1. Defining point for backshell entry point

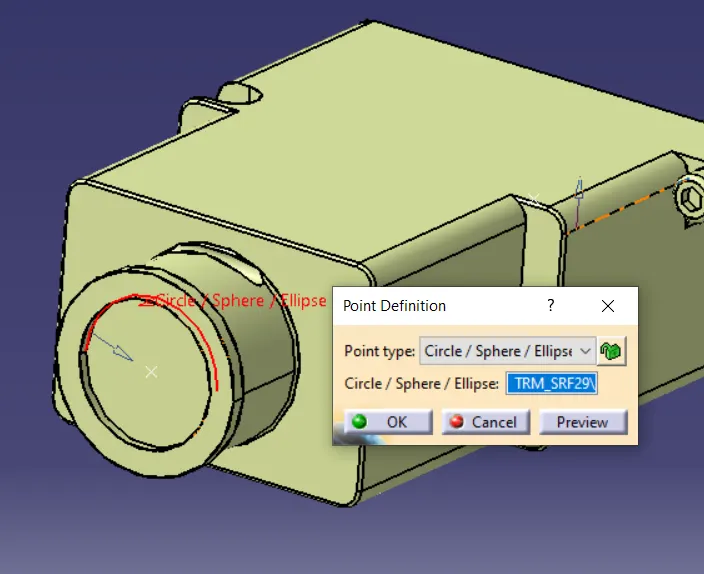

2. Defining bundle connection point: -

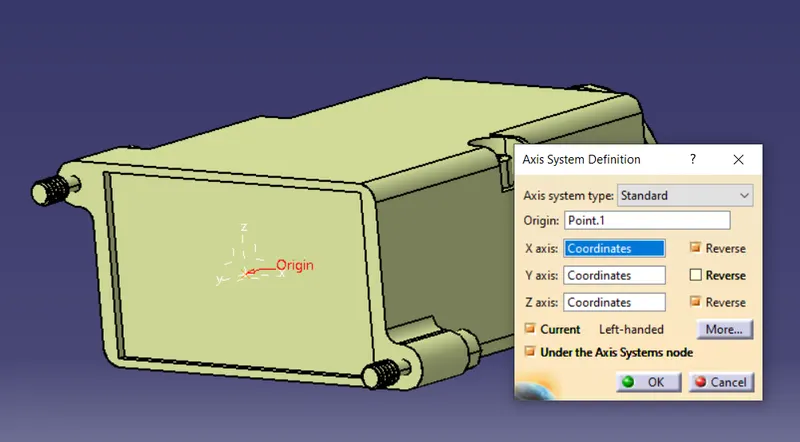

3. Defining axis system for backshell connection point with y axis in direction of mating: -

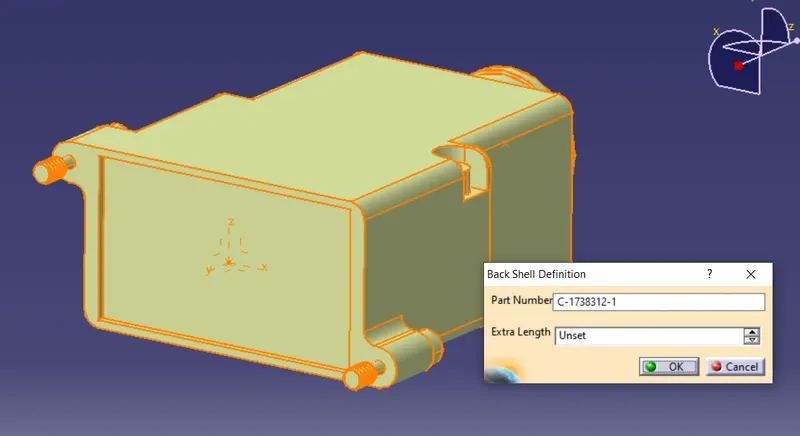

4. Jumping to electrical part design workbench, define the part as backshell with unset extra length

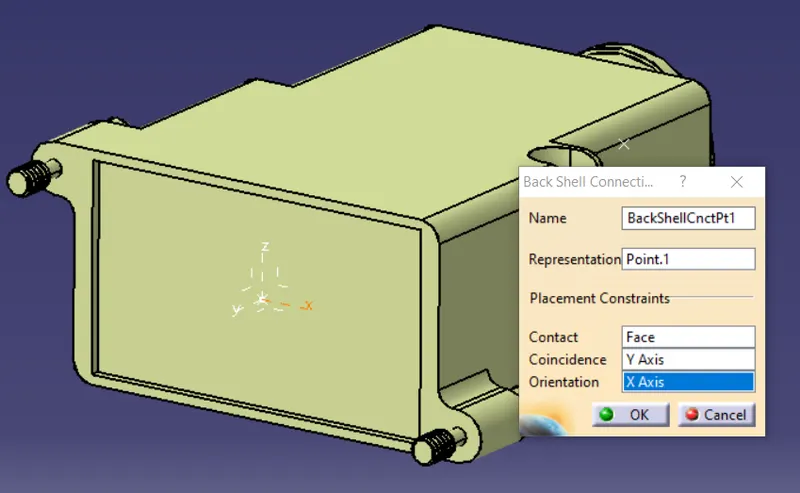

5. Define Backshell connection point electrically: -

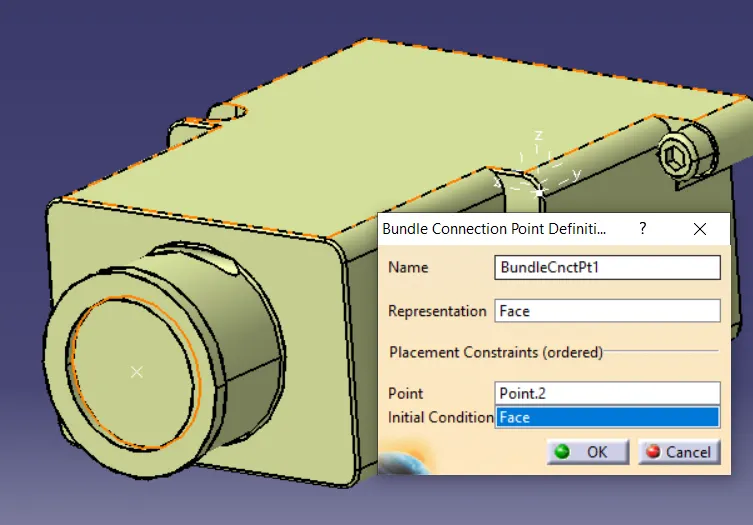

6. Define bundle connection point electrically: -

Question 1 and 2 - Addition of parts in catalogue (NOTE- Creating a common catalogue as a standard part catalogue to include both the parts)

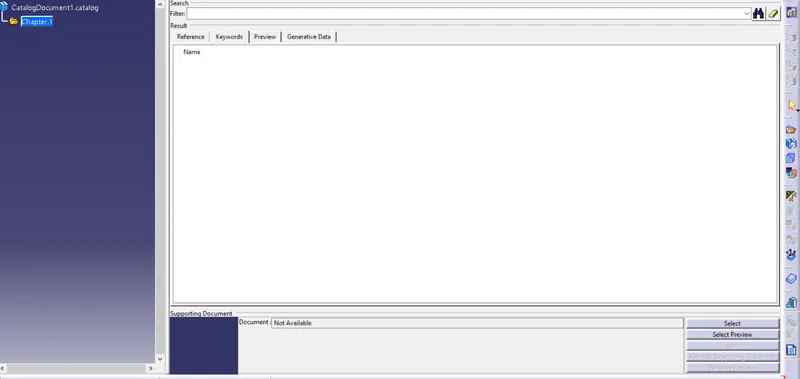

1. Creating new catalogue document

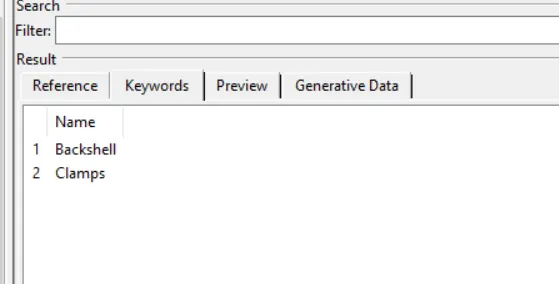

2. Defining new family in standard catalogue - one for backshell and one for clamps

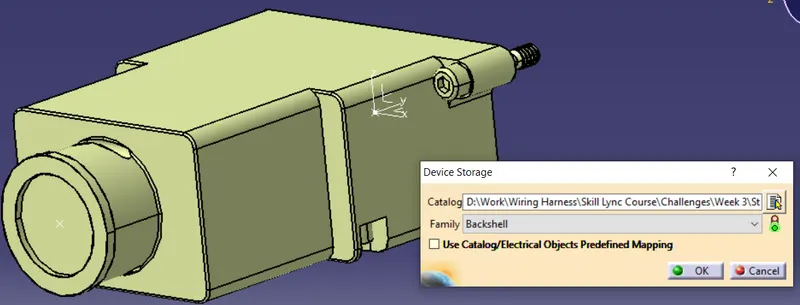

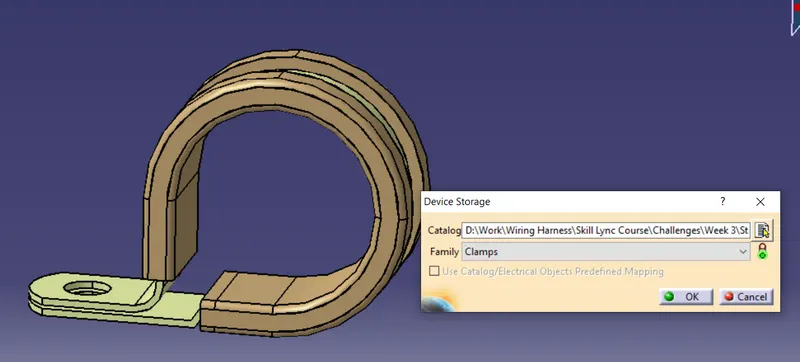

3. Adding the respective parts in their families

Question 3: - Corrugated Tubes

Defining the protection part with following parameters (NOTE: - taking bend radius atleast 1.5 times the OD):-

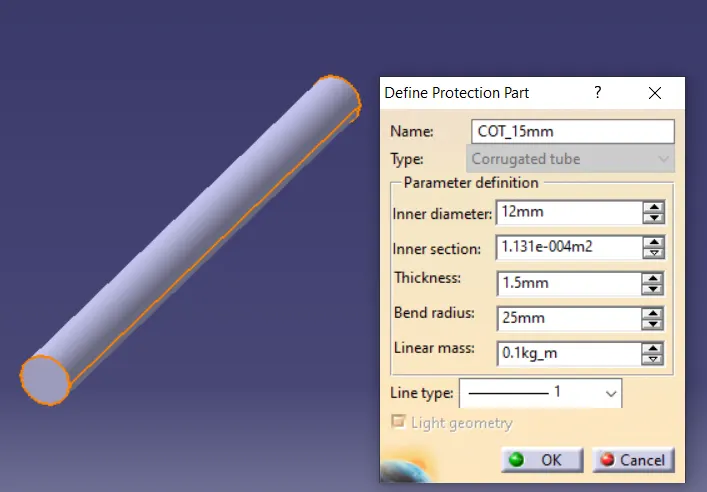

1. 15 mm COT: -

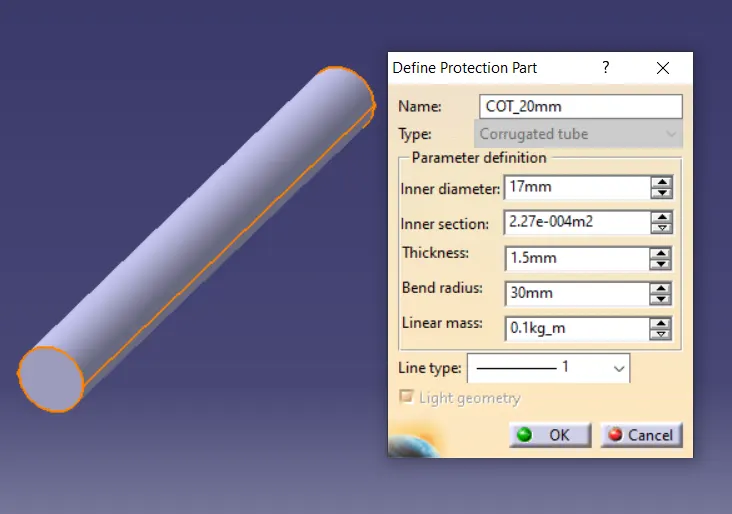

2. 20 mm COT: -

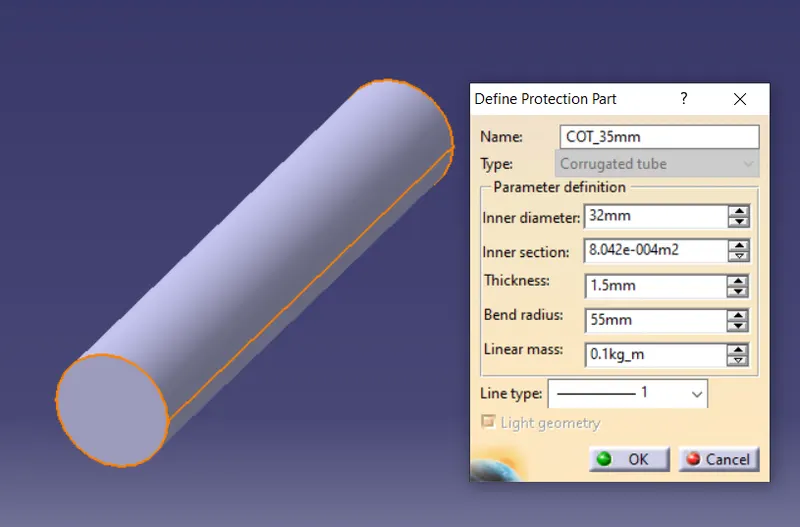

3. 35 mm COT

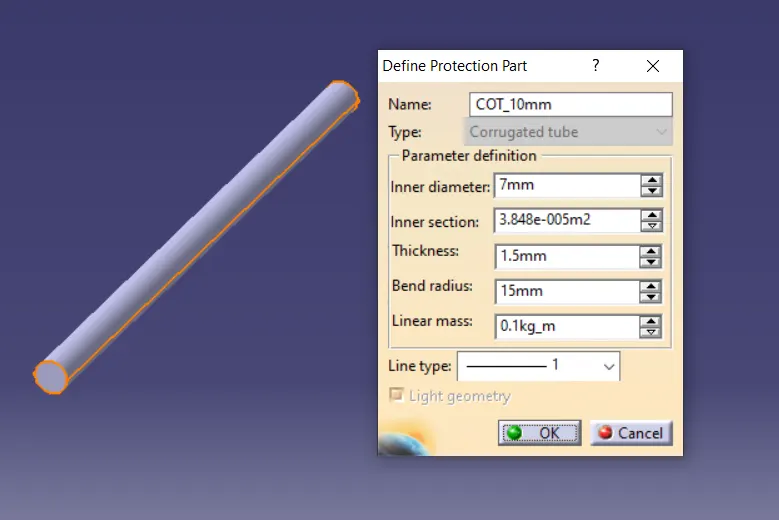

4. 10 mm COT

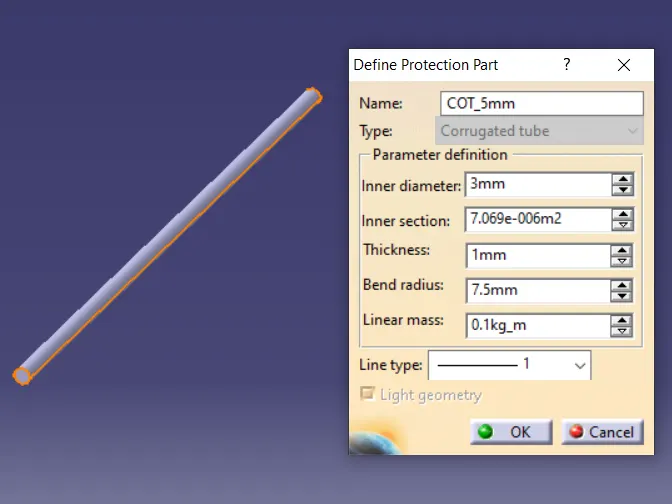

5. 5 mm COT

Question 3- Catalogue Creation and Addition: -

1. Creating new catalogue document

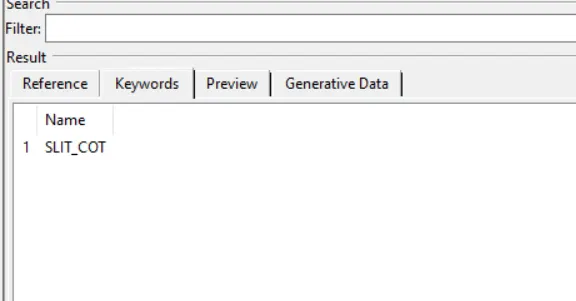

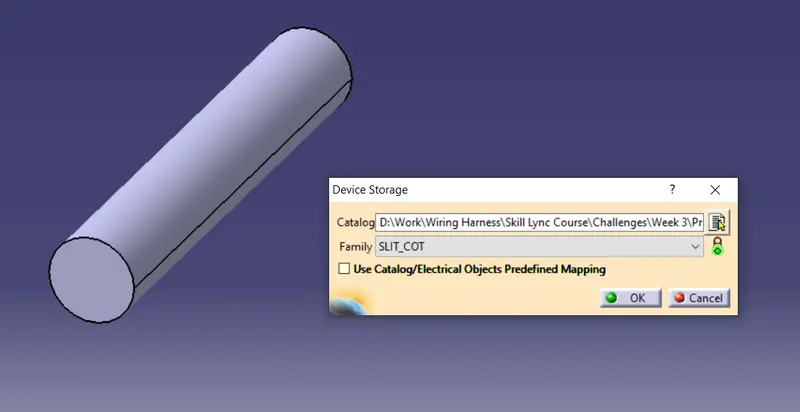

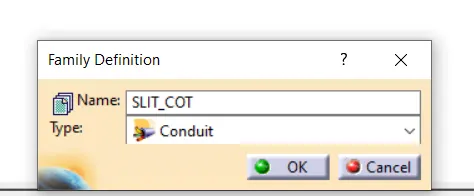

2. Adding Family as Conduit for COT with name SLIT_COT

3. Adding all parts in the catalogue: -
