Wiring harness routing & packaging Rules Week 3 Challenge

CLIPS:

Clips are mainly to tighten the wires.

P-Clamps are widly used in off road trucks to provide the form fixing to the wiring harness to mount the wirning harness.To mount the houses , hydraulic pipes, fuel lines in vehicles.

To define the clip:

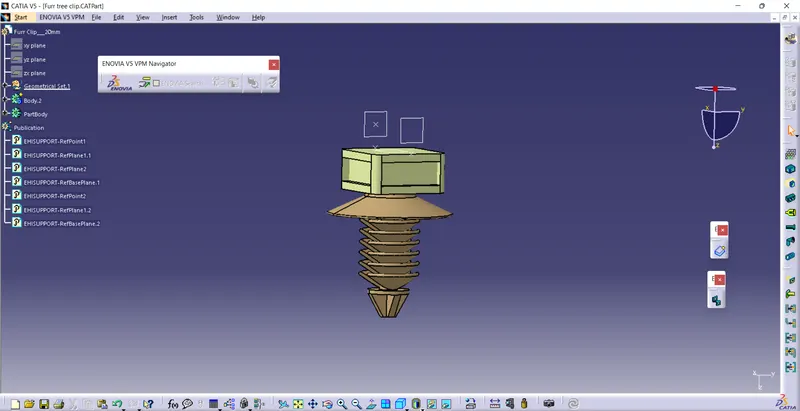

Get the clip 3D part

Define the geometry parameters

Defined part as support

Define entry point & plane

Define base & exit plane

BACK SHELL:

Backshell are plastic moulded parts used at wire entry side of connectors either for protection or to improve aesthetics / appearance of harness . These are not mandatory parts of wiring harness are always optical and driven by cost

DEFINING THE BACKSHELL:

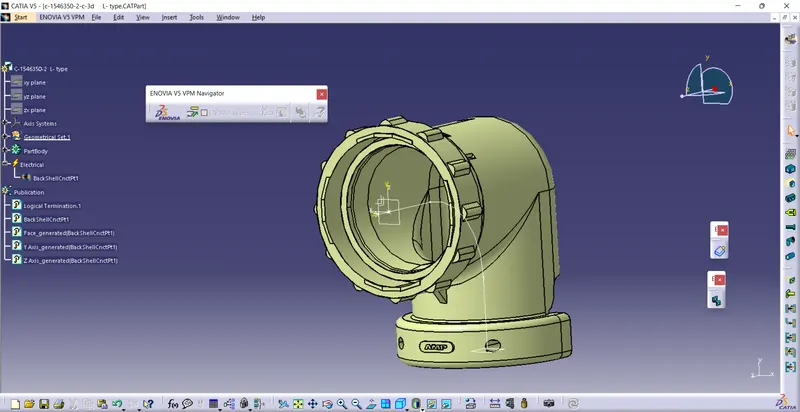

Get the backshell 3D part

Define the geometry parameters

Defined part as Backshell

Backshell Connection Point

define bundle connection point

c

CORRUGATED TUBES :

Corrugated tubes , Convolutes ,sleeves and many other types of covering are used to protect the wiring harness .

Graphical representation of covering are applied on bundles .

Creating Protective Covering:

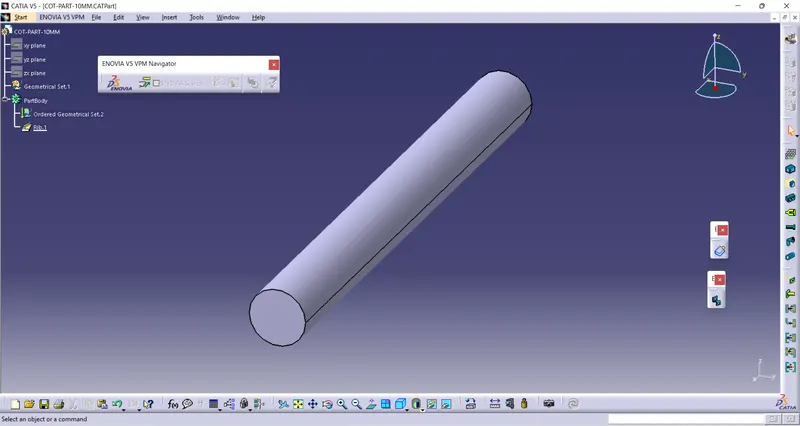

Create covering 3D part

Create Catalogue for covering

Add new part in catalogue

Apply covering on harness bundes from catalogue
