Project 1

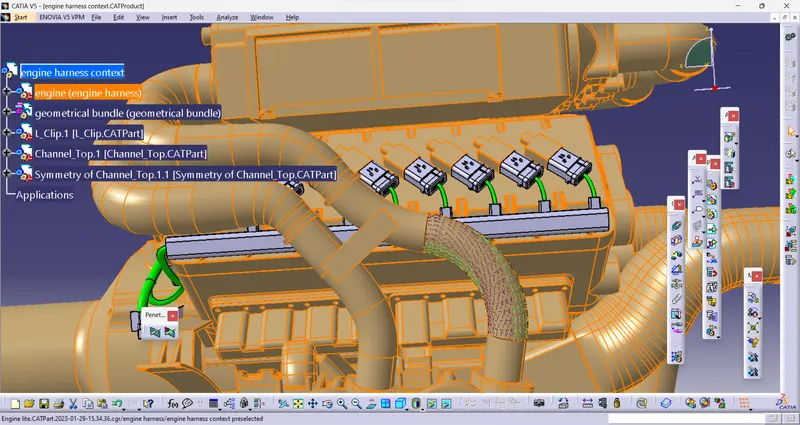

Engine Harness Routing:

define the engine as an electriacl body so that we can route the connectors

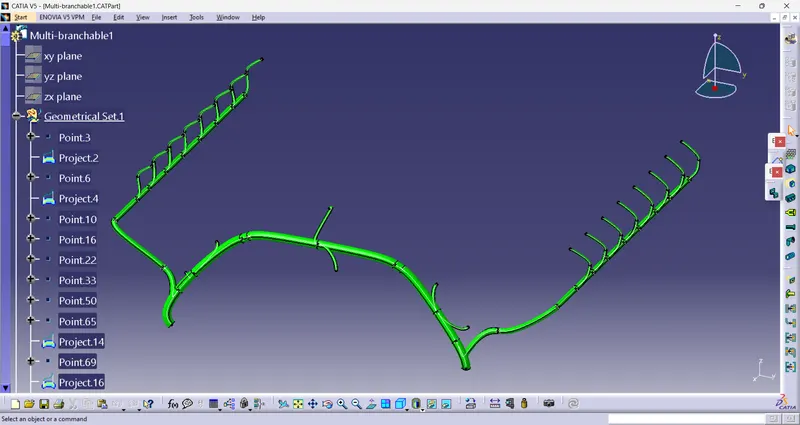

Geometric bundle:

prepare the geometrical bundle so that we can route

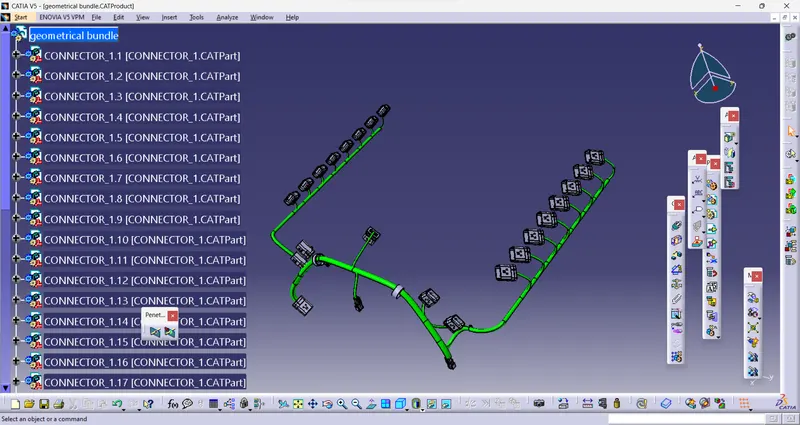

add the connectors to their locations

if there is no data about a connector add the dumy one

add the clips or clamps at the loctaions where ever required

start routing using the bundle

give the slack of 5% to avoid the wiringbundle to collide with the walls near the connectors and also at the sharp edges

geometrical bundle :

protecting coverings

these are used to protect the wire bundles from loads, temperature and from breaking

these are in different sizes and also with different materials

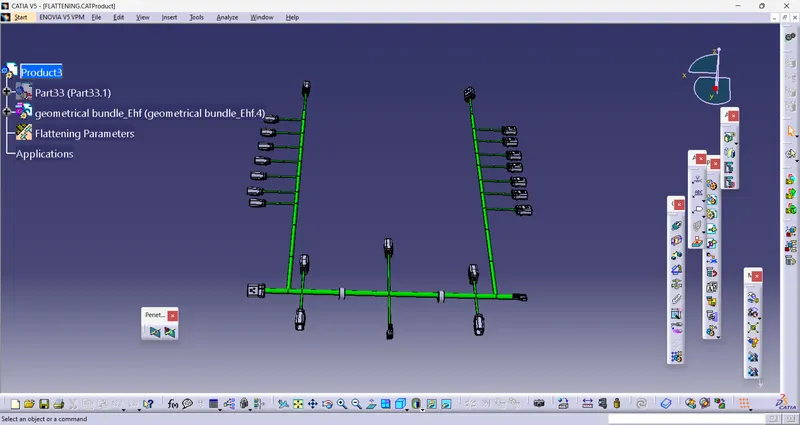

Flattening:

this is used to flatten the geometry to view the harness

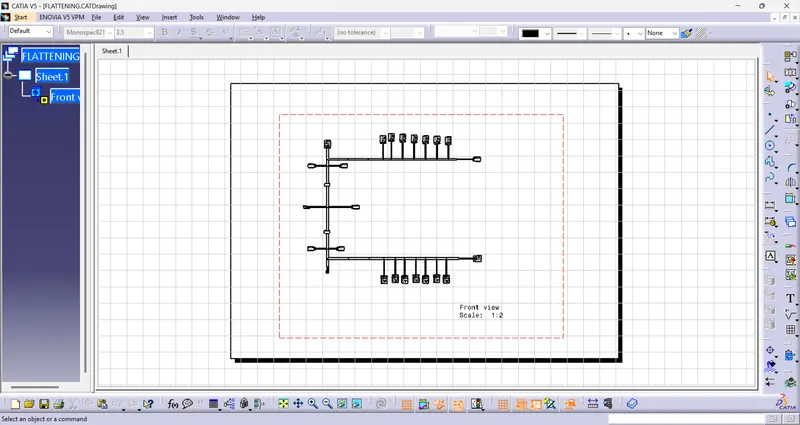

this is drawn in the 2D  view to print the doc to verify and to give the pratical harnessing to know the locations of each connectors
