P Clamp

First downloaded file from given link open mechanical part design.

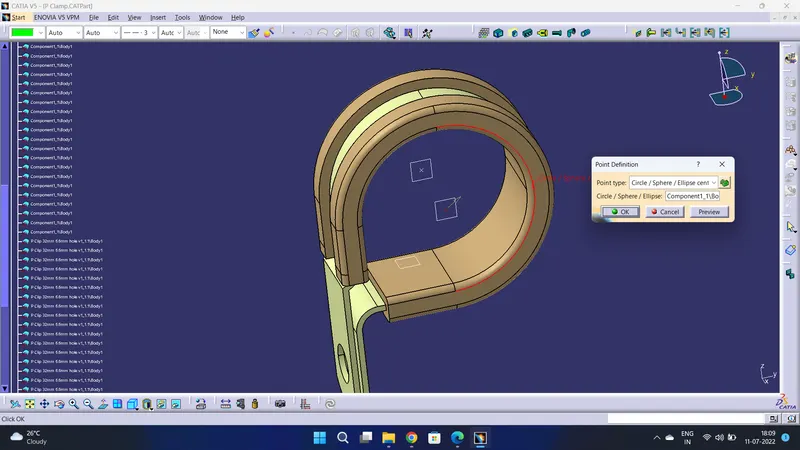

The defined point with circle reference on wire entre side and exit side.

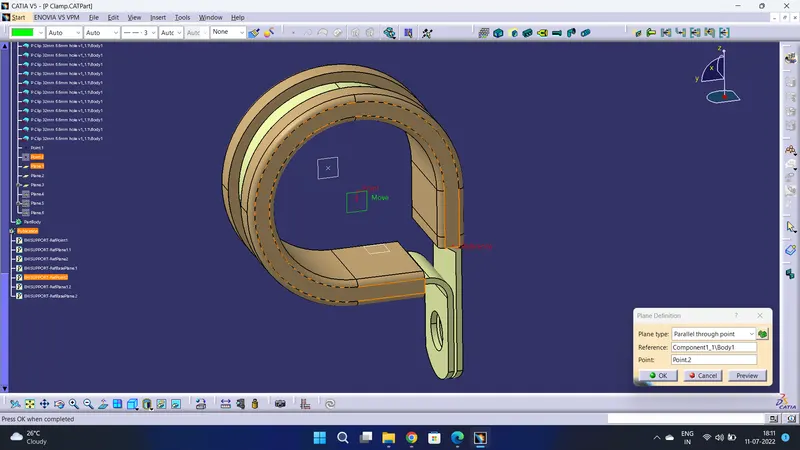

Then Wire Entre side and exit define the plane with reference to the point and surface.

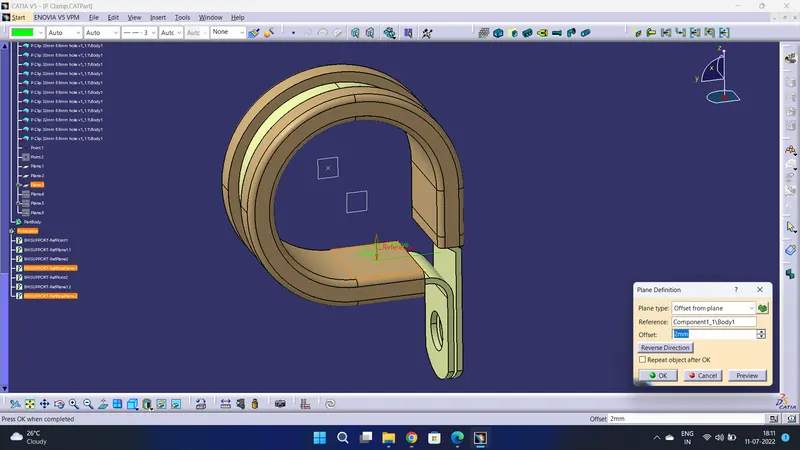

Created plane for base by offering 2mm from the base surface.

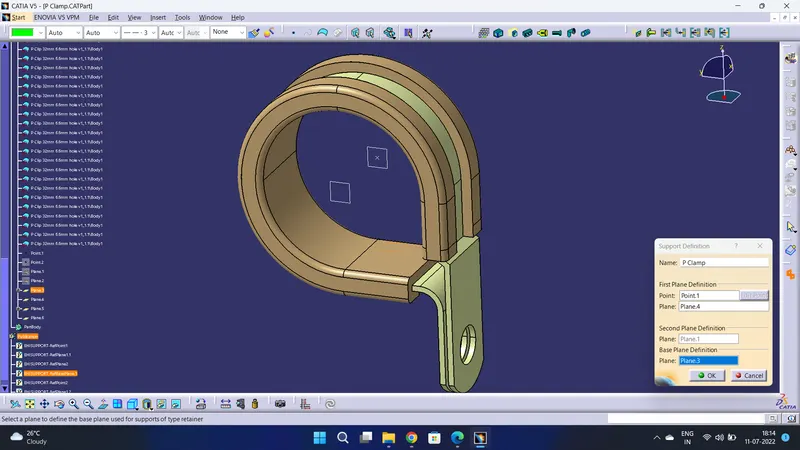

Then open the Electrical part design defined as support on the Wire Entry side.

Defined as support on the wire exit side. completed the support definition.

Back shell

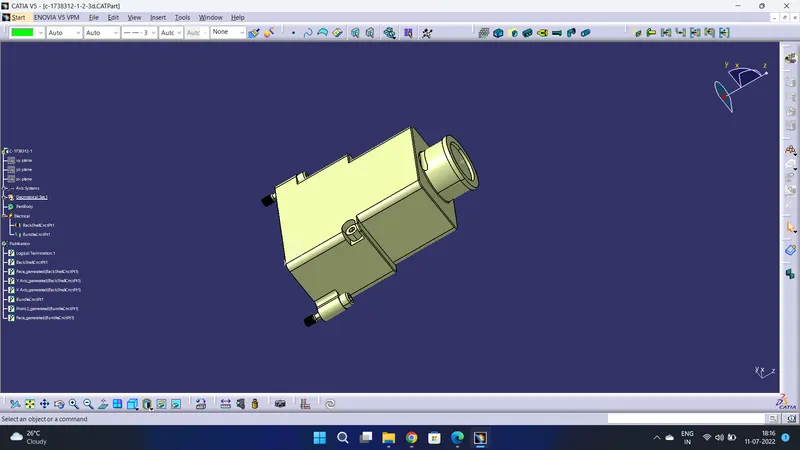

Download the file from the given link opened in mechanical part design.

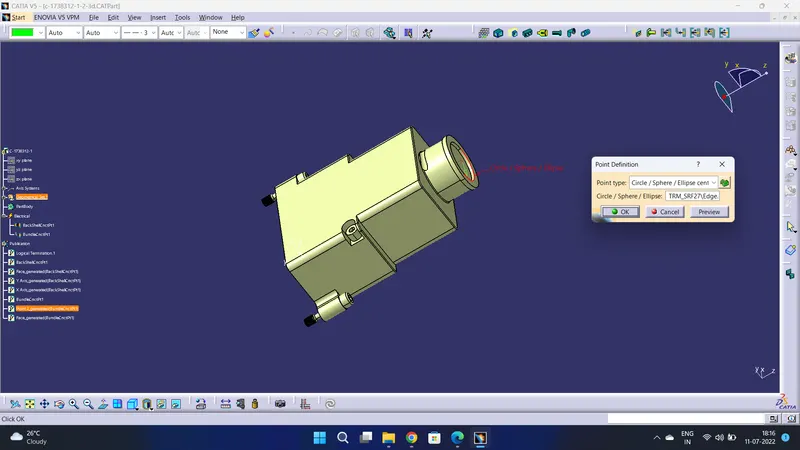

The back shell connects the side defined point by between point and created an axis system with reference of point.

The defined point on the Bundle connection side.

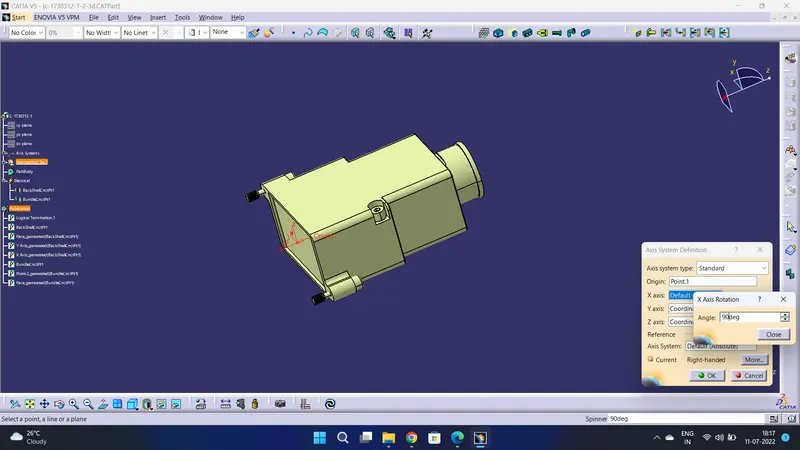

In the axis system x-axis is rotated 90 degrees to make Y-axis coincide side.

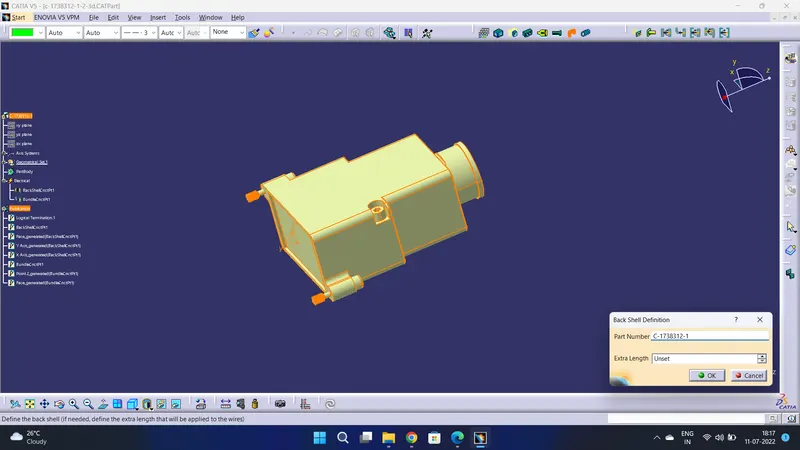

Then the part is defined as Back Shell Definition.

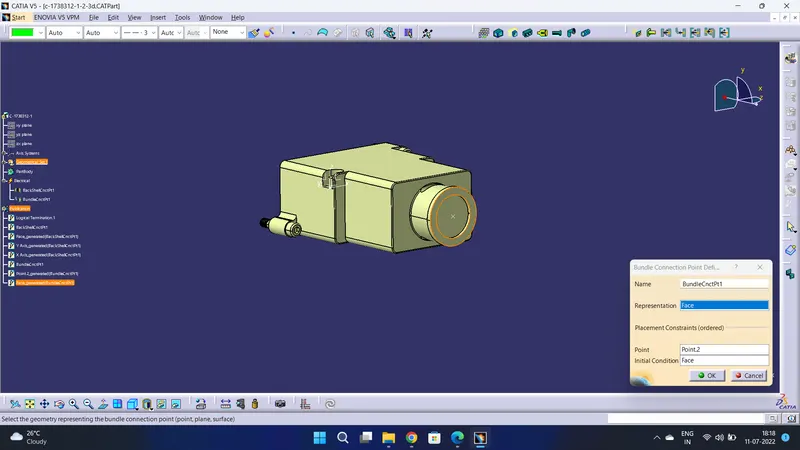

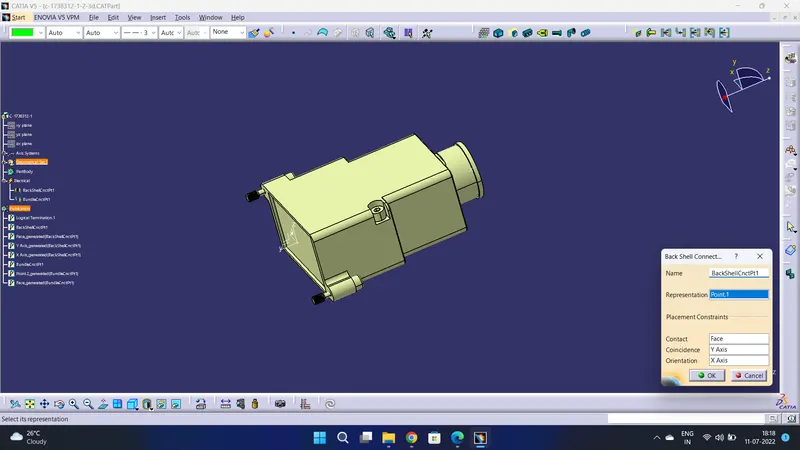

Then Defined Back shell connection point.

The defined Bundle connection point completed the back shell definition.

Corrugated tubes

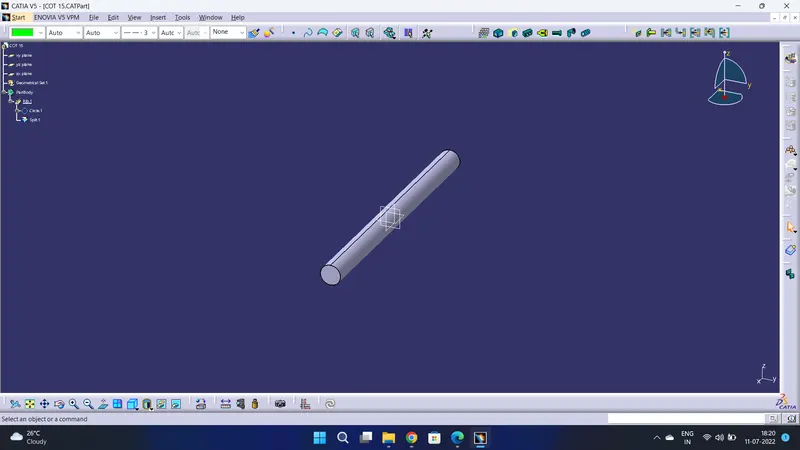

15mm COT

First opened a new part file in the electrical part design.

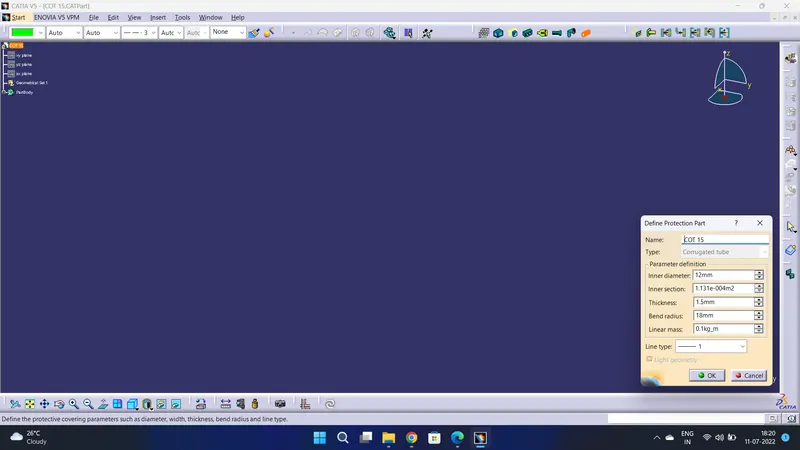

Then click on the define protection part and click on geometry then enter the dimension required.

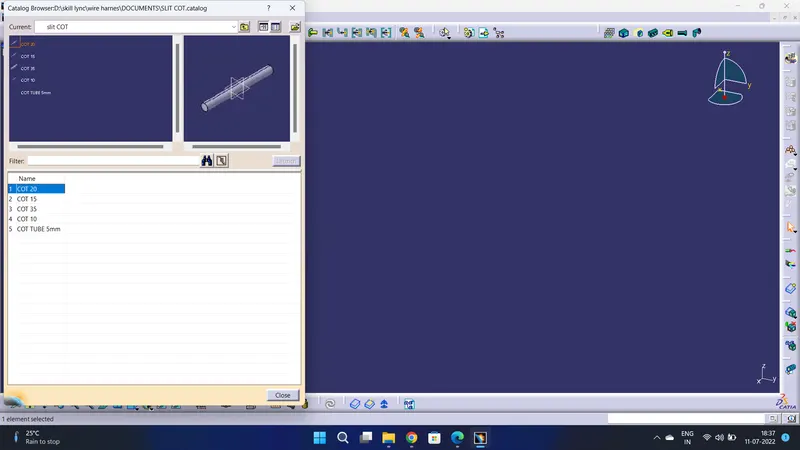

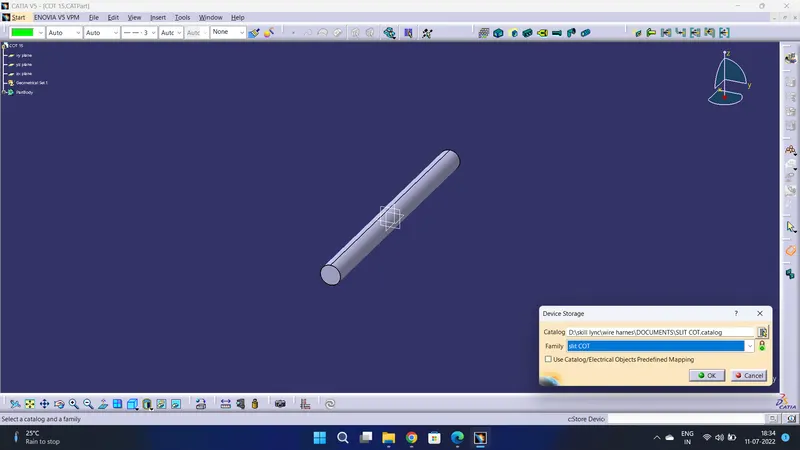

cot adding into the catalog.

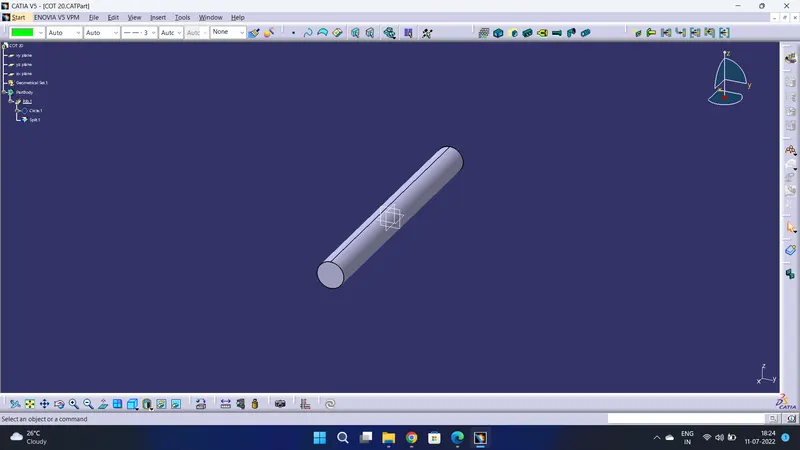

20mm COT

First opened a new part file in the electrical part design.

Then click on the define protection part and click on geometry then enter the dimension required.

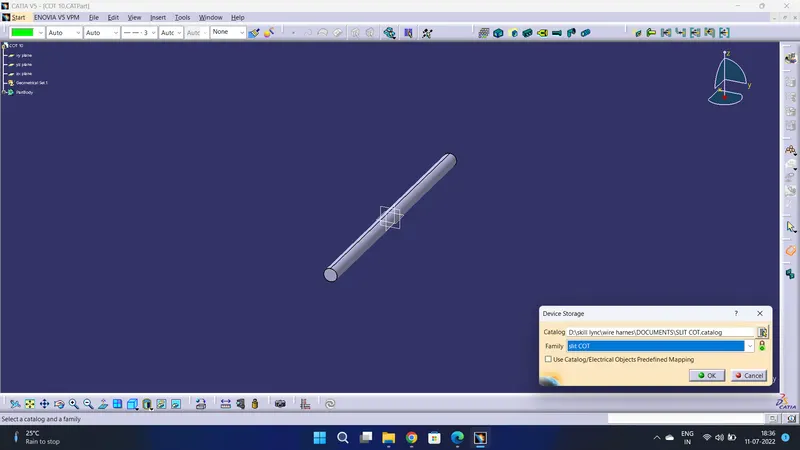

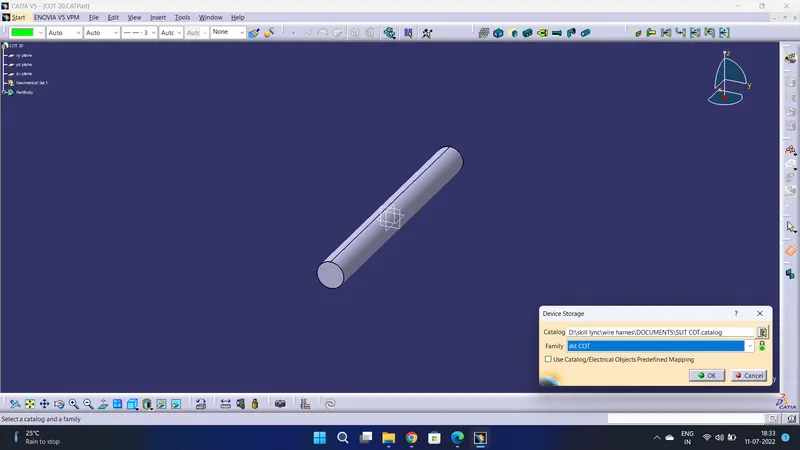

cot adding into the catalog.

35mm COT

First opened a new part file in the electrical part design.

Then click on the define protection part and click on geometry then enter the dimension required.

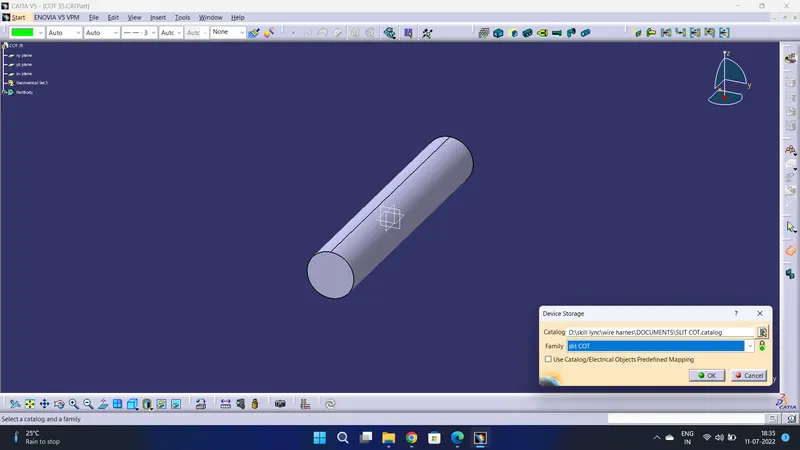

cot adding into the catalog.

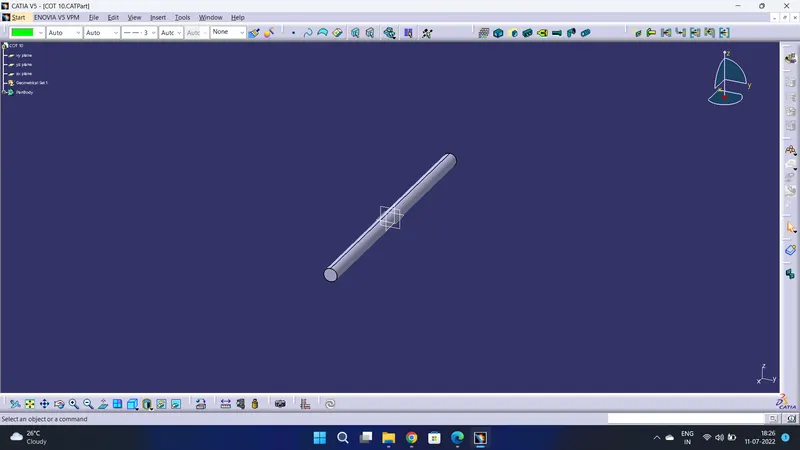

10mm COT

First opened a new part file in the electrical part design.

Then click on the define protection part and click on geometry then enter the dimension required.

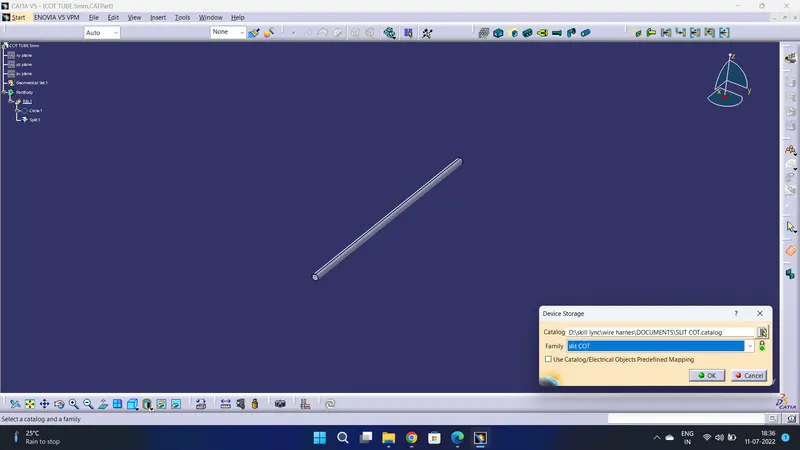

cot adding into the catalog.

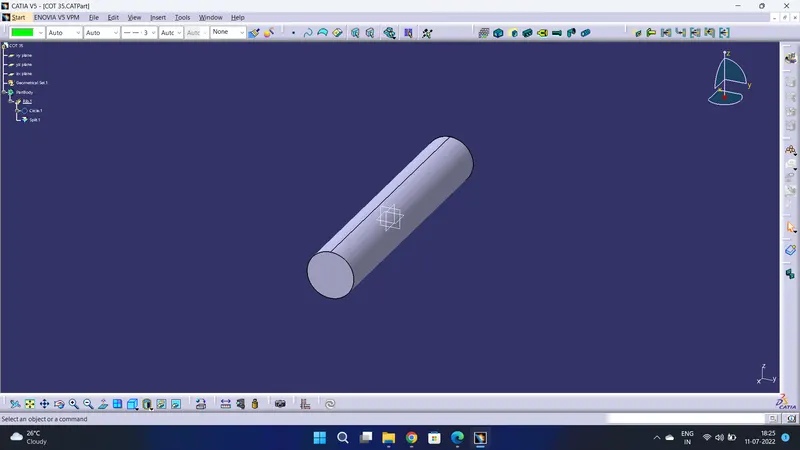

5mm COT

First opened a new part file in the electrical part design.

Then click on the define protection part and click on geometry then enter the dimension required.

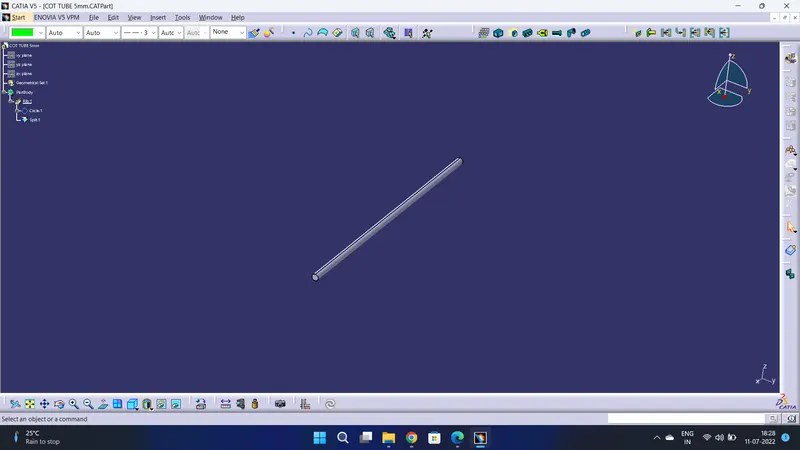

cot adding into the catalog.
