Wiring harness routing & packaging Rules Week 3 Challenge

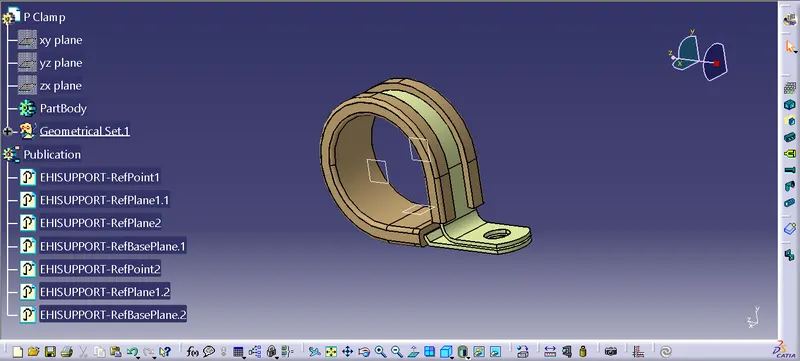

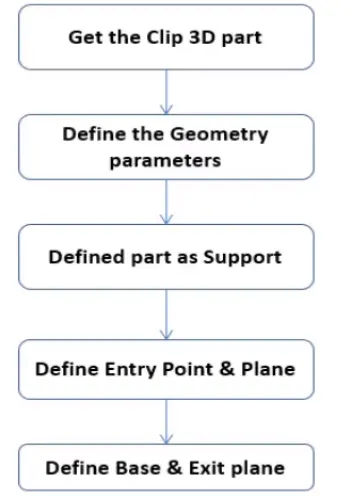

Q1. DEFINING P-CLAMP AS A ELECTRICAL SUPPORT USING ELECTRICAL PART DESIGN WORKBENCH :

EXPLANATION:

1. The given clamp was downloaded and opened as a part file.

2. I have to define the two points that will be used as entry and exist points.

3. Then a plan has to be defined at a distance of 2mm from the bottom of the clamp.

4. A base plane has to be defined the exist point at the frist definition as the entry point.

5. Again we define as the exist point at the frist definition as the entry point.

6. Hence, i have two entry points and two exist points.

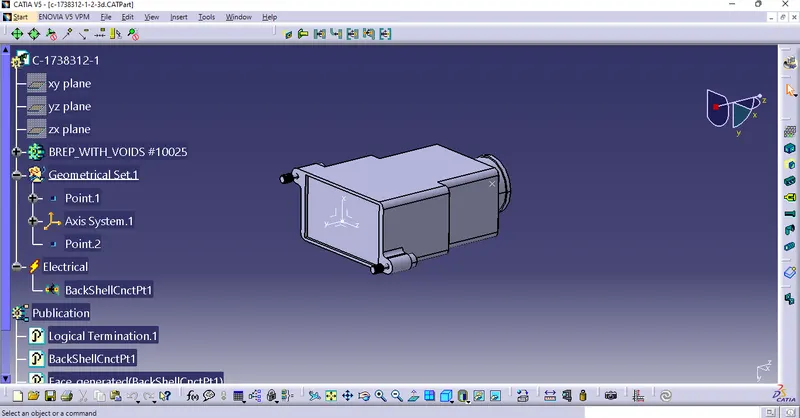

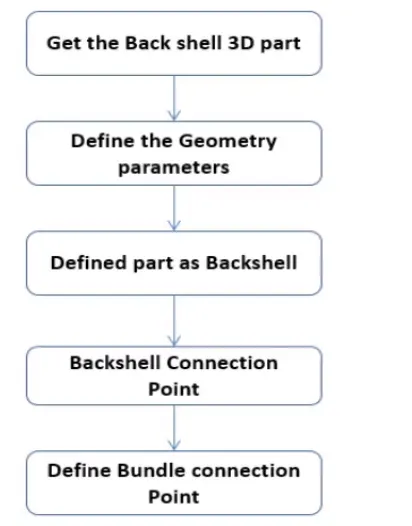

Q2.BACKSHELL DEFINE IT AS A ELCTRICAL BACKSHELL USING ELECTRICAL PART DESIGN WORKBENCH:

1. The backshell data has to be downloaded from the website(given).

2. We define the points in the parts workbench.

3. An axis system with correct axis orientation is placed at a backshell connection point.

4. The point have to be defined as the backshell connection and bundle connection points.

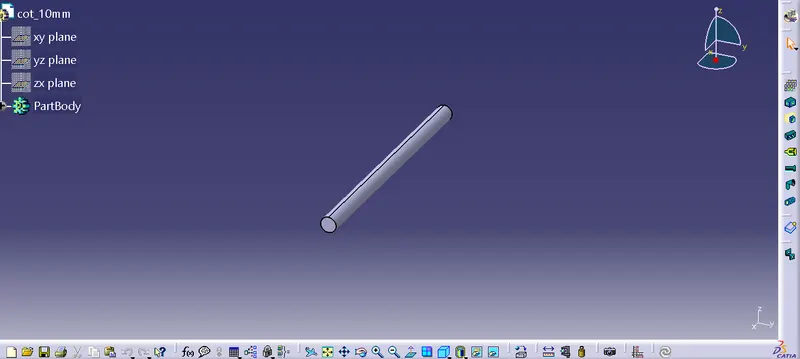

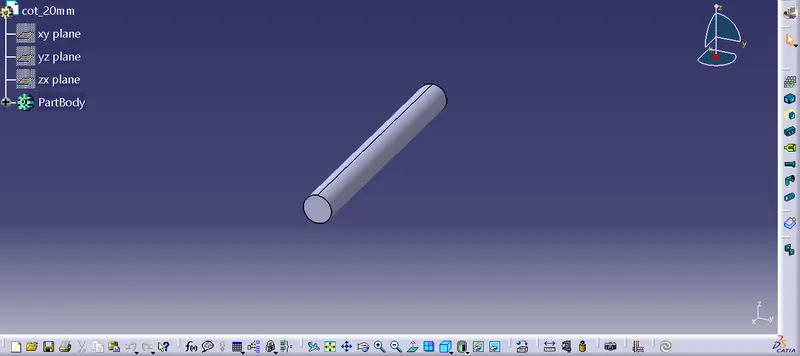

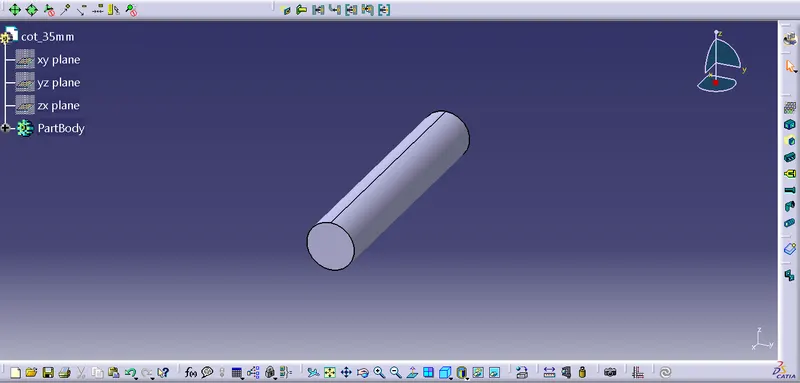

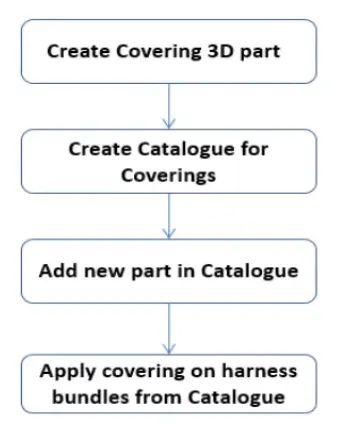

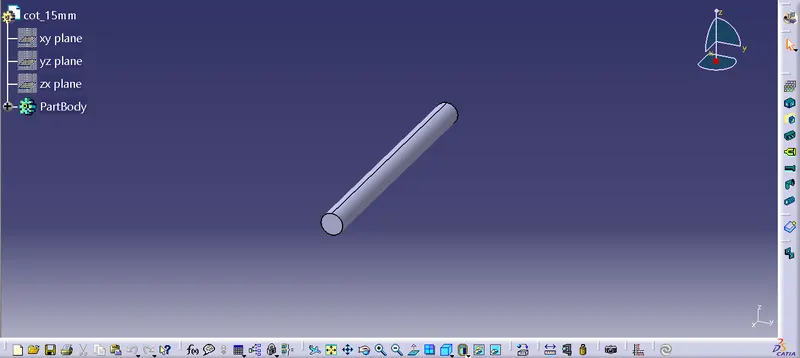

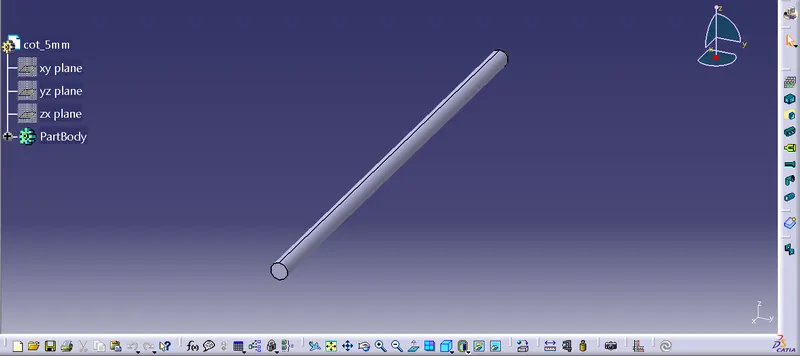

Q3.CORRUGATED TUBES & ADD INTO CATALOGUE FAMILY:

1. We have define the cot tubes in the electrical part workbench.

2. The inner dia & thickness are given in the inputs.

3. A catalogue was created for the cot tubes.

4. All the cot tubes were saveed in the catalog.
