Wiring harness routing & packaging Rules Week 3 Challenge
1. CLIP OR P-CLAMP:

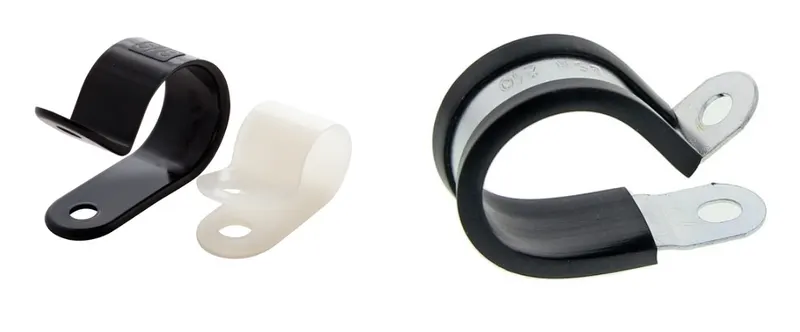

P-Clamp provides a light, fast, and efficient solution to mounting cable harnesses. The compliant cushion firmly grips a wide diameter range of cables without crushing the cable.

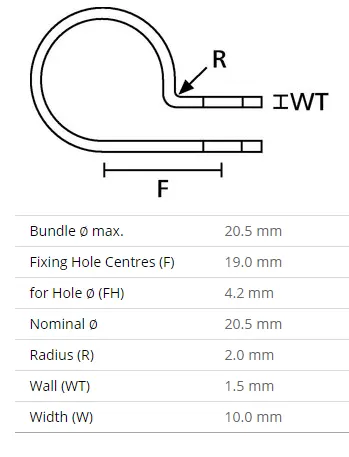

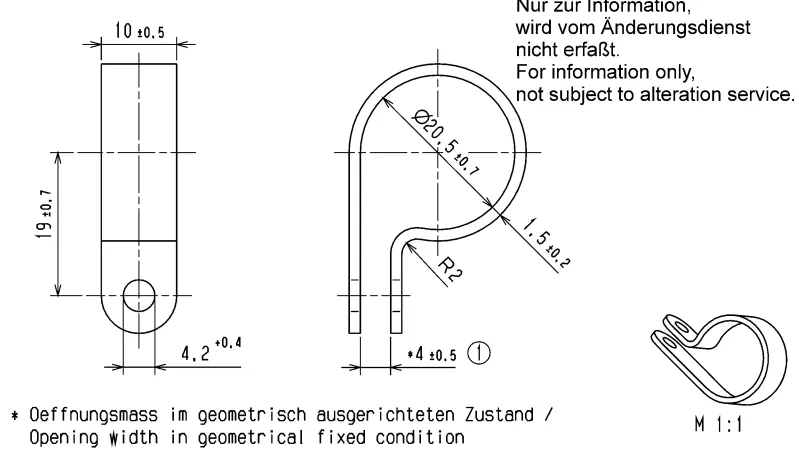

The Clamp data used in this case: Hellarmann Tyton – 21160129

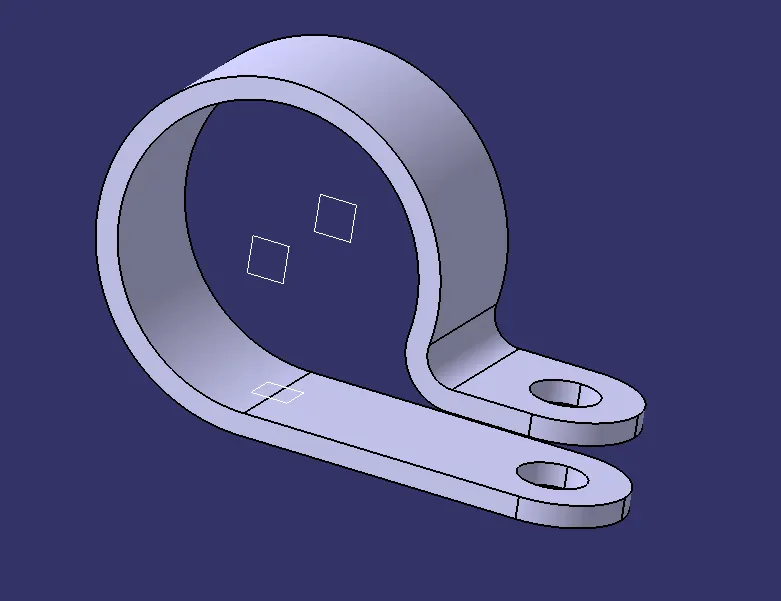

CREATED CAD:

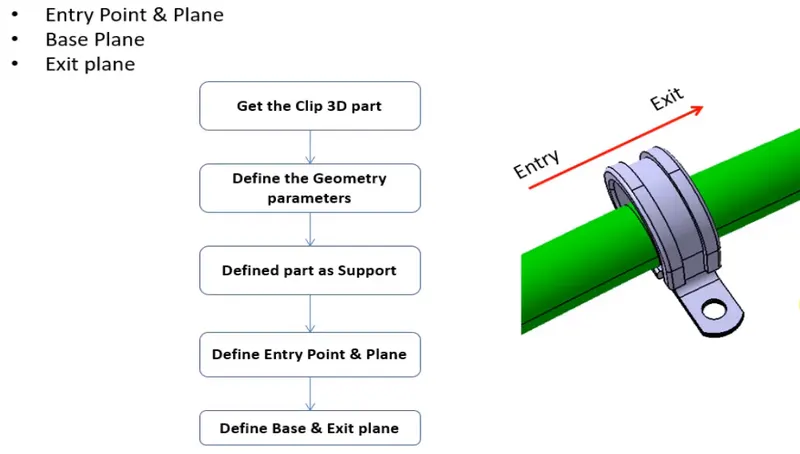

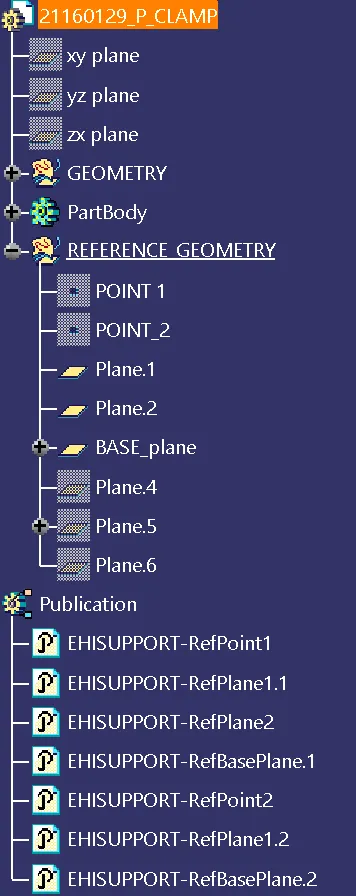

THE FLOWCHART OF DEFINING THE CLIP AS AN ELECTRIC DEVICE:

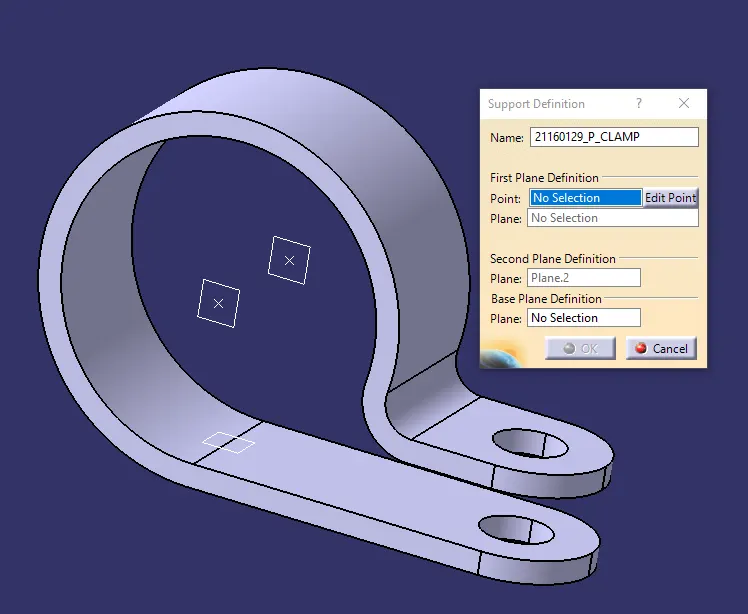

The Entry and Exit points are defines for the Clip.
2. BACKSHELL:

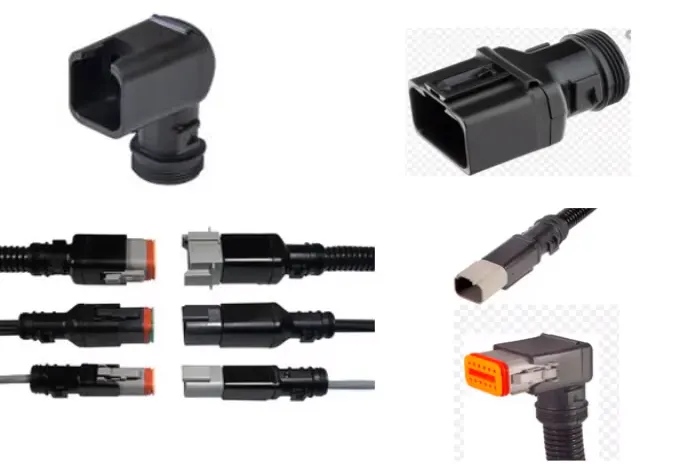

A backshell is an accessory that mounts to the rear threads of a connector to enhance its operational characteristics. The primary function of a backshell is to provide strain relief, which minimizes stress from the cable, on the junction where the wires terminate to the contacts.

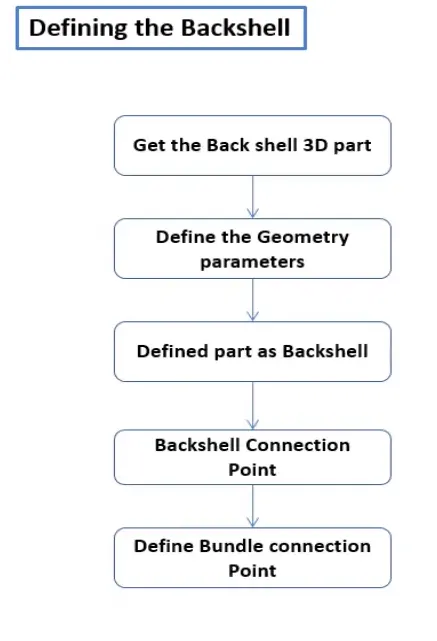

STEPS IN DEFINING THE BACKSHELL AS ELECTRICAL DEVICE:

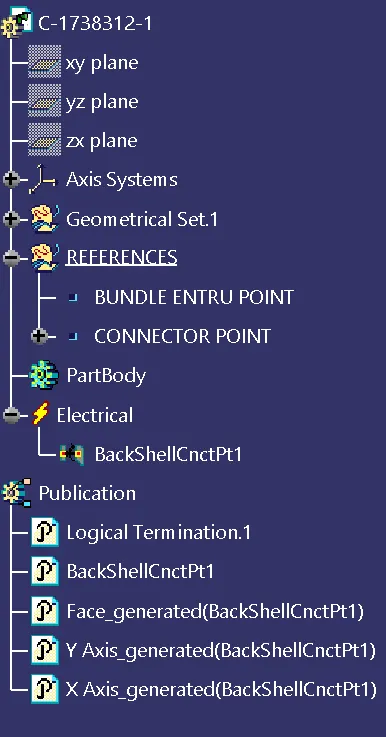

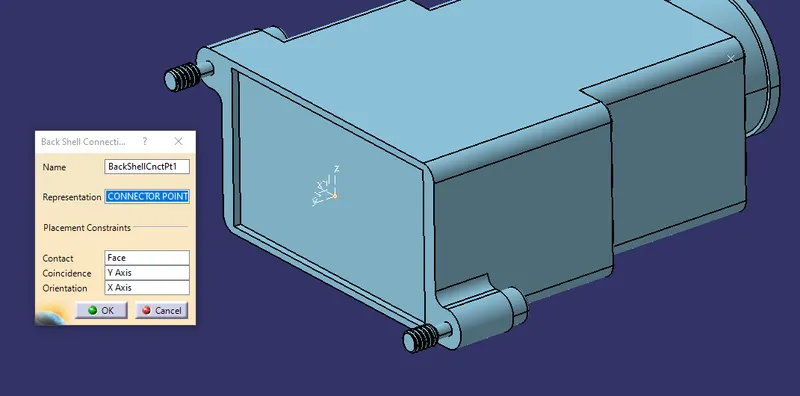

DEFINING THE BACKSHELL CONNECTION POINT:
3. CORRUGATED TUBES:

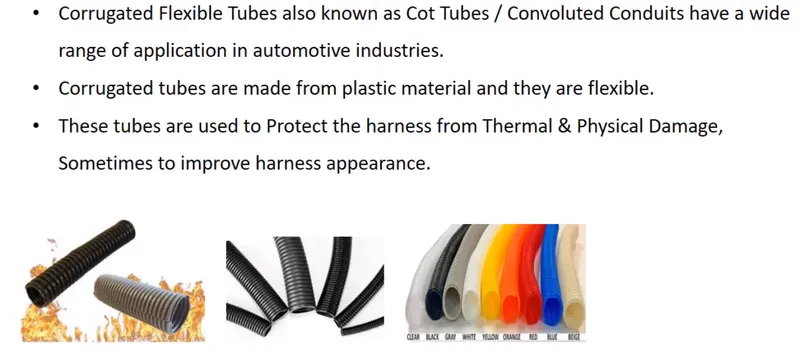

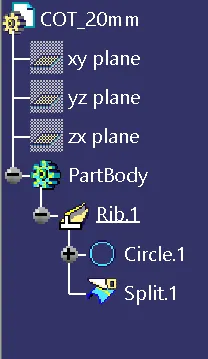

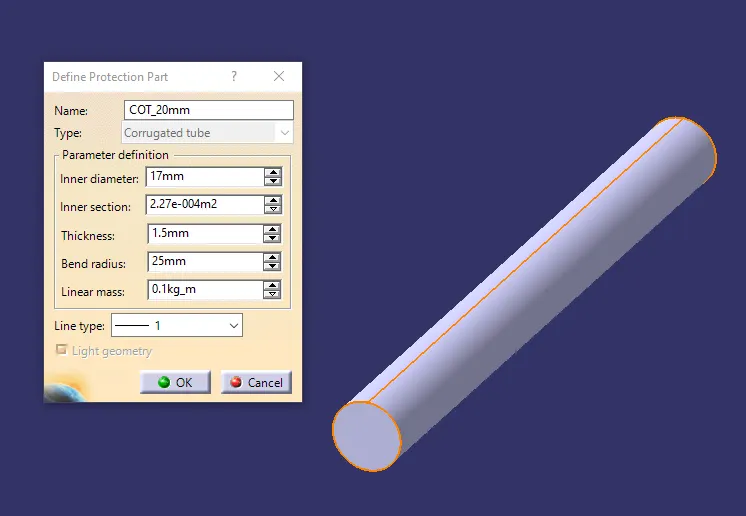

A corrugated tube is a pipe with a helical groove obtained from a plain tube by cold forming. The number of starts of the helix can be changed as well as the angle to optimize the heat transfer and performance.
