Wiring harness routing & packaging Rules Week 3 Challenge

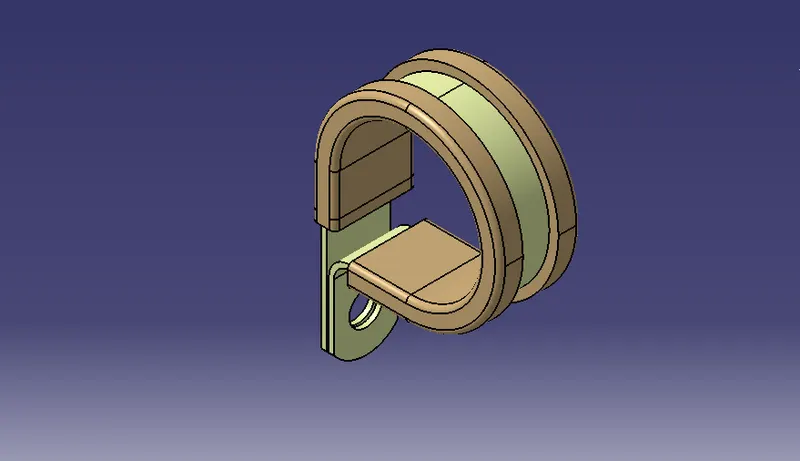

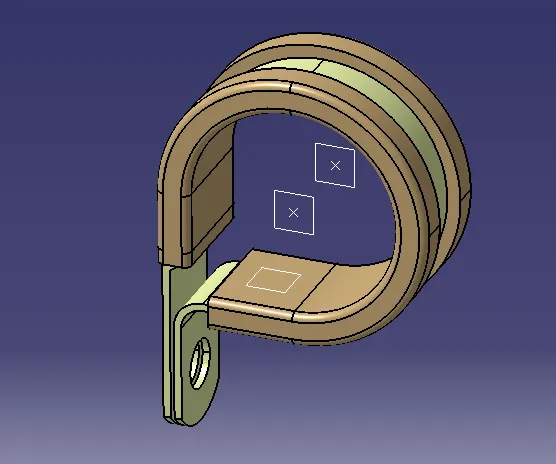

- P CLAMP
- GEOMETRICAL PARAMETERS
ENTRY, EXIT AND BASE PLANES WERE CREATED USING POINT AND REFERENCE PLANE OPTIONS IN PART DESIGN.

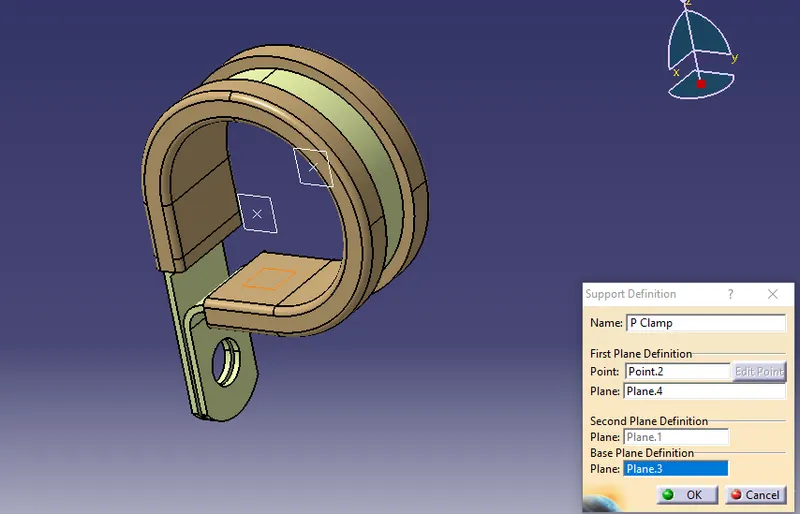

SWITCH TO ELECTRICAL PART DESIGN, NOW DEFINE CLIP AS "SUPPORT PART" USING THE SUPPORT PART OPTION
SELECT THE FIRST POINT AND PLANE AS A ENTRY PLANE AND THE OTHER AS AN EXIT PLANE AND THEN SELECT THE BASE PLANE.
AGAIN DO THE SAME PROCEDURE BUT THIS TIME OUR FIRST ENTRY PLANE WILL BE MY EXIT AND VICE VERSA.
NOW CLIP IS READY FOR THE USE IN ELECTRIC HARNESS.

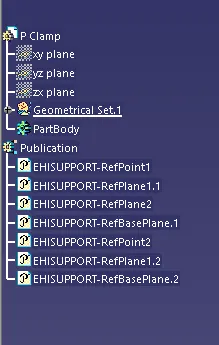

TREE STRUCTURE
2. BACKSHELL

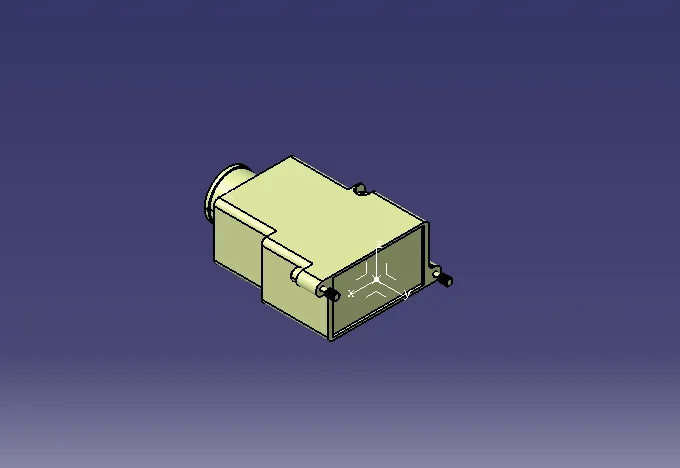

- GEOMETRICAL PARAMETERS
NOW MOVE TO ELECTRICAL PART DESIGN AND DEFINE THE PART AS A BACKSHELL.

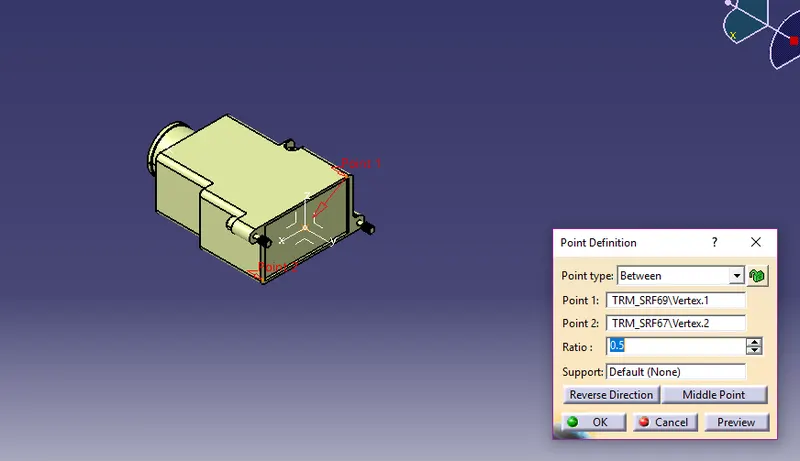

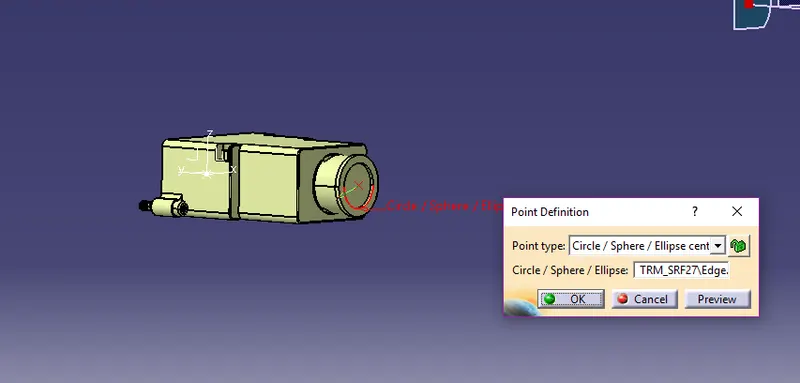

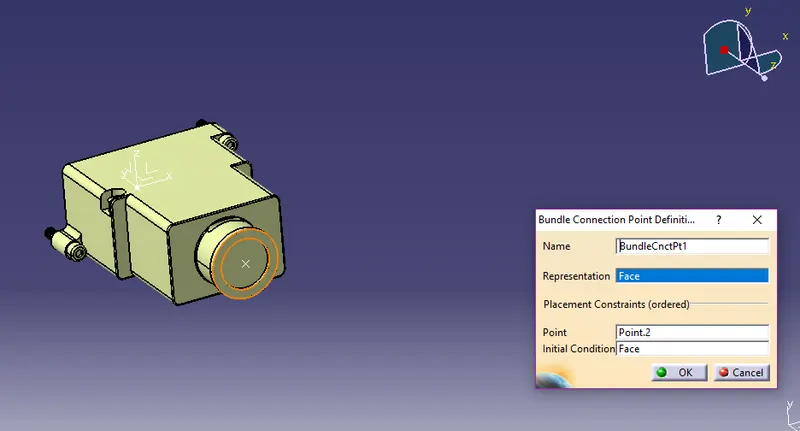

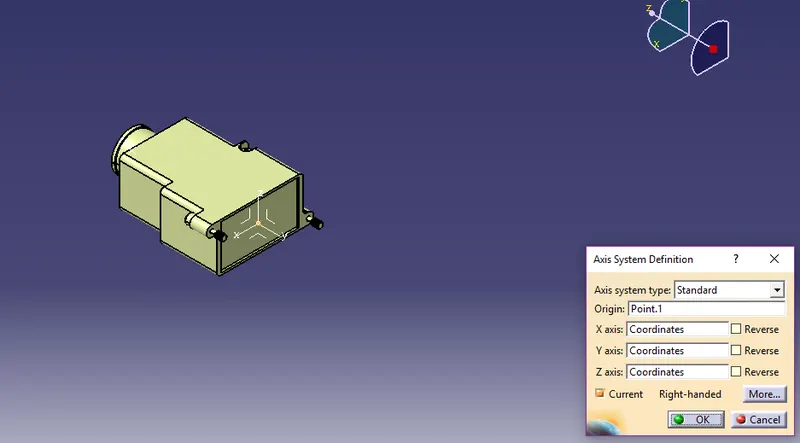

BUNDLE CONNECTION POINT DEFINITION

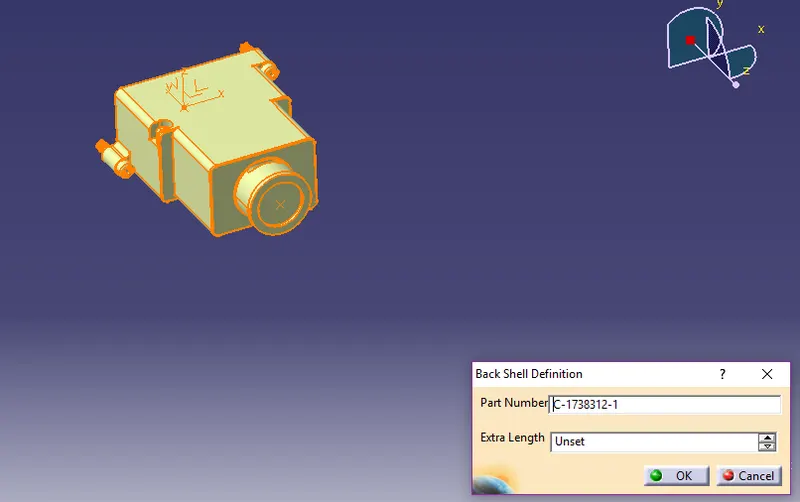

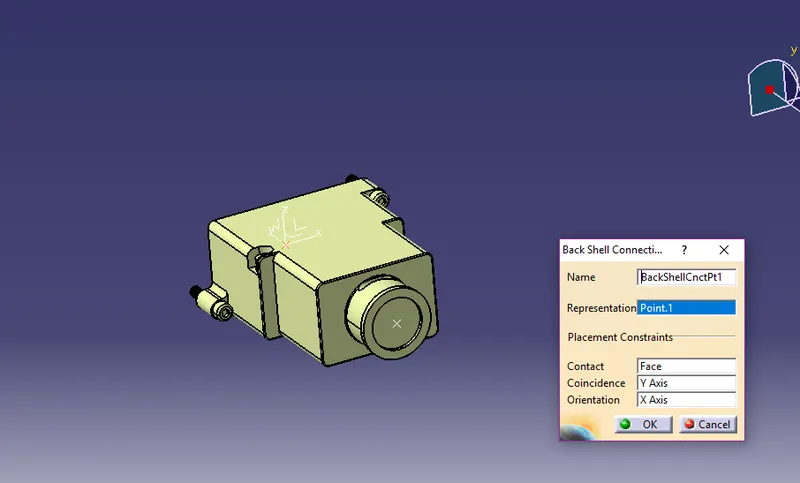

BACKSHELL CONNECTION POINT DEFENITION

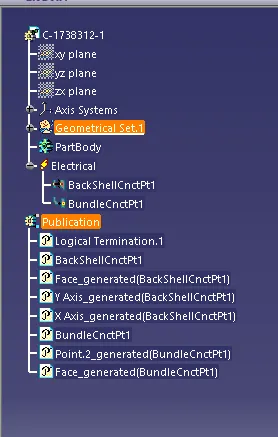

TREE STRUCTURE
Q3. Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

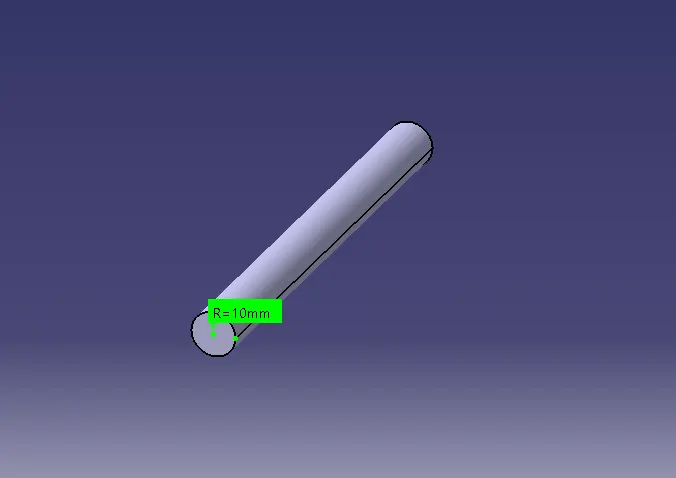

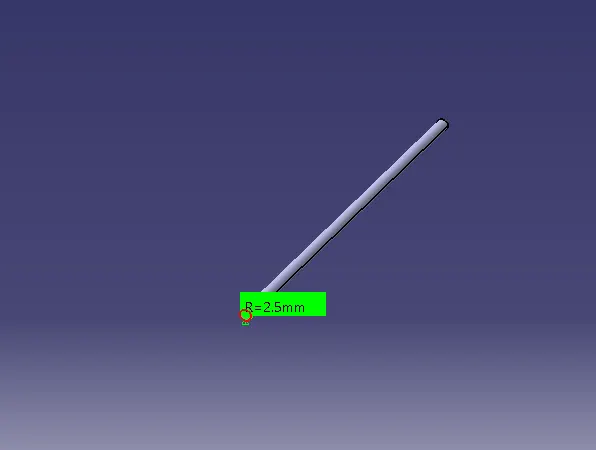

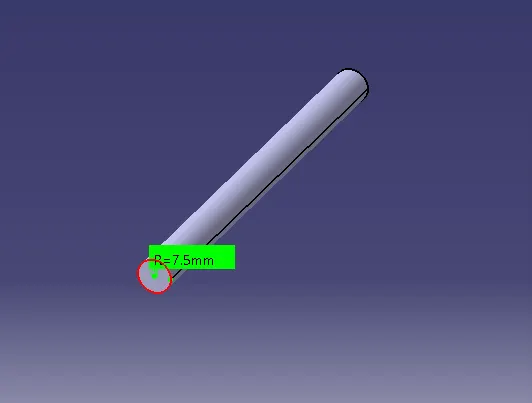

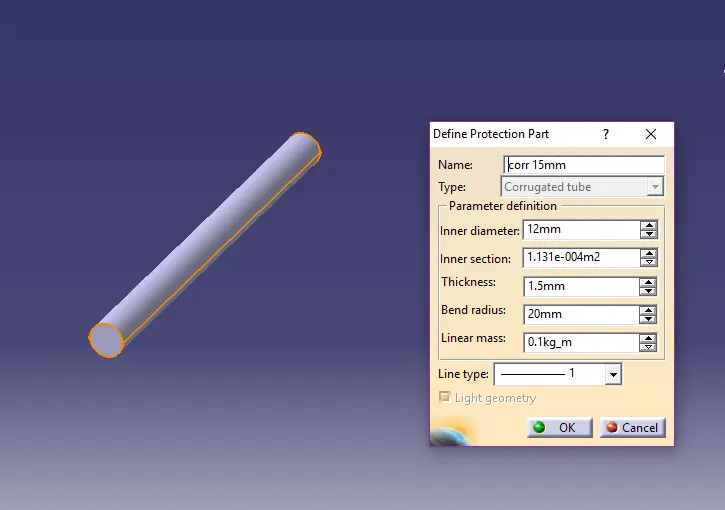

WE CREATE CORRUGATED TUBES USING DEFINE PROTECTIVE PART TOOL IN ELECTRICAL PART DESIGN.
1. 15 MM COT

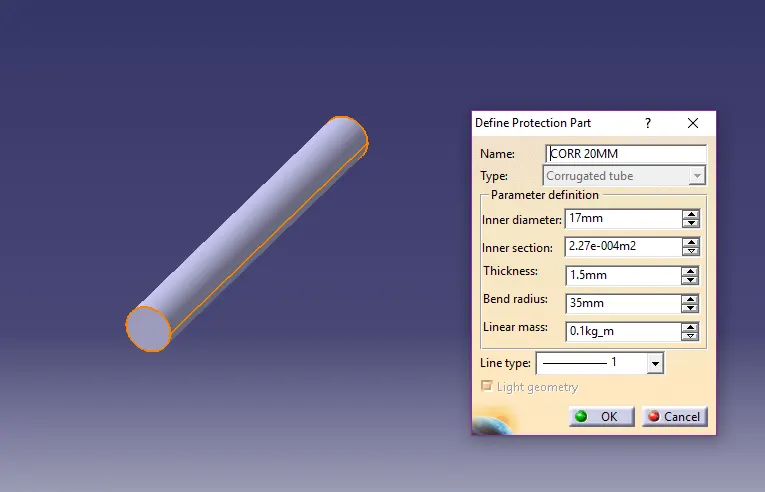

2. 20 MM COT.

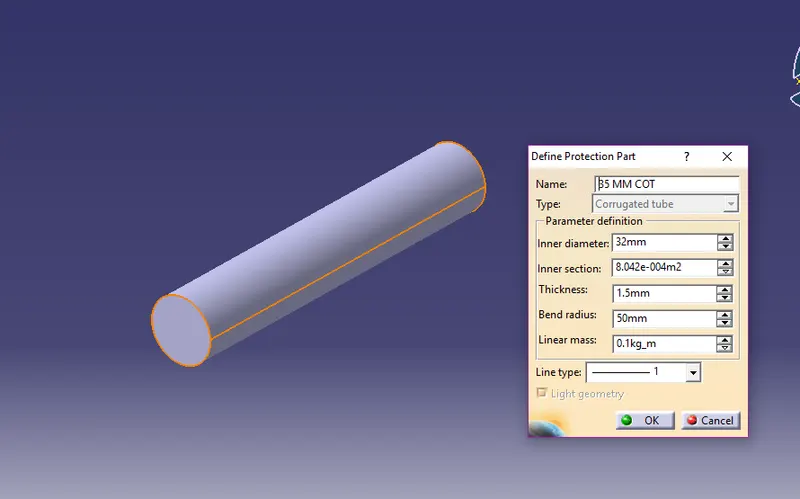

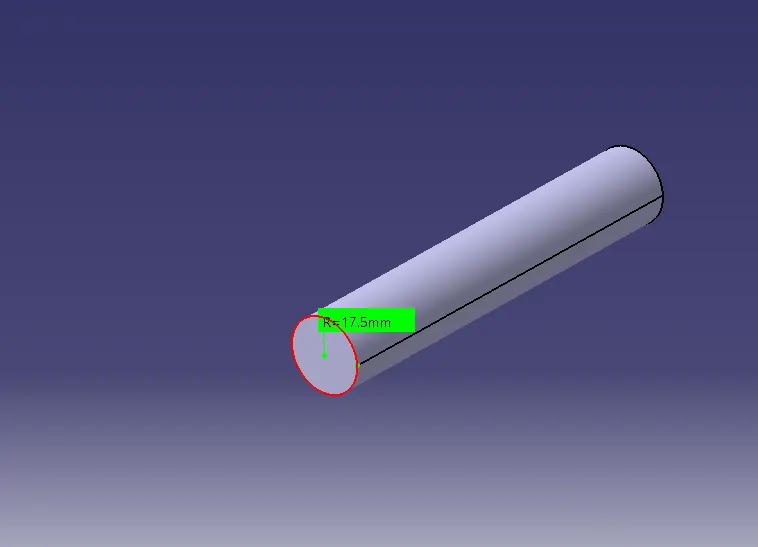

3. 35 MM COT.

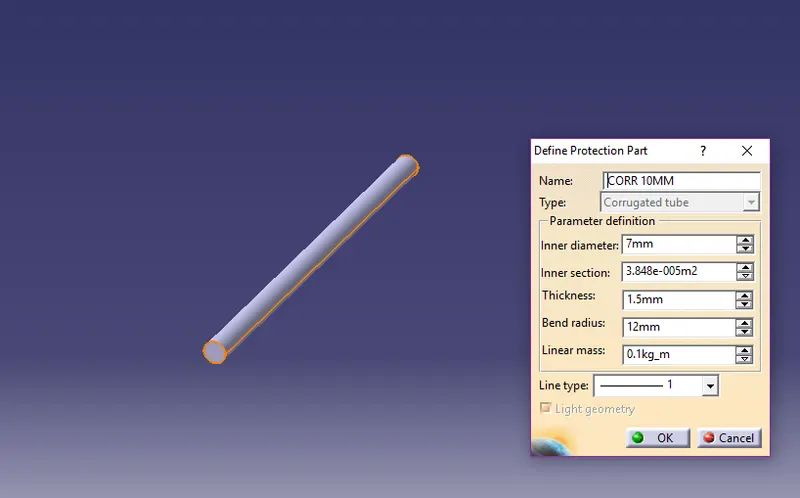

4. 10 MM COT.

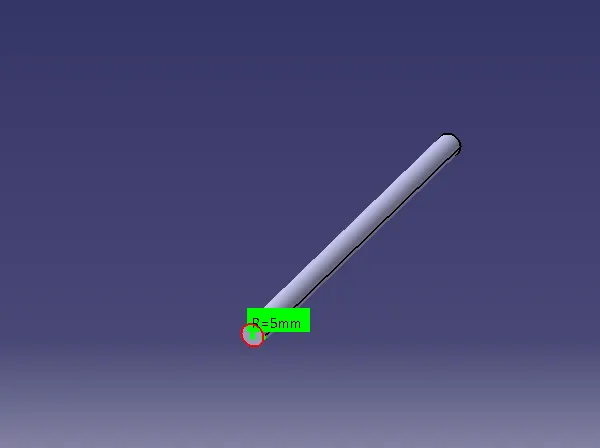

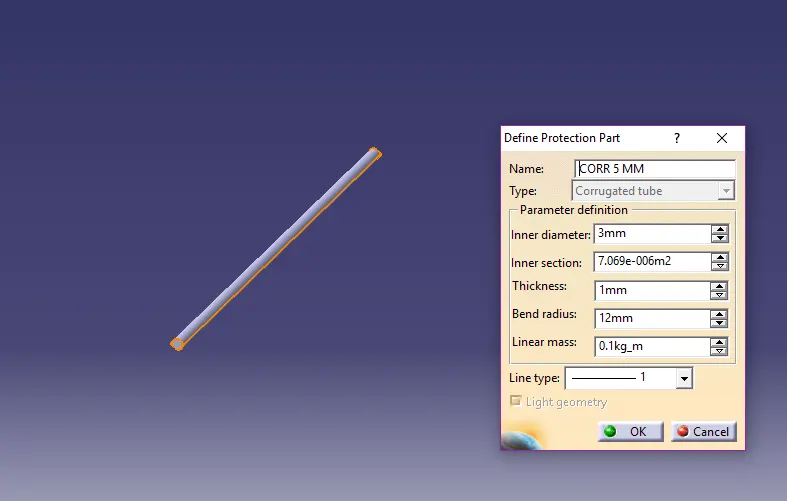

5. 5 MM COT.
LASTLY, SAVE ALL THE CORRUGATED TUBES IN THE SPECIFIC CATALOGUE.
