Flatten the harness assembly completed in the “ week 4 challenge”. Place the flattened view on the drawing sheet. Ensure bundles with protective coverings has different visuals on the drawing view.

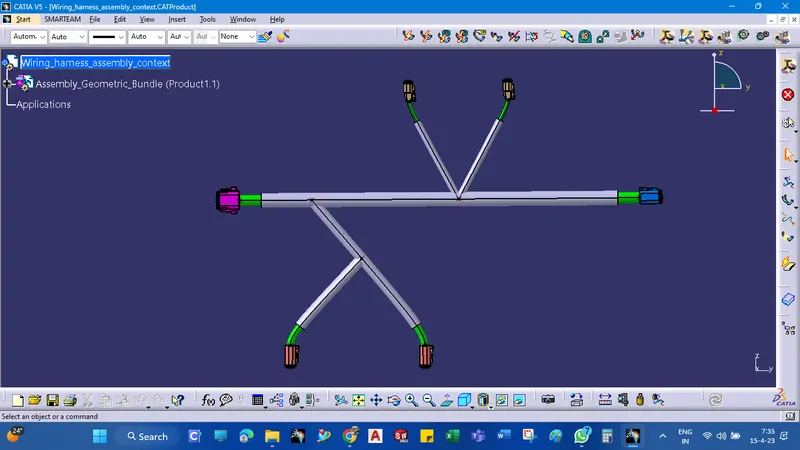

I have used the harness assembly completed in the “ week 4 challenge”.and Placed the flattened

Creations of Electrical Harness Flattening:

Create a product file and navigate to the Electrical Harness Flattening for wire harness flattening option and save it in the same location where the wire harness or routing assembly is stored.

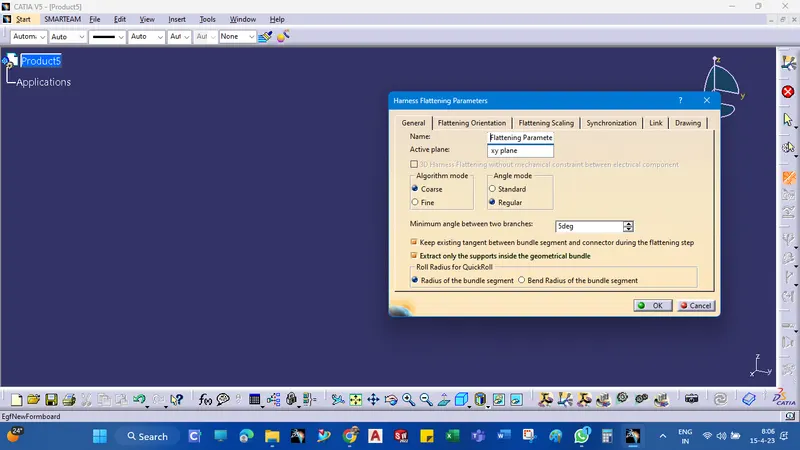

Define the 'Harness flattening parameters' in order to flatten the required wire harness assembly.

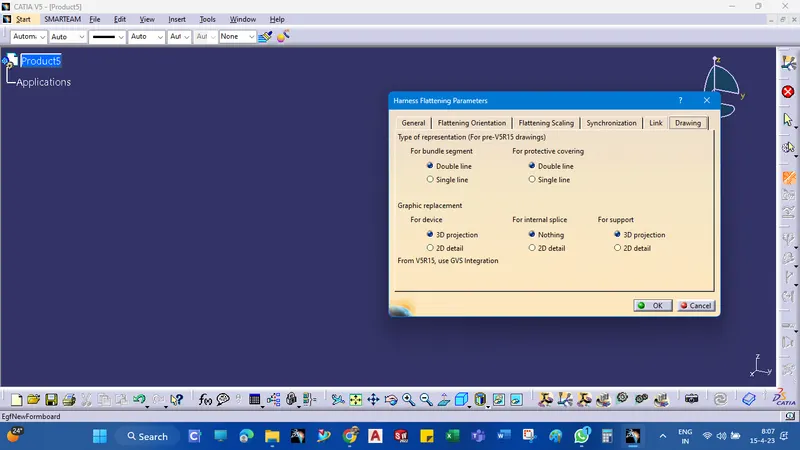

While defining the harness flattening parameters in the drawing menu single line is selected for the bundle segment and a double line is selected for protective coverings in order to differentiate between the wire bundle and cot tubes in drafting.

After Selecting the 'Extract' option from the Electrical Harness flattening workbench and select the Geometric bundle product in the wire harness assembly product file.

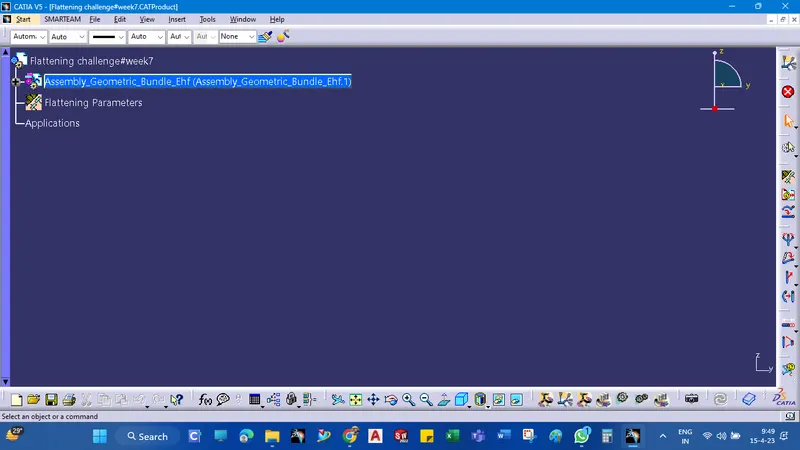

Then wire harness assembly is imported to the Wire flattening product file with the 'EHF' extension added to the geometric bundle assembly name.

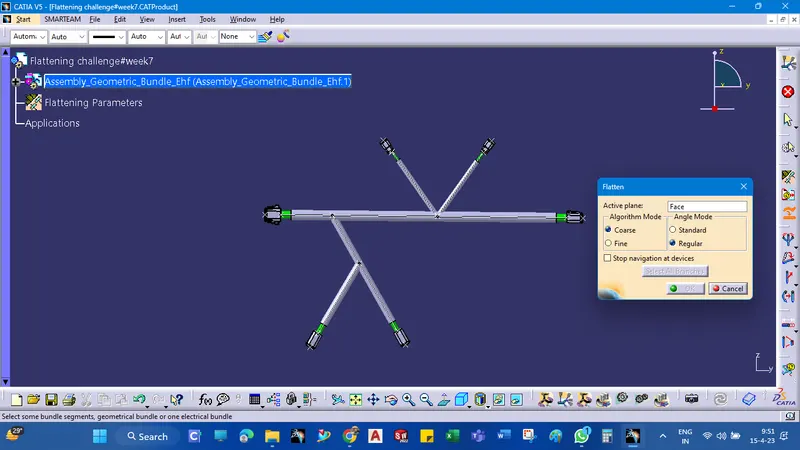

Select the 'Flatten' Command to flatten the wire harness assembly.

Then select the active plane or face of the connector, then select any one branch, and then select 'select all branches'.

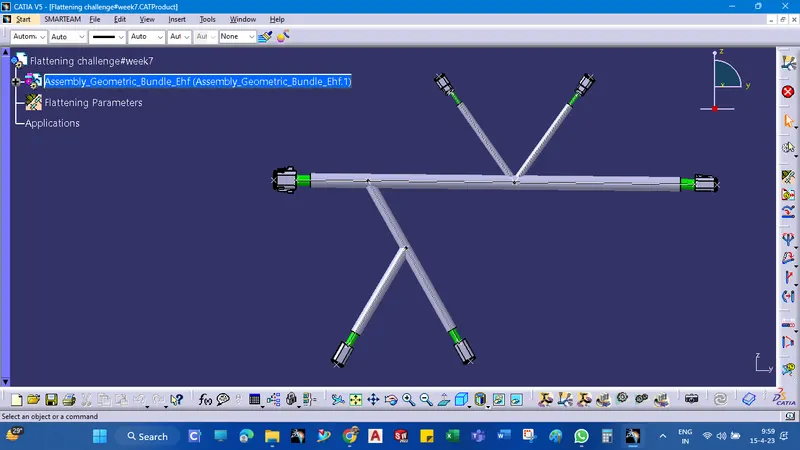

If there is no discontinuity in the bundle segment then all the branches will be selected and by pressing 'ok' the wire harness assembly will be flattened.

and also apply the 'Rotate' command and other commands to rotate the branches and bring them in the proper orientation as per the given layout.

Save the product file using the 'Save management' option so that all the related product files and part files are stored in a single directory.

Step - 1:

Create a new drawing file and save the file in the same location.

Step - 2:

Insert the title block template and fill up the required details.

Step - 3:

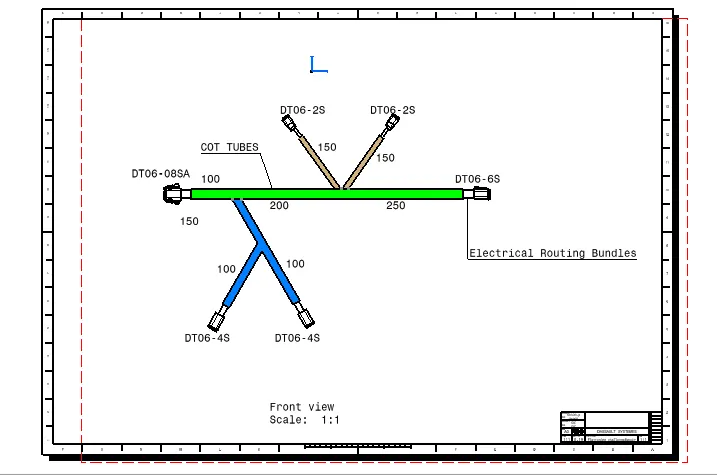

Add the front view of the harness assembly by selecting any one of the flat faces of the connector and orienting the view as per the requirement.

Step - 4:

Go to the properties of the view and select the '3D Wireframe' and ' Is always visible' options in order to see properly the Wire bundle, connectors, and protective coverings.

Step - 5:

Show and name all the parts used in the wire harness assembly

please refer to the attached Zip for more details
