Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

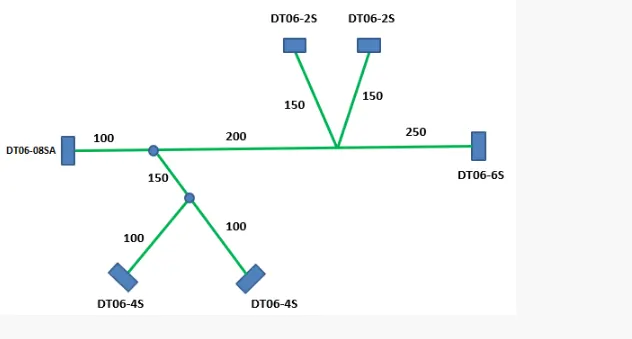

Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view.

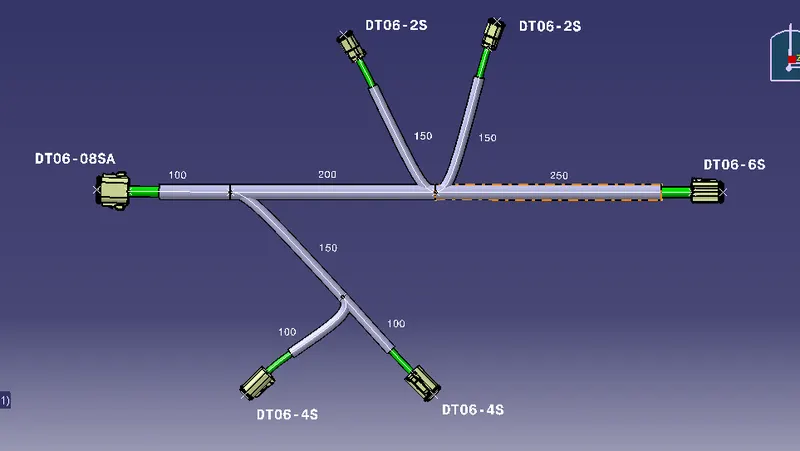

Routed the cable as per above reference in Electrical Harness installation work bench with proper lengths and annotations.

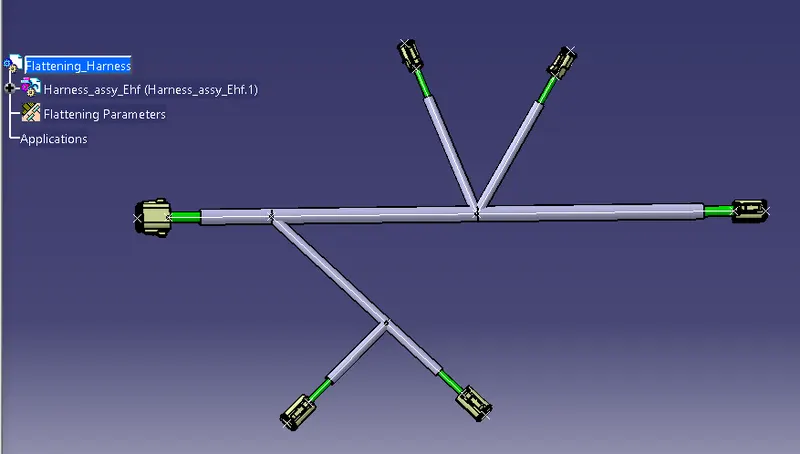

Flattened above routed cable assembly in Electrical harness Flattening work bench and applied rotate commond to match the cable branch orientation.

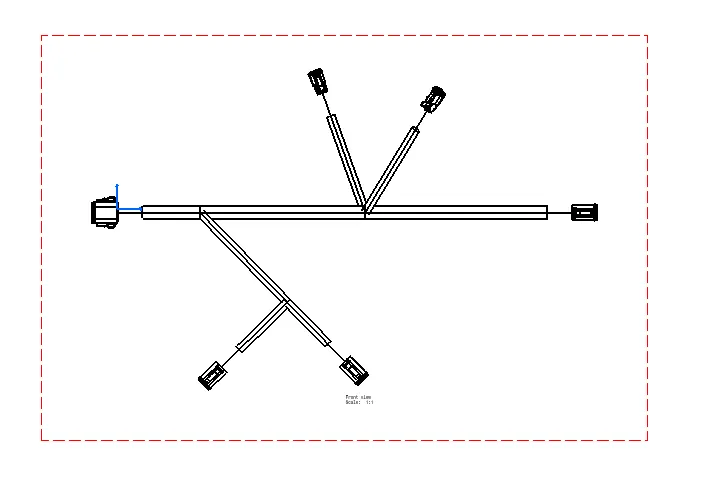

Front view of the flattened cable assembly exported to ISO A0 page.

All the relevent file attached.
