Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

PROJECT REPORT:-

Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge.

Q1. Route the following harness layout in the Electrical workbench. Make assumptions for harness bundle diameters. Use DT connectors. After completion of routing do the followings,

1. Check the bundle Continuity. Add snap of result in submission
2. Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc
3. Check for the bundle warning. Add snap.
4. Generate CAT.part of harness assembly and convert is in. igs format.

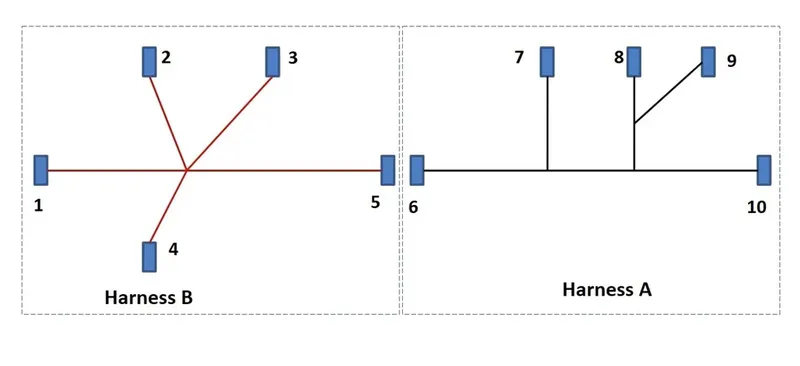

Figure 1: Shows the layout of two Harness A and Harness B

The electrical connectors are represented by numbers in the above figure. There are 8 different types of connectors at 10 different locations.

2. Bundle continuity has to be checked for the two created harnesses.
3. After the two Harnesses are created, the next objective is to have them interconnected electrically.
4. Check for bundle warnings in Harness A and Harness B.
5. Add annotations to all the connectors in Harness A and Harness B.

Content:

The following steps are to be done to complete this project.

Step-1:

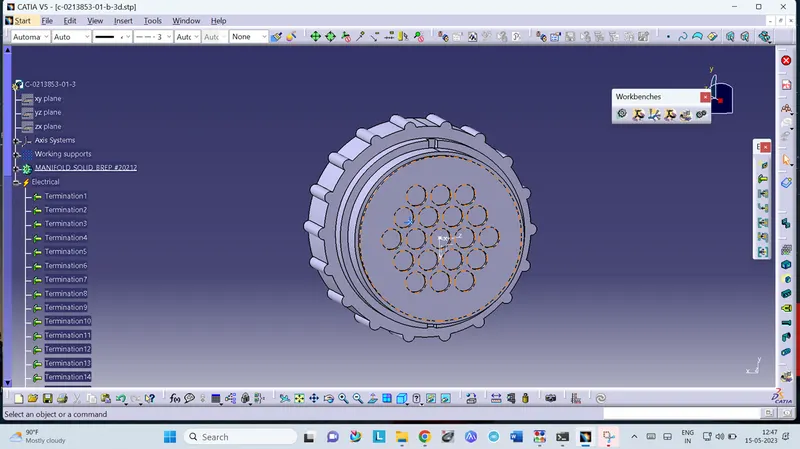

Define all the electrical connectors geometrically and electrically so that they can be used in the wiring harness.

HARNESS A

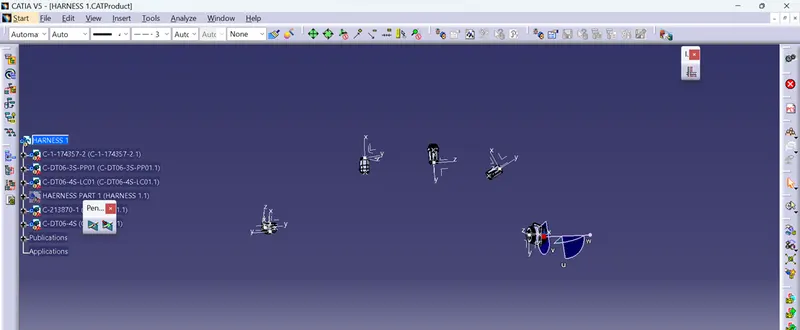

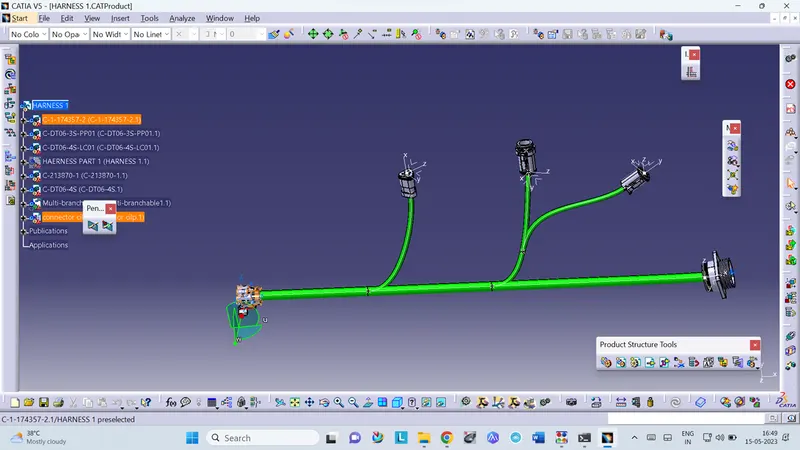

After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command.

\

HARNESS B

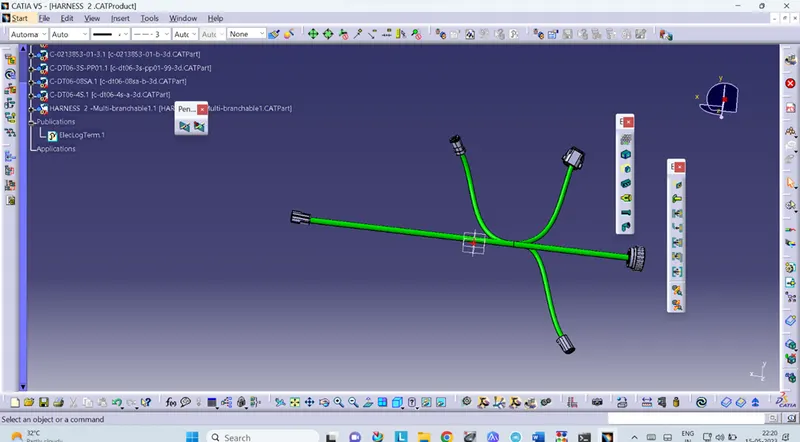

After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command.

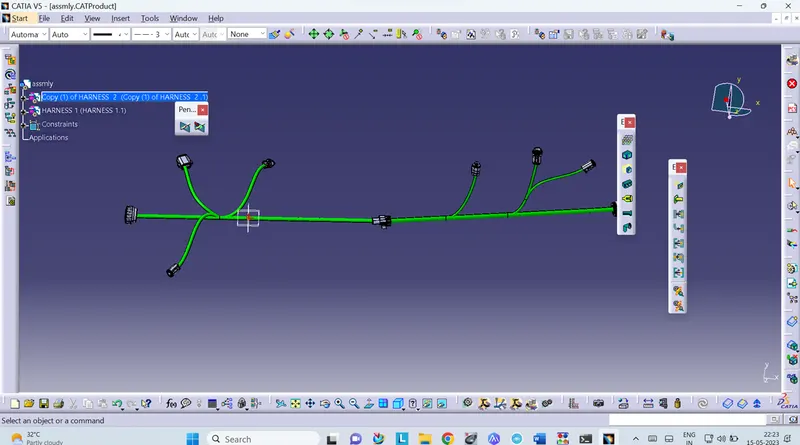

HARNESS ASSEMBLY:
