Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

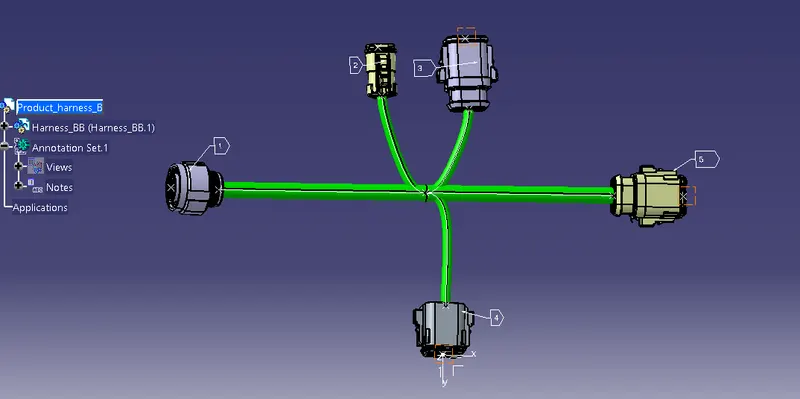

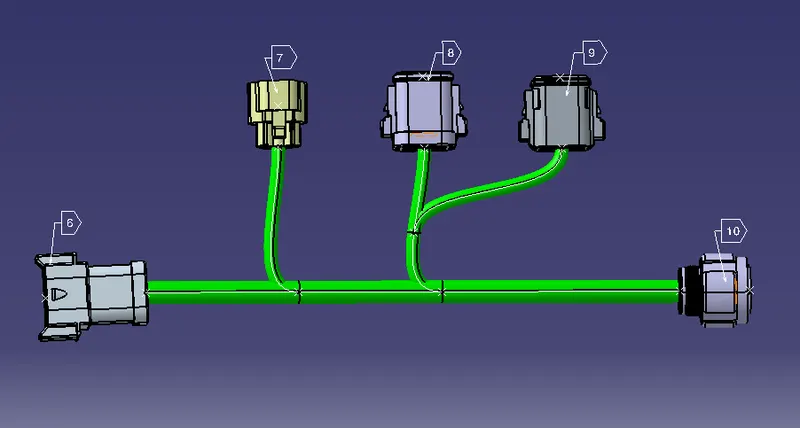

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing,

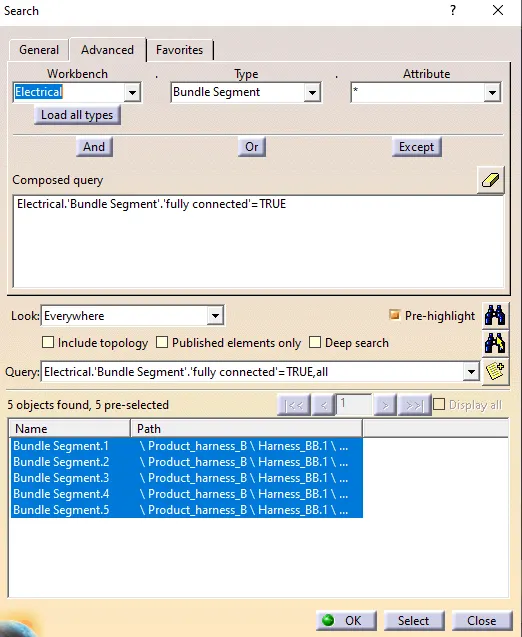

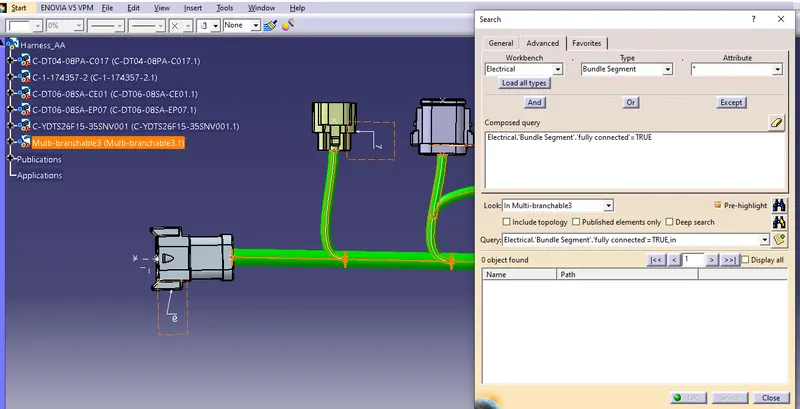

- Check the bundle Continuity. Add snap of result in submission
Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 et
Check for the bundle warning. Add snap.
Generated CAT.part of harness assembly and converted in. igs format. both files attached.
