Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

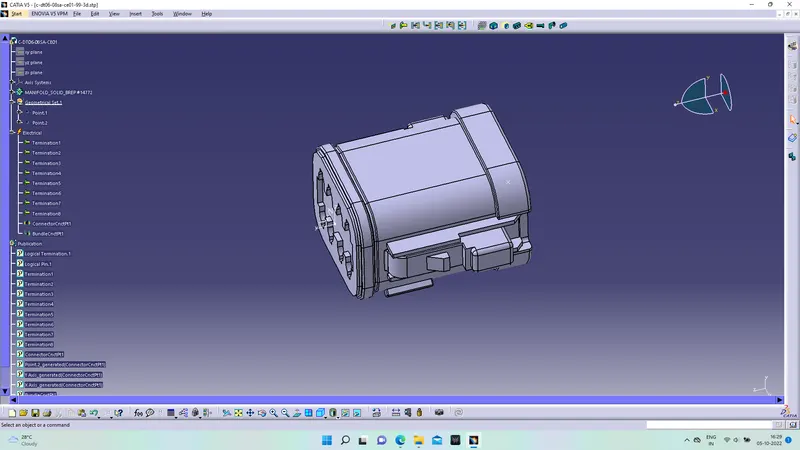

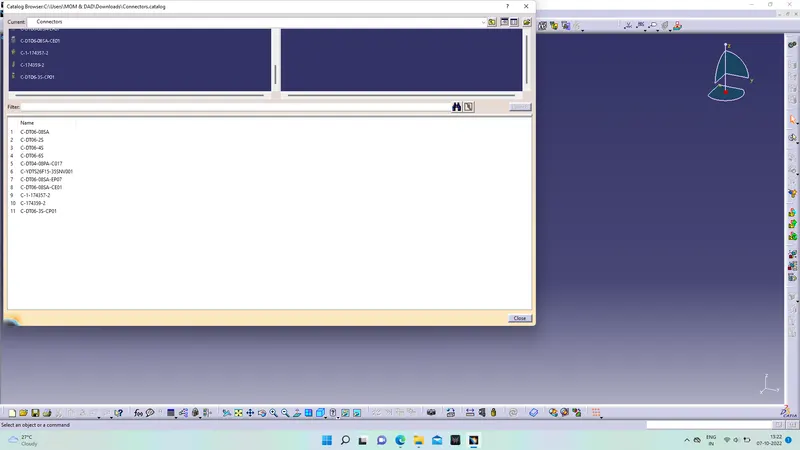

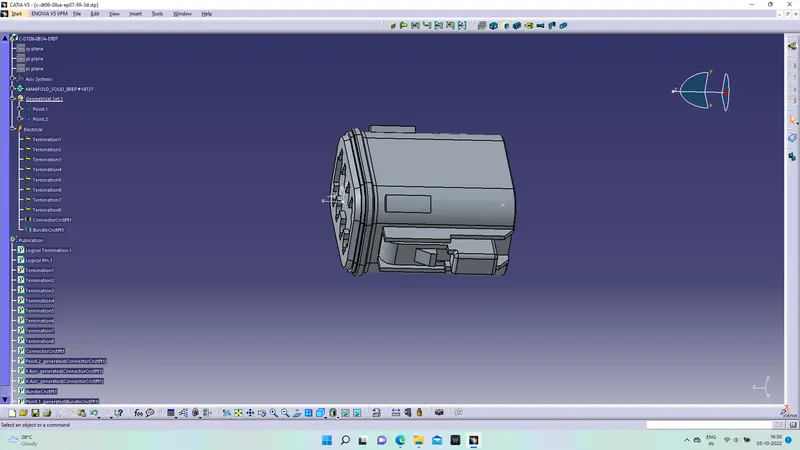

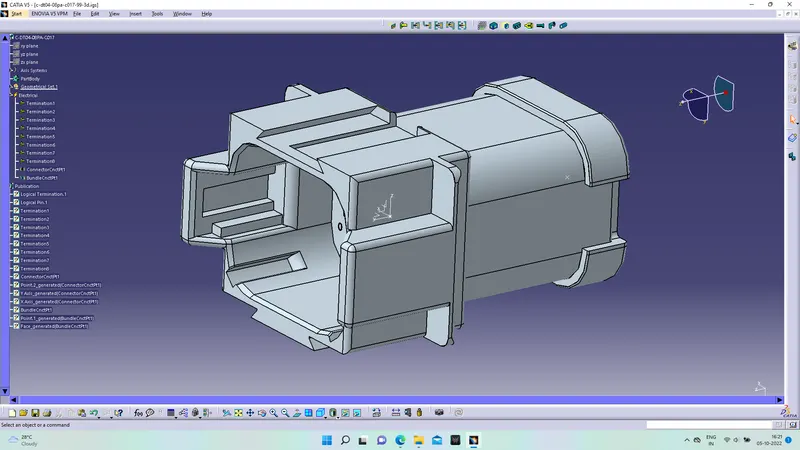

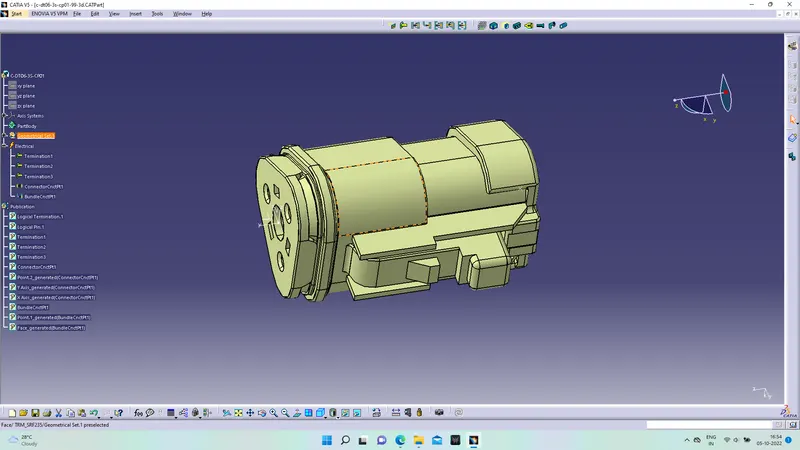

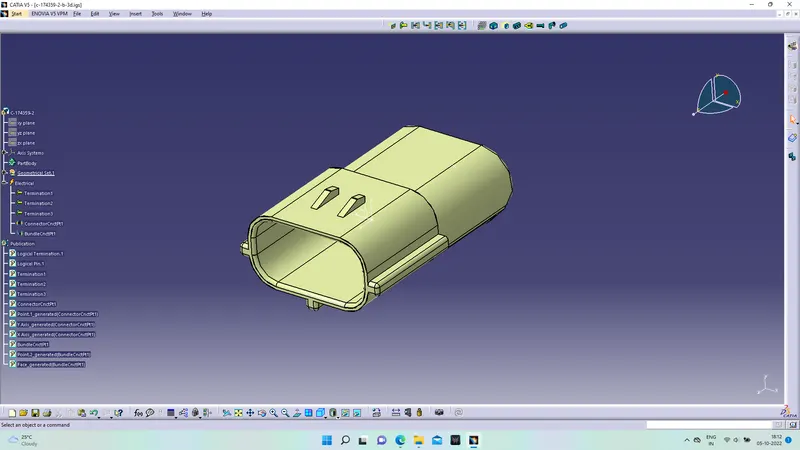

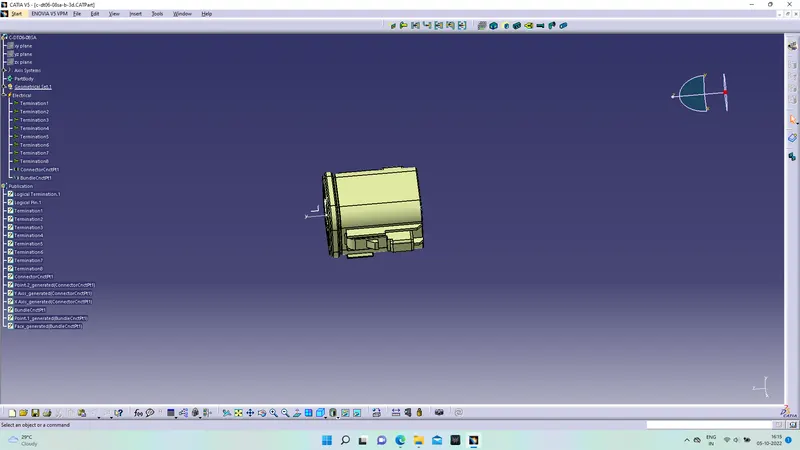

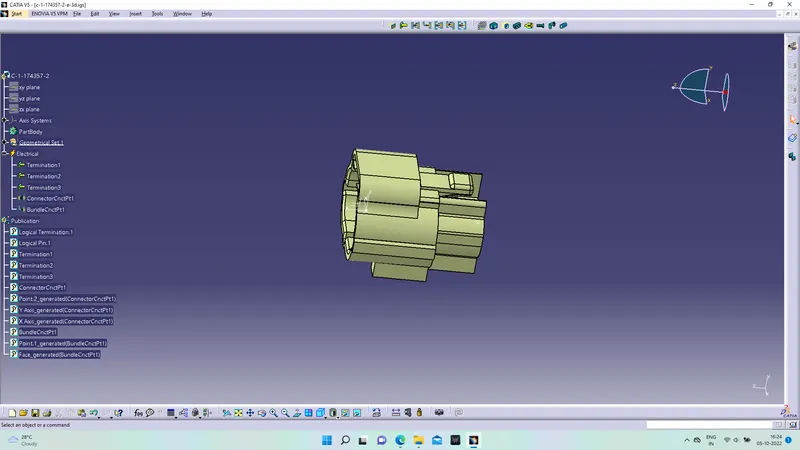

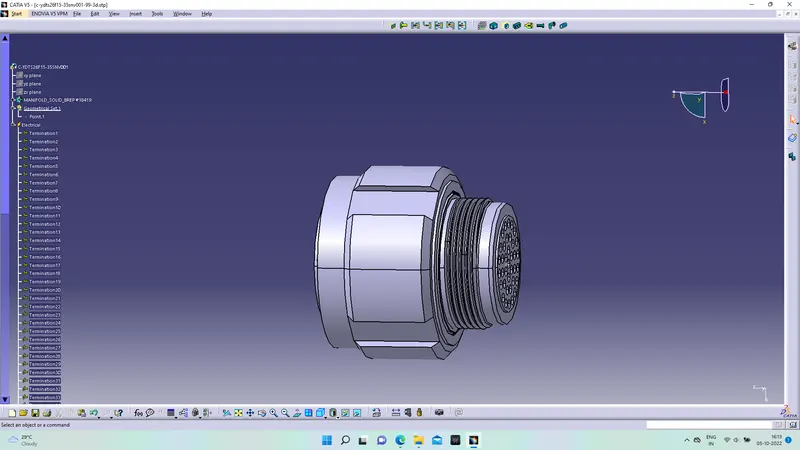

1) We defined all the connectors that was provided in the link above & required for harness A & B and those are stored in catlogue as well as below-

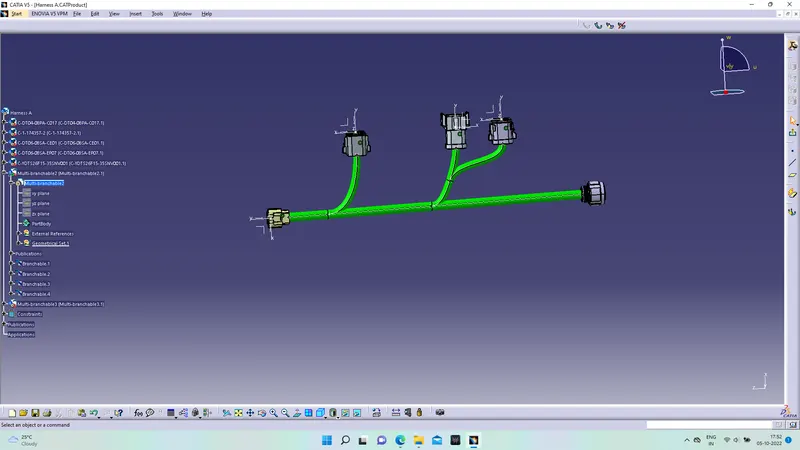

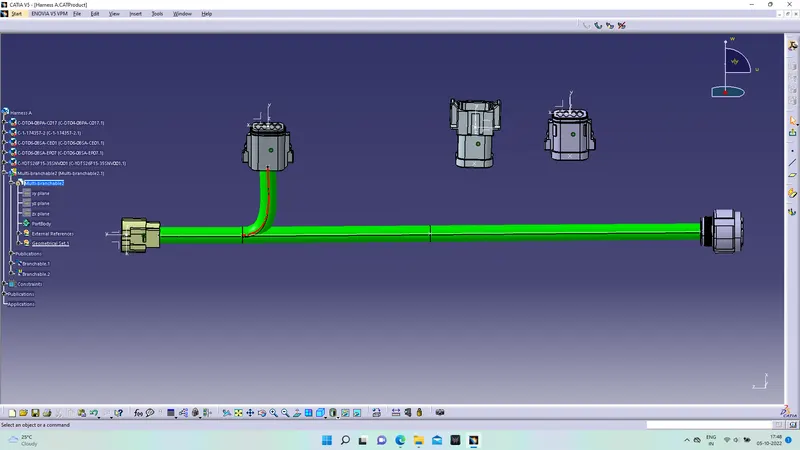

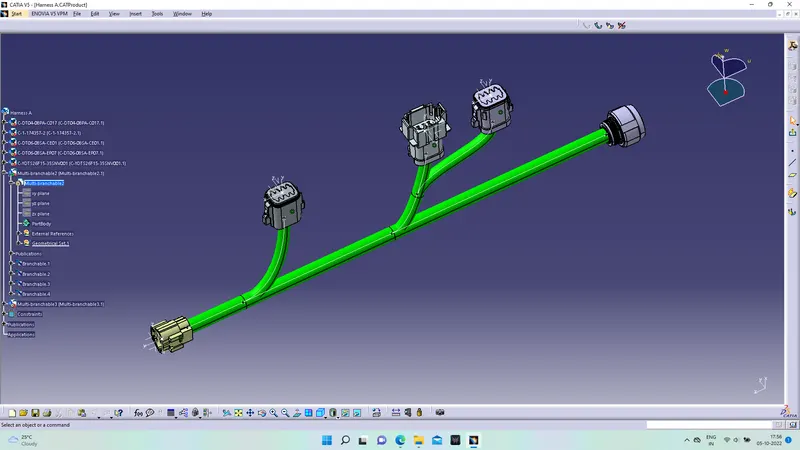

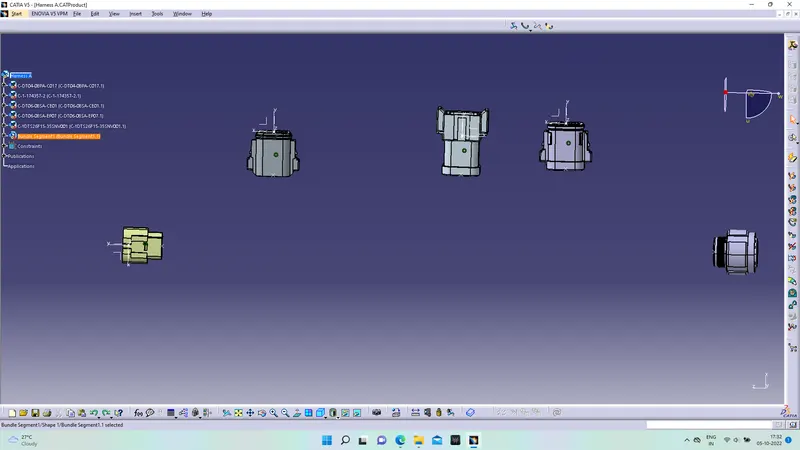

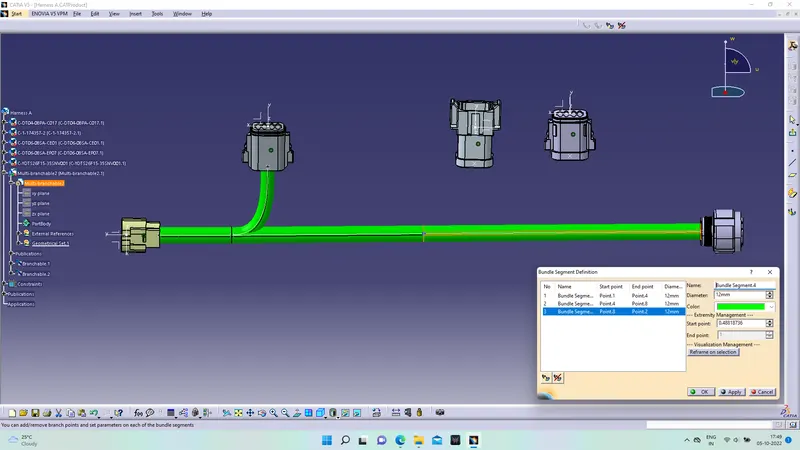

2) Then create Harness A by orienting connectors & routing between them as well

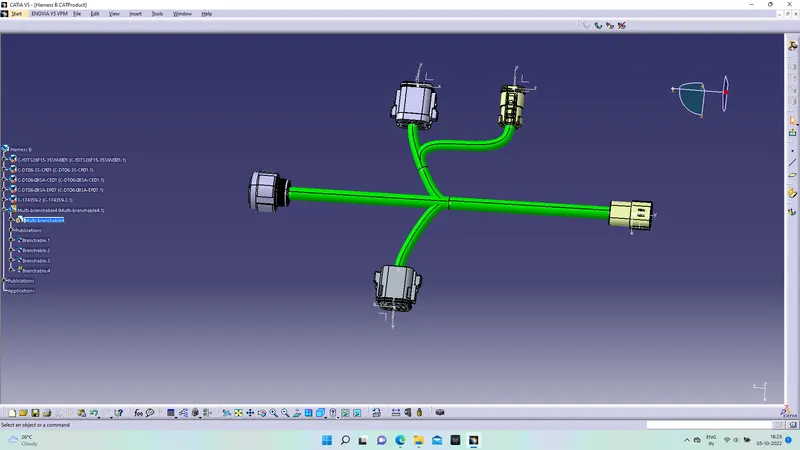

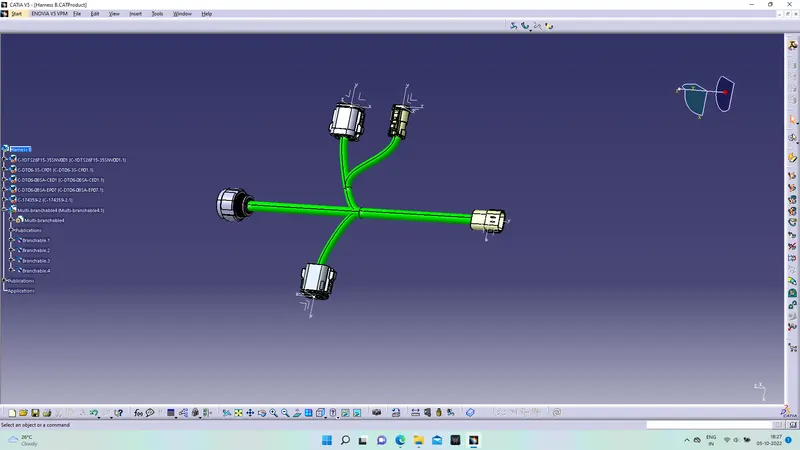

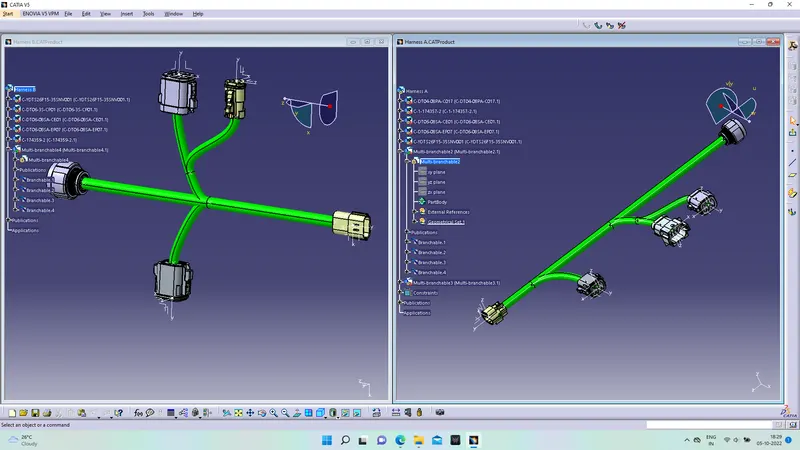

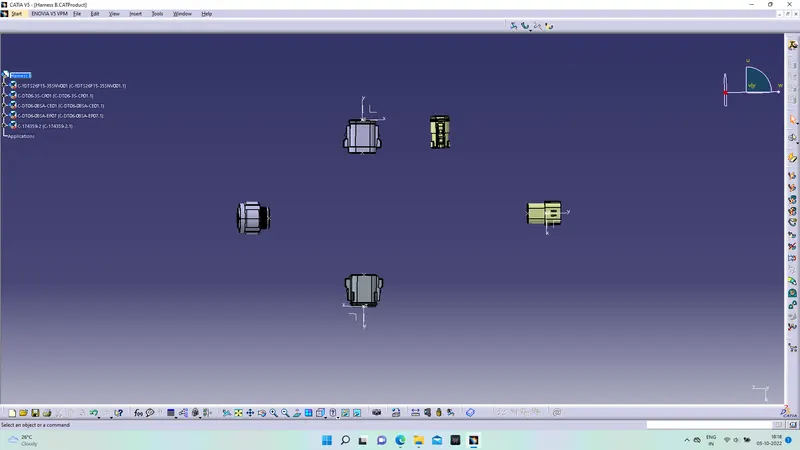

3) Similarly create Harness B as below

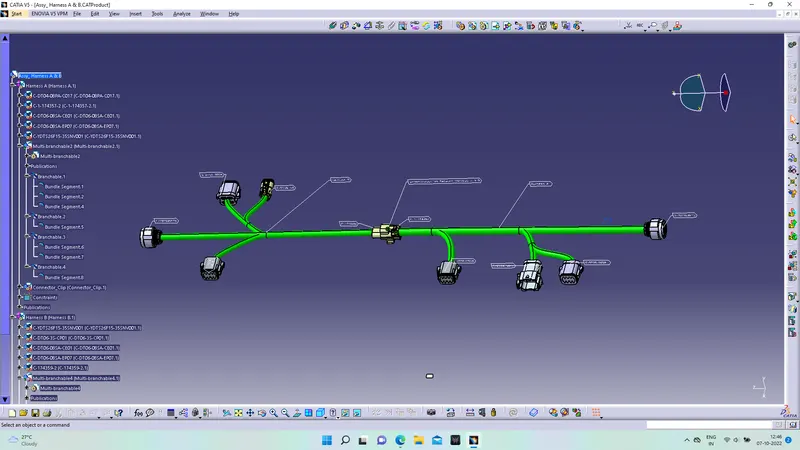

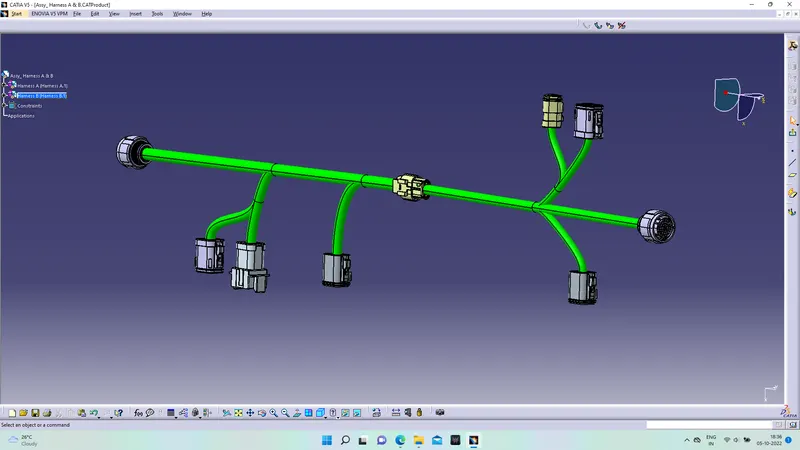

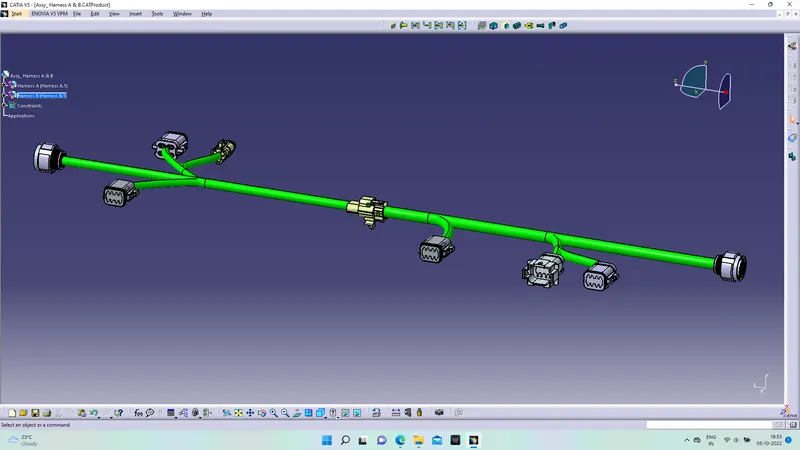

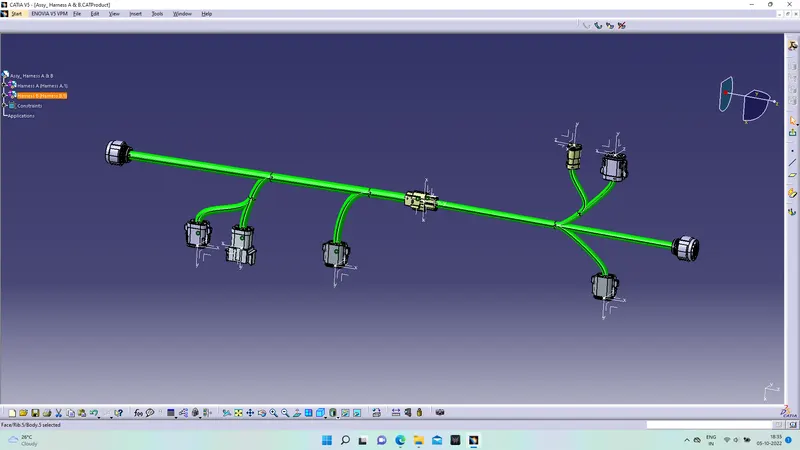

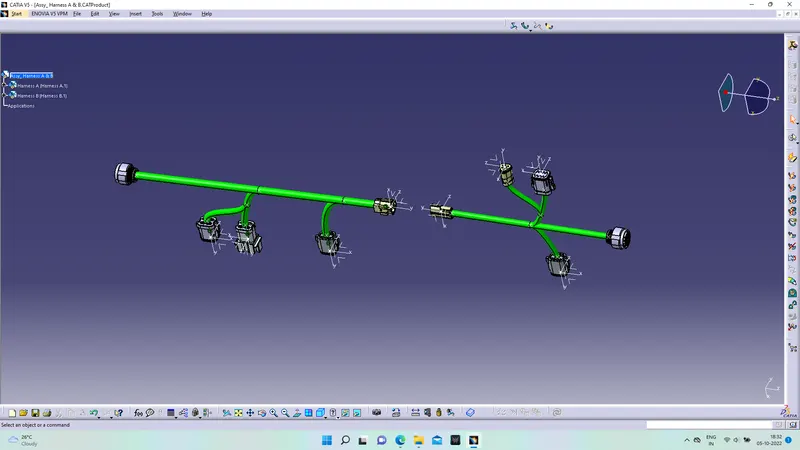

4) Then we inteconnect Harness A & Harness B

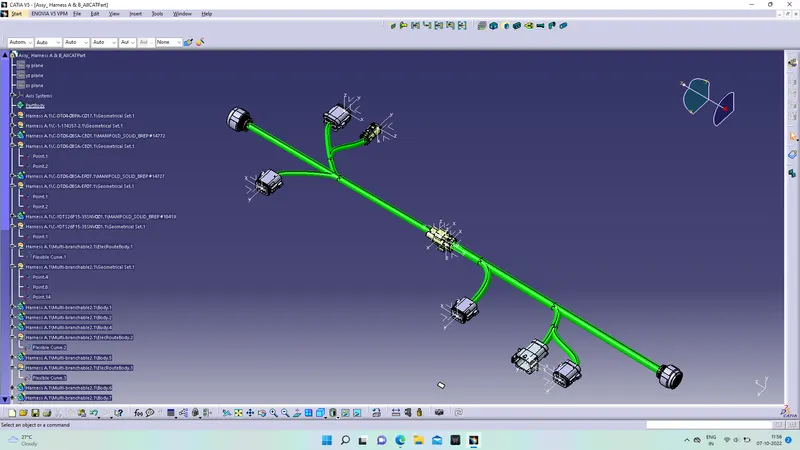

5) Create CAT part from CAT product by generating command & same converted in iges file format

6) We annotate the connectors by their name

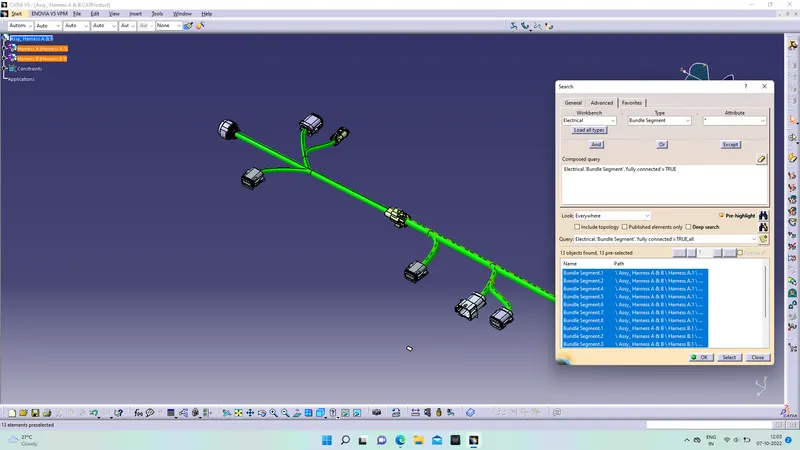

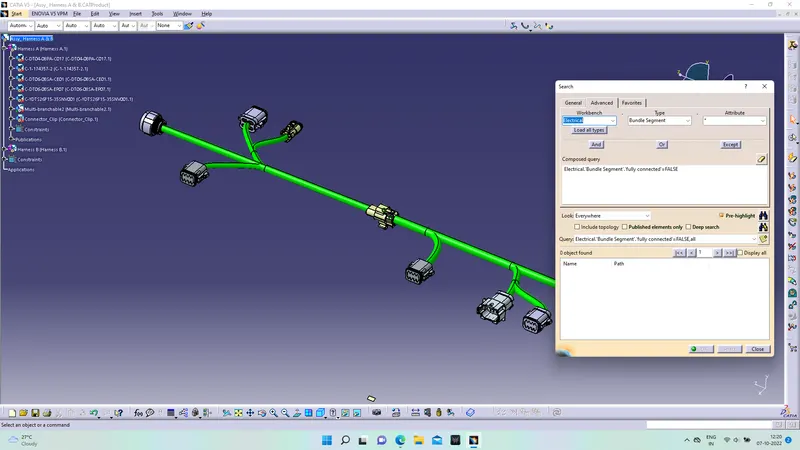

7)We checked for bundle contunity as below & that found ok

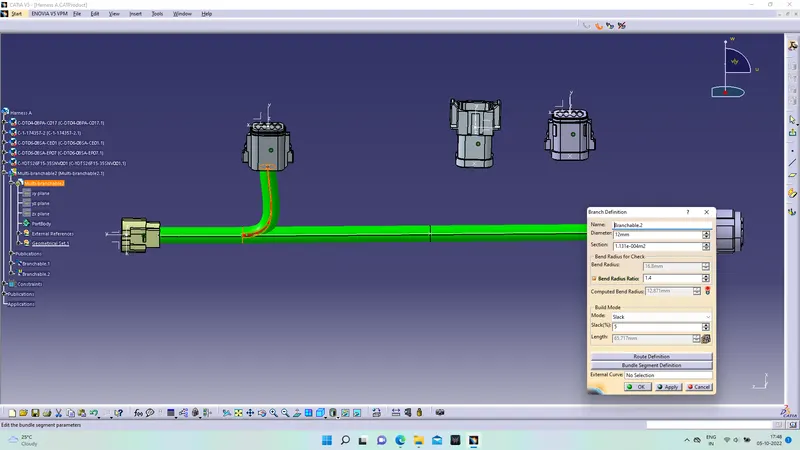

8)We found some bundle warnings as below & we minimize that one by adjusting connector position & branch point location
