Project 1

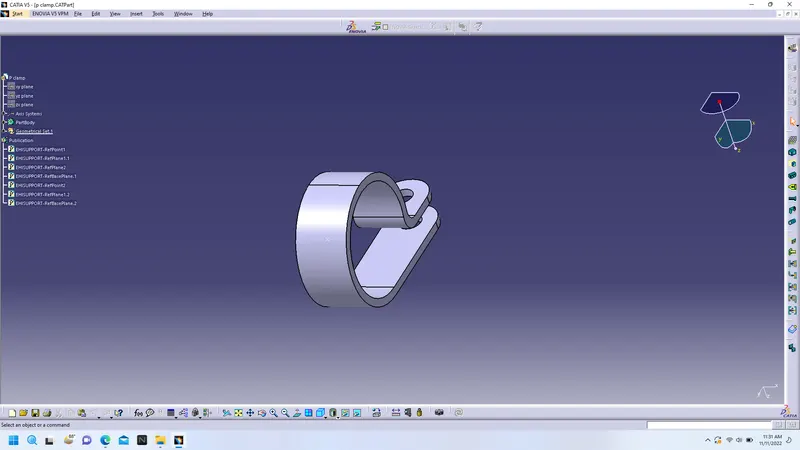

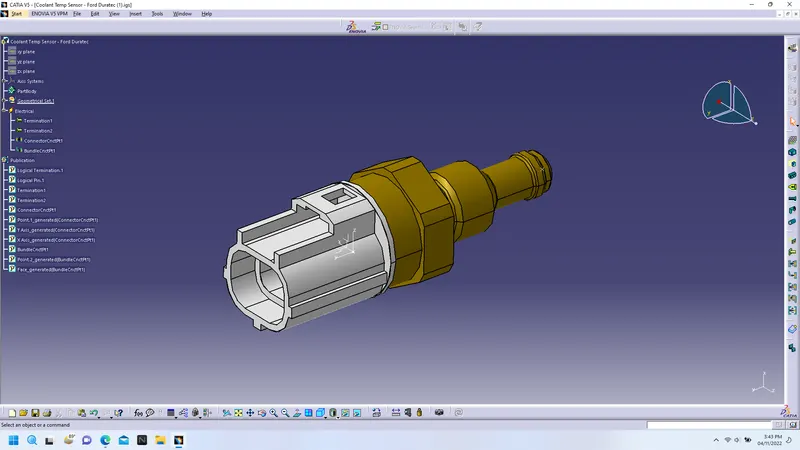

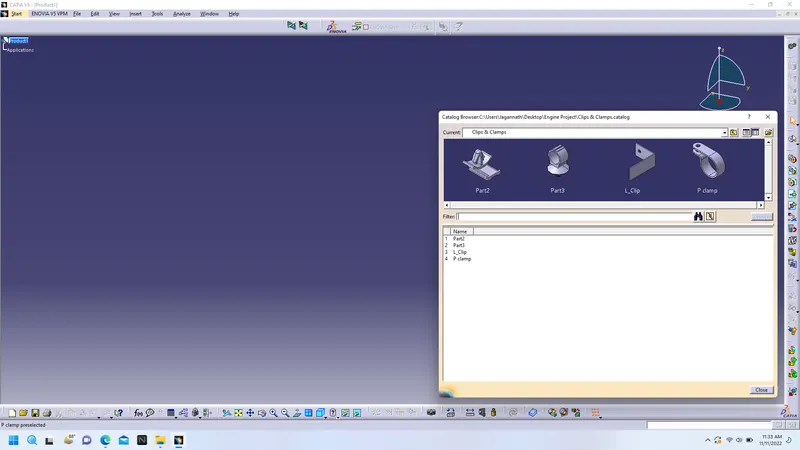

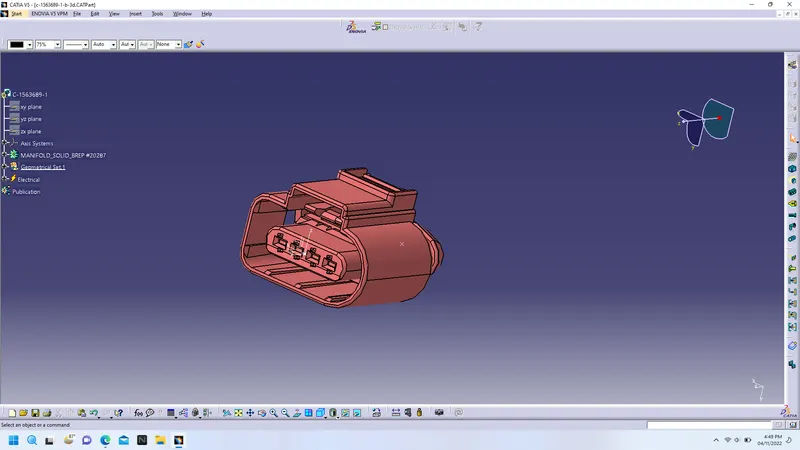

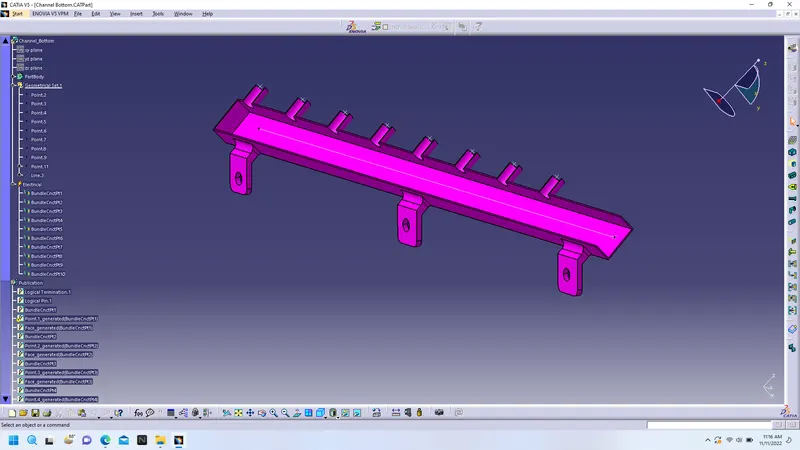

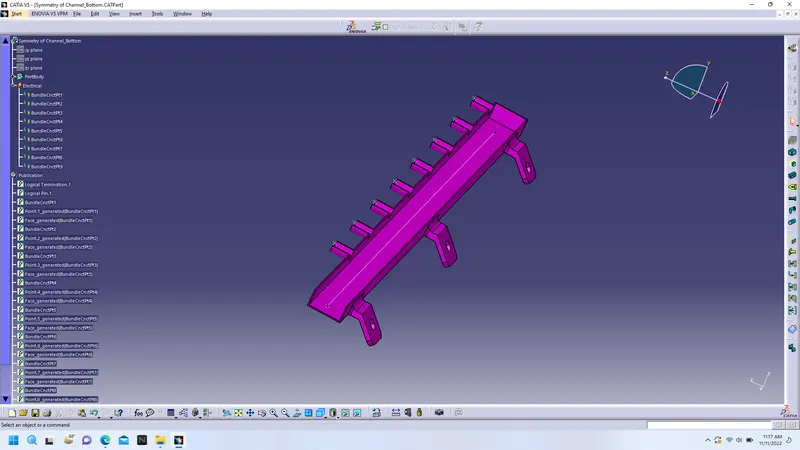

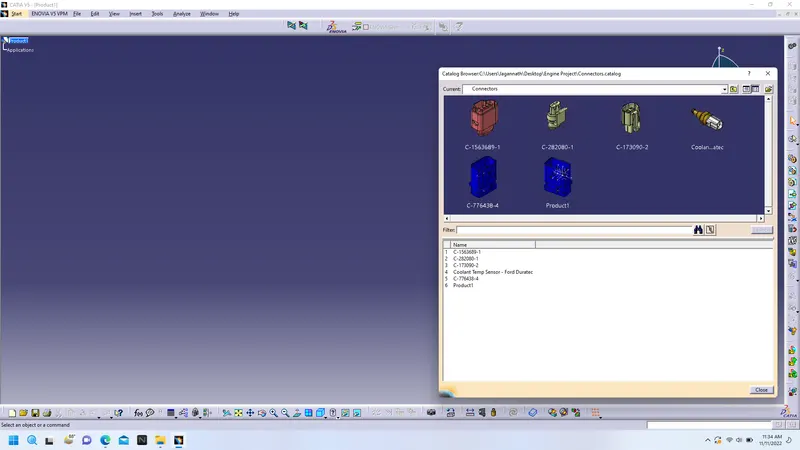

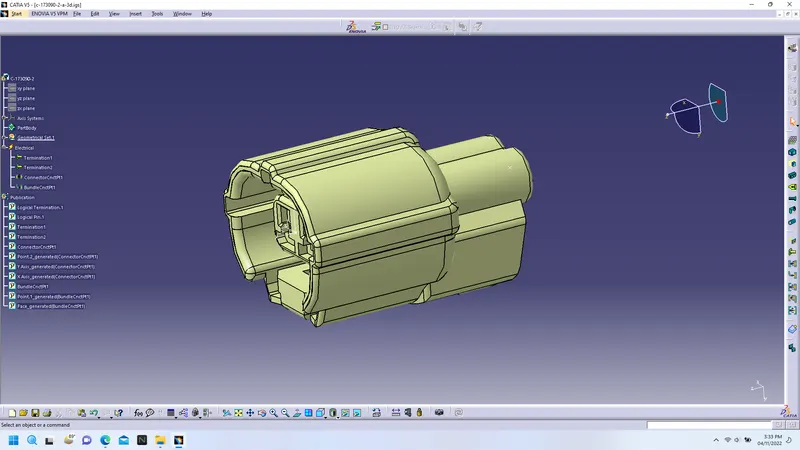

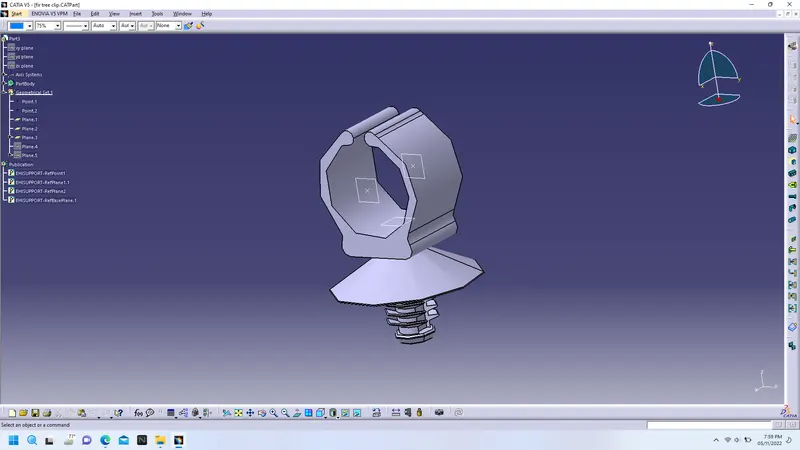

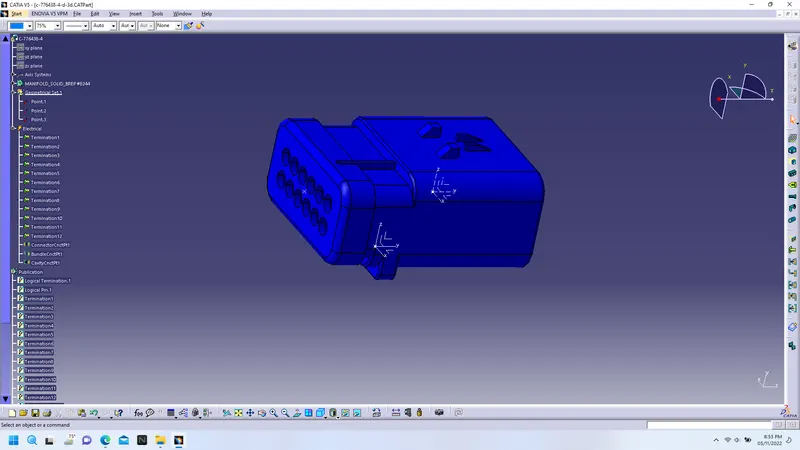

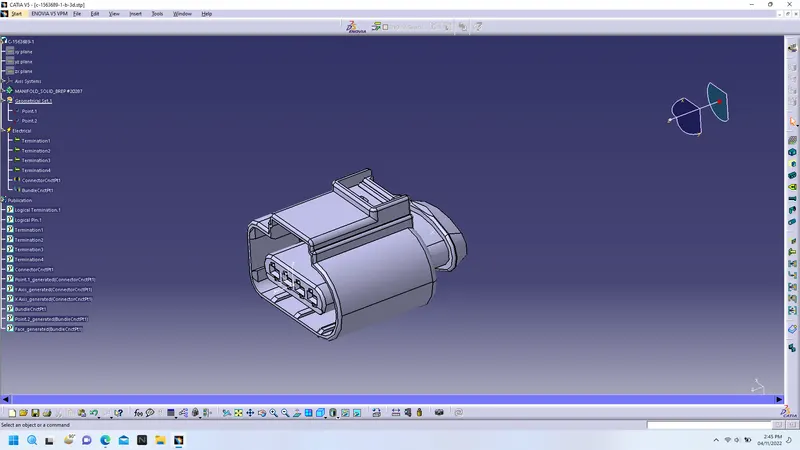

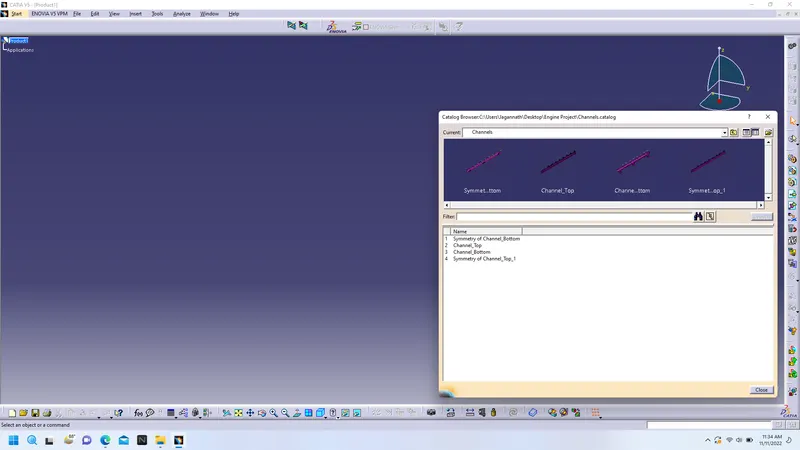

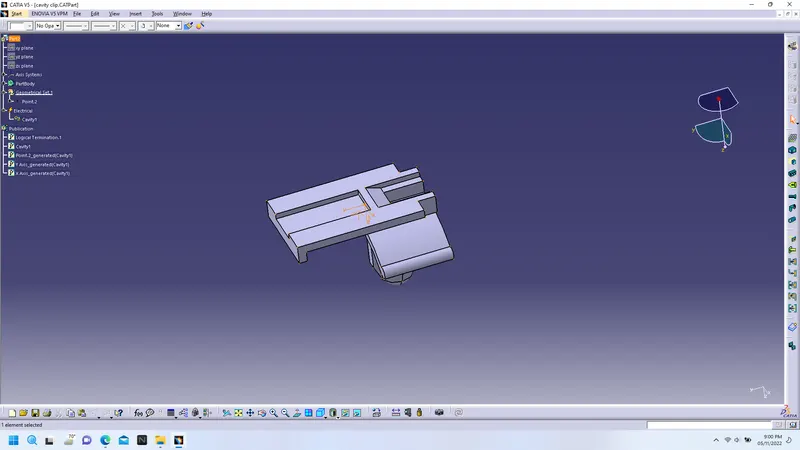

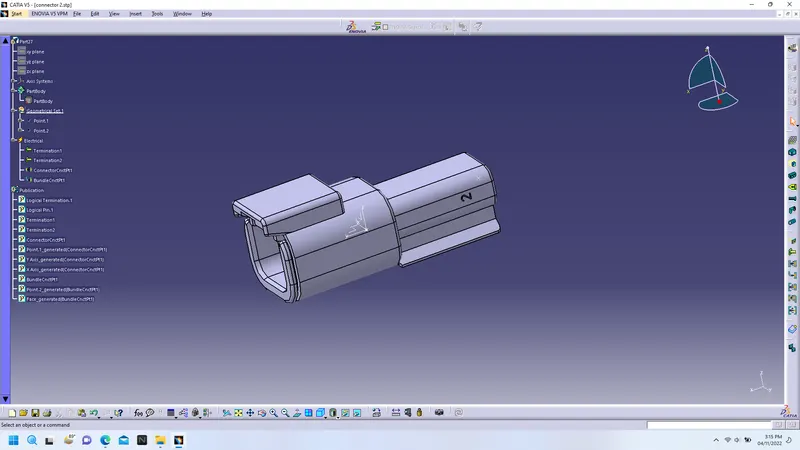

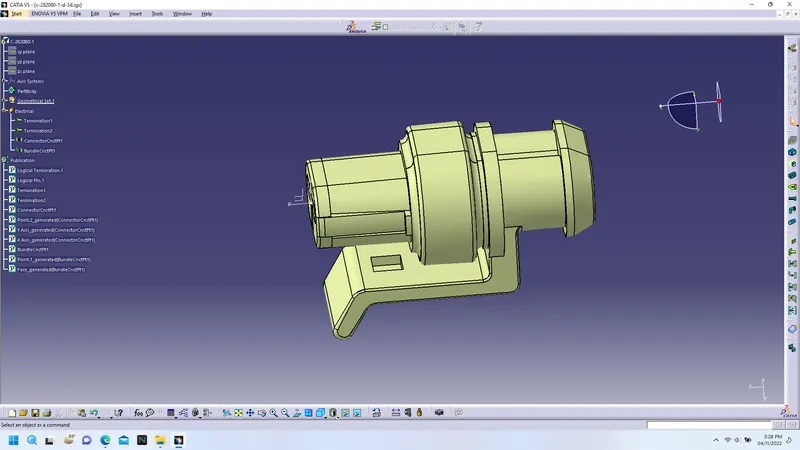

1) First of all we downloaded the required data for engine as connectors,clamps,clips & channels. then we defined electrically and saved in catlouge file as snapshots below-

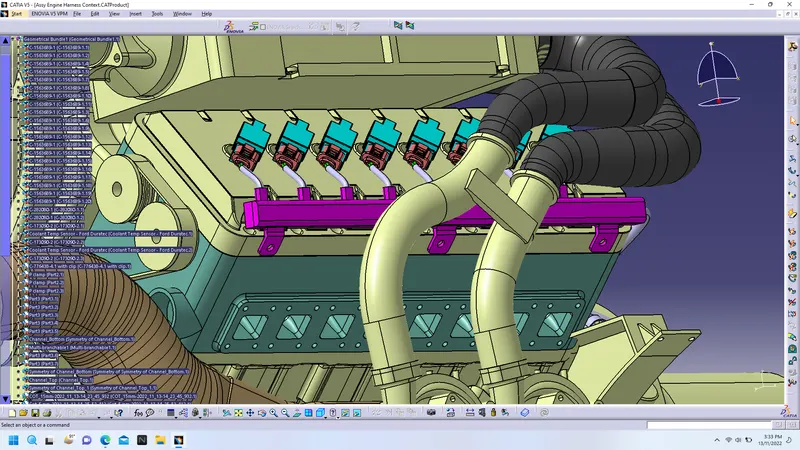

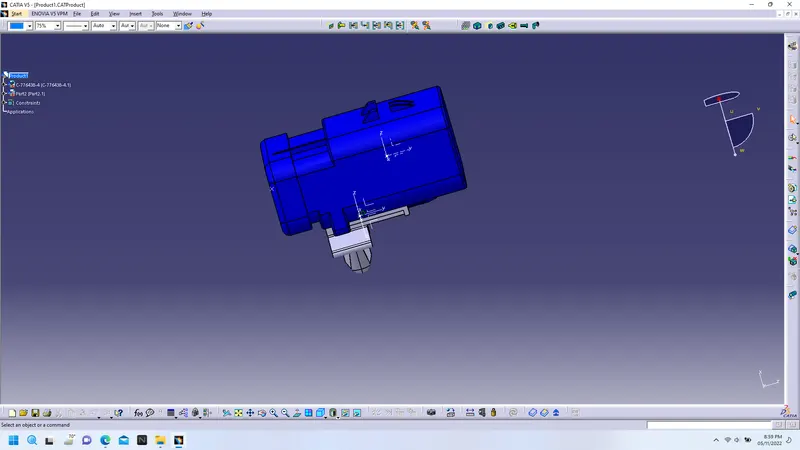

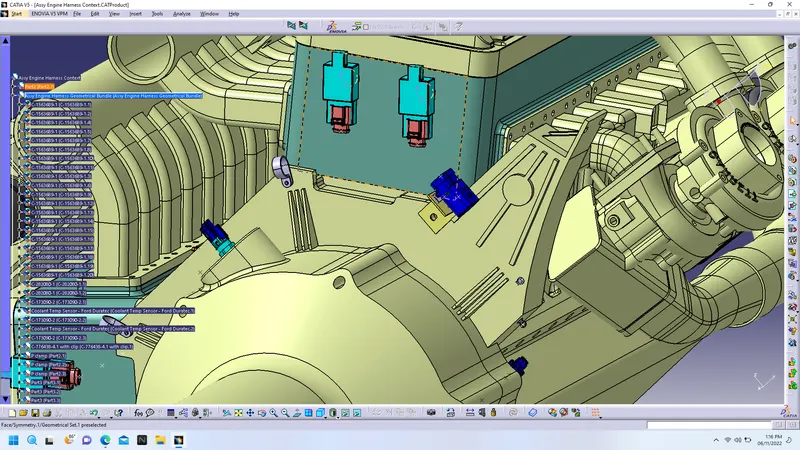

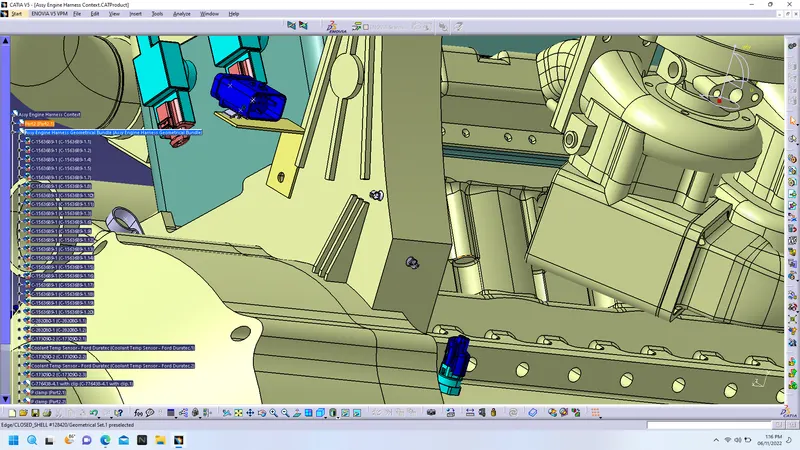

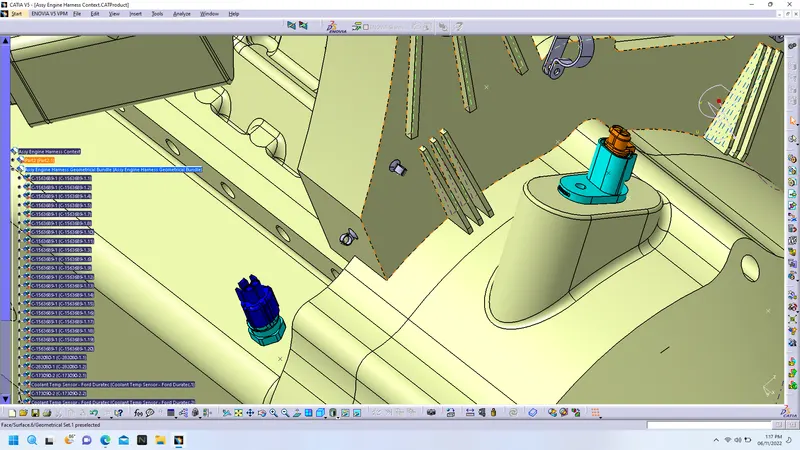

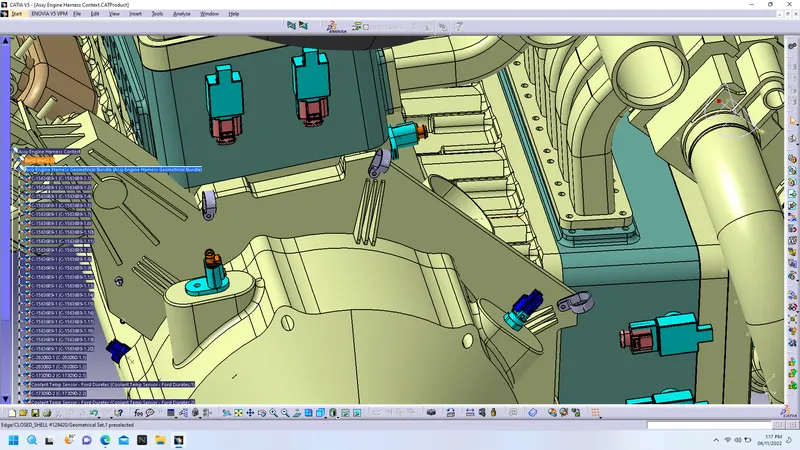

2) then we downloaded the engine model & assembled the electrically defined connectors,clips,clamps,brackets & channels as its required locations as below-

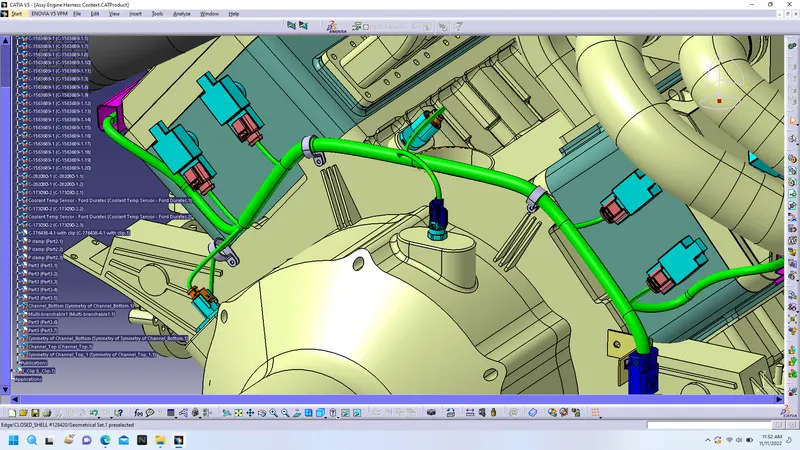

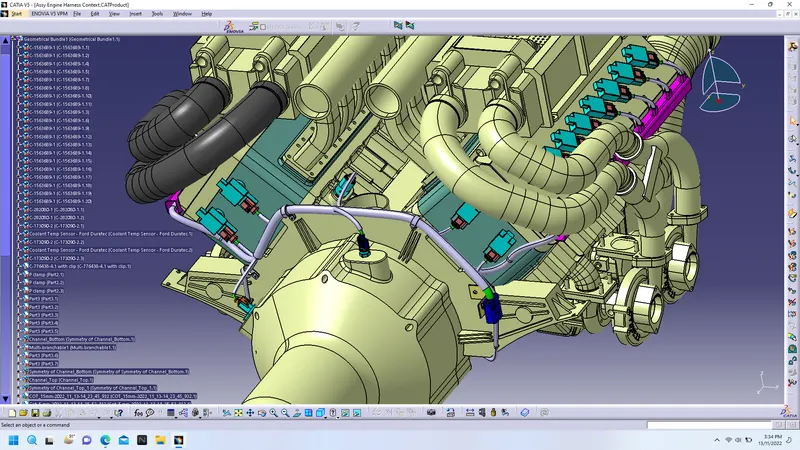

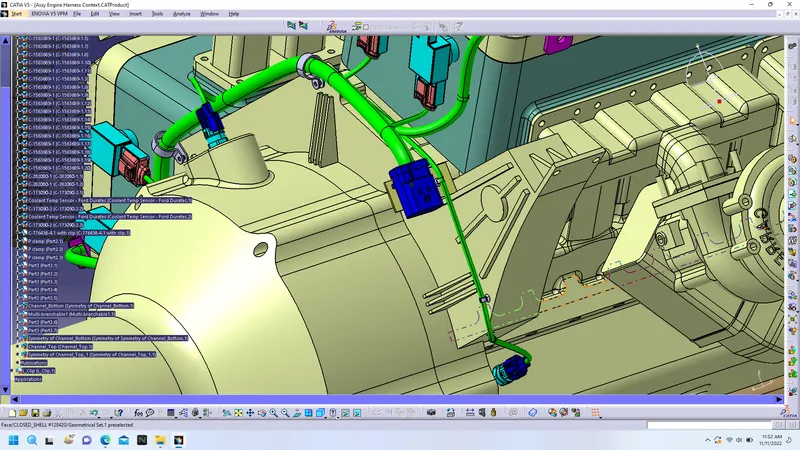

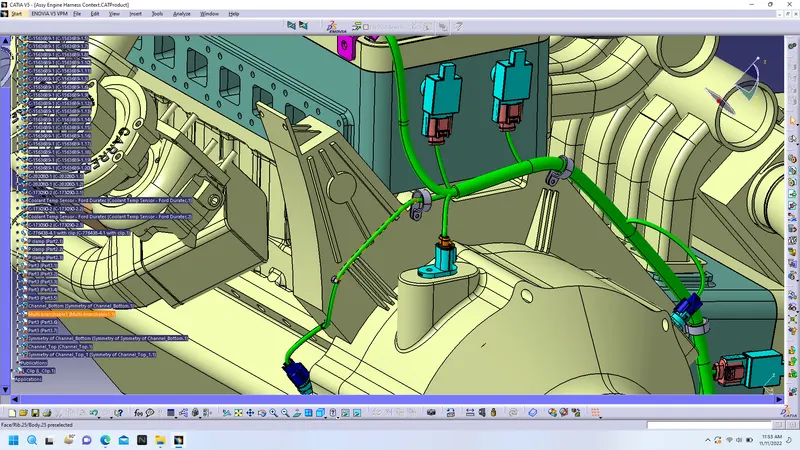

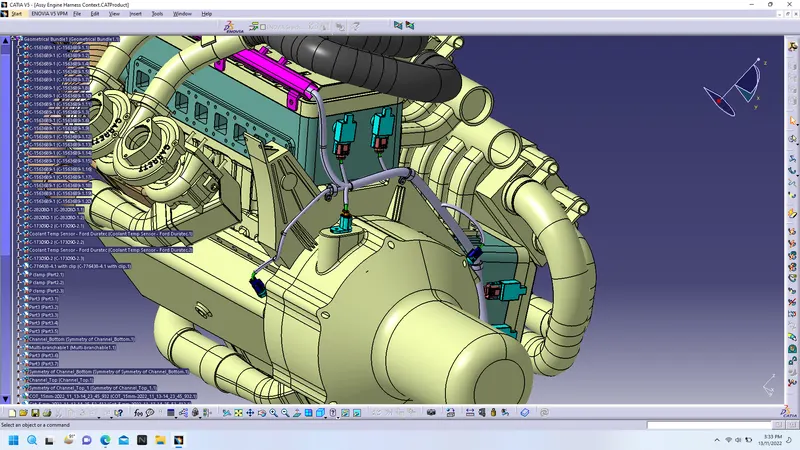

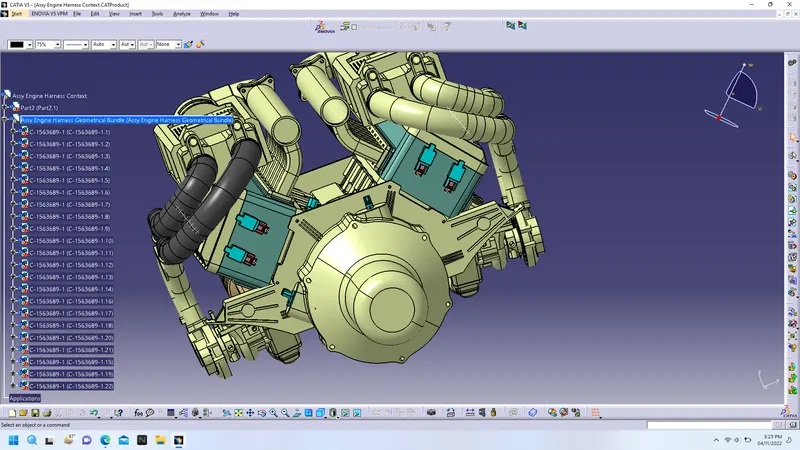

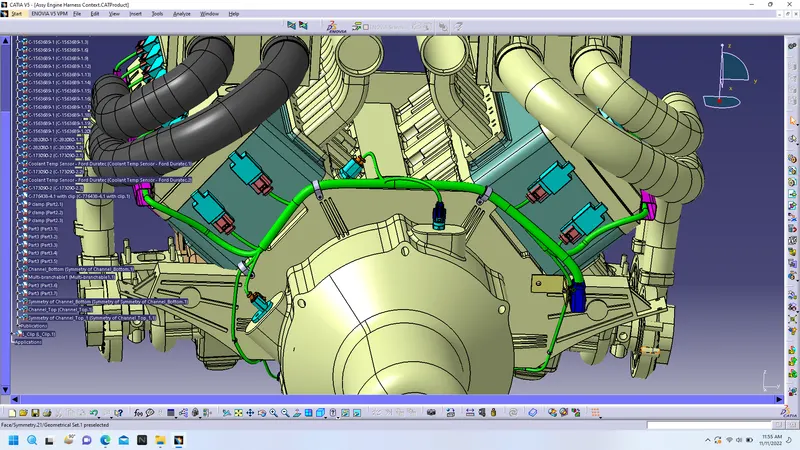

3) after placing all components we create geometrical bundle and start routing by considering interfernce & proper connections & also we finalisd the routing as below-

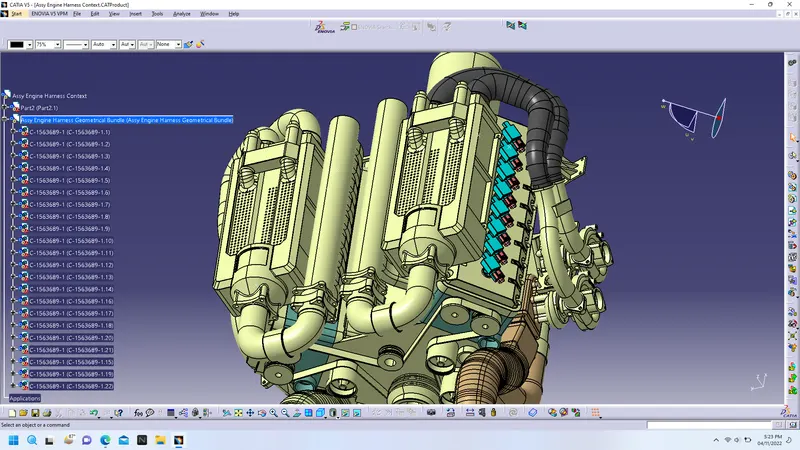

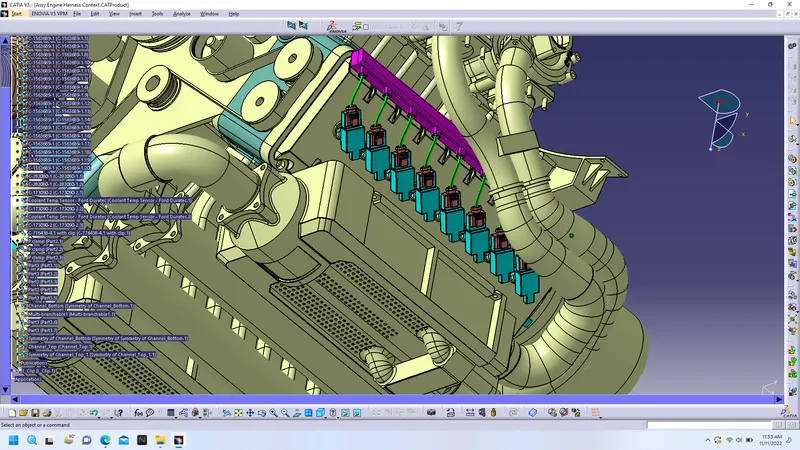

# after annotations assembly look like as-

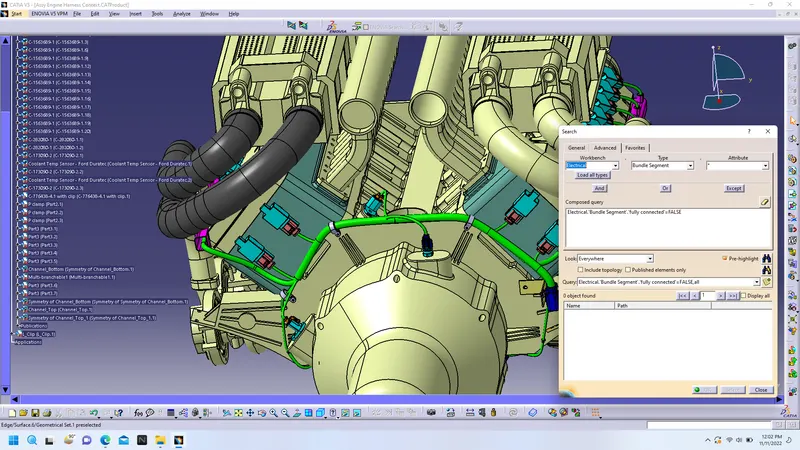

4)Then we checked for bundle segment contunity & that found ok

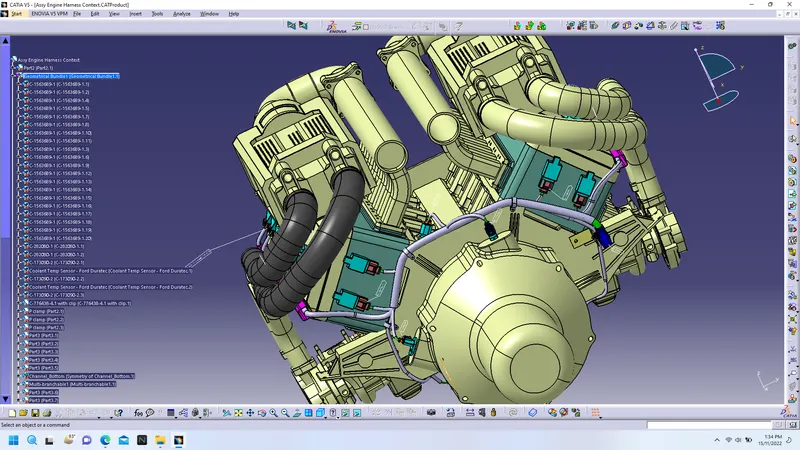

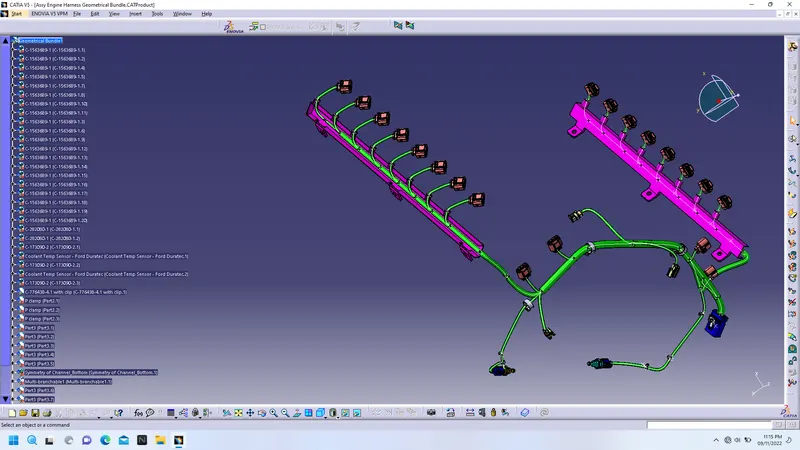

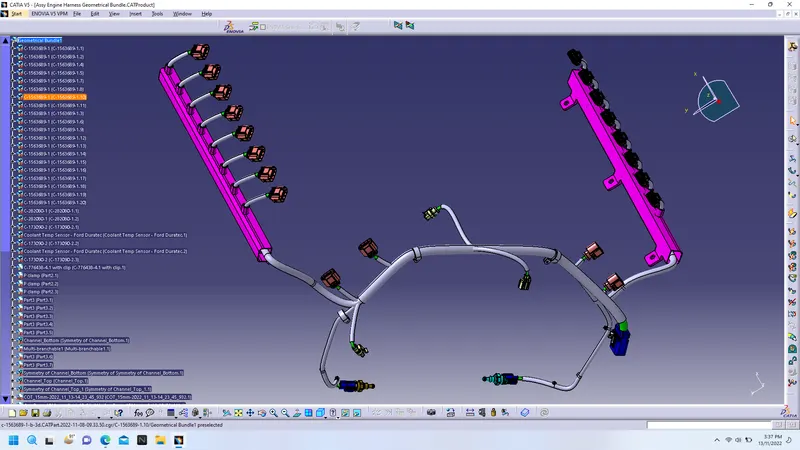

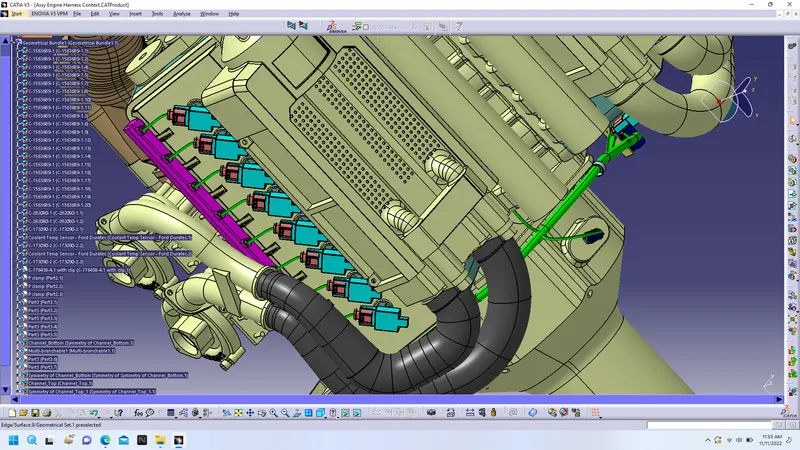

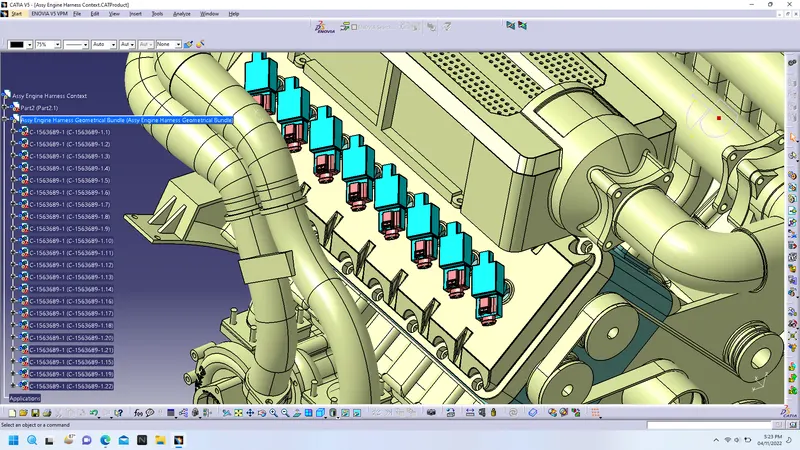

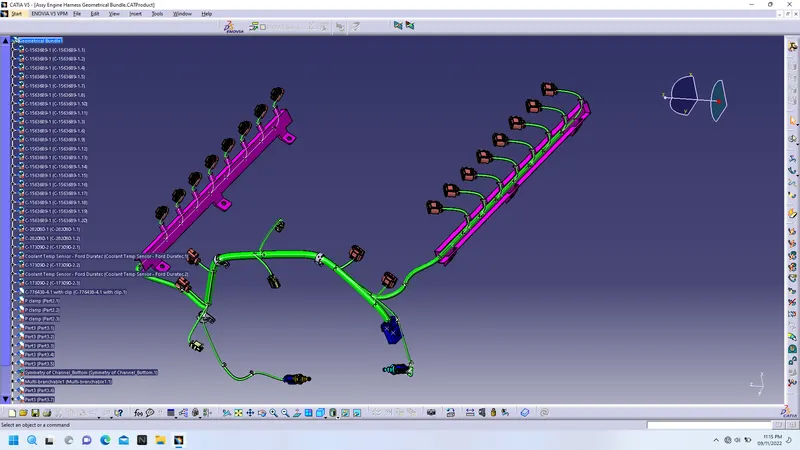

5) Geometrical bundle look likes as below

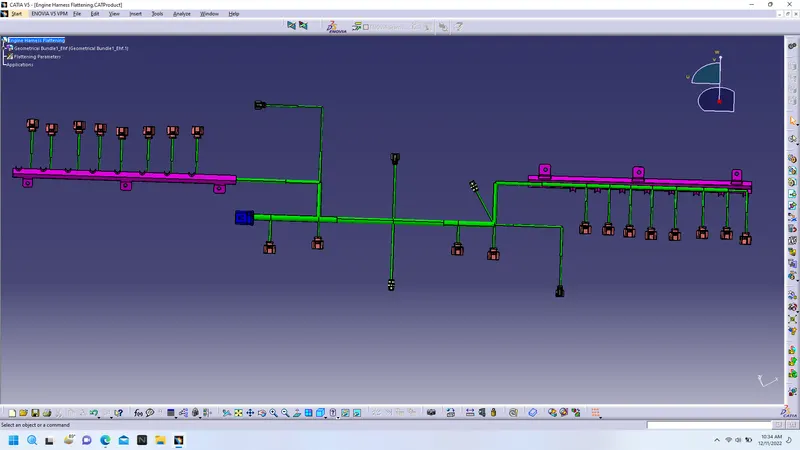

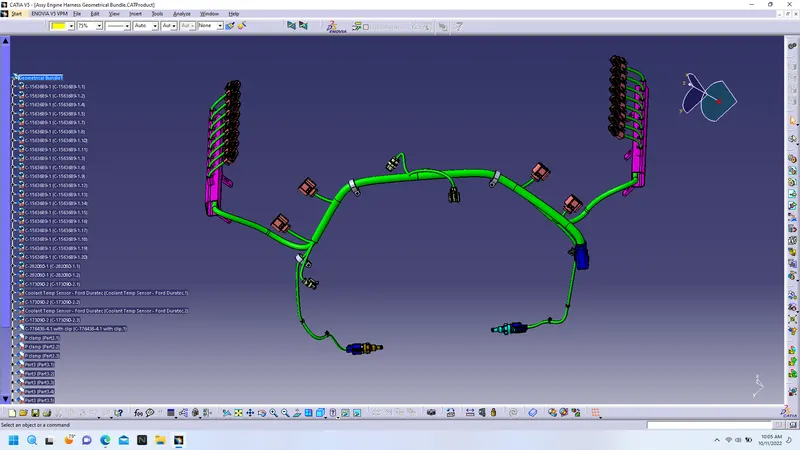

 6)we planned to do flattening of geometrical engine harness & as look likes as

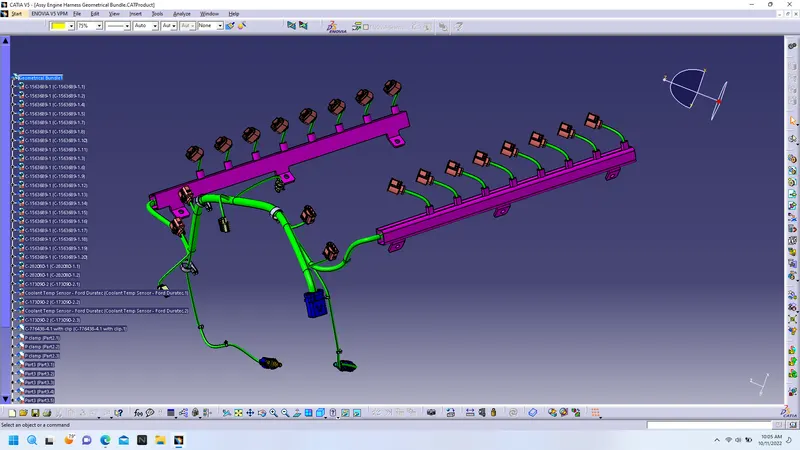

7) After applying cot tubes , harness look like as

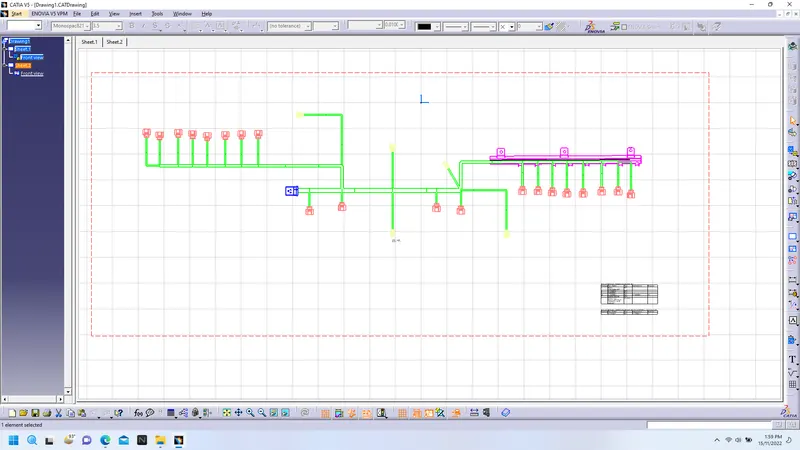

8)We create drawing for flattening view-
