Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

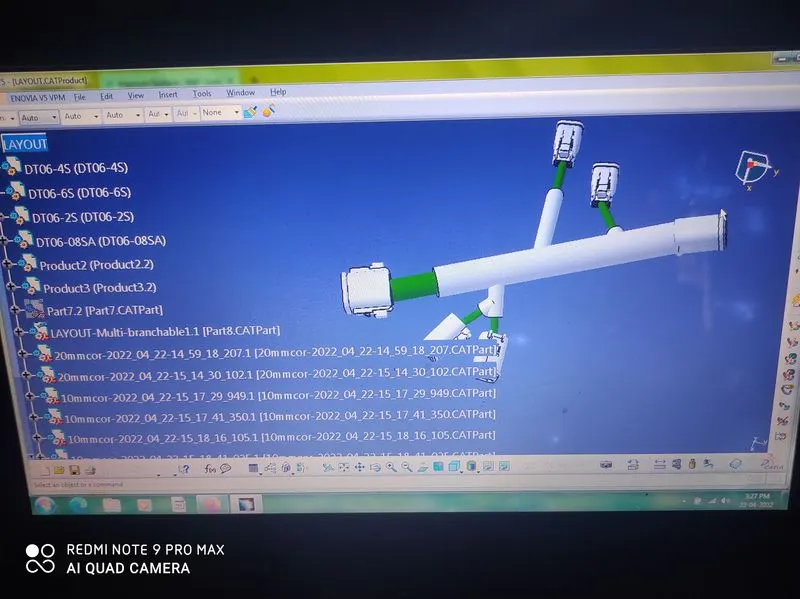

we have to craete simlple layout i will take five connectors and define it

and first se t the connectors reqiured postions after we got wiring harness assembly

use gometrical bundel,after we take multibranchable select the connectors give the reqired mm

after we take add point which u required place and take multibranchable select point to connector same like all connectors after we create corrogated tube click it slect main tarck take and go to catlaoge document and take raeqired tube it ok samw like this all
