Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

QUESTION:

      Rout the following harness in electrical workbench.make assumption for harness bundle diametres.use following connectors as shown in layout digram.



      Add protective covering for all branches connected to DT06-2S and DT06-4S connectors

      keep end extrimity at 30mm from connector end

SOLUTION:

• CREATION OF CATALOG

          first create the catalog for connectors and corrugated tubes

          create a family for connectors

          create a family for corrugated tube

        save the file in appropriate folder.

• Download the required file from www.te.com and convert to electrical part.

         DT06-4S

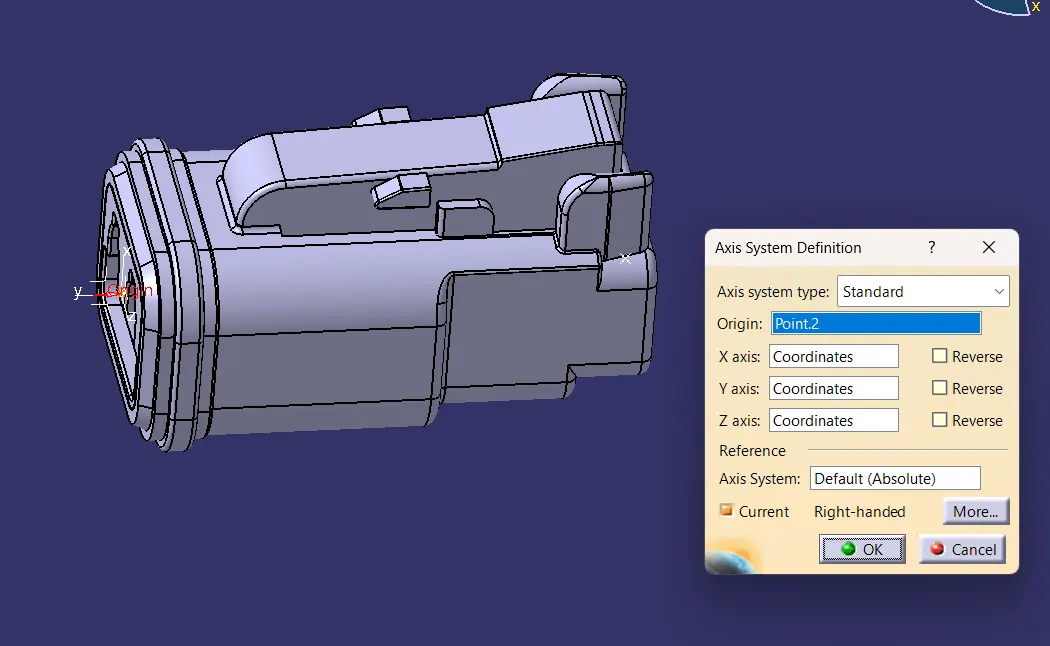

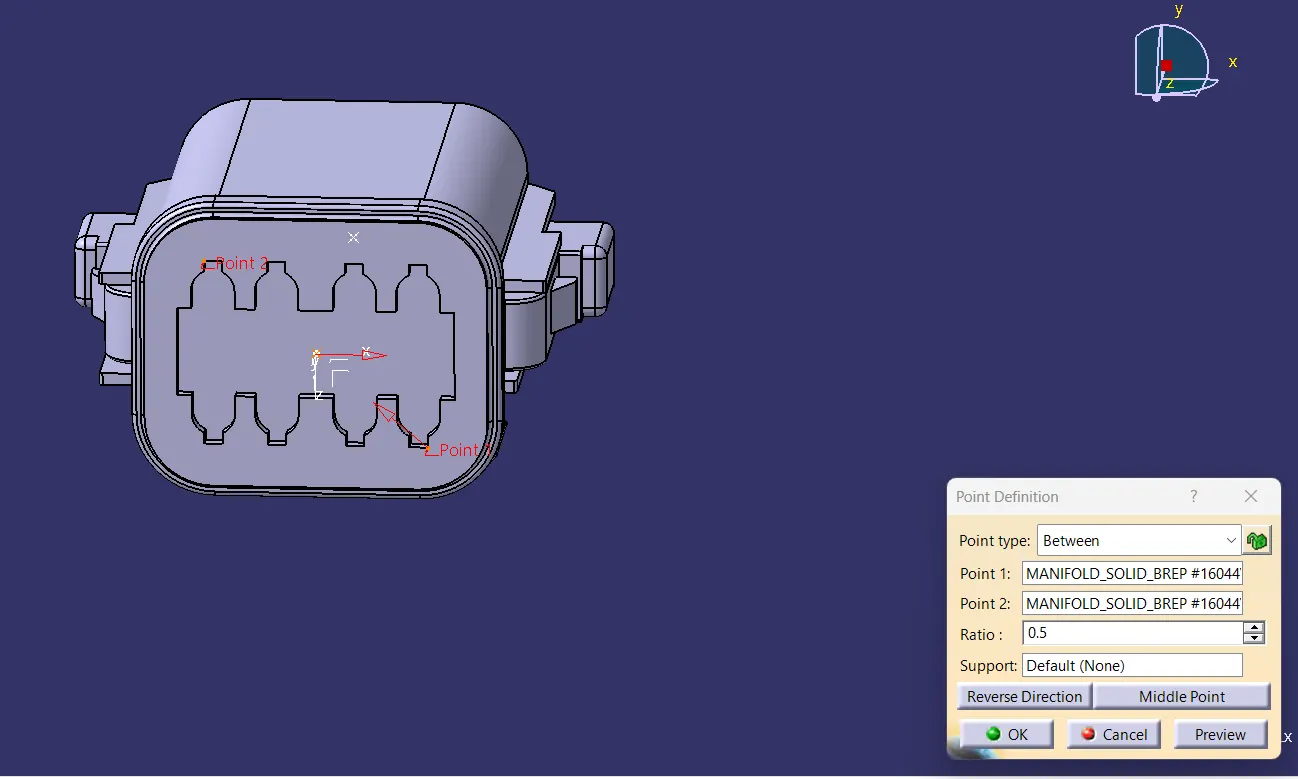

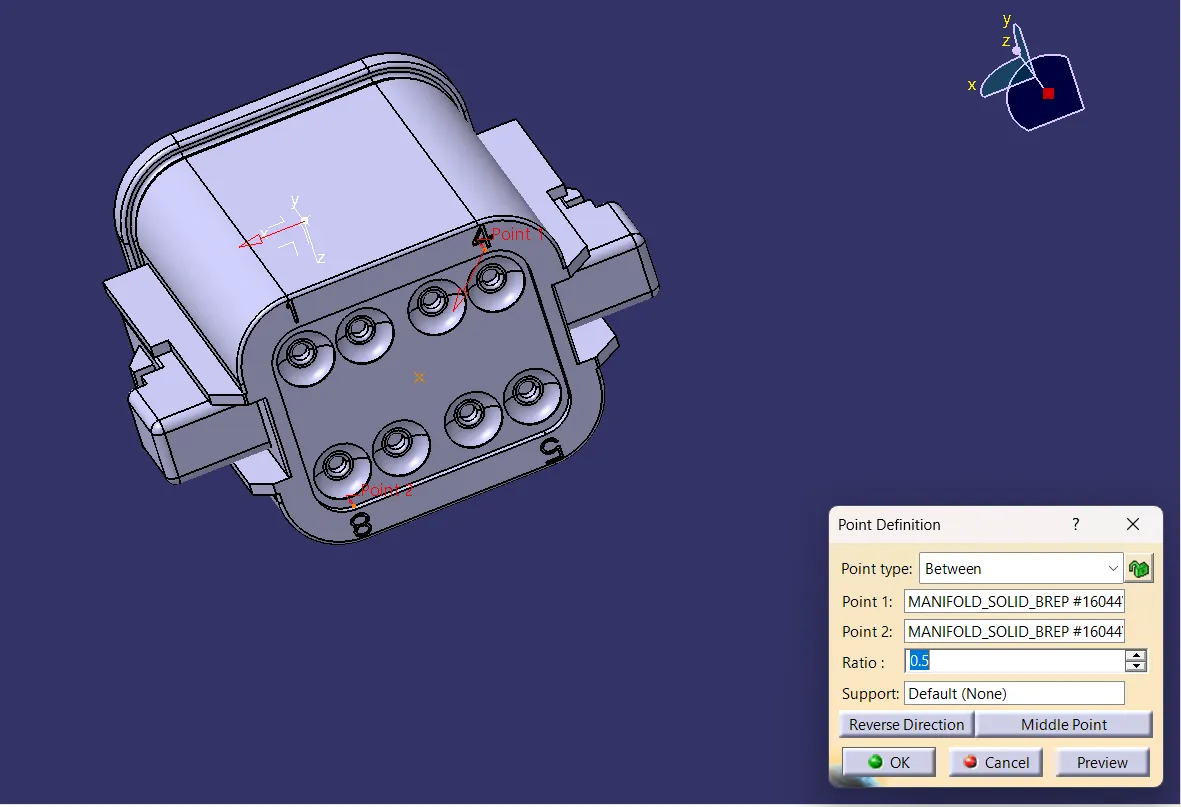

         create reference point for bundle entry and  connector connection point also create an axis system at connector connection point

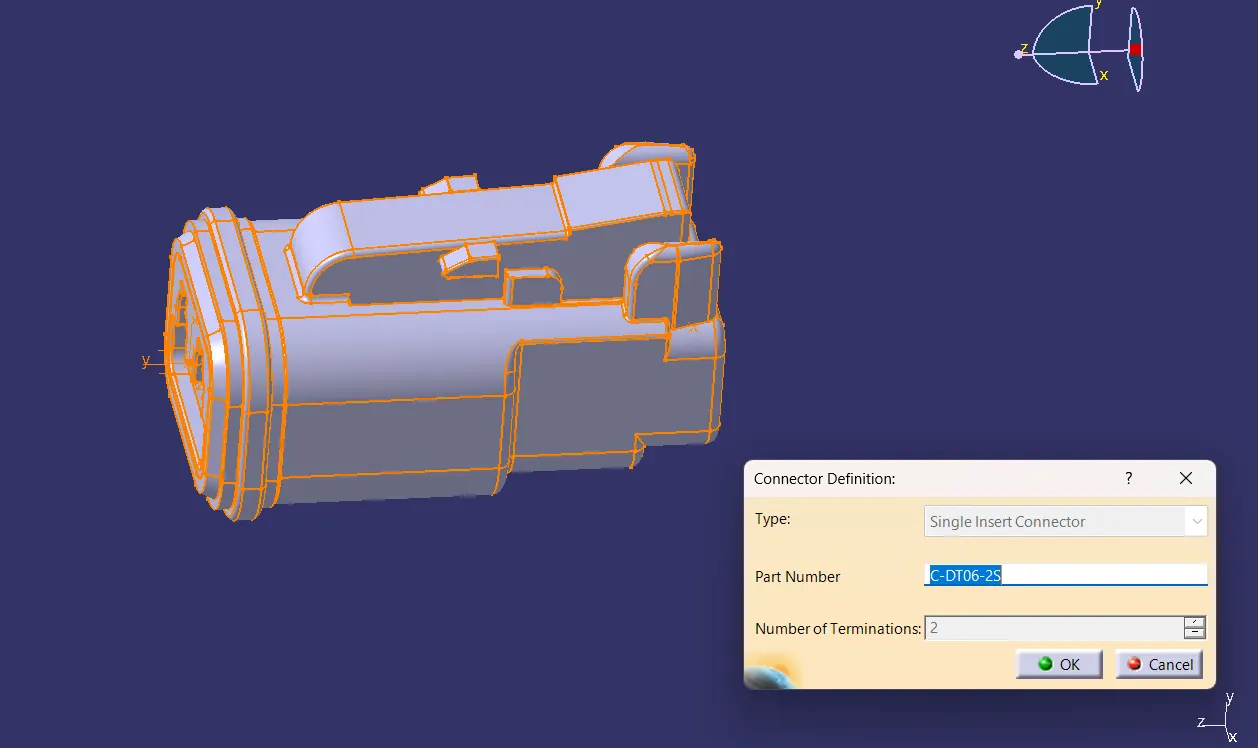

        switch to electrical part work bench and define it as connector

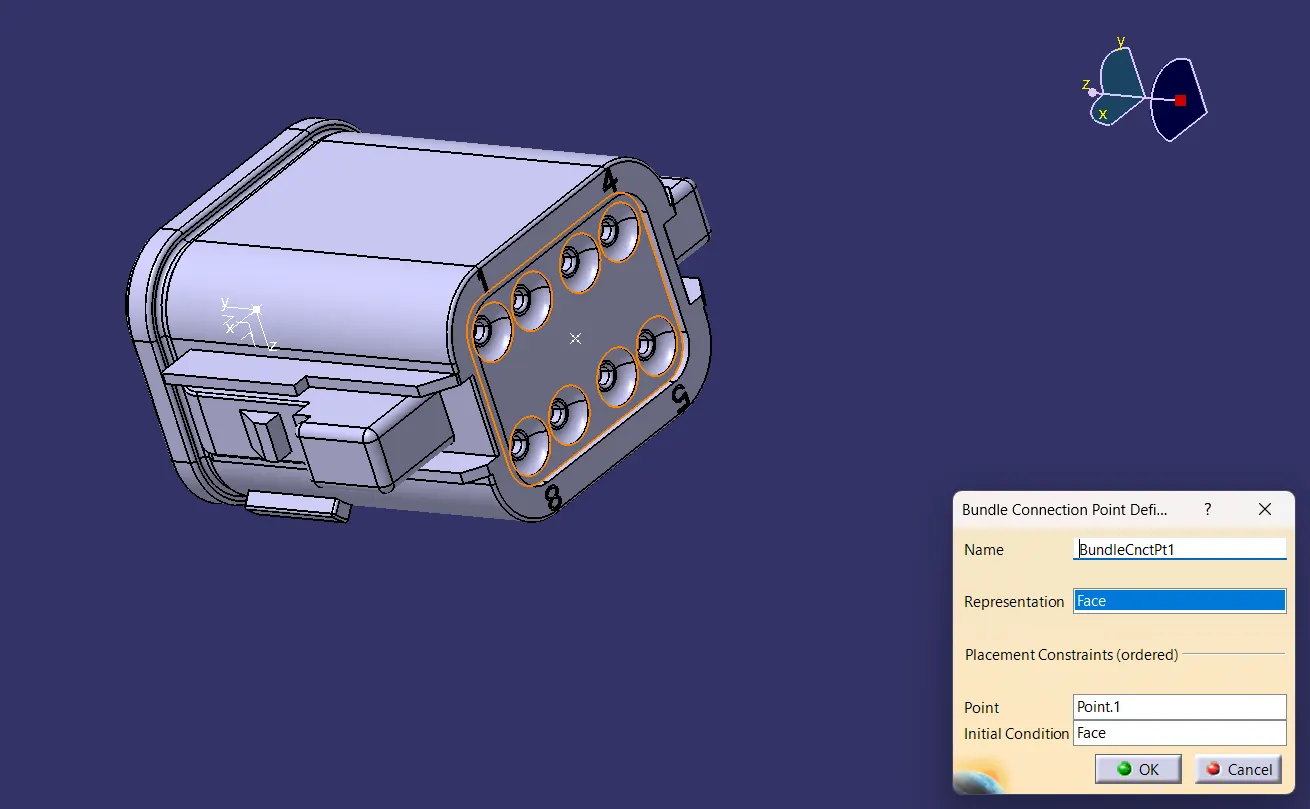

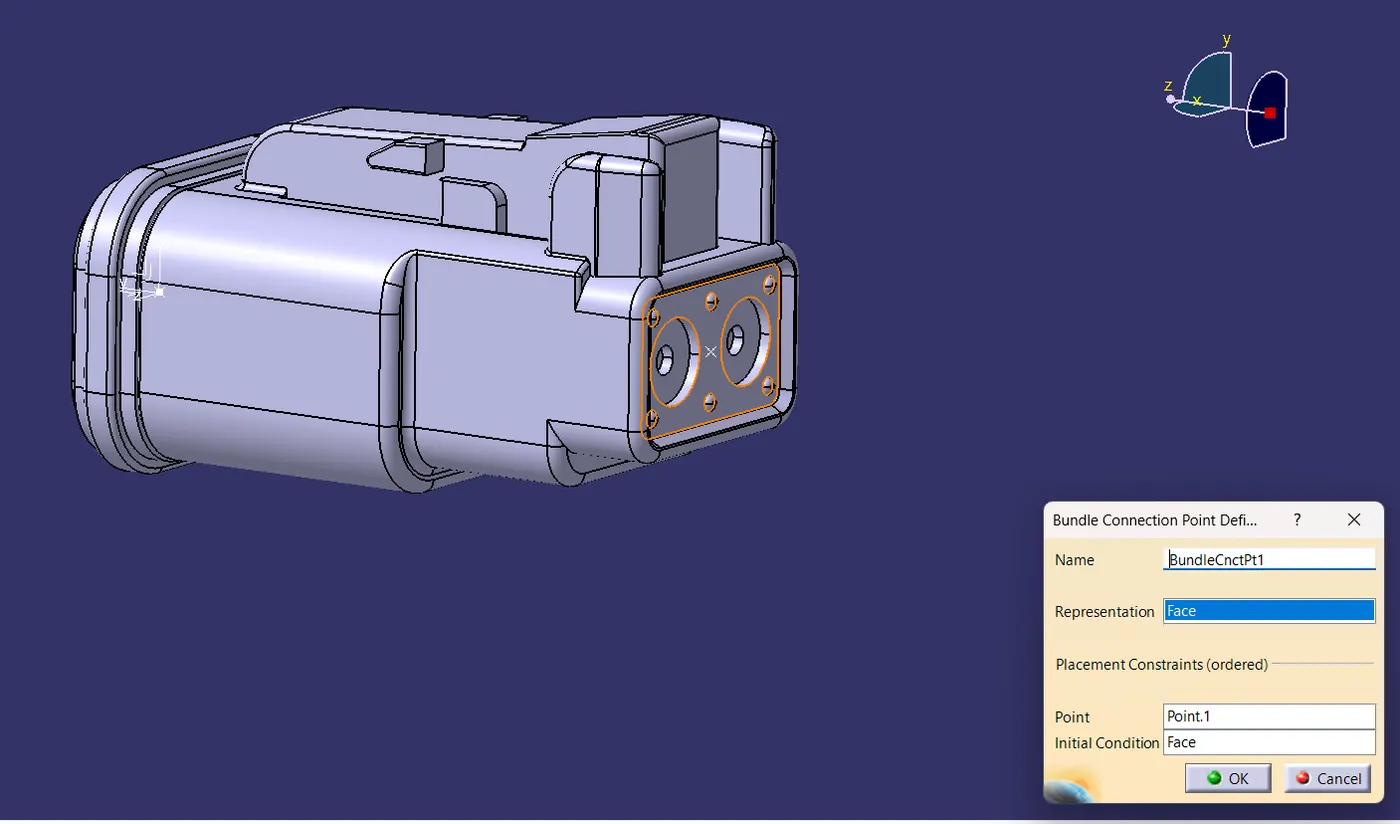

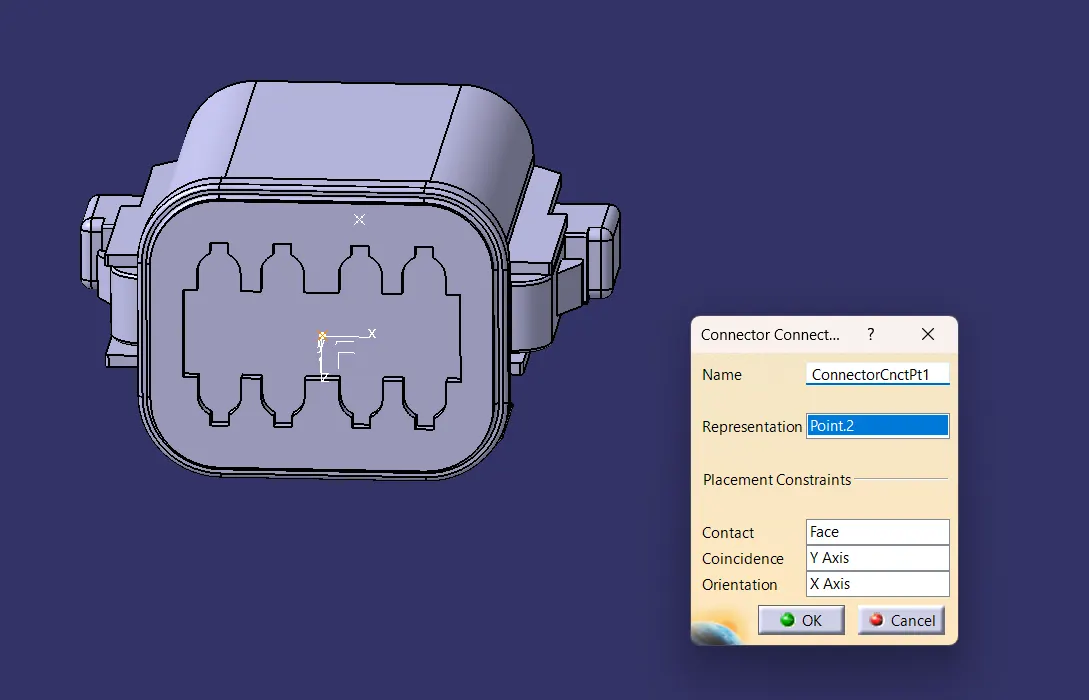

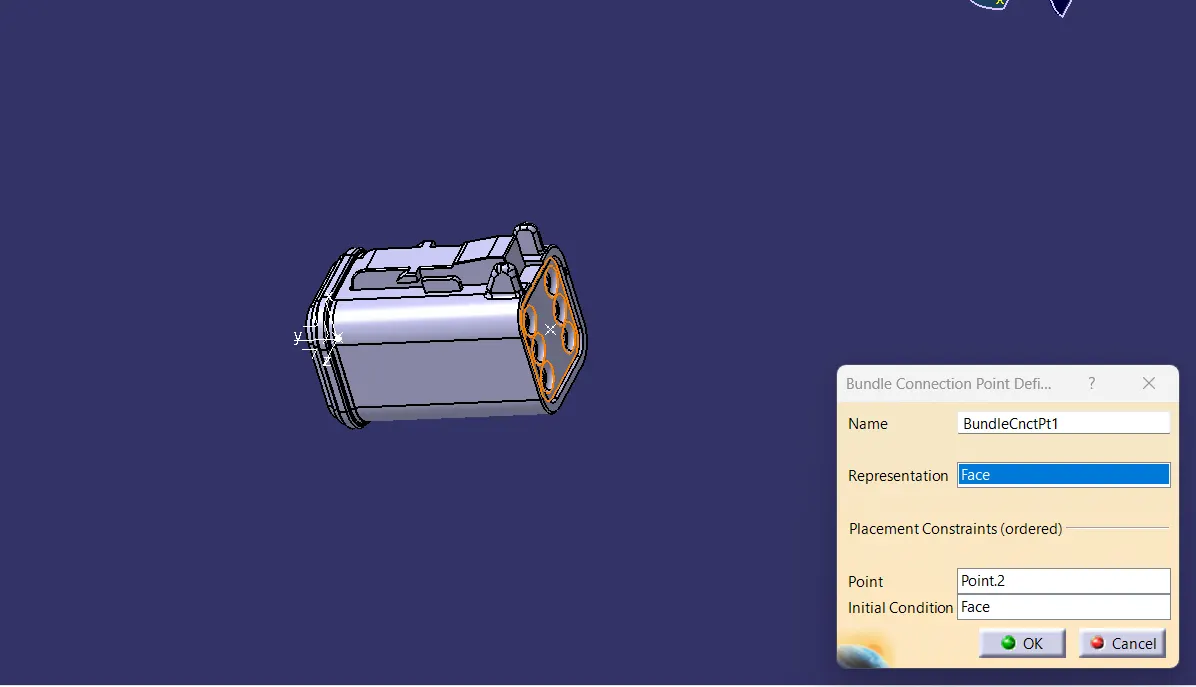

        define connector connection point and bundle connection point

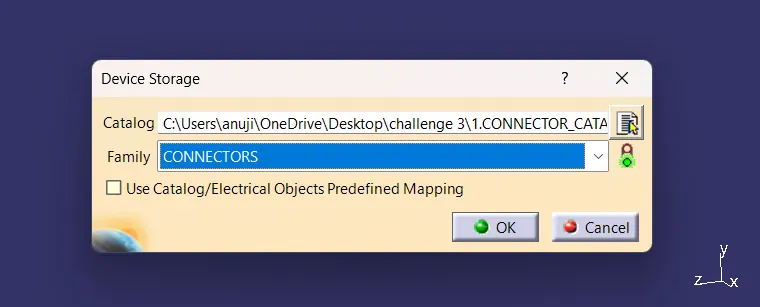

        save file and add to the connector catalog



       DTO6-6S

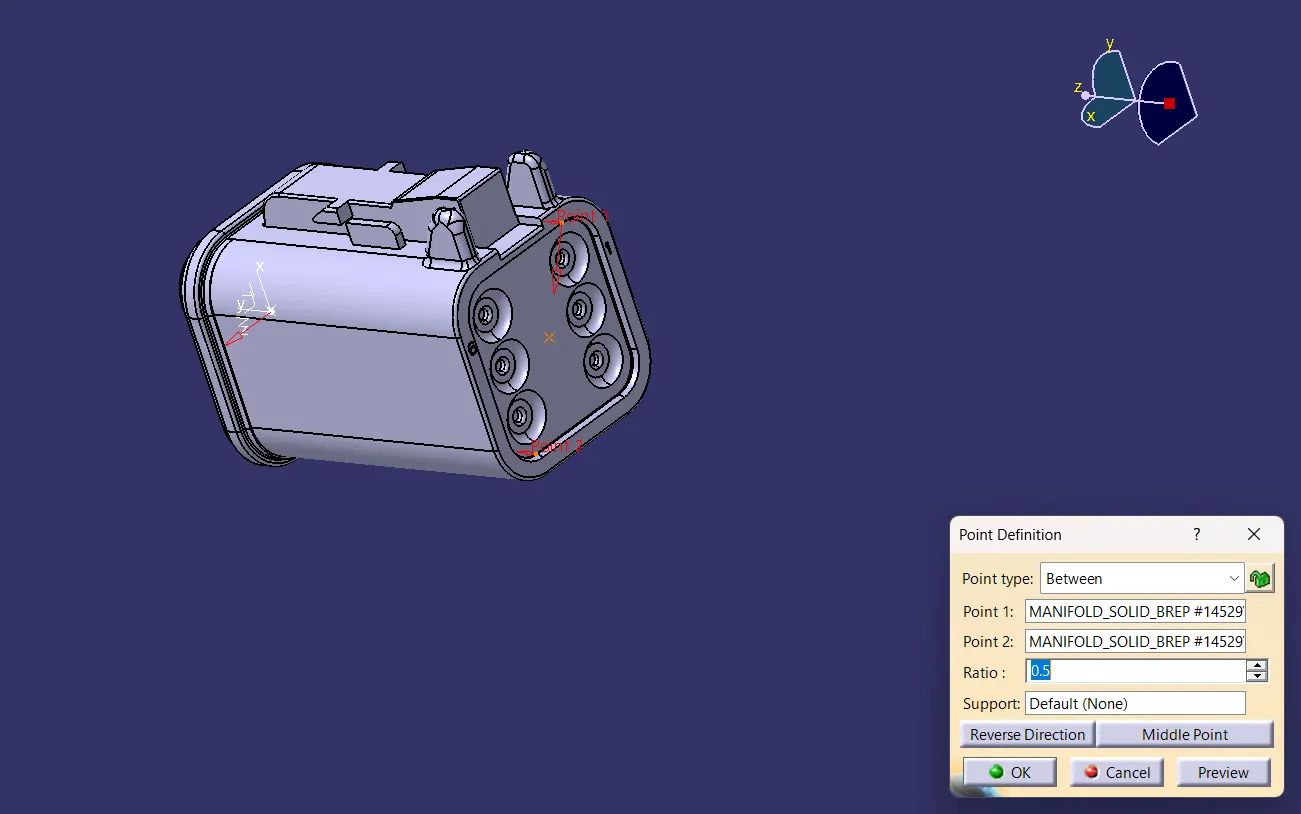

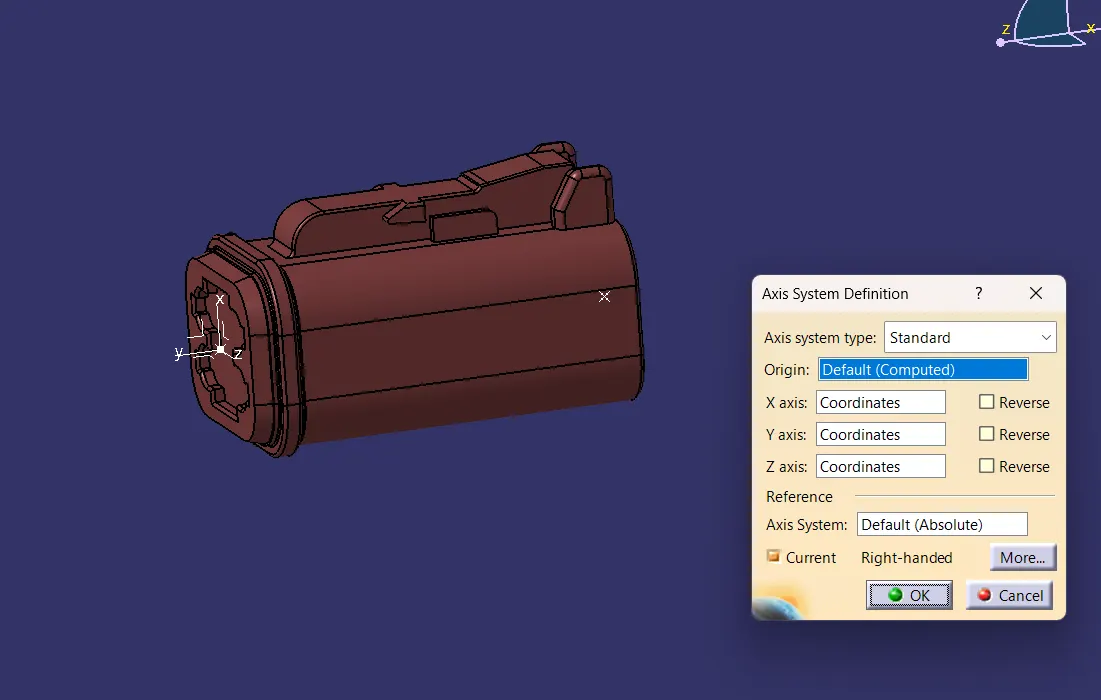

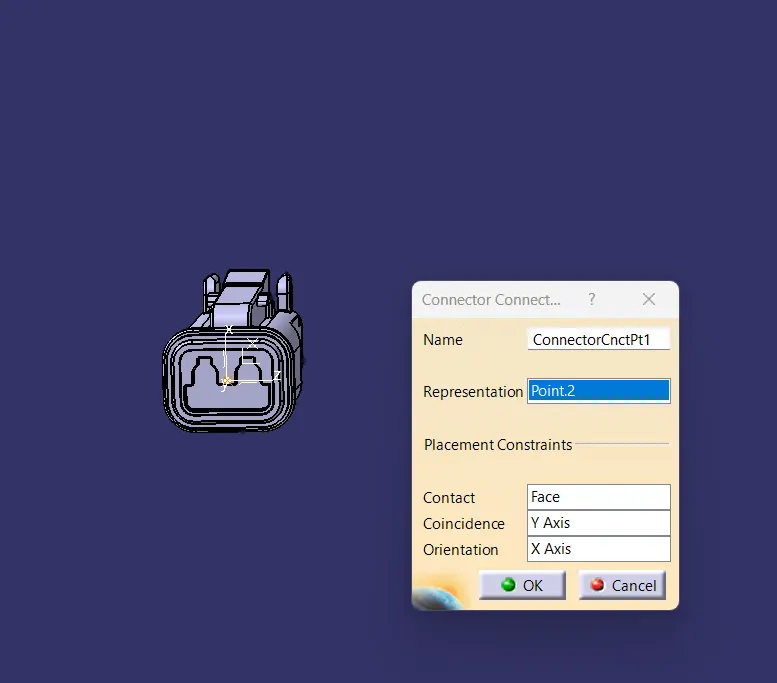

       create reference point for bundle entry and  connector connection point also create an axis system at connector connection point

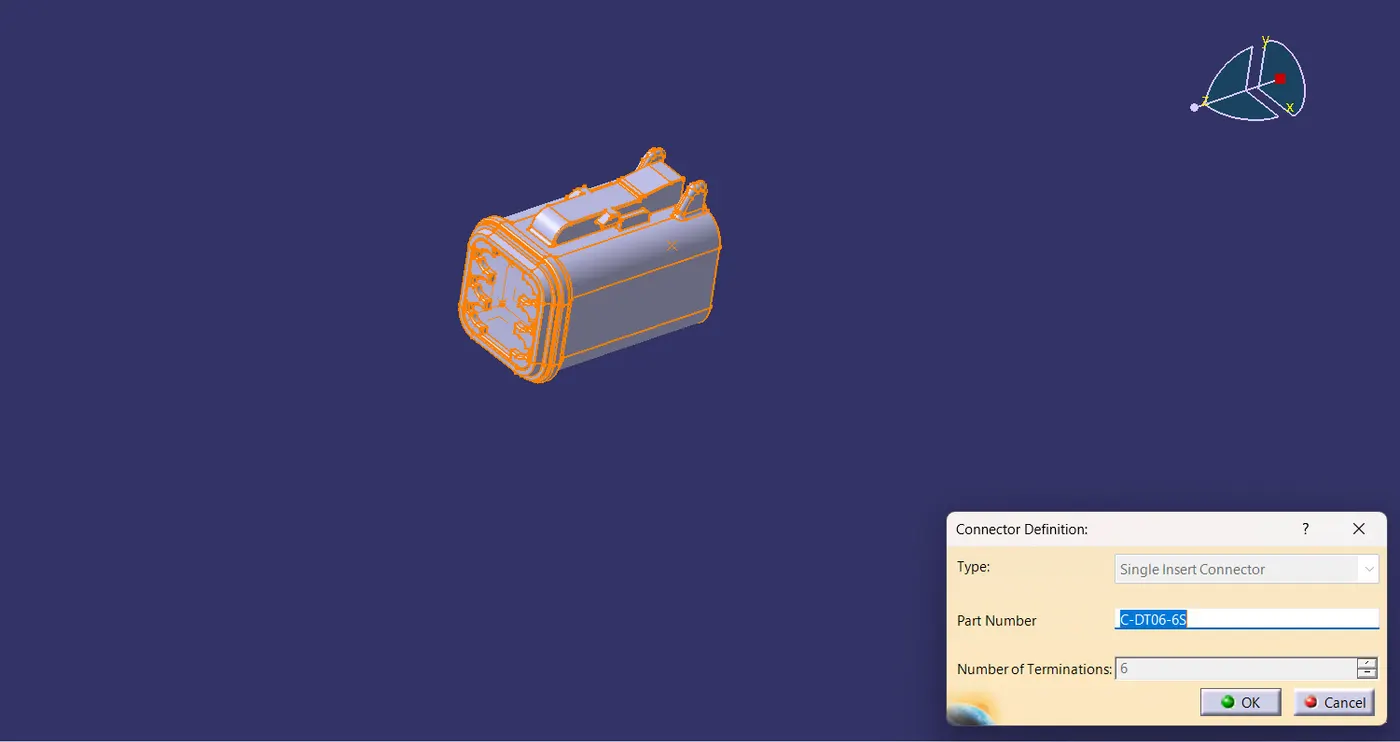

       switch to electrical part work bench and define it as connector

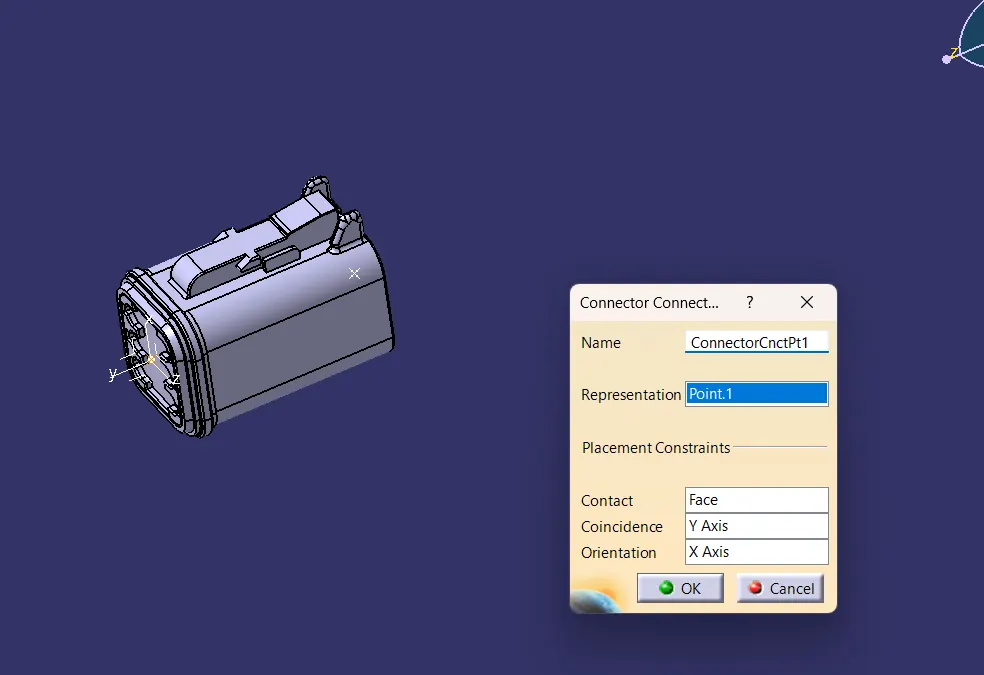

       define connector connection point and bundle connection point





      save file and add to the connector catalog

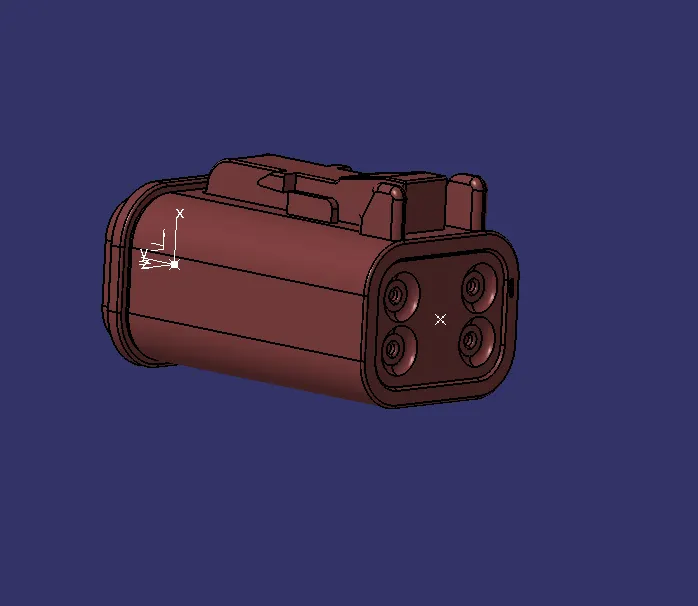

      DT06-2S

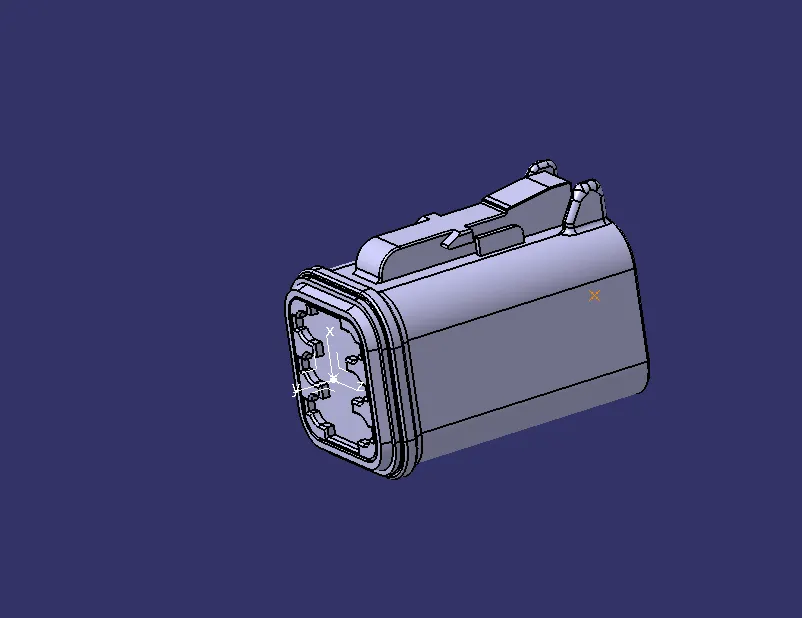

     create reference point for bundle entry and  connector connection point also create an axis system at connector connection point



      switch to electrical part work bench and define it as connector



      define connector connection point and bundle connection point





       save file and add to the connector catalog



      DT06-08SA

      create reference point for bundle entry and  connector connection point also create an axis system at connector connection point

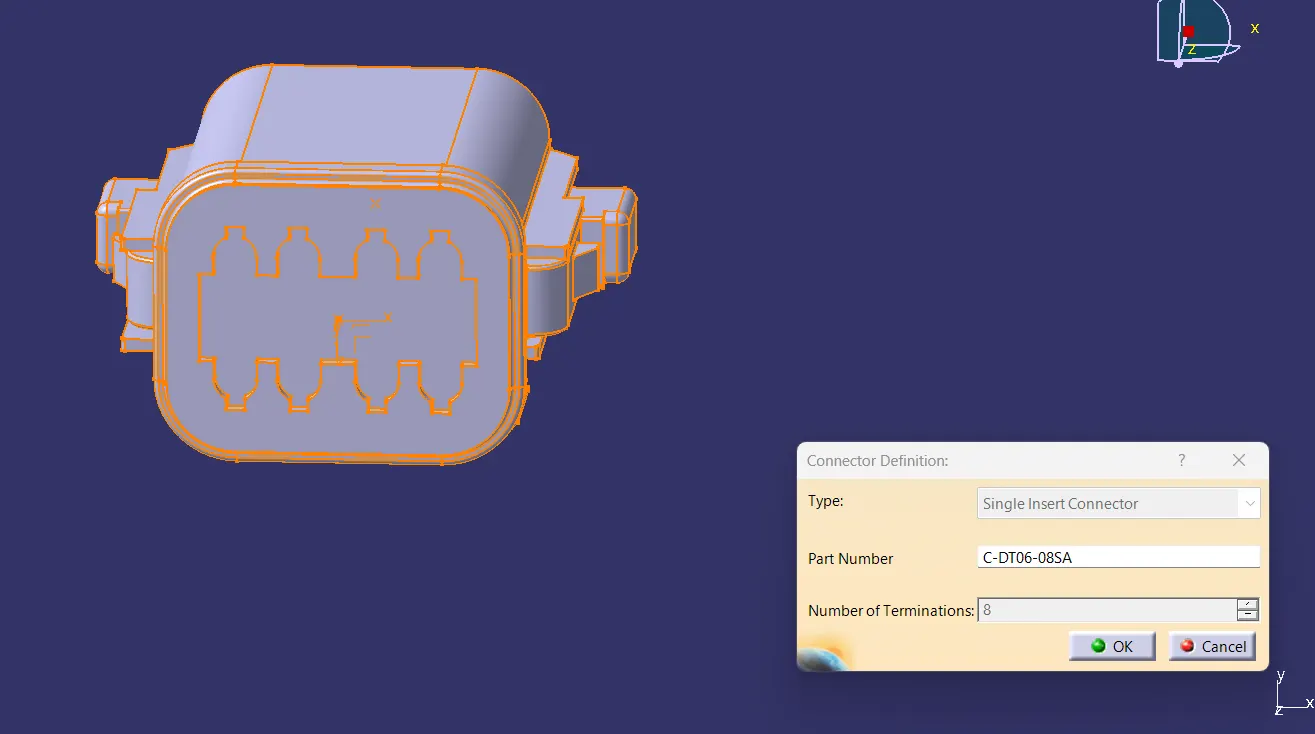

      switch to electrical part work bench and define it as connector



      define connector connection point and bundle connection point





      save file and add to the connector catalog



• Creation of corrugated tube for protection

      store inside the catalog created for corrugated tube

• Once parts are electrically define create an product file and add nesessary parts

       convert assembly into electrical harness assembly

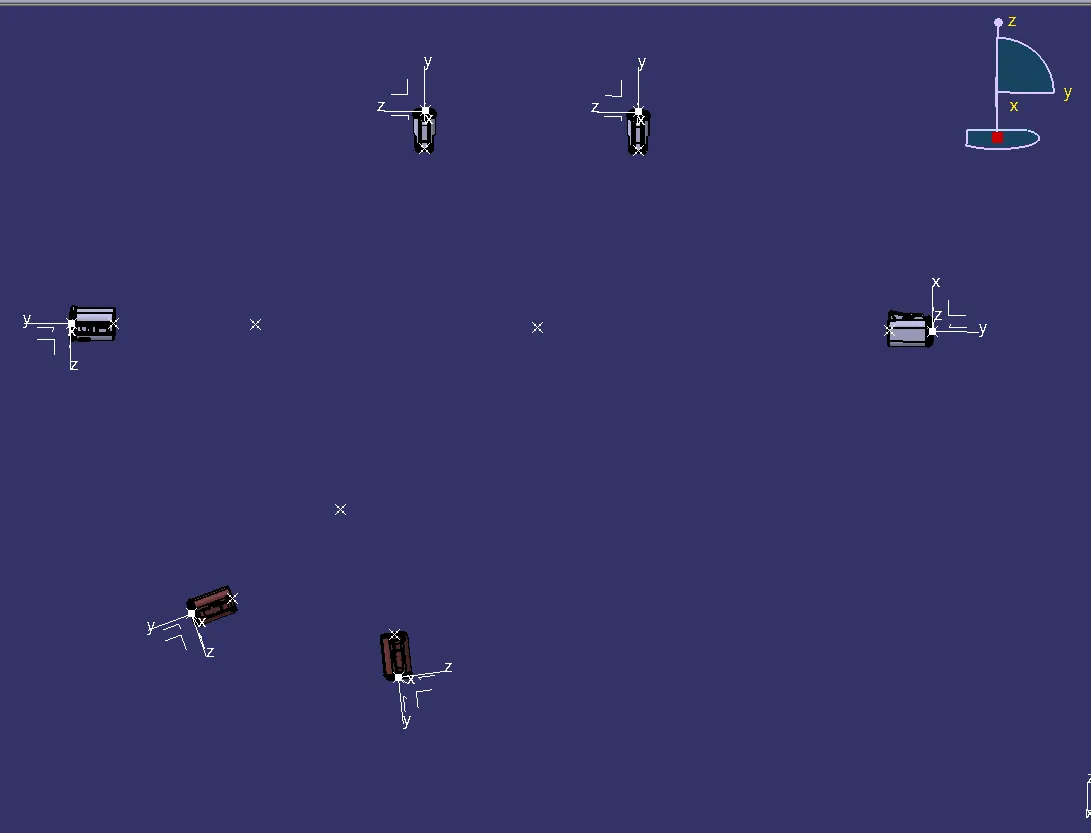

        arrange the connectors in desired location with reference to the given data

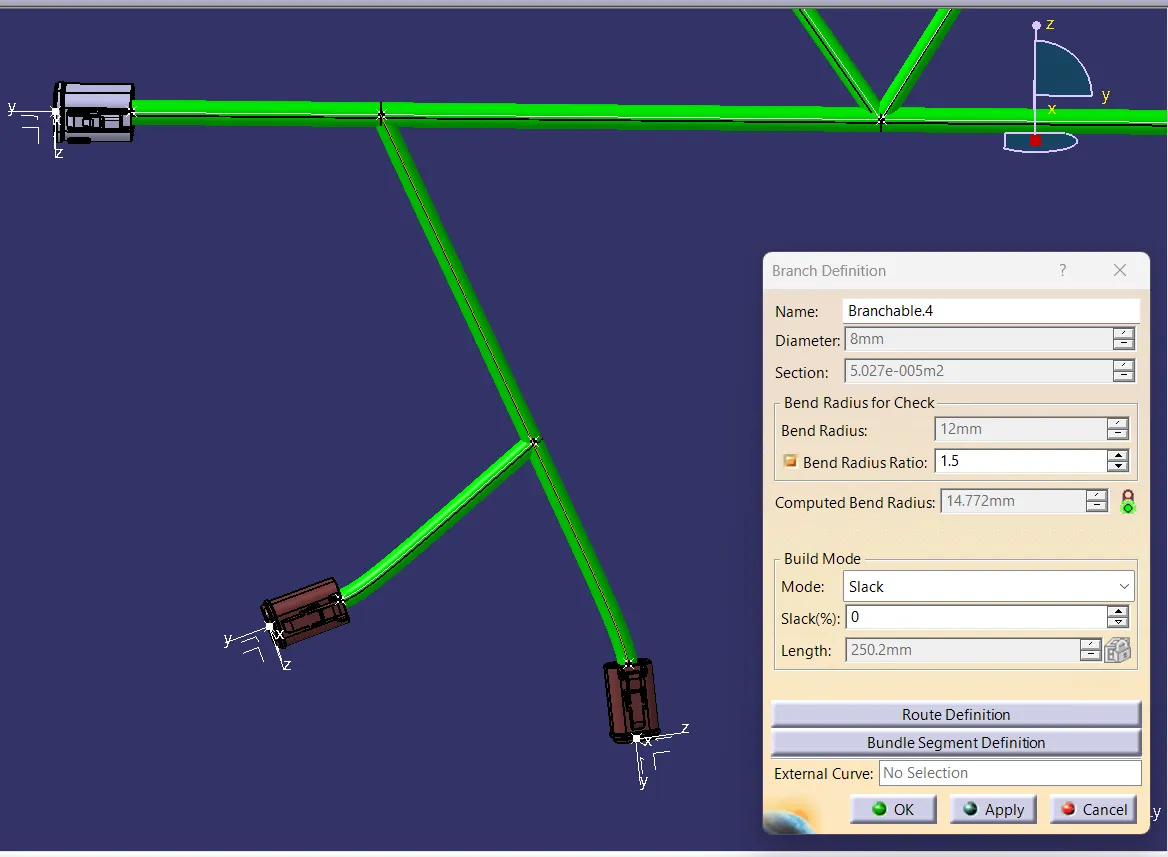

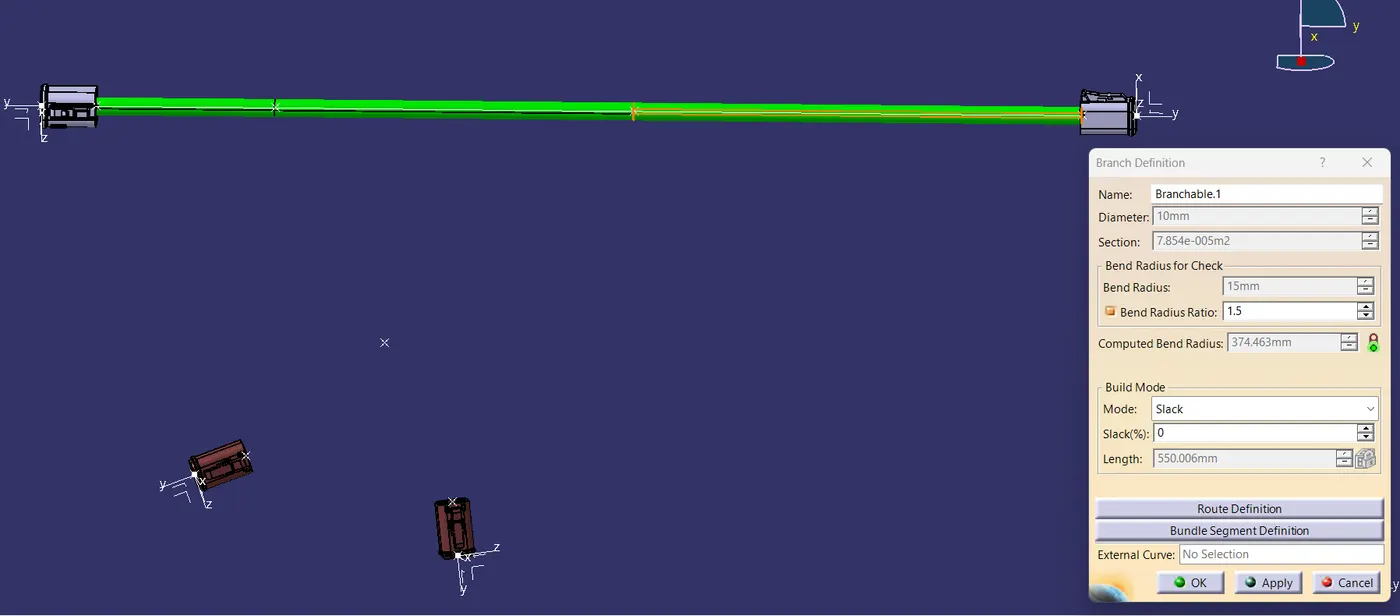

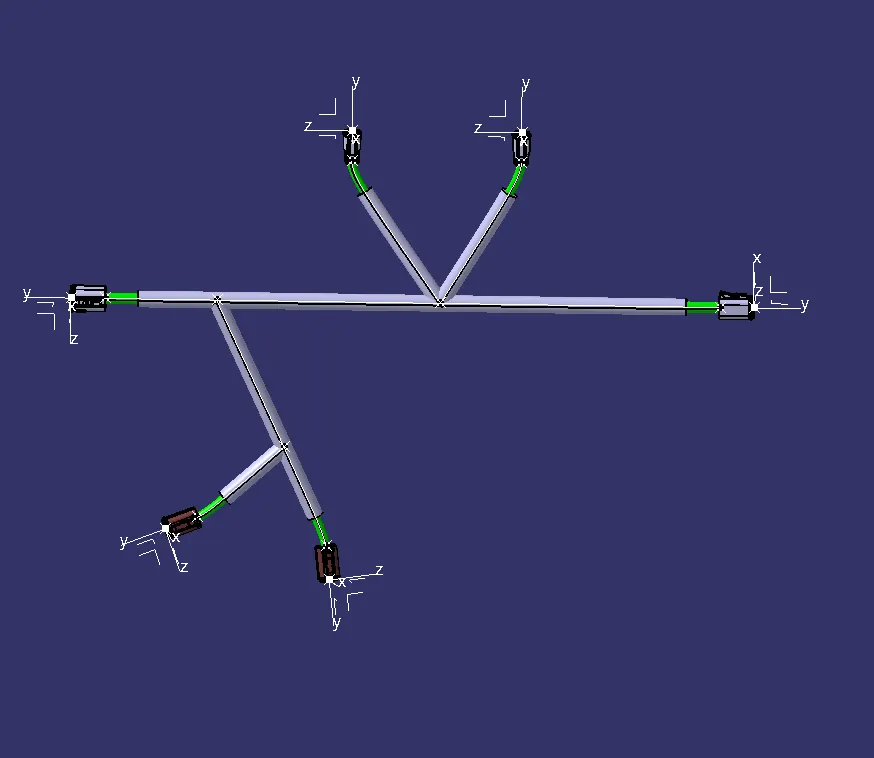

        go to branch defeniton and create branch by assuming the wire dia 10mm

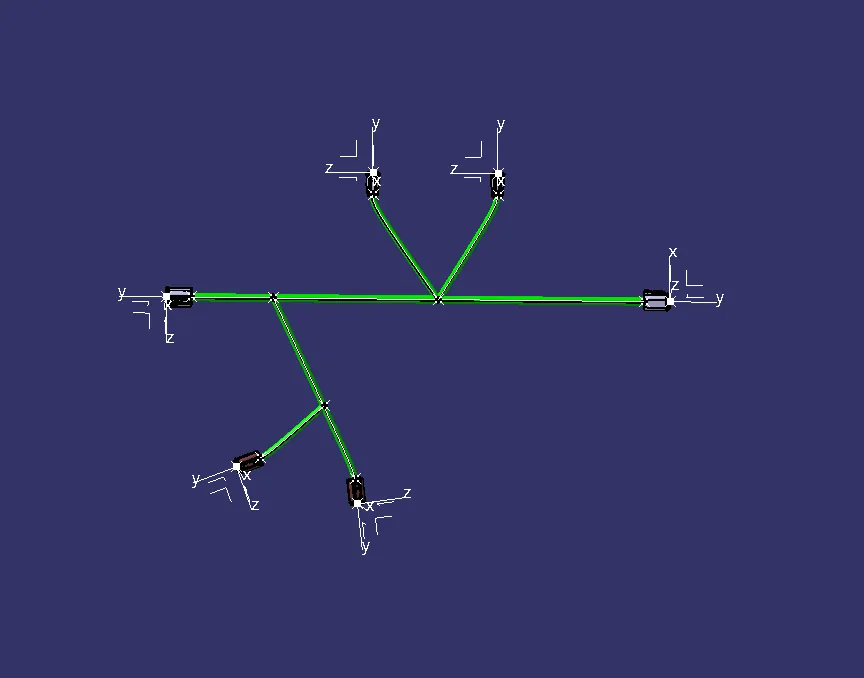

         create brnaching point

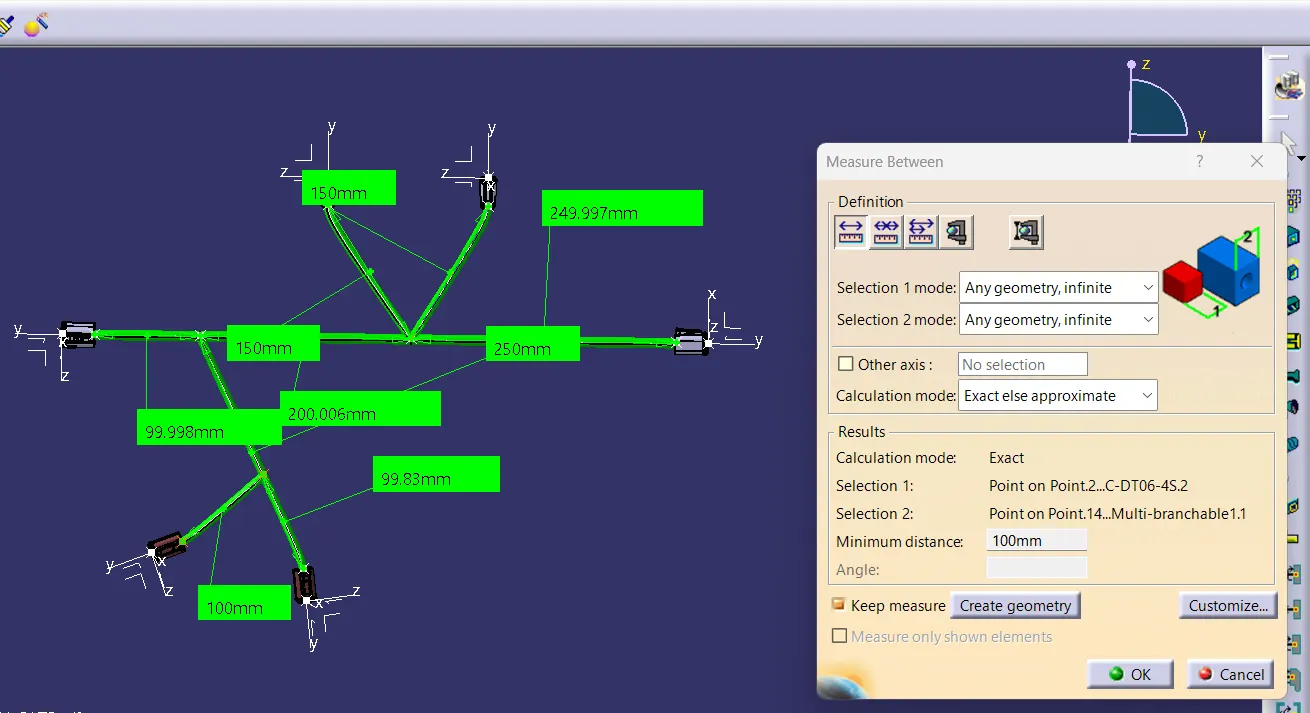

          also create branches between other connector here   assume dia 8 mm

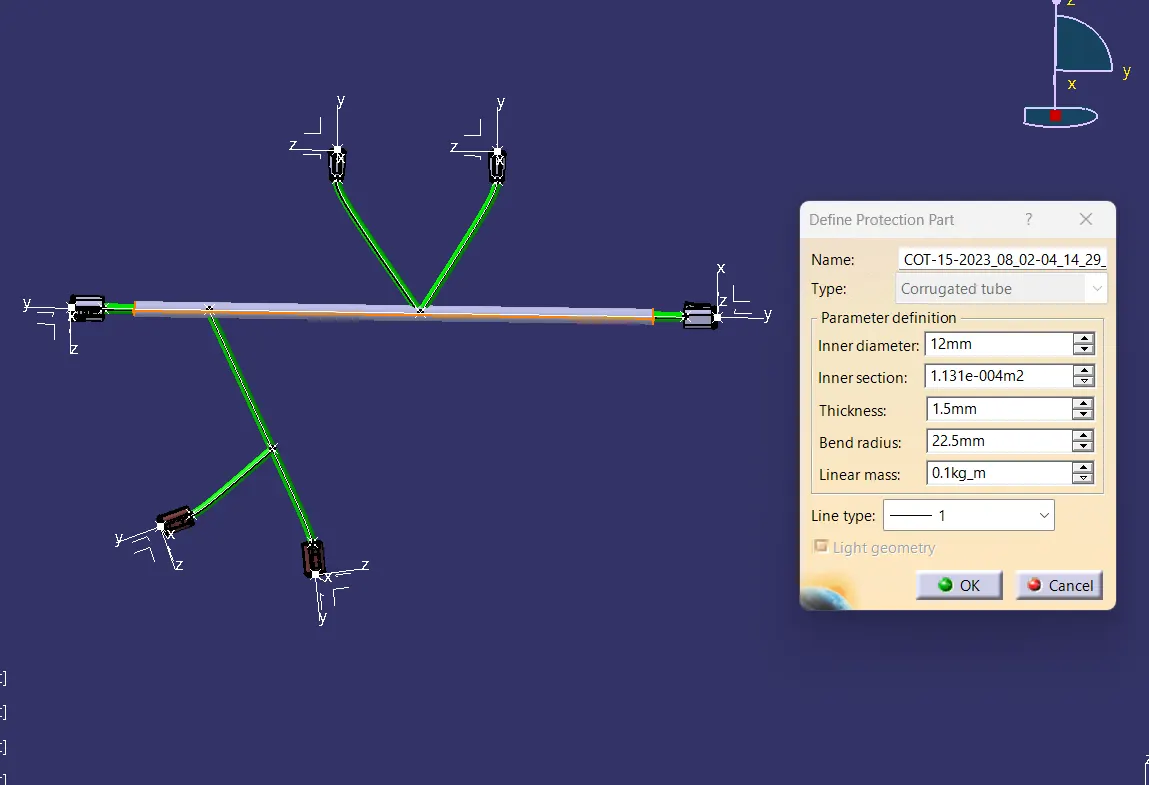

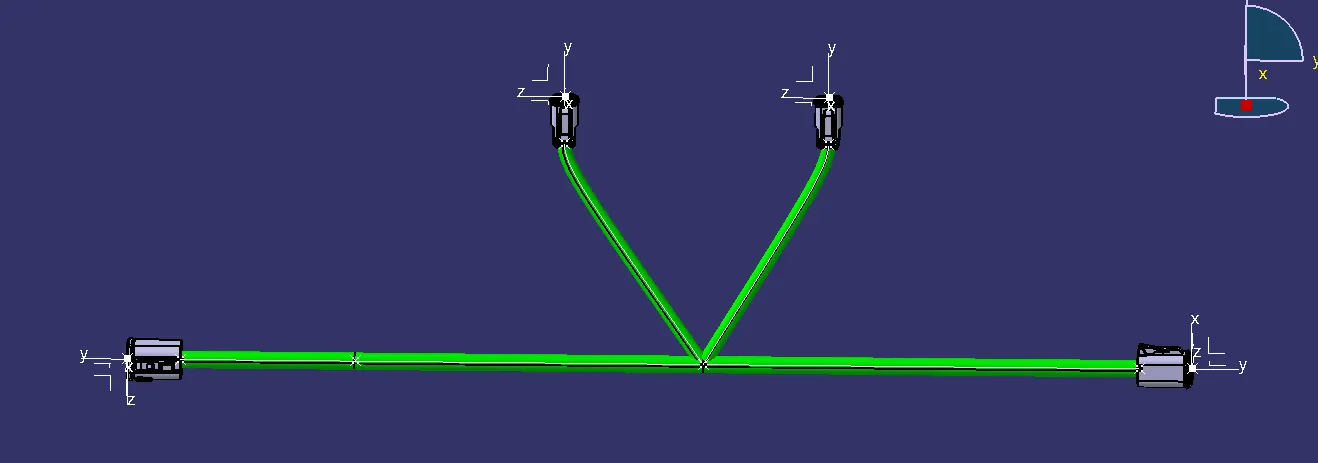

        add corrugated tube for protection ,here corrugated tube of 15 mm dia is used

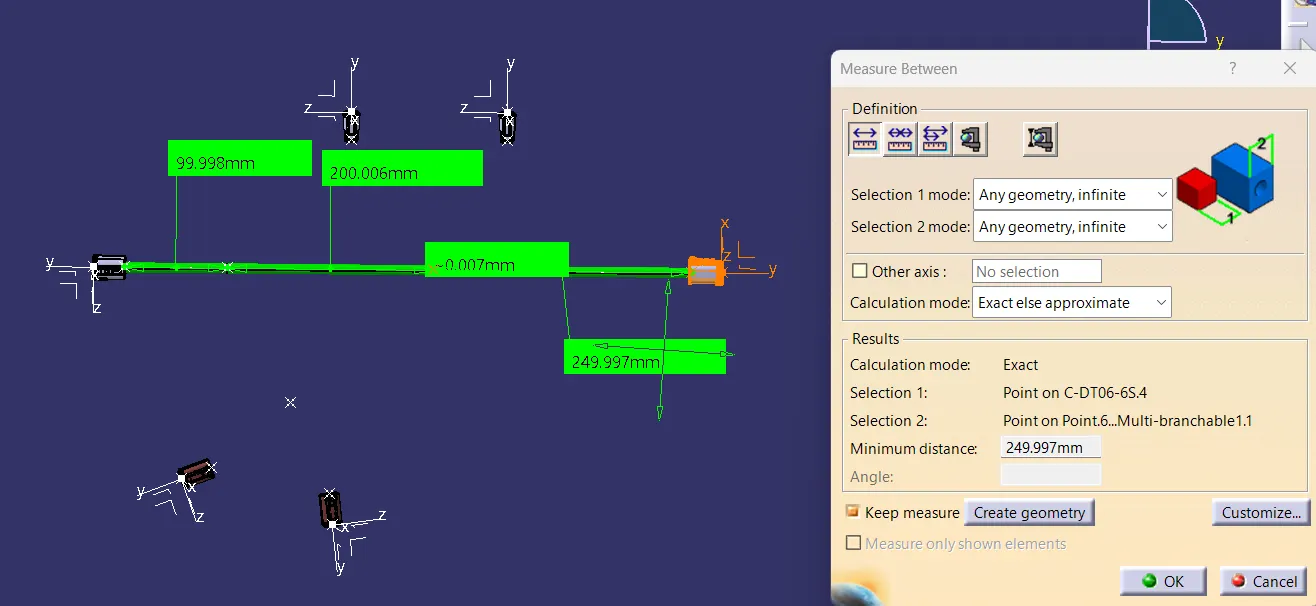

        keep end extimity 30mm from connector

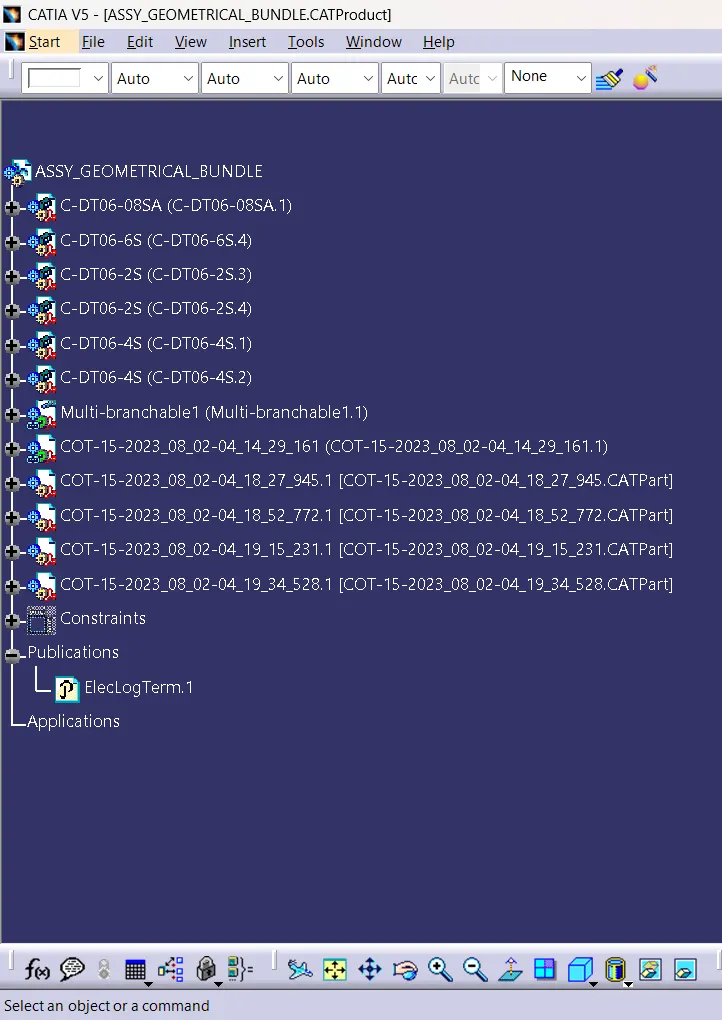

• TREE STRUCTURE
