Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Downloading Connector Data from te.com
After downloading Connectors we have define the Connectors as Electrical Parts
CONNECTORS

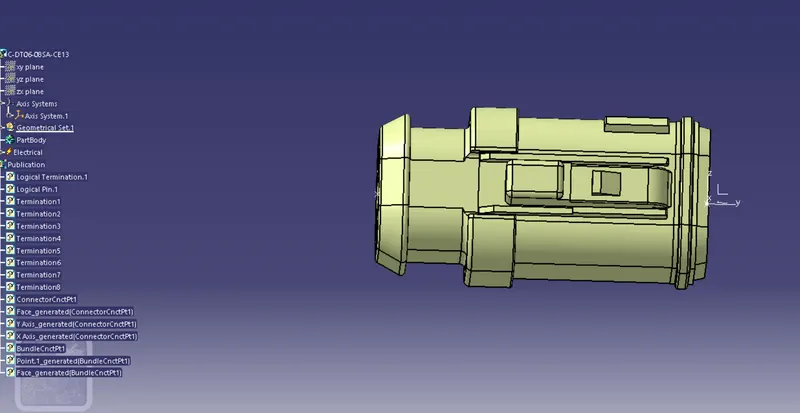

1. DT06-08SA
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.
- CONNECTOR DEFINITION
- CONNECTOR CONNECTION POINT DEFINATION
- BUNDLE CONNECTION POINT

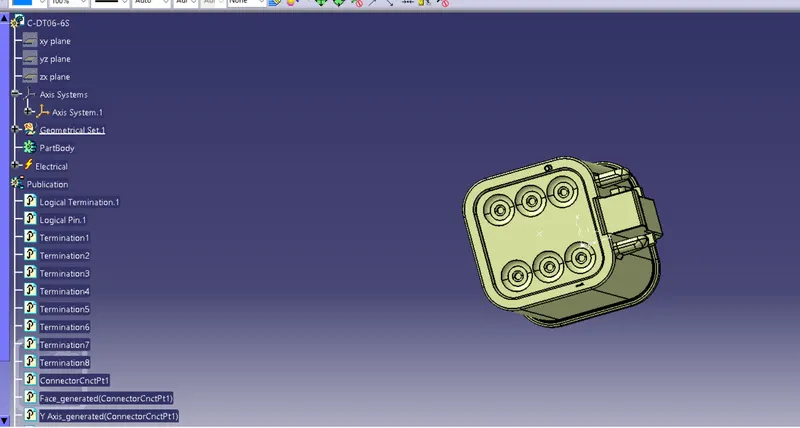

2.DT06-6S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.CONNECTOR DEFINITION
CONNECTOR CONNECTION POINT DEFINATION
BUNDLE CONNECTION POINT

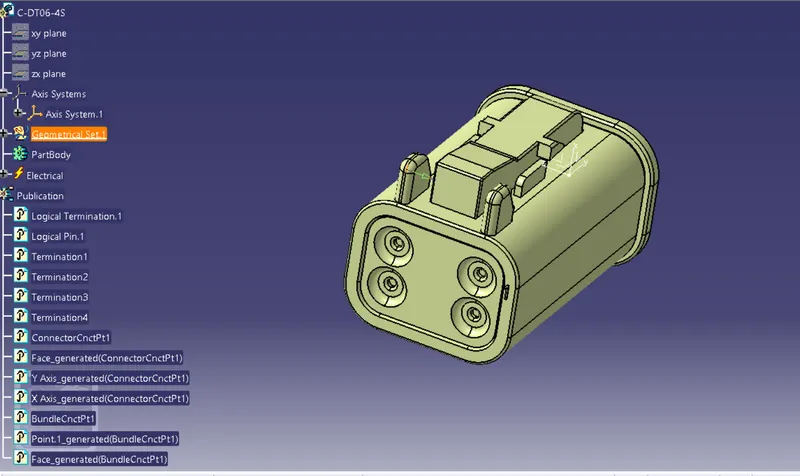

3.DT06-4S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.
- CONNECTOR DEFINITION
- CONNECTOR CONNECTION POINT DEFINATION
- BUNDLE CONNECTION POINT

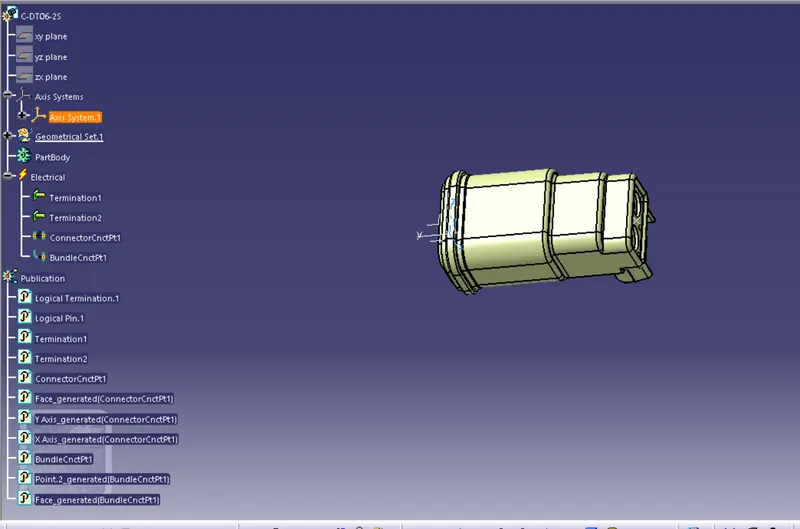

3.DT06-2S
Geometrical features Points and Axis System in created
by using these Features we have to Define mechanical part as electrical part i.e Connector.
- CONNECTOR DEFINITION
- CONNECTOR CONNECTION POINT DEFINATION
- BUNDLE CONNECTION POINT

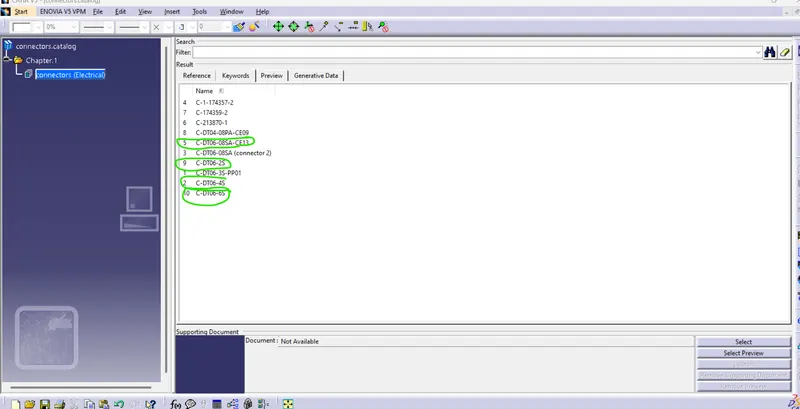

Adding to catalouge
- after adding the connectors to the connectors catalogue
- as given in the questio seperated the connectors as per the position
- multi branch is created
- and then protective covering is created
PROTECTIVE COVERING

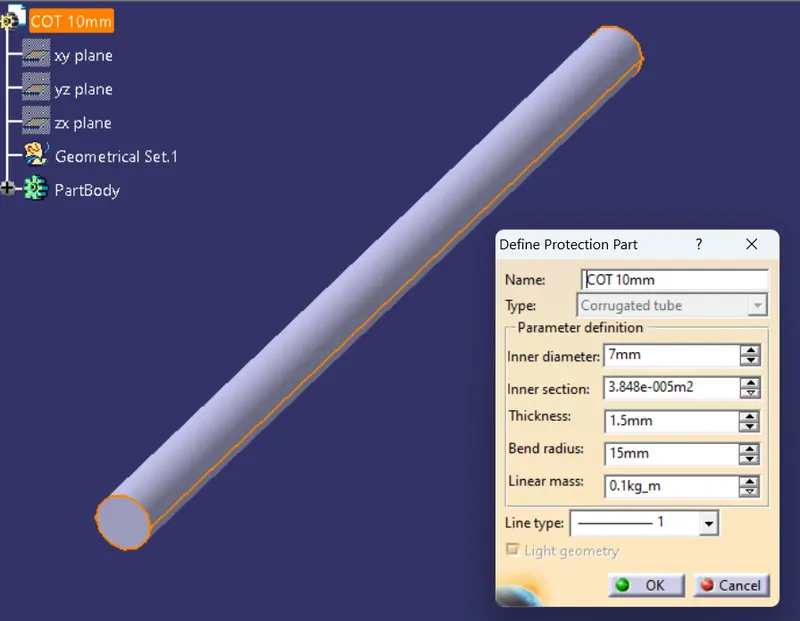

- 10mm covering

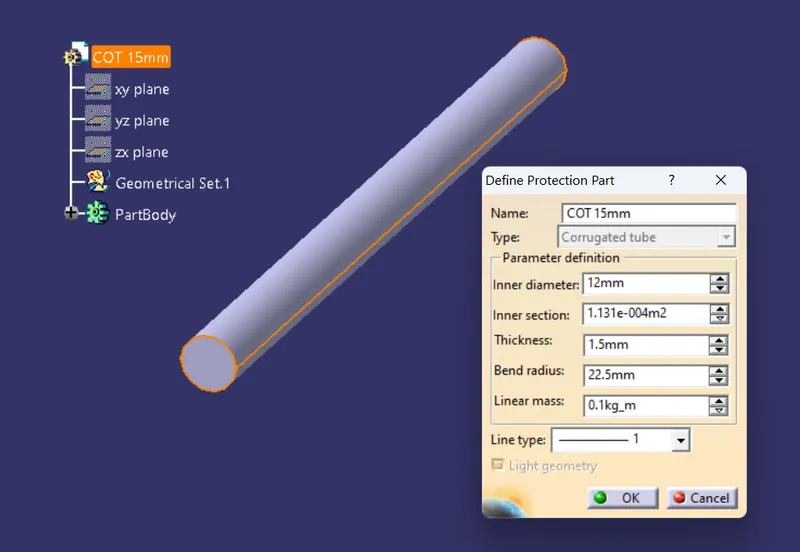

- 15 mm Covering

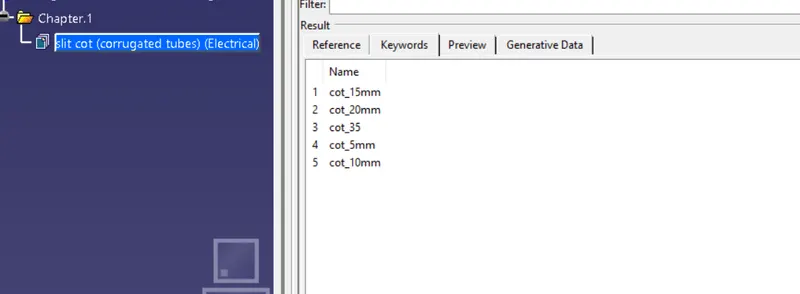

Adding to catalouge

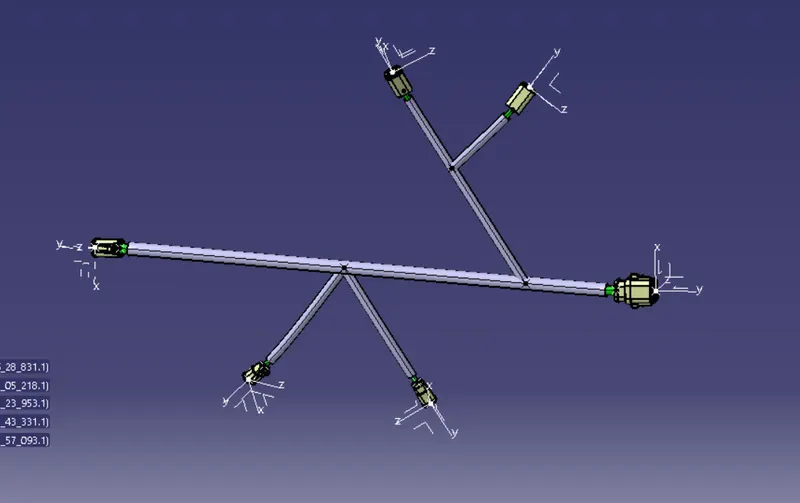

Multi branchable bundle added

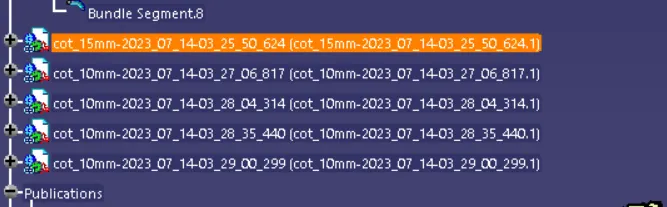

Protective covering

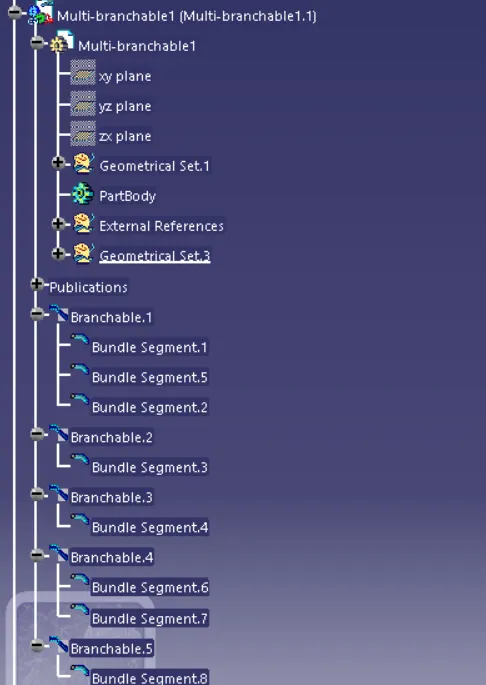

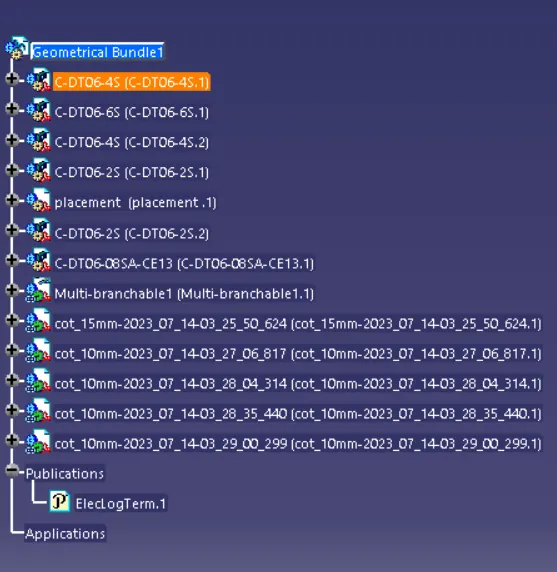

Tree
CONCLUSION
- Connectors are downloded in te.com
- Mechanical part files are converted to Electrical Part
- Harness assembly is created and protective covering are added..
