Week 8 - Challenge 2 - Switch Bezel Design

detailed report on switch bezel exersice

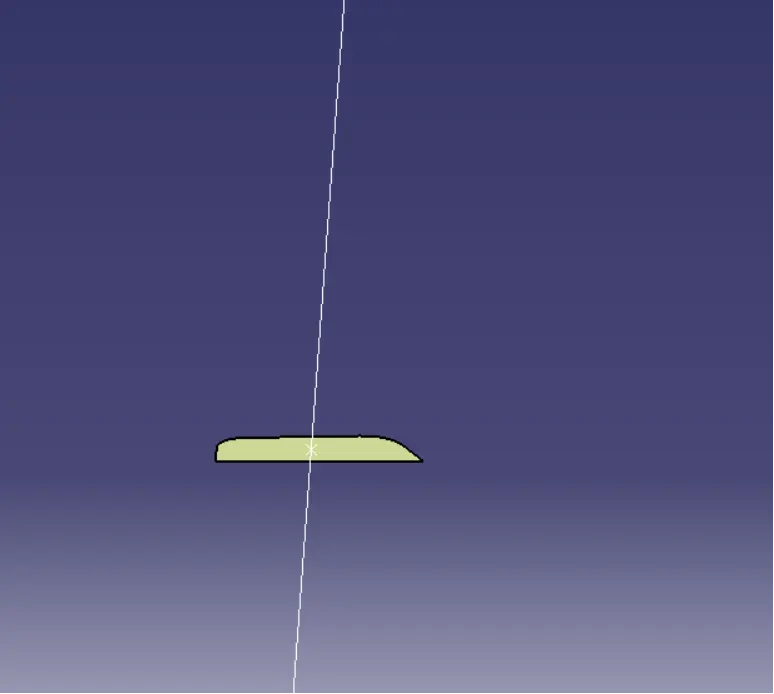

initially created the tooling axis with rexpective tooling direction by extracting the surface normal to the plane and axis

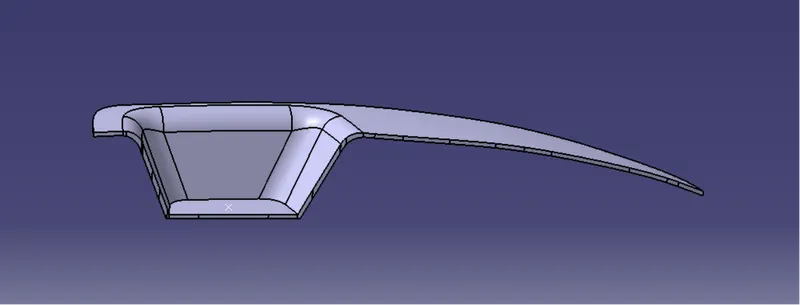

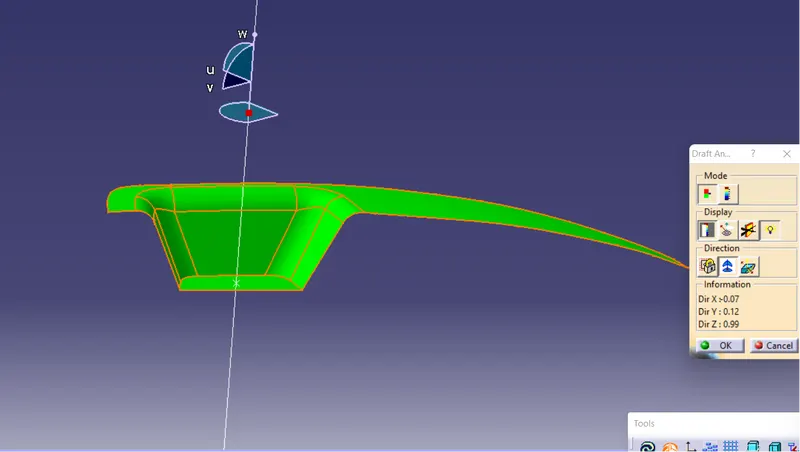

and observed the a surface and draft analysis done on it to verify the tooling axis

surfaces were created with srective the a surface with 3 mm as offset 3

then closed the surface in the part design and verified draft analysis
