Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

The wiring harness for the given diagram has been drawn successfully.

The connectors are first imported and the bundle connection points are defined priorly.

The connectors are then added from the catalogue and is placed accordingly as per the diagram using translation and rotation command from mechanical assembly workbench

The file is then opened in Electrical Harness Assembly Workbench and is then converted to Electrical Assembly

Then the wiring harness connections are made using the Multi Branchable Document command

Finally the corrugated tube is added only for the branches as per the question.

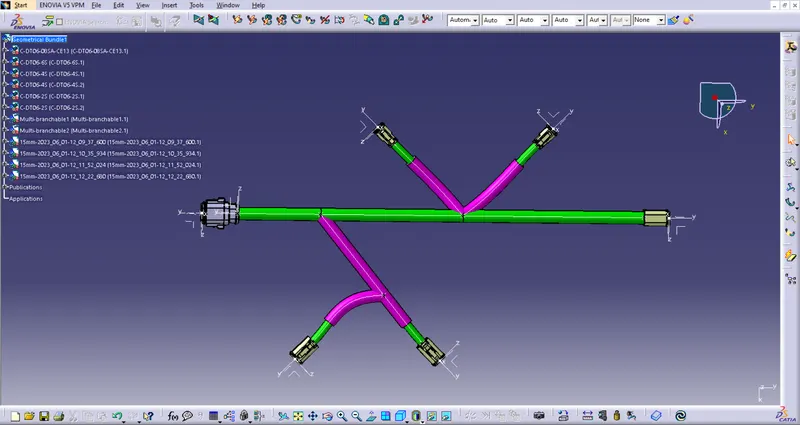

The wiring harness is in green color while the Corrugated Tube is in violet color for easy identification.
