Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
AIM:
- Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
- Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)
Steps to be followed:
1. Download connector 3D data from www.te.com
DT06-4S
DT06-6S
DT06-2S
DT06-08SA
2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

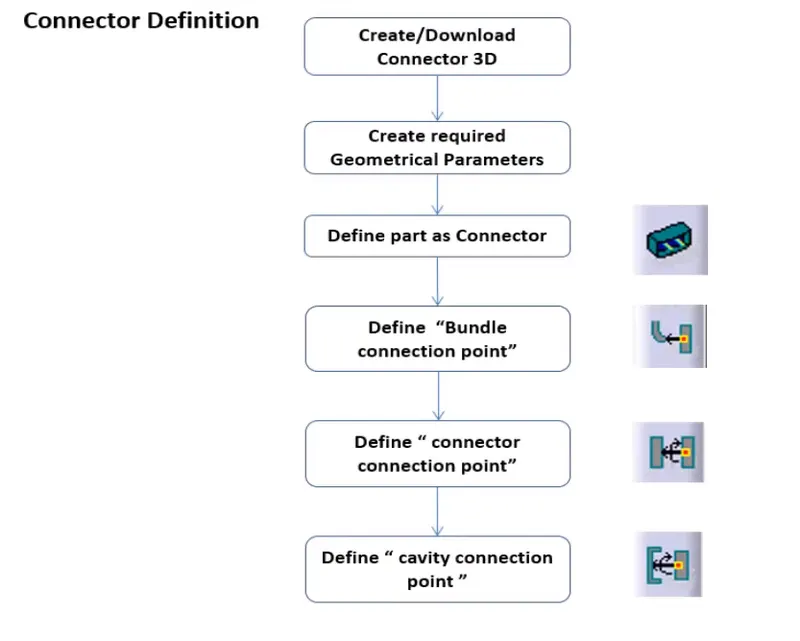

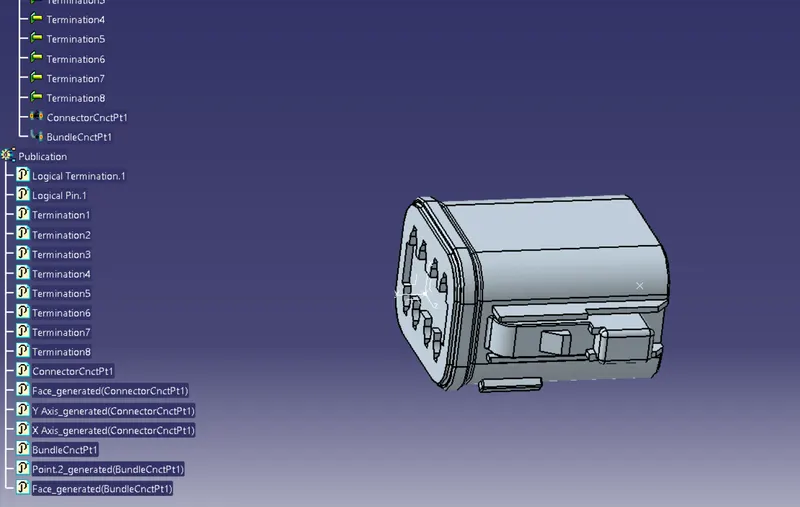

The following was defined for all the connectors:
- Connector connection point
- bundle connection point
- axis system at the connector connection point
- define all the connectors as electrical components

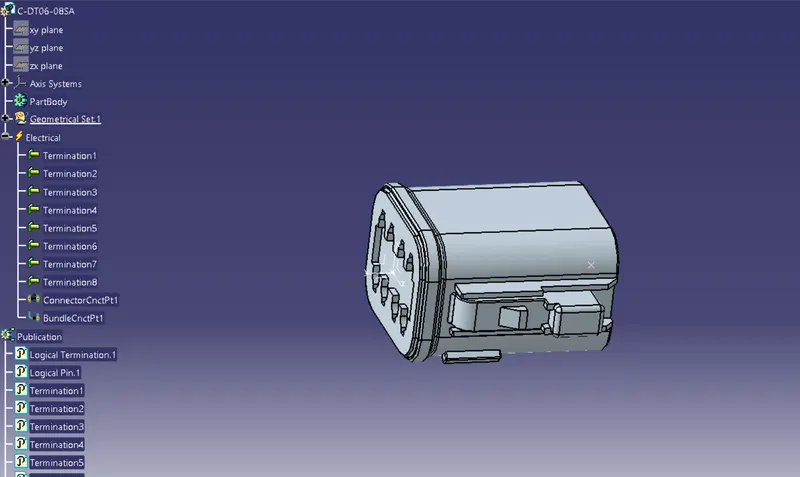

- DT06-08SA

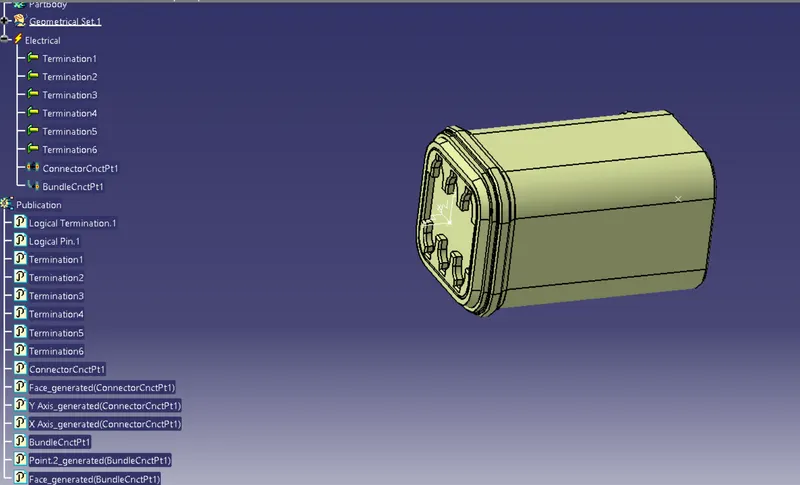

- DT06-6S

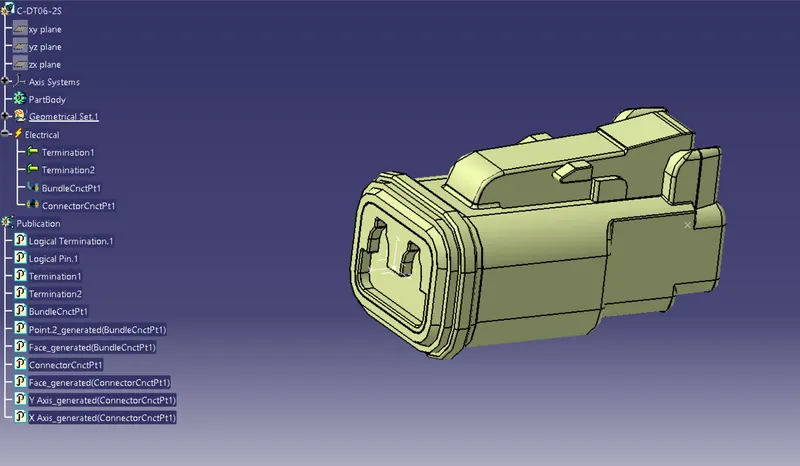

- DT06-2S

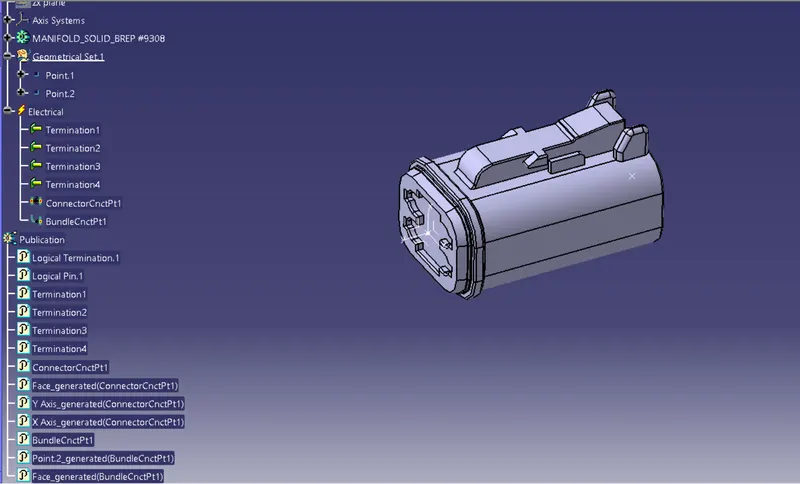

- DT06-4S

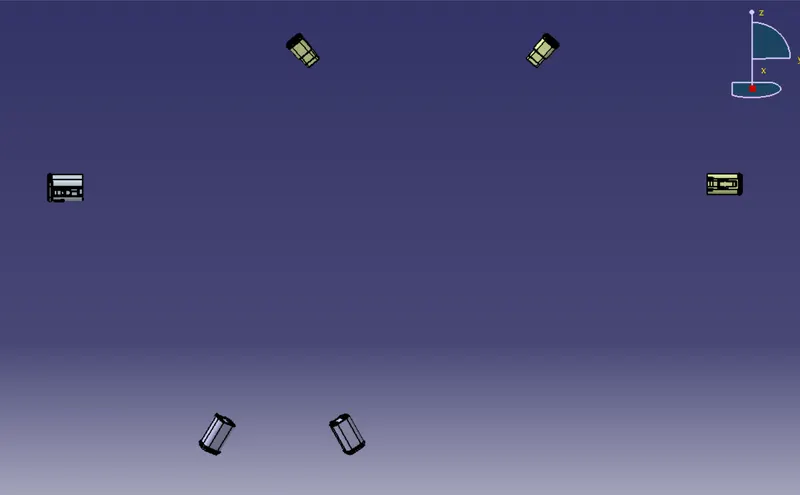

- Arranging the Connectors by following the Layout

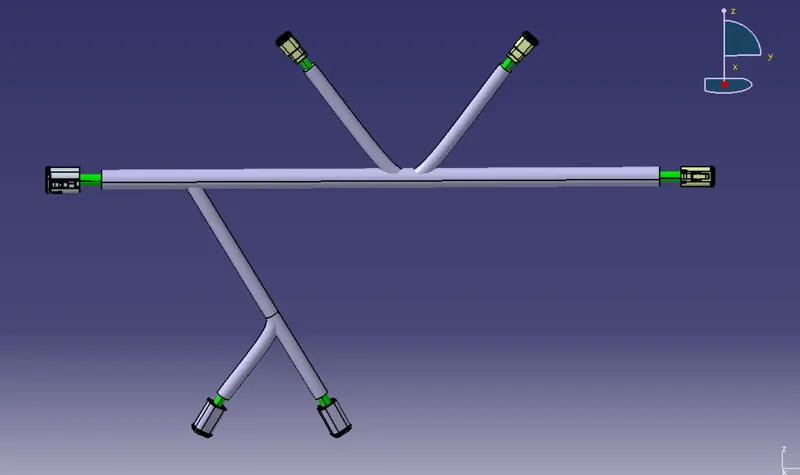

- Creating Multi-Branching to the connectors

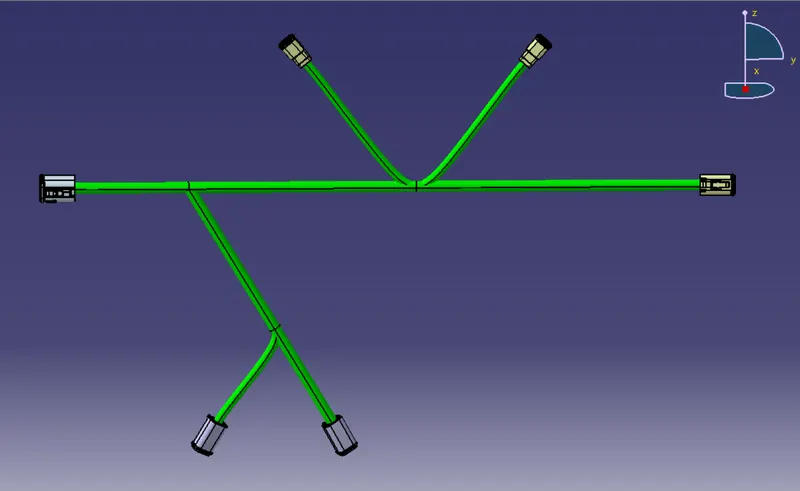

- creating a protective covering

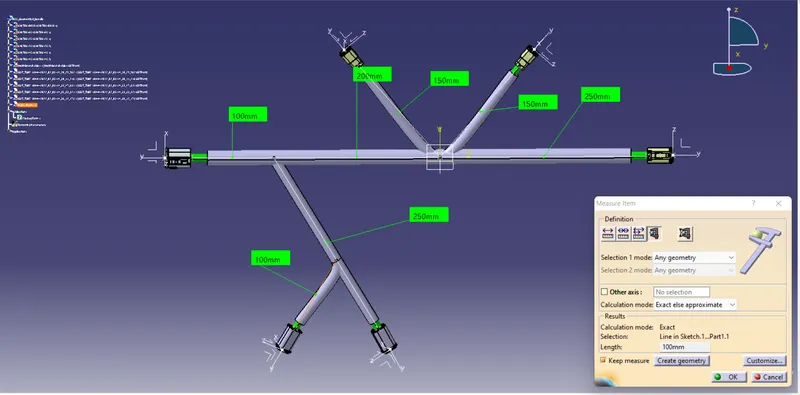

- Checking as per Layout

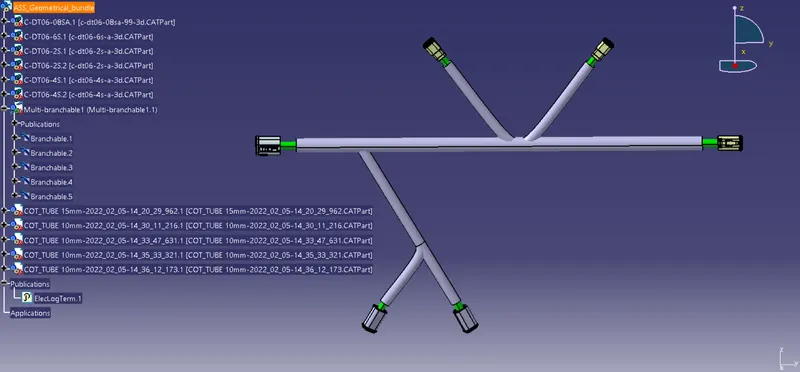

- Final output
