Door Arm Rest Week 8 Challenge

DOOR ARM REST :

AIM :

Create class B and Class c surface by using given class A surface at thickness of 2.5mm.

PROCEDURE :

• First create tooling direction,if required create side tooling also.
• By using class A surface create class B and C surface.
• Join A,B and C surface together and trim it.

TOOLING DIRECTION :

• Tooling direction is a direction which pulls a parts from mold,mold have two part core and cavity.core eject a part from cavity and they called tooling direction.

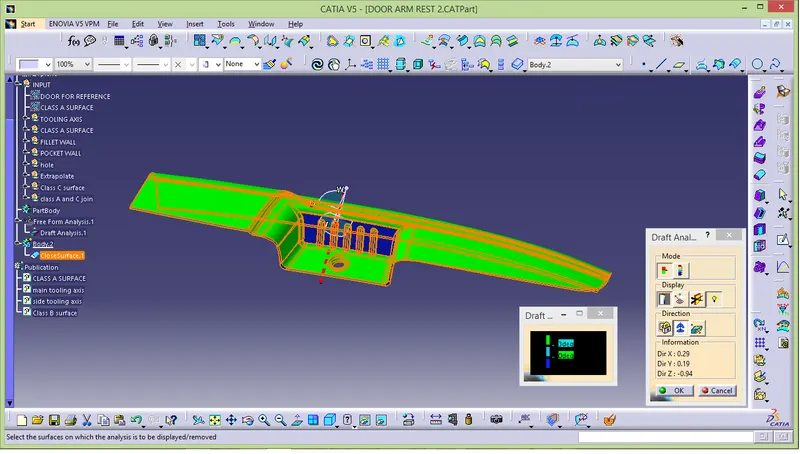

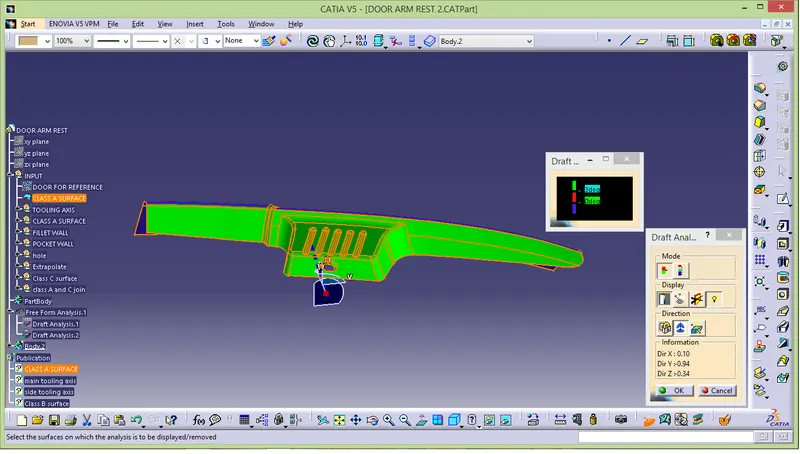

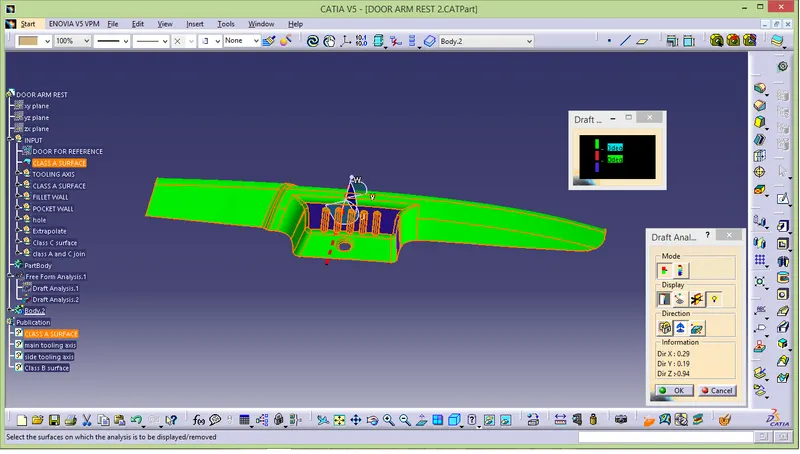

• To create tooling direction take class A surface as a reference click draft analysis place compass class A surface rotate and find the tooling direction and side tooling direction also by using same method.

Tooling direction

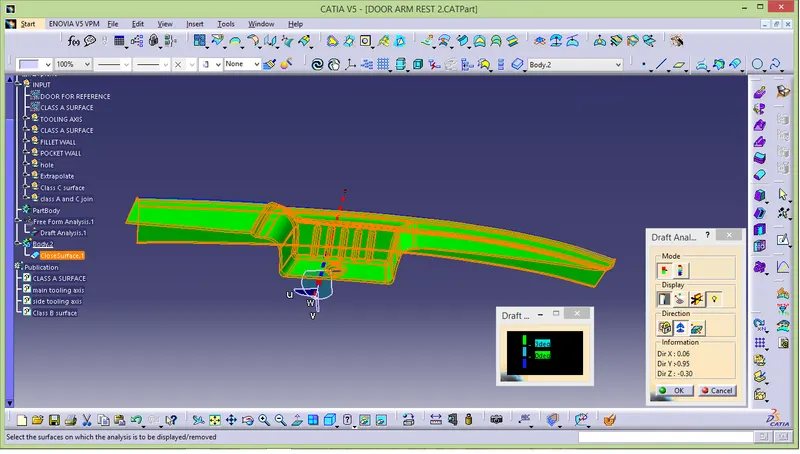

Side tooling direction

CREATING CLASS B SURFACE :

• Class B surface is a surface which give thickness to class A and in other word we can also say the class B surface is below to class A .
• To create class B first extracte the surface one by one and extrapolate and trim it off.

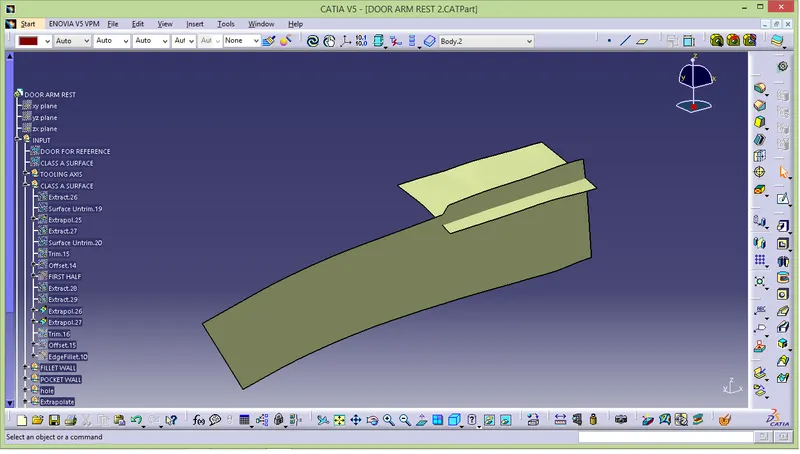

• offset it into 2.5mm to conform wethere its properly offset are not open class A and compare both class A and B or by other method take dynamic sectioning and see.

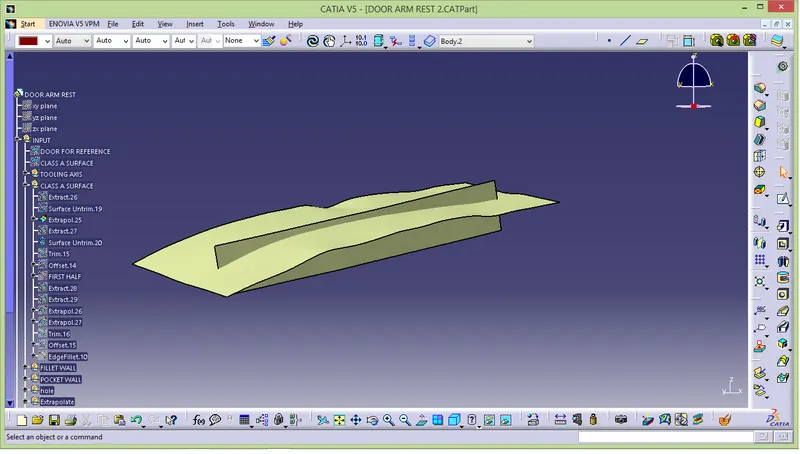

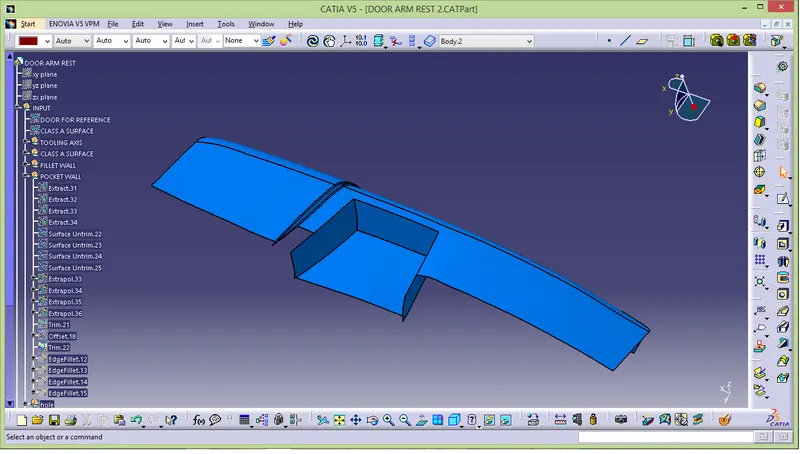

CLASS B SURFACE

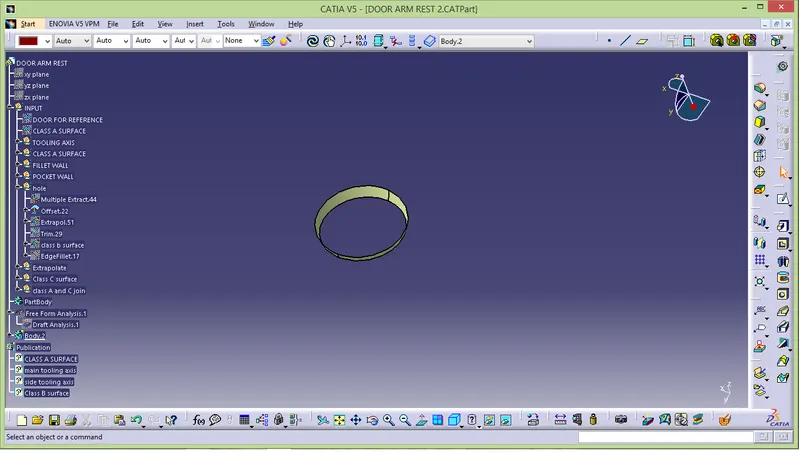

CREATING CLASS C SURFACE :

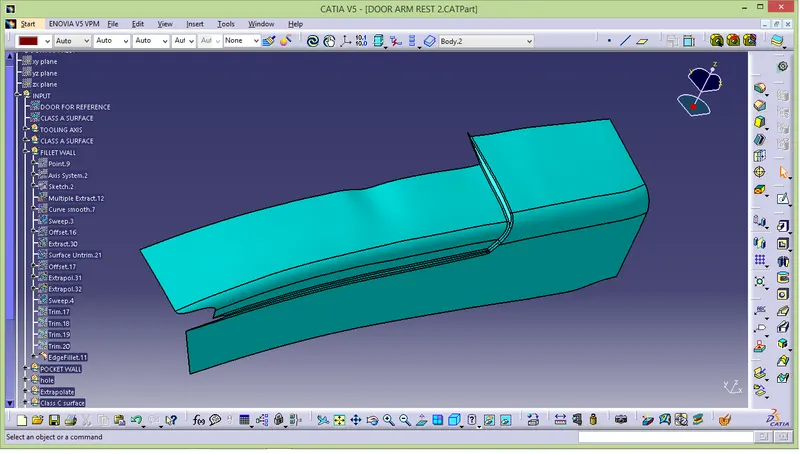

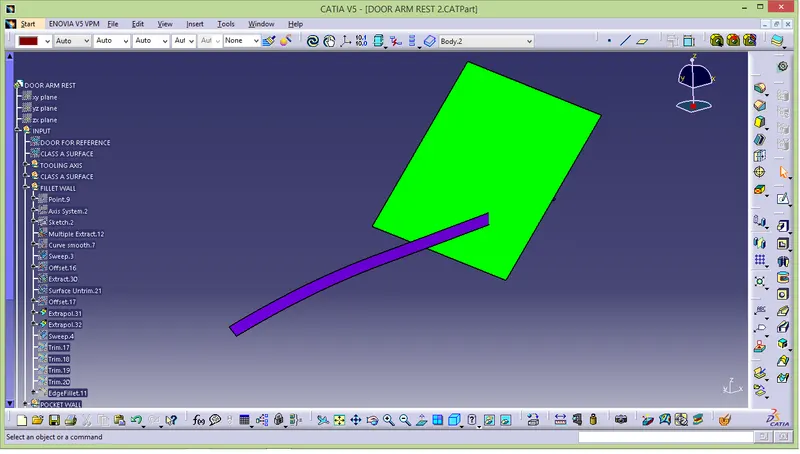

• The surface which going to create by using swept option is class C surface.
• By using multi-extract take a line and smooth it by smooth curve and swept it along reference surface by using 90deg.
• Not all side we going to use reference surface some side we use draft direction by using 3deg.

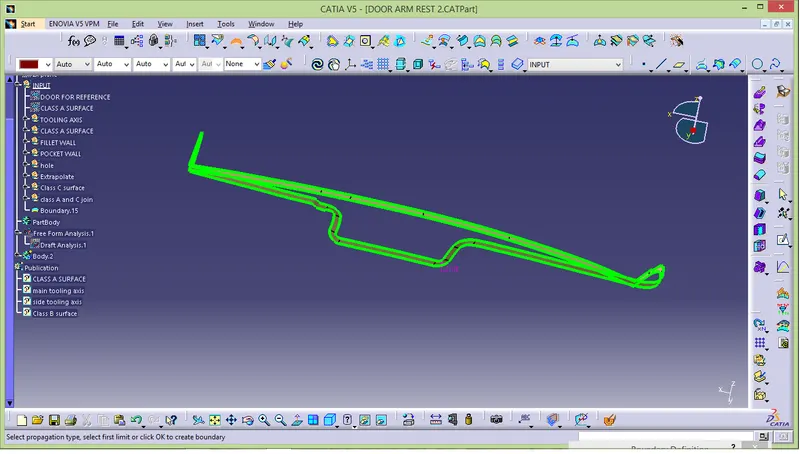

• After created all side join together and take boundary to check all side properly joint or not.

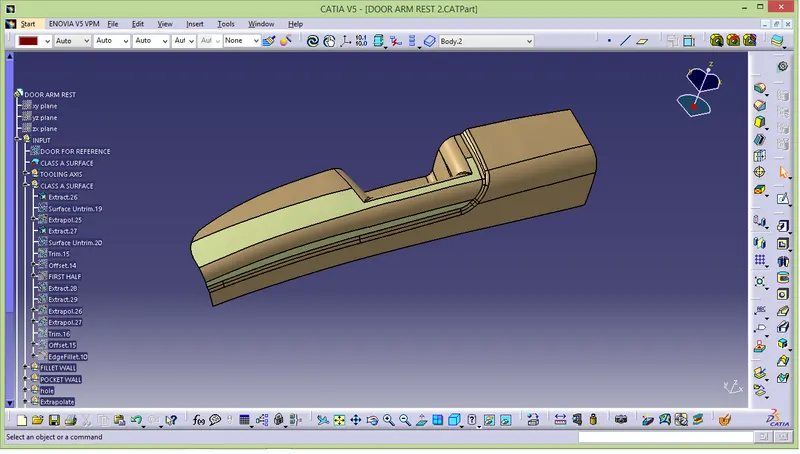

JOIN CLASS A,B AND C SURFACE :

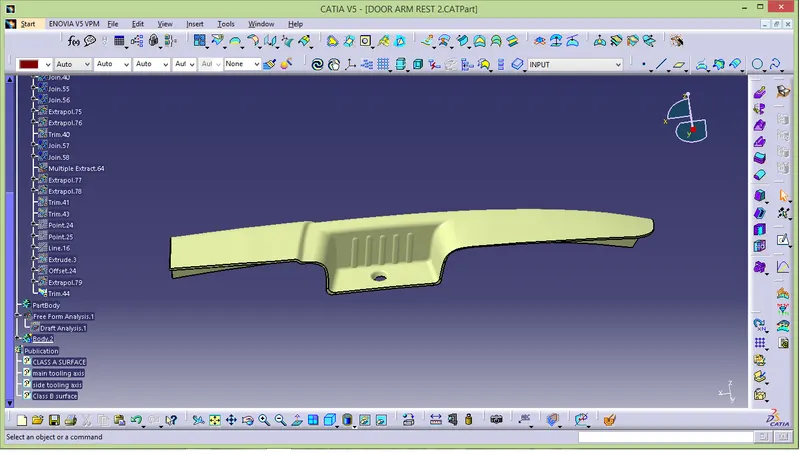

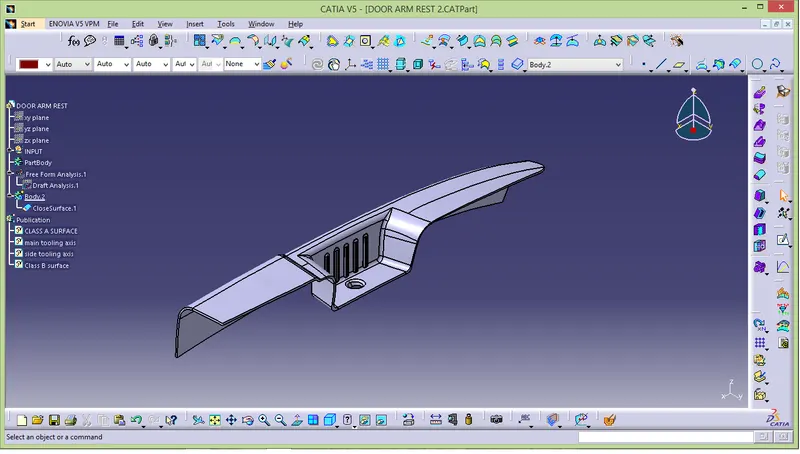

FINAL PART :

CLOSED BODY :

• PART DESIGN -> CLOSED BODY

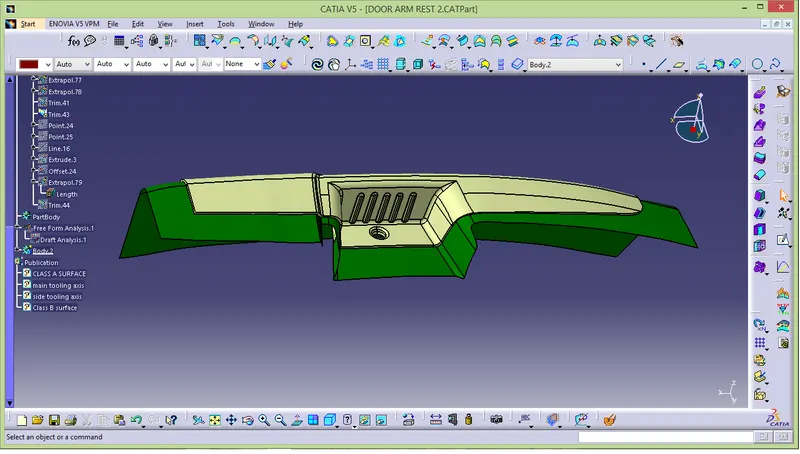

DRAFT ANALYSIS :

• Insert->analysis->feature draft analysis.

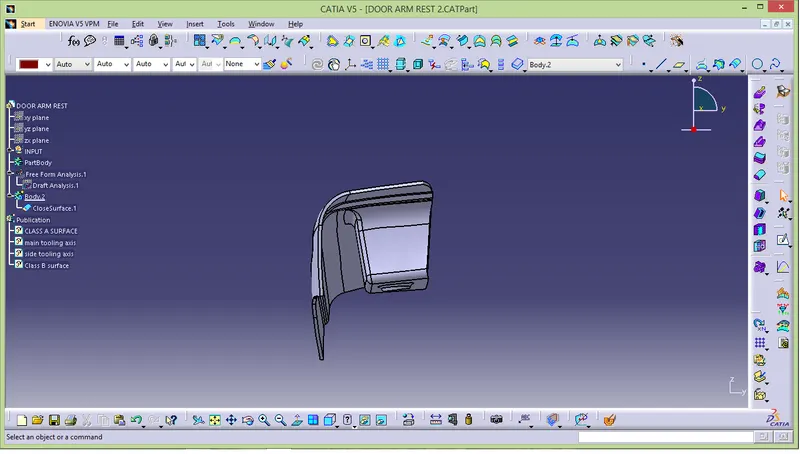

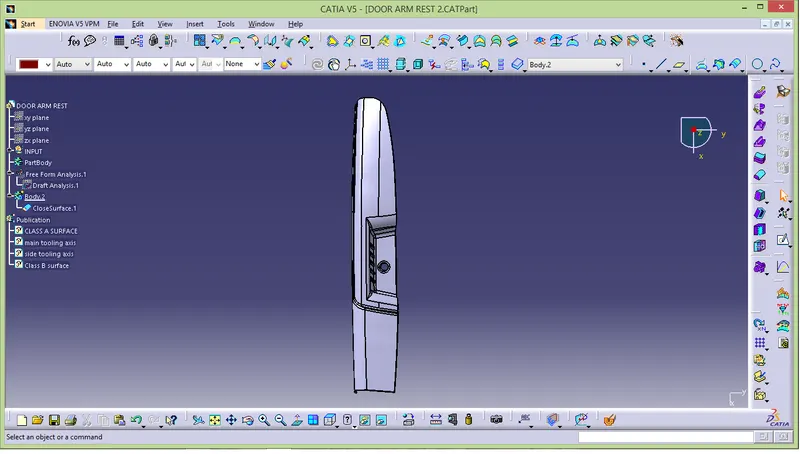

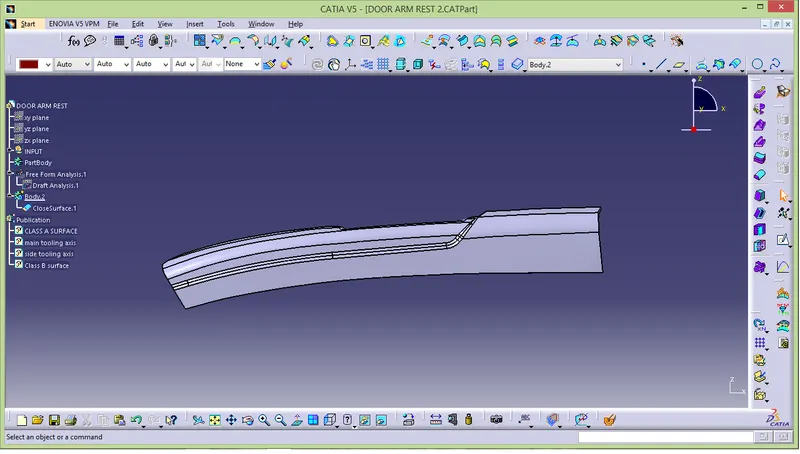

MULTIPLE VIEW:
