Challenge

Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Aim

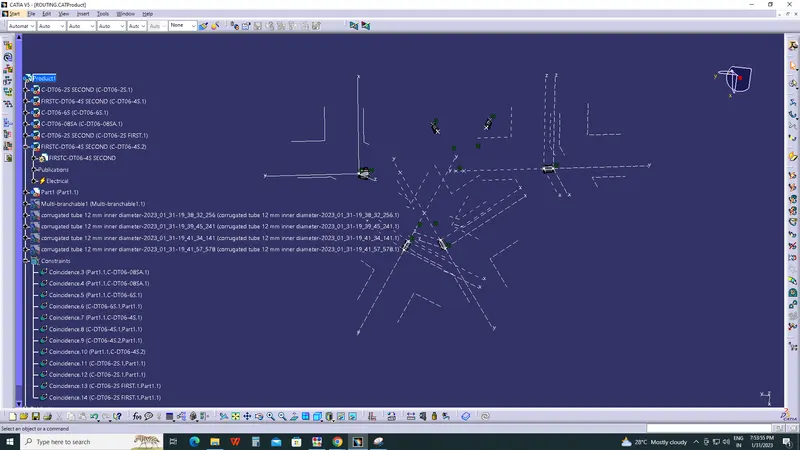

To Route the following harness layout in the Electrical workbench.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors.

Given

CAD data of the following Connectors

Connectors Layout Design

Steps to be followed

2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

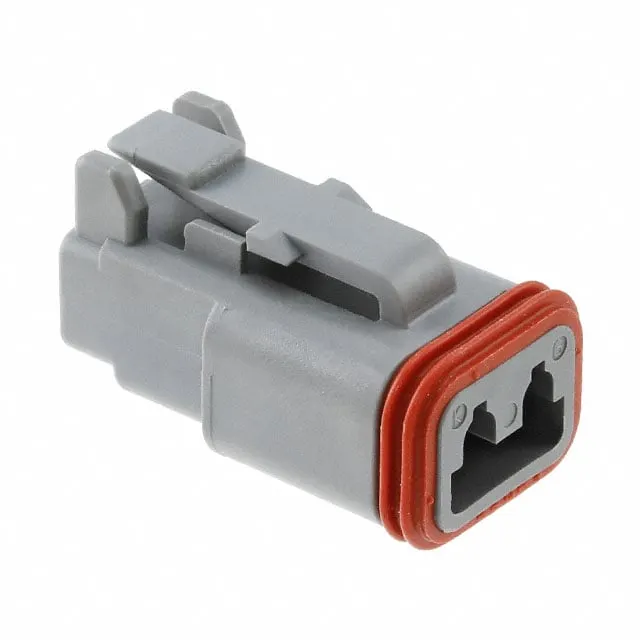

DT06-2S

DT06-4S

DT06-6S

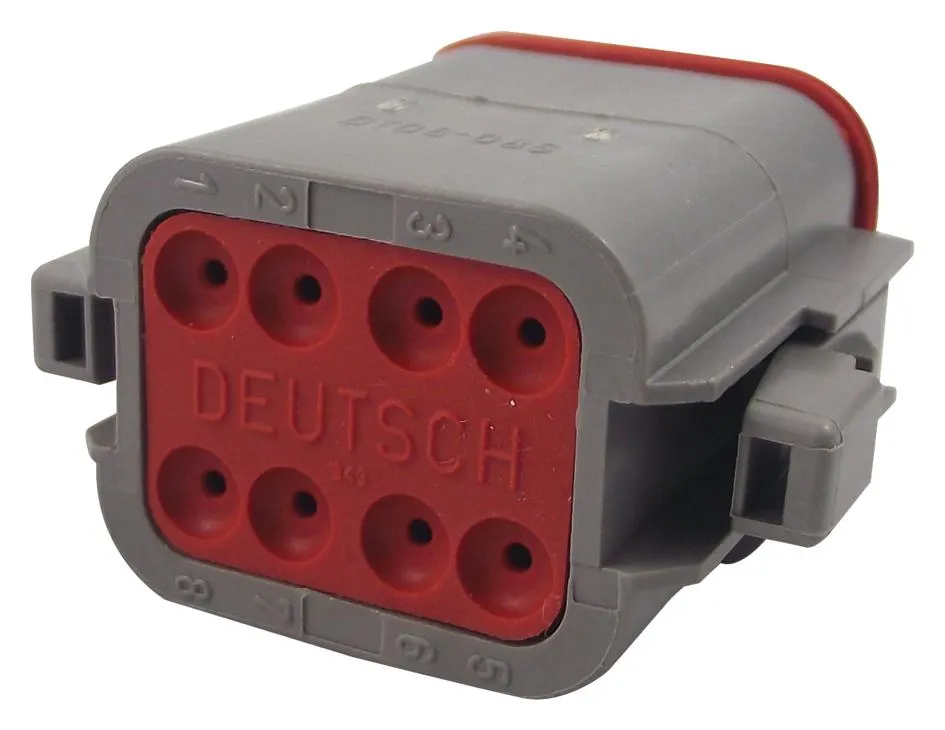

DT06-08SA

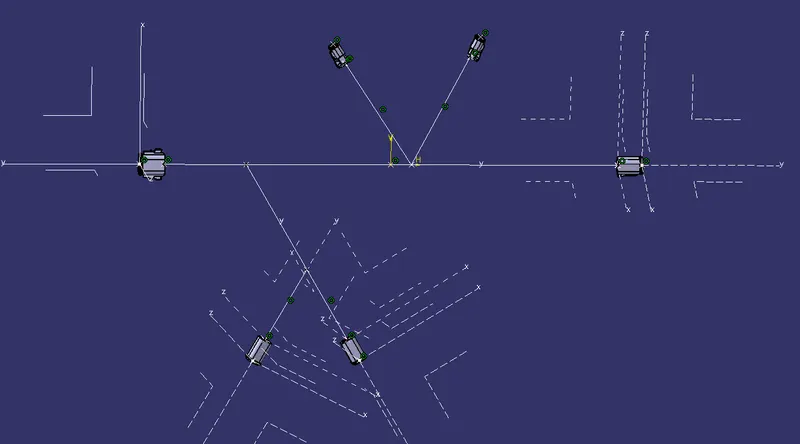

3. Arranging the Connectors by following the Layout

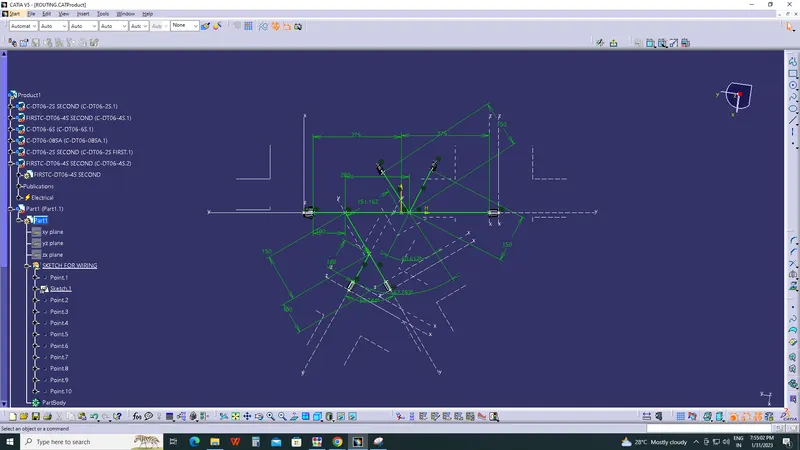

SKETCH

4. Creating Multi-Branching to the connectors

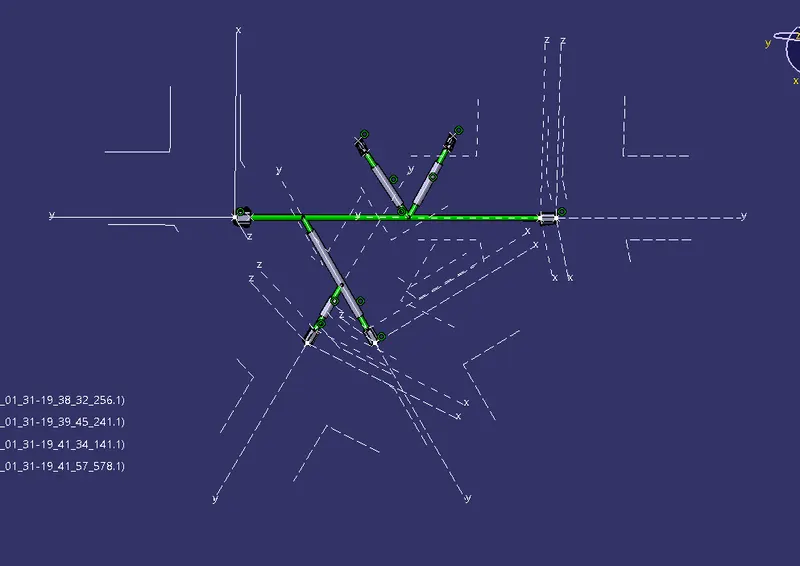

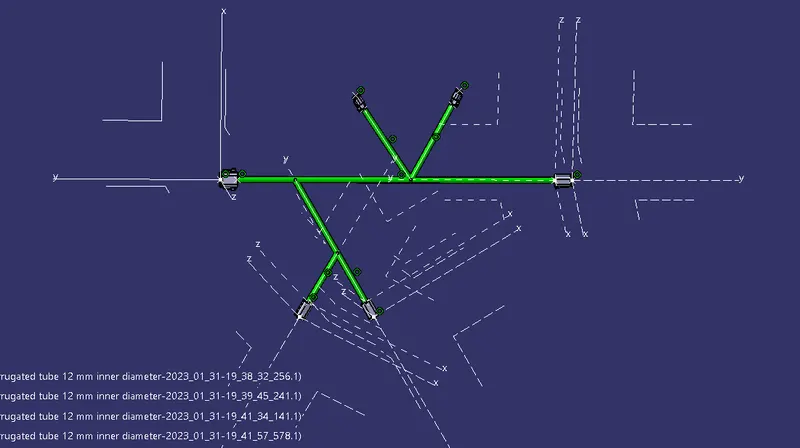

5.creating a protective covering
