Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

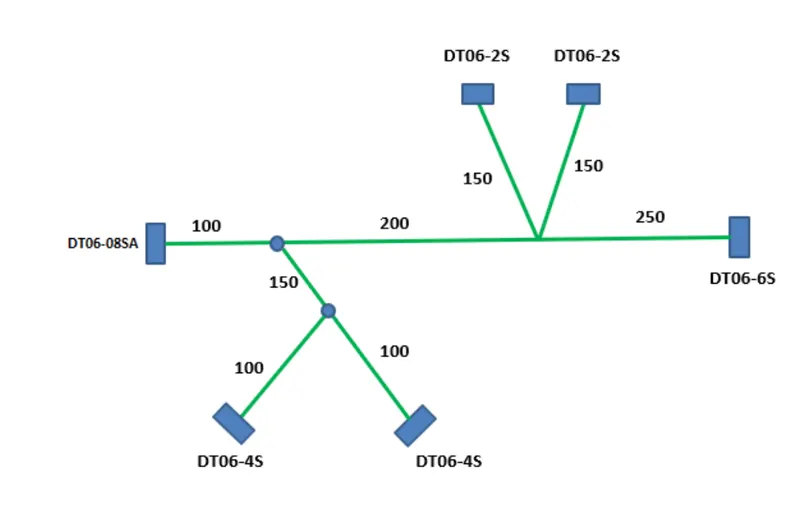

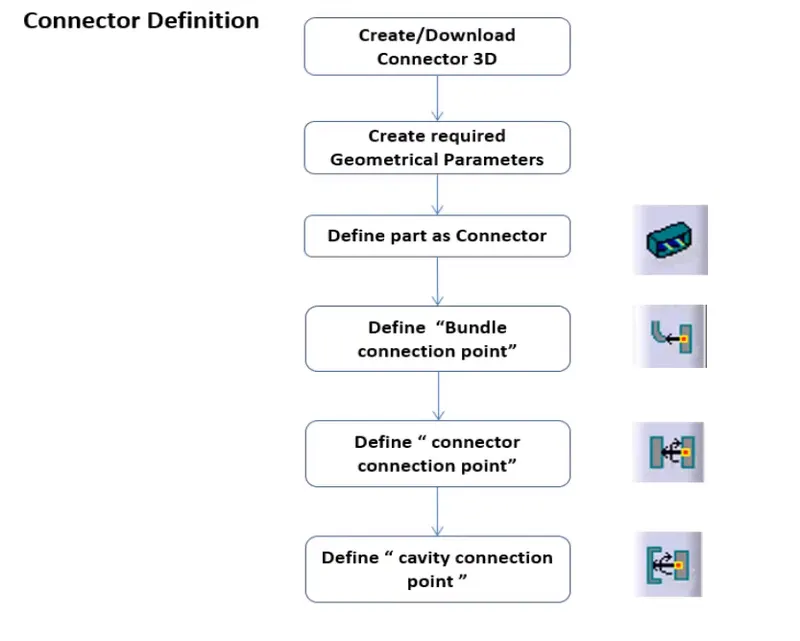

CONNECTOR CONNECTION PROCESS:

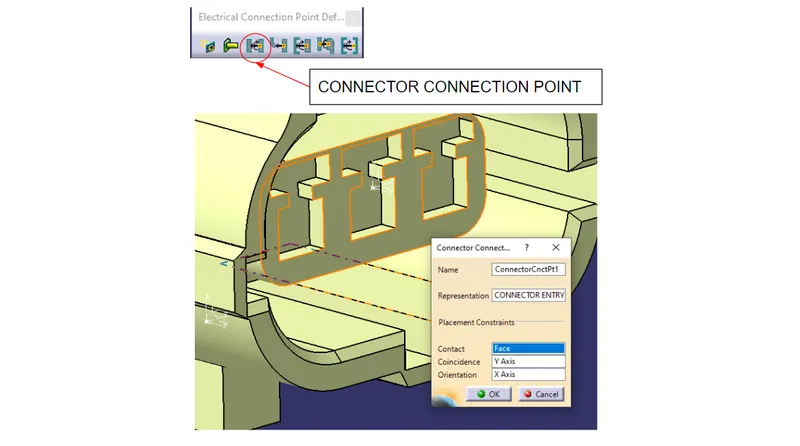

CONNECTOR CONNECTION POINT:
A connector connection point is used to specify how mating connectors are placed when making an electrical connection. Open any document containing a single insert connector where you want to place a connector connection point. Optionally, place a Contact constraint. for example, a surface or a point.

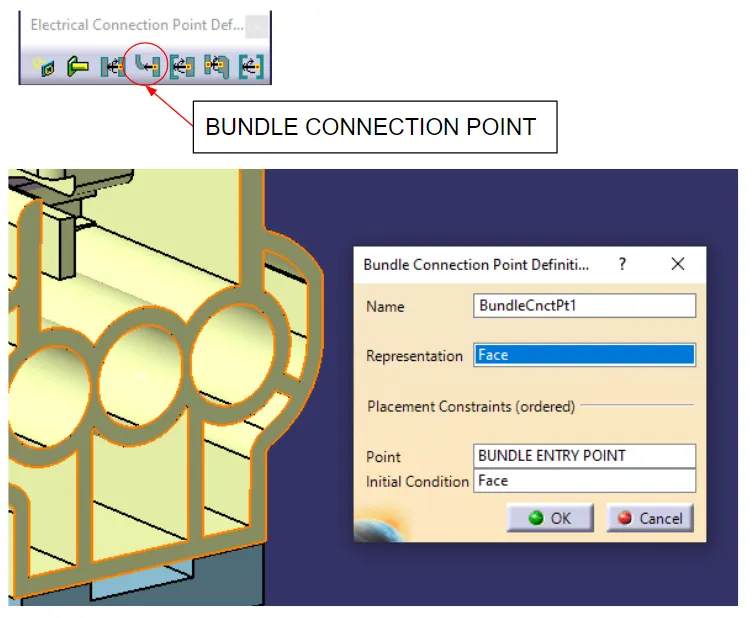

BUNDLE CONNECTION POINT:
To implement the transition of connections or cable connections from multi- to single-line representation, and vice-versa, so-called bundle connection points are used.
CONNECTOR CONNECTION POINT:
A connector connection point is used to specify how mating connectors are placed when making an electrical connection. Open any document containing a single insert connector where you want to place a connector connection point. Optionally, place a Contact constraint. for example, a surface or a point.
BUNDLE CONNECTION POINT:
To implement the transition of connections or cable connections from multi- to single-line representation, and vice-versa, so-called bundle connection points are used.
CAVITY CONNECTION POINT:
A cavity connection point is used to specify how a device is placed in a cavity when making an electrical connection.

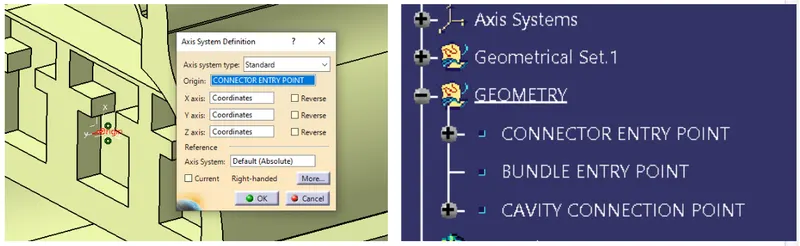

STEP 1: CREATING REQUIRED GEOMETRICAL PARAMETERS:
1. POINTS: Connector Connection Point, Bundle Connection point, Cavity Connection Point.
2. Axis System: At Connector Connection Point, At Bundle Connection Point

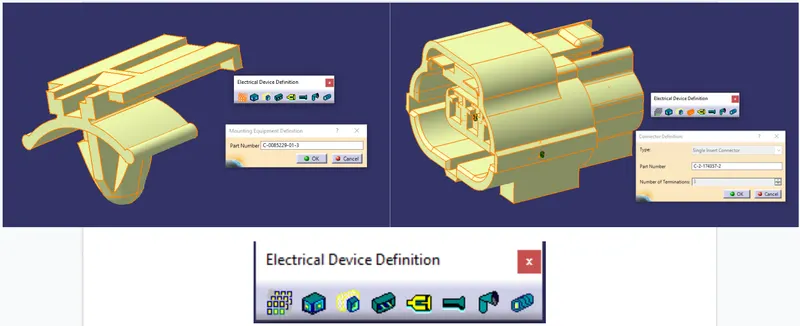

STEP:2 DEFINING ELECTRICAL DEVICE:
STEP:3 DEFINE CONNECTION POINTS

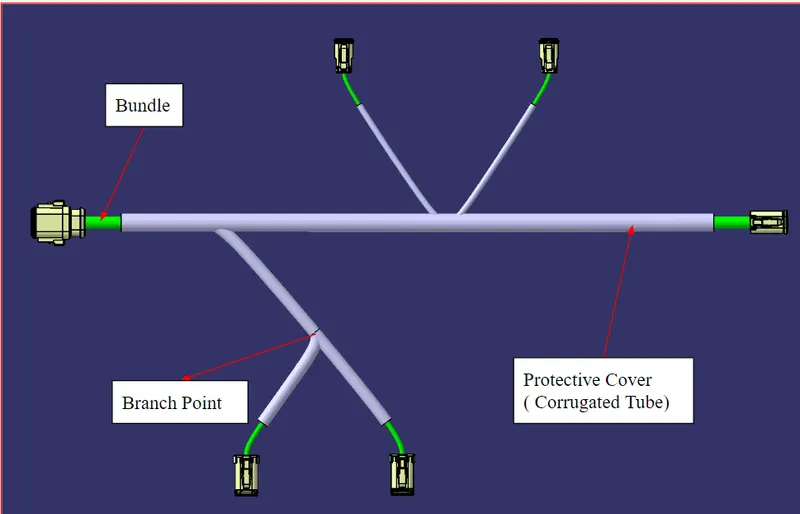

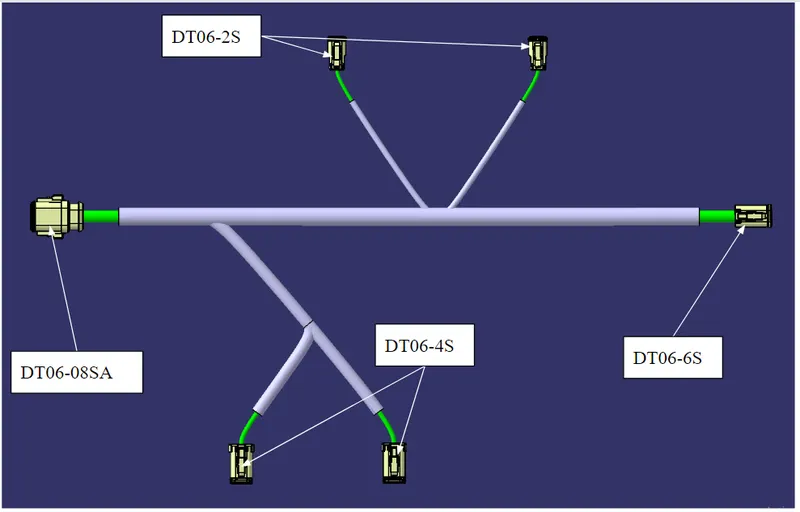

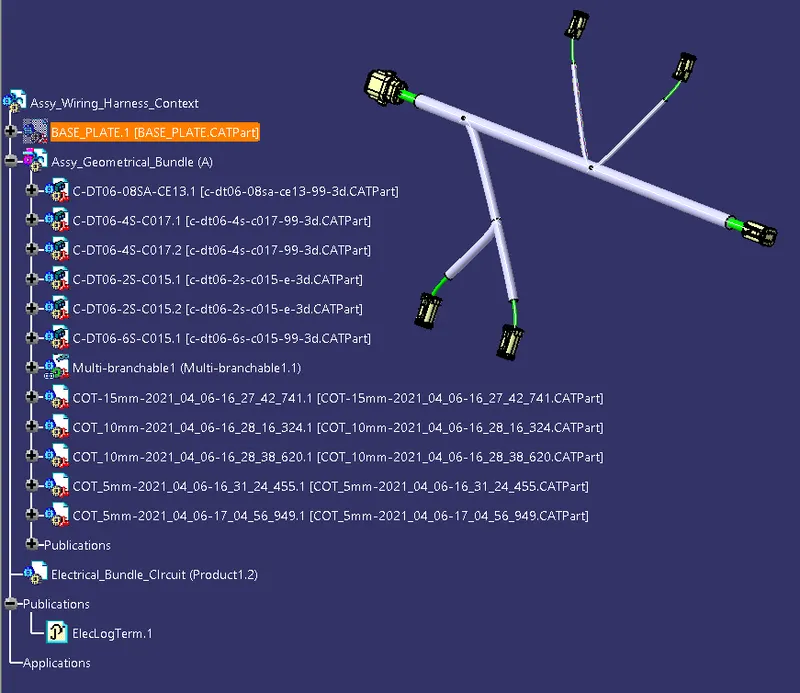

HARNESS ASSEMBLY:
